[WEIRDGUYWITHAKNIFE]

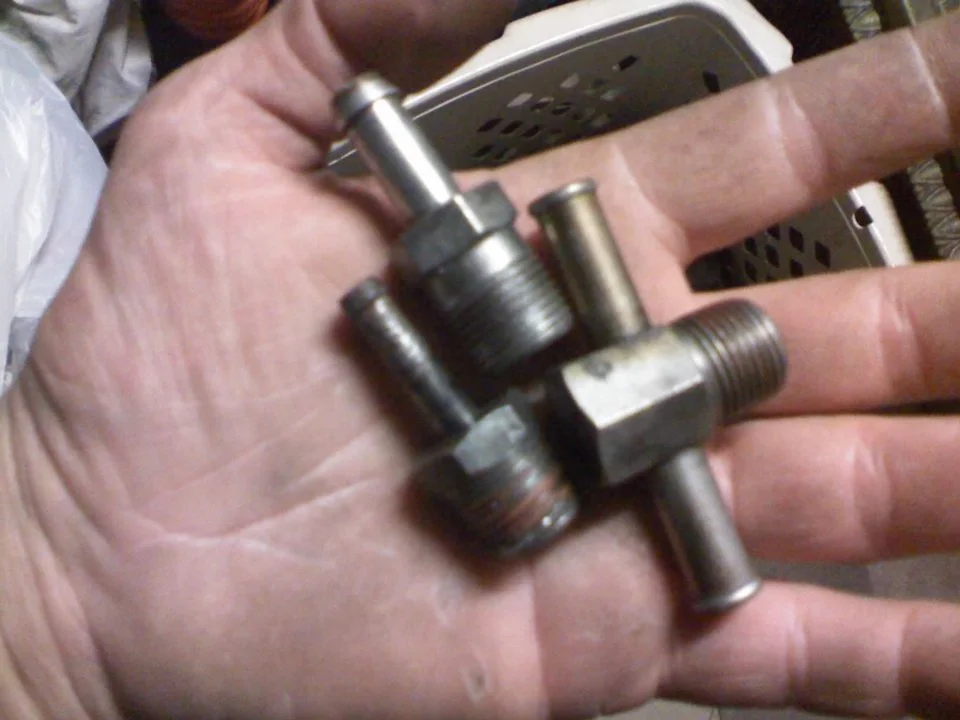

I am at a loss to make much of the diagram. I have been left with the 3 plugs in the picture, I believe 2 go in the manifold and 1 in the plenum but am unsure. If anyone can help it would be great. thankyou



[jrichker]

The tee goes to the plenum and feeds the vapor canister plumbing and the tee on the firewall.

Diagrams courtesy of Tmoss & Stang&2birds
Vacuum diagram 89-93 Mustangs
