well.. scrapped the twin turbo's, doing a nice single setup... check it

[yellow5.0cobra]

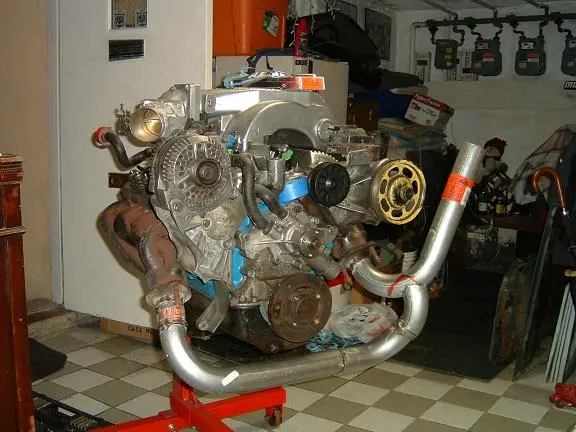

well this cost me $40 today...

and well i finished it completely, im gonna take some pix of it with a turbo mounted in my 94 for references.

turbo will be a T70 Master Power, goal for 600rwhp on a R block.



anyway im in a rush so here are a couple pix.



[94TURBO5 O]

Nice Can't wait to see the #'s on it.



[Ryan Paterick]

are those the stock headers??



[yellow5.0cobra]

no, they are definantly not!



[AznStanger3v]

no, they are definantly not!

hahahaha



[SuperDust22]

no, they are definantly not!



[yellow5.0cobra]

LOL.

Any questions regarding anything?

Just a FYI, A/C will not be used, and maybe in the future, i will figure out a way on how the hell to possibly mount it with everything, but im not 100% positive it can be.

I didnt spend too much time analyzing much because all i wanted to do was finish it, and all it took was about an hour and change(this is my 7th setup, lol, go figure).

so yea whatever you guys feel ya need to know, let me know.

Pete



[I3lack5unshine]

what did the single turbo set you back..I have 2 T3's sitting on my floor I really dont wanna mess with...too much piping



[yellow5.0cobra]

well i had twins on the car for a while, it was time for a little change...

no problem for me to do twins or single, its just that i started finding such good deals on turbo's/wastegates and what not, i said what the hek, let me do something different.

so single it is for now, see how i like it.

also Dan from TMS inspired me to do it cuz he has a nice yellow sn95 with a bitchin single turbo on it, so yea... he made me do it(mentally) lol



[I3lack5unshine]

as far as junkyard hunting goes...what type of turbo would be good for a single setup...what AR #'s



[yellow5.0cobra]

what kind of motor, what kind of engine setup?

junkyard turbos, eh... i would just buy new for $400.

if you cant afford the $400 for a new turbo, then i suggest NOT to do any turbo projects... PERIOD.



[I3lack5unshine]

Yes I can afford the 400...Who has em for 400? As far as setup..Im not sure yet..probably nothing too crazy until I cough up the dough for something else to drive to work



[OinkAodeOink]

looks good, my onlyu concern would be to try and get more of a free'er flowing angle on that cross over pipe conection. Insted of coming into the merge at a 45* or so angle.. try somthing more inline.. im sure it can be done easly



[yellow5.0cobra]

yea it was going to be done like that, but there wasnt that much room to play with, and i had to make enough room for the wastegate, which now there will be plenty of room.

enough room for adjustment and what not.

also the wastegate will relieve excess exhaust much easier this way.



[stang_gt_1994]

Yeah pete are you getting the turbo from Forced Inductions. If so I heard that the T70 you speak of but down 800RWHP on a Grand National. Have fun. BTW are you going with a intercooler this time.



[Adrenalin]

looks good, my onlyu concern would be to try and get more of a free'er flowing angle on that cross over pipe conection. Insted of coming into the merge at a 45* or so angle.. try somthing more inline.. im sure it can be done easly

I was thinking the same thing. Also, what about the point of intersection (pass. side exhaust pipe to drivers exhaust pipe). I am not exactly sure how to say it but like the H in an H pipe needs to be at a certain place (distance wise) for the exhaust temp and exhaust pulse to scavenge etc.

Not sure if I am making this clear or not. I can see where it has to be hard to do tho with the lack of space if it is even an issue.



[yellow5.0cobra]

no no no the exit part where they merge has been cut off and angles differently.

I will give you guys pics later so you can see.

at that point it was not done, battery in cam ran out.

Stang GT:yes from Jose at Forced Inductions.



[yellow5.0cobra]

well... lil update.

i finished tacking all necessary items, minus wastegate flange and finishing off the downpipe, but thats not until me REAL turbo comes in the mail.

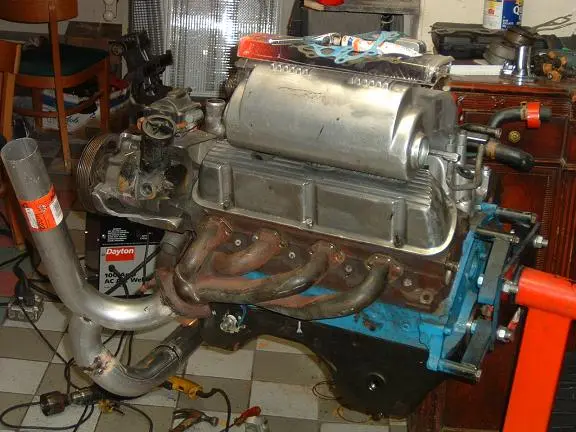

so heres the "finished" product.

one minor tweek i gotta do it just angle the turbo a little more UP and TOWARD the powersteering pump, nothing a hacksaw/sawzall wont fix anyway.

but the merge is much better as you can see, and i made sure it was "ovalized" for max flow from both sides.

but i mean there is no real clearance with the radiator hose, i just need to cut in one place and either use a metal pipe in there, or just shorten it.

here is the "finished" product.



[go.rei GT]

one minor tweek i gotta do it just angle the turbo a little more UP and TOWARD the powersteering pump, nothing a hacksaw/sawzall wont fix anyway.

here is the "finished" product.

Lookin' good! I agree with the "tweak" you still have left. Did it just sort of come out that way when it was all together, or did you put it at an angle like that for a specific reason (and then ditch it). 600rwhp can't wait for dyno and track #'s!
I wish I could buy a turbo and fab the kit from some pipe in an hour, but I guess after your first six times doing it, it comes pretty easy. Nice job.



[yellow5.0cobra]

well i put it at an angle like that just got now, im not done with minor grinding and adjustments, it was basicaly put on to check for clearance.

hopefully i can pick up a local 306 for dirt cheap... so i think i might take that, drop it in for now and while im buildin my R block, i will swap it out later.
