Engine What’s this plug? Putting motor back together

bbredstang

Member
May 2, 2001
47
5
19
Visit site
My car has been sitting for about 6 years partially disassembled to put rockers on and I finally got to work today!!

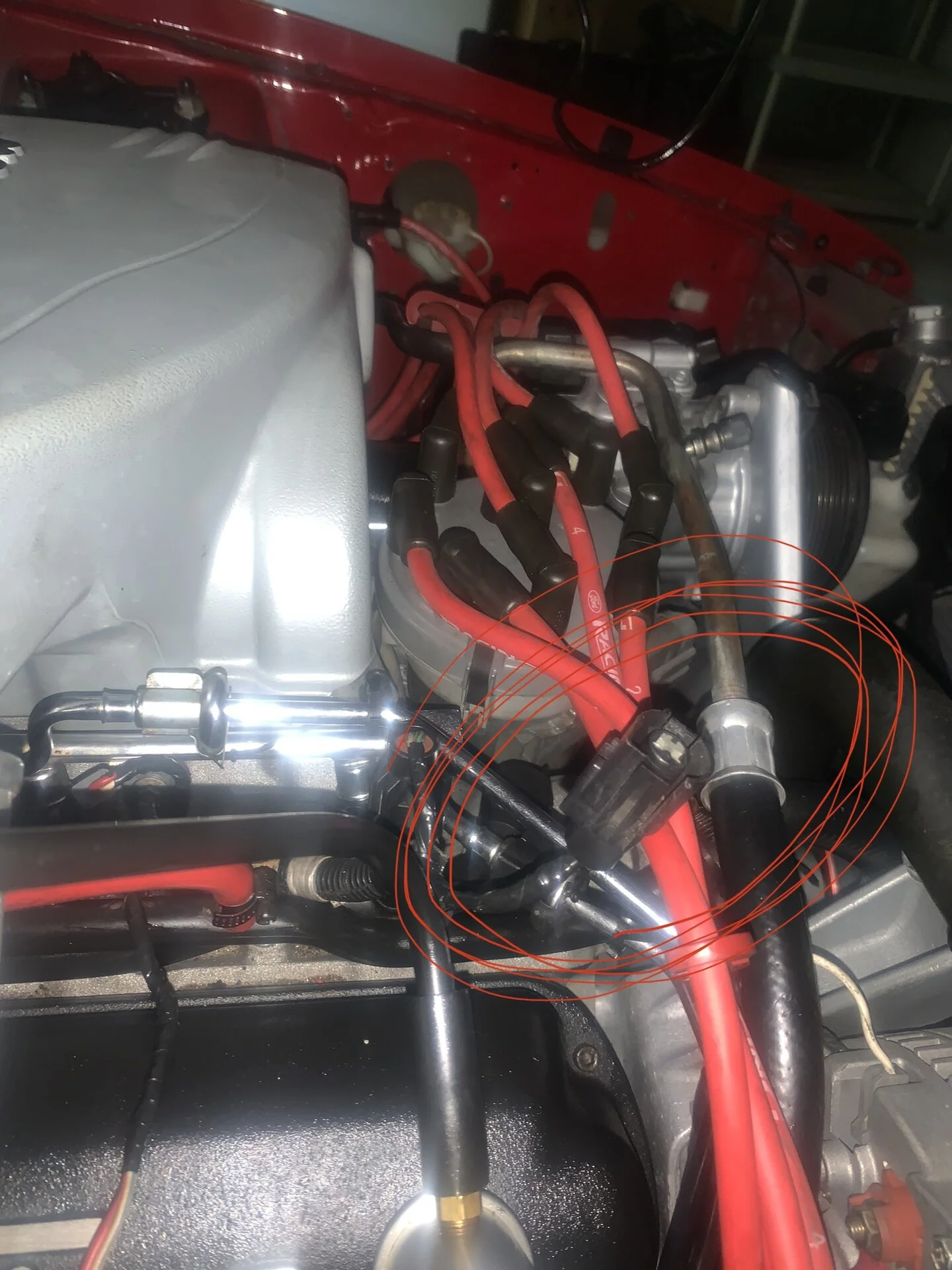

I am almost done however can’t find where this plug goes! Any thoughts from the community?

thanks in advance.


Attachments

  • 431F3906-88FC-4374-BFD8-B21871E05388.jpeg
    349.2 KB · Views: 51
  • Sponsors(?)


bbredstang

Member
May 2, 2001
47
5
19
Visit site
Ahhh - makes sense. I removed the smog pump years back.

Thanks for the information and wish me luck as I turn the key for the first time in half a decade!


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,526
12,477
224
Massachusetts
Yup. That plug would go down to the charcoal canister and operate the EVAP purge valve on the line from the gas tank


Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,156
628
143
55
Cuba, AL
Are y'all sure on that? Mine has two plugs like that for ECT sensor. One is used, one isn't. Same connector as that. I'm just checking. I don't even see that sensor in the pic.


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,526
12,477
224
Massachusetts
Are y'all sure on that? Mine has two plugs like that for ECT sensor. One is used, one isn't. Same connector as that. I'm just checking. I don't even see that sensor in the pic.


I see the ECT plug in his photo. It's plugged in. A little hard to see in his pics because the red lines of the circle are on top of it

The plugs have a clocking feature that only allows them to plug into the correct harness/plug


Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,156
628
143
55
Cuba, AL
I see the ECT plug in his photo. It's plugged in. A little hard to see in his pics because the red lines of the circle are on top of it

The plugs have a clocking feature that only allows them to plug into the correct harness/plug
Yes. But there's 2. One isn't used. Couldn't that be the unused one? That's exactly where it would be.

Edit: Geez.....I finally corrected all the autocorrected errors...I think! Hate cell phones!!!!

Last edited:

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,526
12,477
224
Massachusetts
The unused one goes down to the charcoal canister.


I can take a photo on my car later to clarify, but i'm 99.9% sure the plug he's showing that is dangling in the wind is the charcoal cansiter plug

  • Agree
Reactions: 1 user

Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,156
628
143
55
Cuba, AL
The unused one goes down to the charcoal canister.


I can take a photo on my car later to clarify, but i'm 99.9% sure the plug he's showing that is dangling in the wind is the charcoal cansiter plug
I guess I've had mine off so long I didn't remember it going to anything....lol. I just remember a few months ago a guy posted about those both plugging into the sensor and we all told him it was impossible because of the index corner. He finally posted a pic and the corner was broken off allowing it to snap in. I just remember it being unused. No need to go to any trouble for me. I was just making sure. Thanks for fixing my memory! :jester:

  • Haha
Reactions: 1 user

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
36,526
12,477
224
Massachusetts

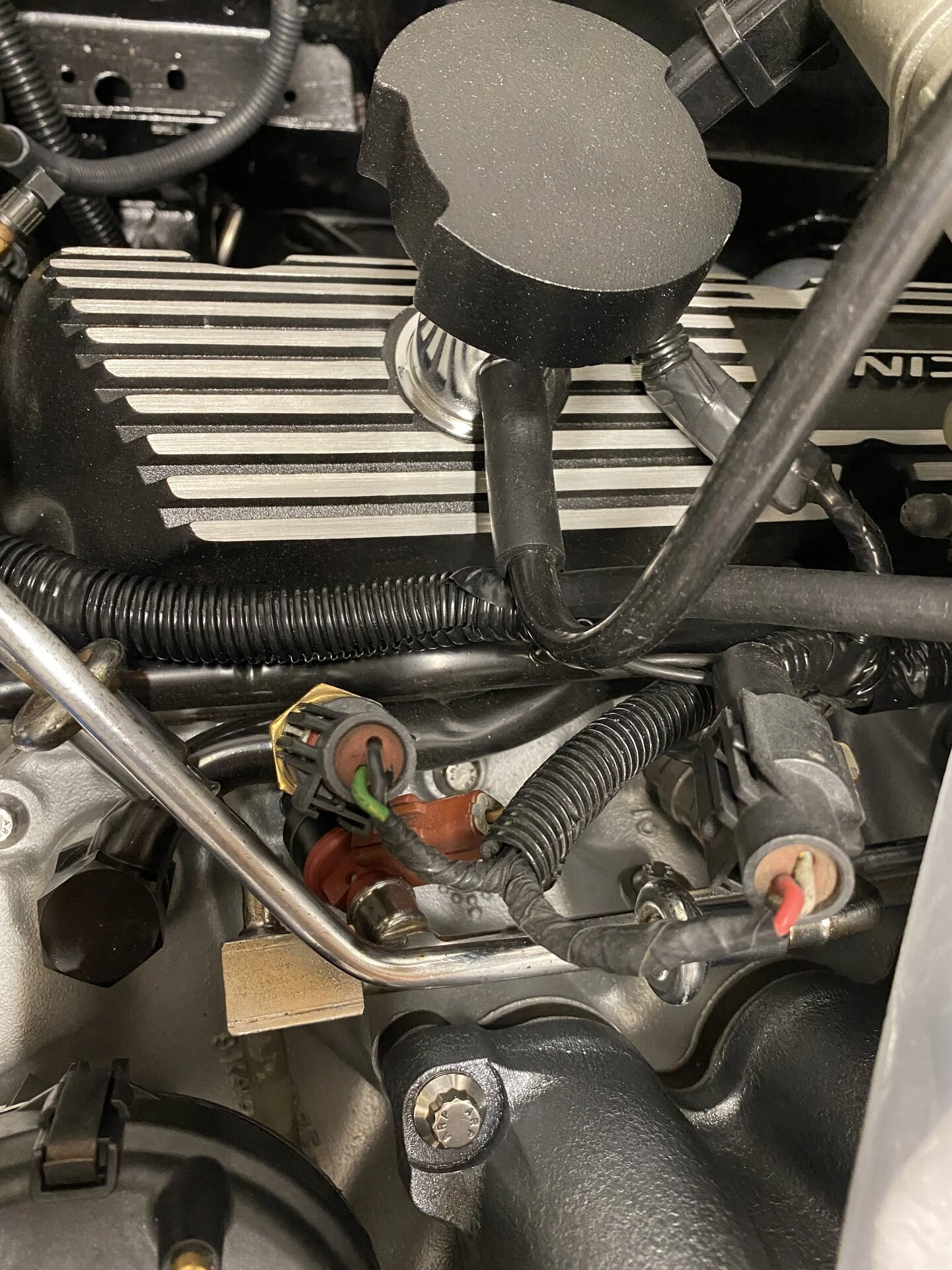

Here are the same two plugs on my car, although slightly rearranged from OeM location.

one to ECT (green wire) and other (red wire) to charcoal canister


  • Like
Reactions: 2 users

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
5,863
4,950
203
43
I guess I've had mine off so long I didn't remember it going to anything....lol. I just remember a few months ago a guy posted about those both plugging into the sensor and we all told him it was impossible because of the index corner. He finally posted a pic and the corner was broken off allowing it to snap in. I just remember it being unused. No need to go to any trouble for me. I was just making sure. Thanks for fixing my memory! :jester:
Yeah...I lost 100 bucks on that bet.

  • Like
  • Happy
  • Surprised
Reactions: 2 users

manicmechanic007

Active Member
Sep 26, 2017
410
87
38
61
I agree with the General et al. The connector goes to the purge valve solenoid. There are no wires going to the carbon canister itself. The wires control the purge valve solenoid and the vapors get sucked into the intake at part throttle cruise
