what is this part ?

[mudbilly]

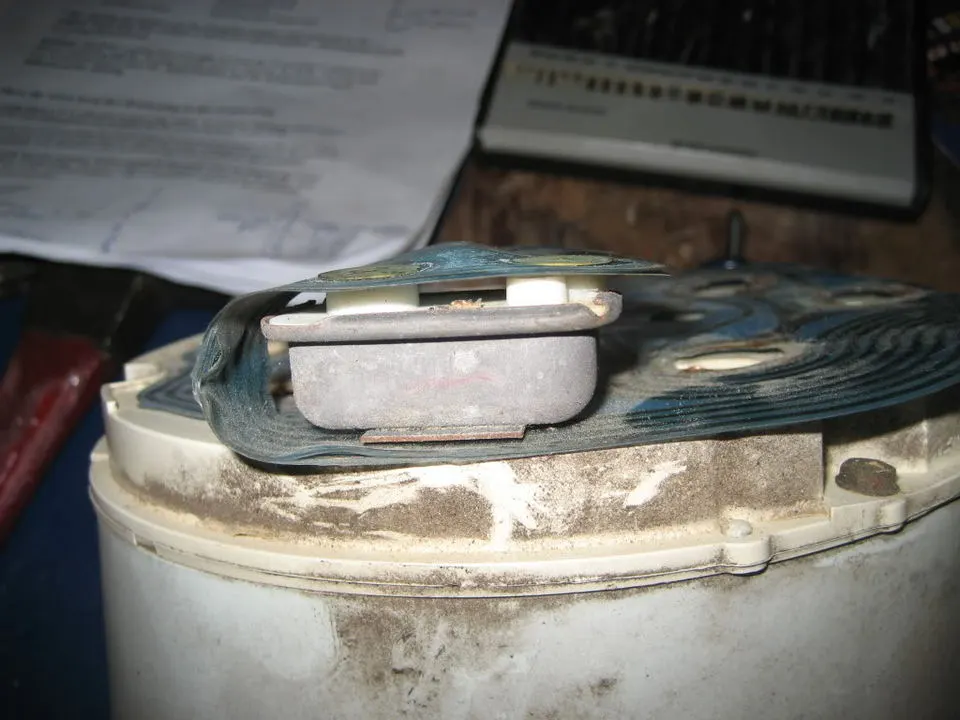

does anyone know what this is called or it does ?

it is on the back of a 71/73 speedometer cluster, it is on both the tach and non tach version.....

the reason i ask, is because i am dealing with some wiring issues with the changover, and am trying to determine if i have things wired wrong, or if this part is not doing what it is supposed to do..

thanks



[Az Pete]

That is an instrument cluster voltage regulator. It drops the voltage to the factory gauges.....from 12 to about 5-6 volts on a pulsing signal. In other words, it does not put out a constant voltage. It is only needed to control the factory or factory repro gauges. I have not seen any after market gauges that require it.



[mudbilly]

thanks,

so it would somehow have been connected to the factory gauges that are in the center console??

the reason i ask, is because there are no gauges, per se, in the speedo cluster.....only::

turn signals
hi-beam
brakes
backlights
gas gauge
