Who has installed a brake kit from BuyFordRacing.com?

[Mustang5L5]

I had no problems with mine. I just screwed them on and no leaks. Didn't need teflon either



[twogts4us]

Do you folks even think the rear brakes are worth upgrading?
Will someone share a few pics of there brake upgrade?

The fronts? Here ya go...really wish I had painted the hats...when I need to chg pads, I'll spray em then...



[Mustang5L5]

I painted my hats using Aluminum high temp engine paint. Calipers were done with the duplicolor brush on kit. They are plain Mach 1 calipers



[SilverBullet00]

so did you paint the whole rotor then or just the hat area?

and is it acceptable to use teflon tape? I have never had to do it in the past so it has me kind of concerned...



[Mustang5L5]

so did you paint the whole rotor then or just the hat area?

I made a mistake and painted the ENTIRE rotor first. On my first drive, the pads wore the paint off, but it made a jagged edge where the boundary line is between the swept area and the center hat.

A better way to do it requires just putting the brakes on as is, driving on them and then pulling the wheels off. The second time i painted the rotors what i did was get black electrical tape since it will go around curves easy and mask off the area that the pad swept. I also bagged the caliper to prevent overspray and taped and bagged off anything i didn't want to get paint off. Then i gave the hat and edge of the rotor some light sprays and let it dry and repeated. I had to then take the tape and bags off, spin the rotor 180* and do the part that was under the caliper.

Sounds like a huge PITA, but it really only took me about 30-45mins each side after installing the brakes and going for a drive.

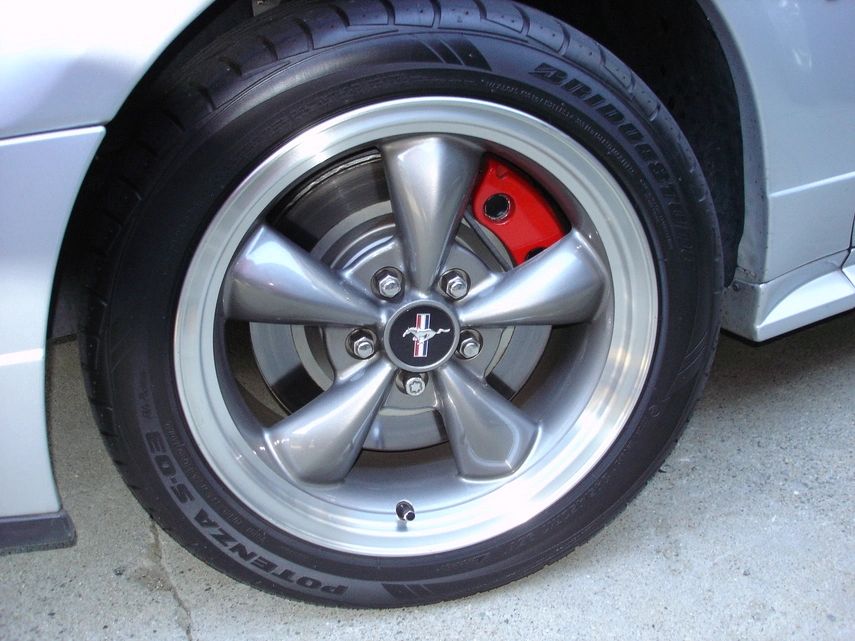

If you look in the pic, you can kinda see the edge of the rotor at the top and you'll notice it's still silver. For cleaning i just wipe brake dust off with a wet sponge by sticking my hand through the spokes.

The above pic was taken 1 YEAR after i painted my brakes.



[superstang01]

i didnt run into the leaking prblm when i helped my friend put his on!



[Brute03]

i was looking at a set of cobra calipers from summit the other day, can they work with the stock rotors?



[Rusty67]

No, Cobra calipers are the same as the Bullitt calipers, they just look different. They use the same pads and rotors.
