Why does my Dyno Sheet Look Retarded?

[exindust]

I got my car dyno tuned and i was happy happy with the numbers but after i left the shop (2 hours away) i started looking at my graphs and the graphs dont really match up with the numbers... the torque makes sense but the HP doesnt... help?

im running a 2001 SC'ed Bullitt 8psi

im assuming the smaller graph is the HP the larger is TQ... am i right or what is the deal?



[ChrisWorrell]

wtf? i was under the impression that all graphs the two curves would intersect at 5250 rpms. I think there is something wrong?



[exindust]

yeah! WTF?! help me stangnet pro's! why is my car retarded



[MaxMustang]

It looks good to me.

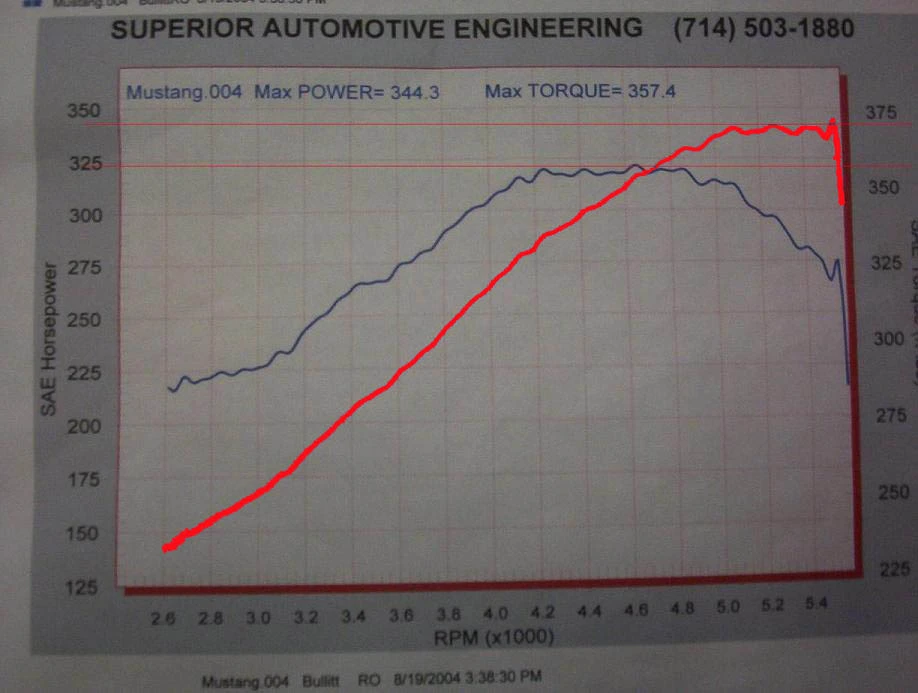

Here is what the curves should have looked like if they had made them different colors like they should have...

The scale for HP is on the left and the scale for torque is on the right. Since the scales are different the crossover won't "look" like it is at 5250 but it is.



[exindust]

ya but look at my HP curve and look at the number it puts out 344 HP and the curve barely reaches 325hp



[MaxMustang]

oops, you are quick. I edited my response.



[Venom_Nitrous]

LOL. Smart. I would have been scratching my head all day on that one. Good job. You get a cookie MAXMUSTANG.



[exindust]

still though maxmustang why doesnt the graph and the number (HP) match up?



[007]

The scales are DRAMATICALLY different for HP and torque on your chart. Thus it doesnt appear to cross as expected, and looks funny.



[BlackenedSVT]

Maybe *I'M* messed up because i think it looks fine
