Wiring Diagram for Fuse #8 94 GT Vert

[velocity]

My Fuse #8 keeps blowing. It controls the door chime, clock, speedo, odometer, etc. Does anyone have a wiring diagram for fuse #8 and a diagram to show were everything is located so I don't have to hunt everthing down?

Any one have any suggestions on how to approach fixing this?? The Fuse does not blow immediately all the time, sometimes it does and other times and just replace the fuse and it will work for a while and then it will blow.

Thanks in advance



[bso]

Controls vanity mirrors, drop down visors and check that the wiring is not pinched or broken in the headliner.



[velocity]

It is a vert, so I am assuming the wires run up the A pillars, any idea which one or is it both?

Any other suggestions.....



[The Green GT]

I have a Ford wiring diagram that shows how every wire in the car runs. Ill find it and scan it sometime tomorrow when I get home.



[velocity]

Sounds great!!! thanks The Green GT



[velocity]

I just took out the multi meter and circuit testor to check the fuse block it self. It is getting the correct voltage. So I tried just putting a new fuse in, and it worked for about a hour drive. It is still good, but I am sure it will blow again. Any one have any other idea of things to check???

Thank again for the help.



[The Green GT]

I forgot about this. Let me go find that book.



[The Green GT]

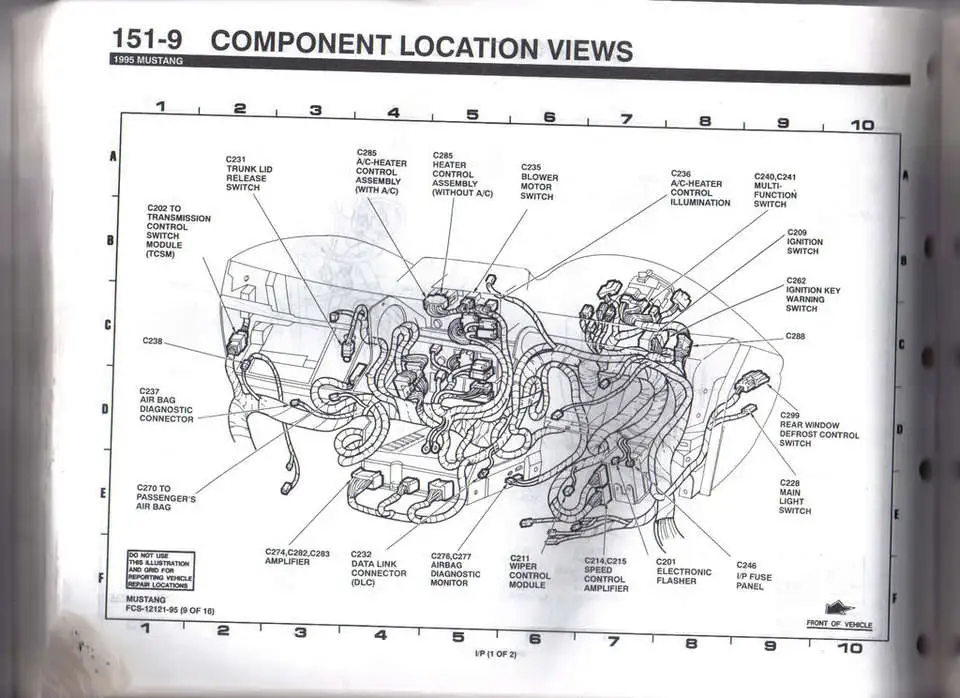

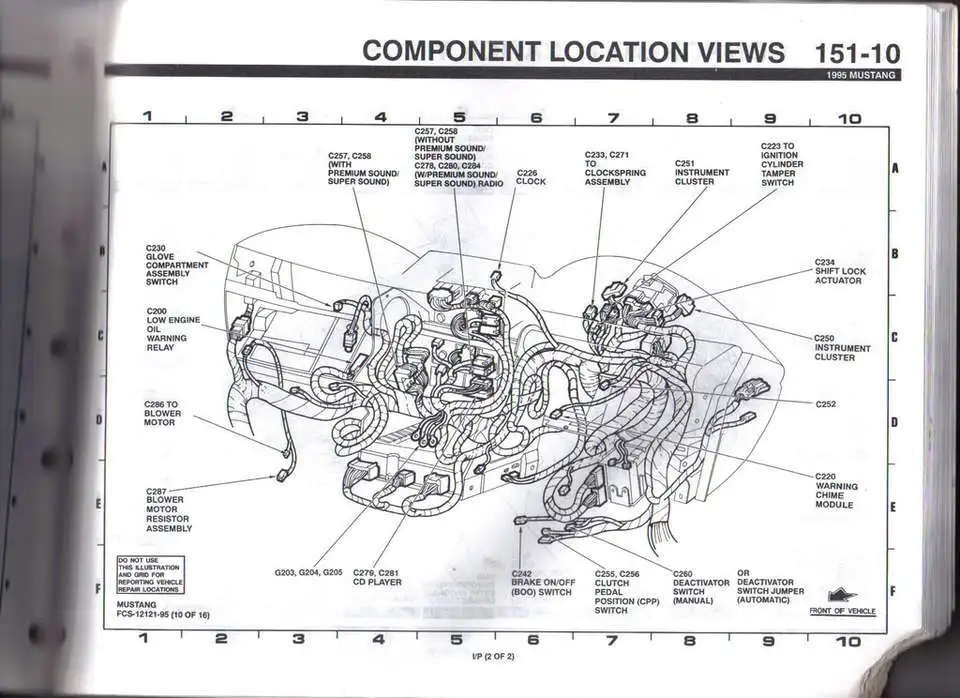

not sure if this is what you are looking for.



[Stanger007]

This may help you out:

http://www.mustang-tech.org/wiki/Category:94-95_Mustangs_Electrical

Wes



[velocity]

Thanks alot for your help I will let you know if I need anything else. By the way what book is that that you have. It looks like it has a lot more info than the Haynes and Chiltons manuals.



[The Green GT]

Thanks alot for your help I will let you know if I need anything else. By the way what book is that that you have. It looks like it has a lot more info than the Haynes and Chiltons manuals.

Its a Ford Book. Its called "Electrical and Vacuum Troubleshooting Manual" I picked it up on eBay for around $25.

It has EVERYTHING in it.

All the connectors have a number and in the back, it even has part numbers for all the connectors.



[Adam95GT]

Check the connections at your radio... thats where my problem jsut was...



[StadEMS3]

try this site out- http://www.veryuseful.com/mustang/tech/engine/ it has a lot of good info.



[velocity]

I already pulled the radio (aftermarket) that was in there.

THe fuse worked fine four about a day or two and then it blew again. I was putting the top (vert) and all four windows up at the same time and I noticed the clock was out..... the fuse blew again. I don't know if it blew when I was doing that or if it blew earlier and I just didn't notice.

Anyone have any idea if this could have something to do with it???

I am going to investigate further, but I have to wait till I have a day off.



[Nickka]

I have a Ford wiring diagram that shows how every wire in the car runs. Ill find it and scan it sometime tomorrow when I get home.

Thank you!
