Where can I get a new complete engine bay wiring harness for a 90 5.0gt?

D

Daggar

New Member
Jul 19, 2004
3,902
5
0
Feb 5, 2007
#2
  • Feb 5, 2007
  • #2
shopping thread

--moved to talk--


jrichker

StangNet's favorite TOOL
In Remembrance. Thank you for your contributions
Mar 10, 2000
27,512
2,813
234
Dublin GA
Feb 5, 2007
#3
  • Feb 5, 2007
  • #3
Which harness? there are at least three wiring harnesses in the engine compartment.
Copied From bbunt302

Just for reference, here's a list of all the compatible years:

Main computer to engine wiring harness:
89 harness should work for 86-89 as long as you're using mass air.
90 harness will only work in a 90. (B/c of air bags and dual dash connectors)
91 through early 92 harnesses should be compatible (single dash connector, fuel pump relay under driver's seat)
Late 92 through 93 harnesses should be compatible (single dash connector, fuel pump relay under the hood)

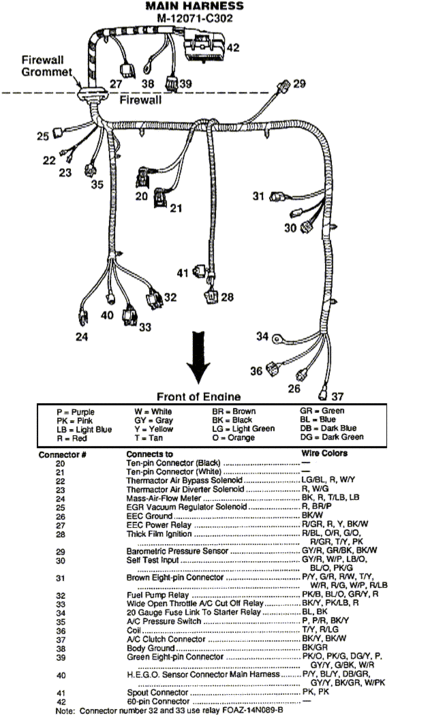

Diagram courtesy of Tmoss & Stang&2birds




I don't have access to a picture of the body wiring harness, so you will have to guess what that one looks like.

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel pump, alternator, ignition & A/C wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Computer,. actuator & sensor wiring
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Fuse panel layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Vacuum routing
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg


Attachments

  • mustangEngineHarness.gif
    78.3 KB · Views: 662
  • mustangMainHarness.gif
    84.7 KB · Views: 1,200
