Wont start

[Slo 5.0]

i went through the cranks but wont start checklist thing and got to the part where i check the red wire to the injectors for 12v and i only have 3.66v with the key at run. can anyone tell me where to go from here?



[STANG9350]

The voltage for the injectors are fine I assume you have spark right? Is the fuel pump running?



[Slo 5.0]

The voltage for the injectors are fine I assume you have spark right? Is the fuel pump running?

are you sure the voltage is ok? i only have 3.6v and i thought it was supposed to be 12v. Yes, i have spark, and the pump is running and i have pressure.



[HISSIN50]

I'd trace the fuel injector wiring harness, clean the 10 pins, check them for continuity (make sure the pins are aligning), etc if the injectors are the only thing showing a voltage drop.




I'm sure JR will pop in with the polished reply, but those are my crude thoughts.

Good luck.



[jrichker]

The red wire is common to the EGR vacuum regulator, smog pump TAB & TAD solenoids
and the low coolant light. Check any one of those for 12 volts. If they show 12 volts,
the 10 pin connector is suspect. If not, the EEC relay its power wiring is suspect.

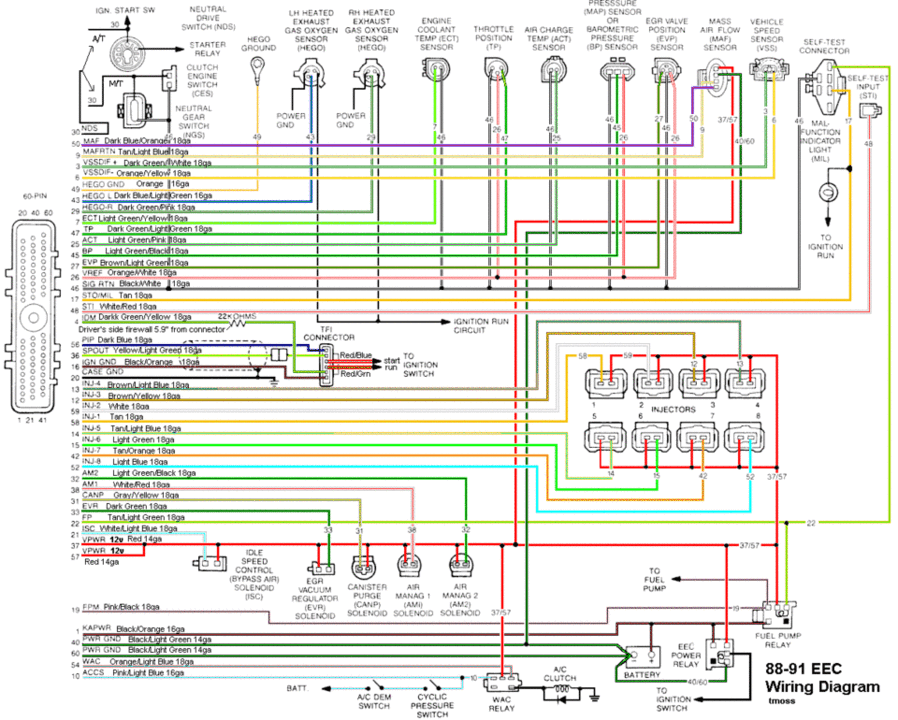

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif
