Electrical 1987 GT Hazard switch connector

Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods
Hey Guys, good afternoon,

When I removed the instrument cluster to replace the speedometer cable, the hazard switch connector on my 87 broke internally (despite my best effort to be careful.

Now the wires won't stay in the plug and they fall out.

I went ahead and ordered a replacement connector from LMR, but as some of the wires fell out, I'm not sure where they go now.

I searched and found the following old thread


Is the diagram in that thread applicable to my 87?

I found other threads where folks used glue of various types to retain the wires, so I am considering some super glue to do this and then return the LMR connector. Or, I may just use it so I have a proper repair.

If the diagram in the attached thread has the same wire color codes I should be good to go. If not, if anyone has one for an 87 GT, that would be much appreciated

Thanks,
Greg

  • Sponsors(?)


Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods

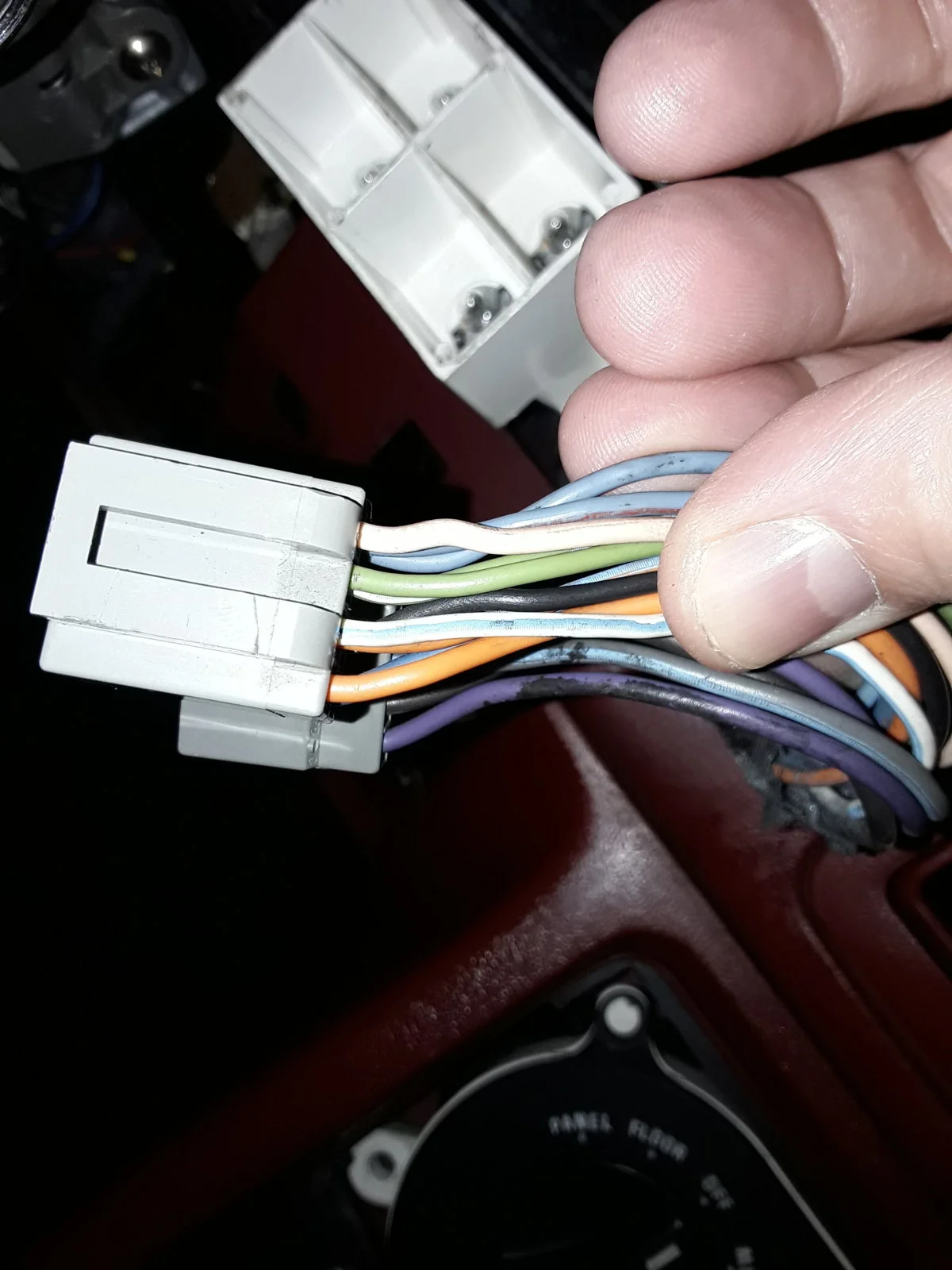

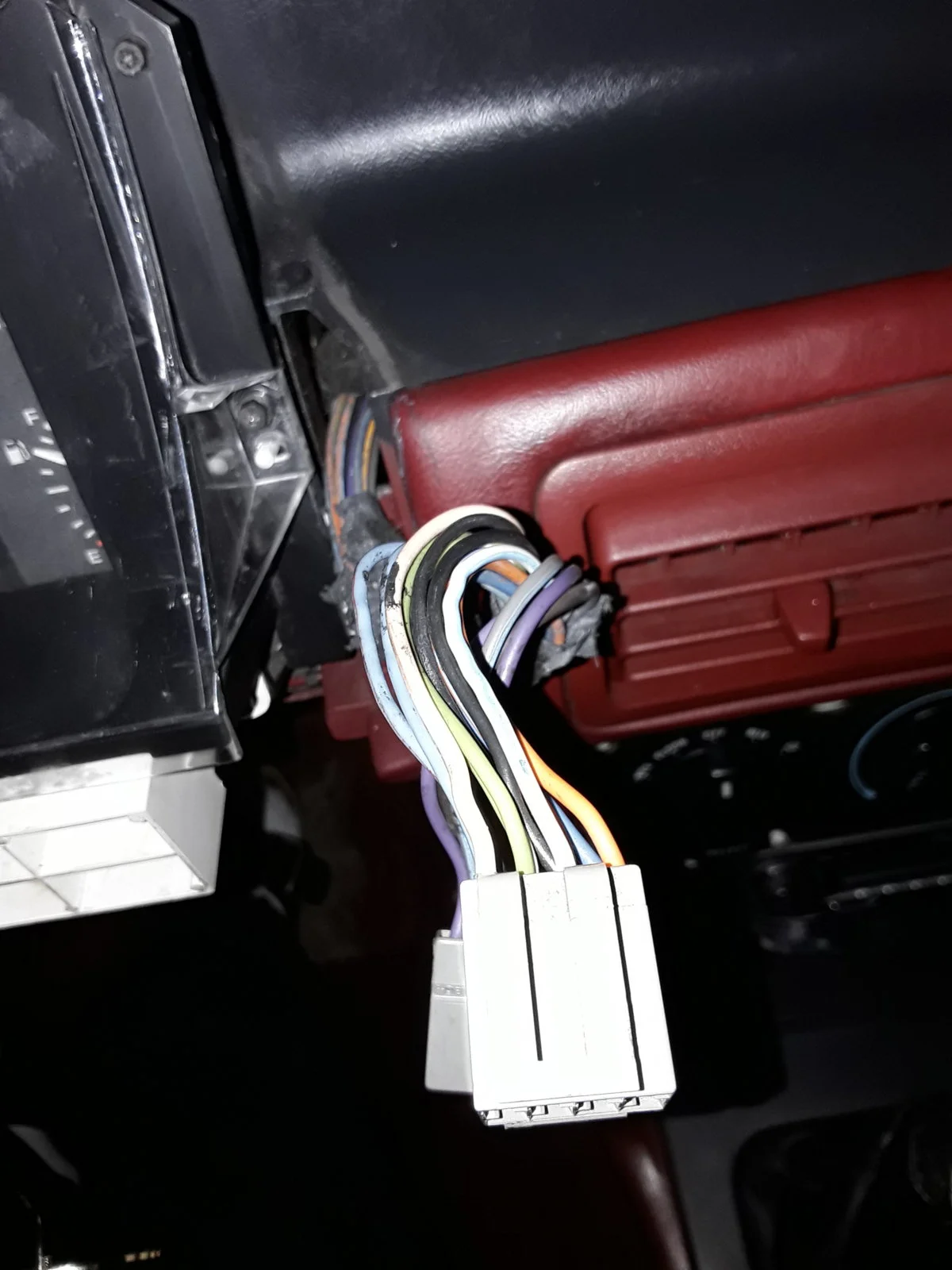

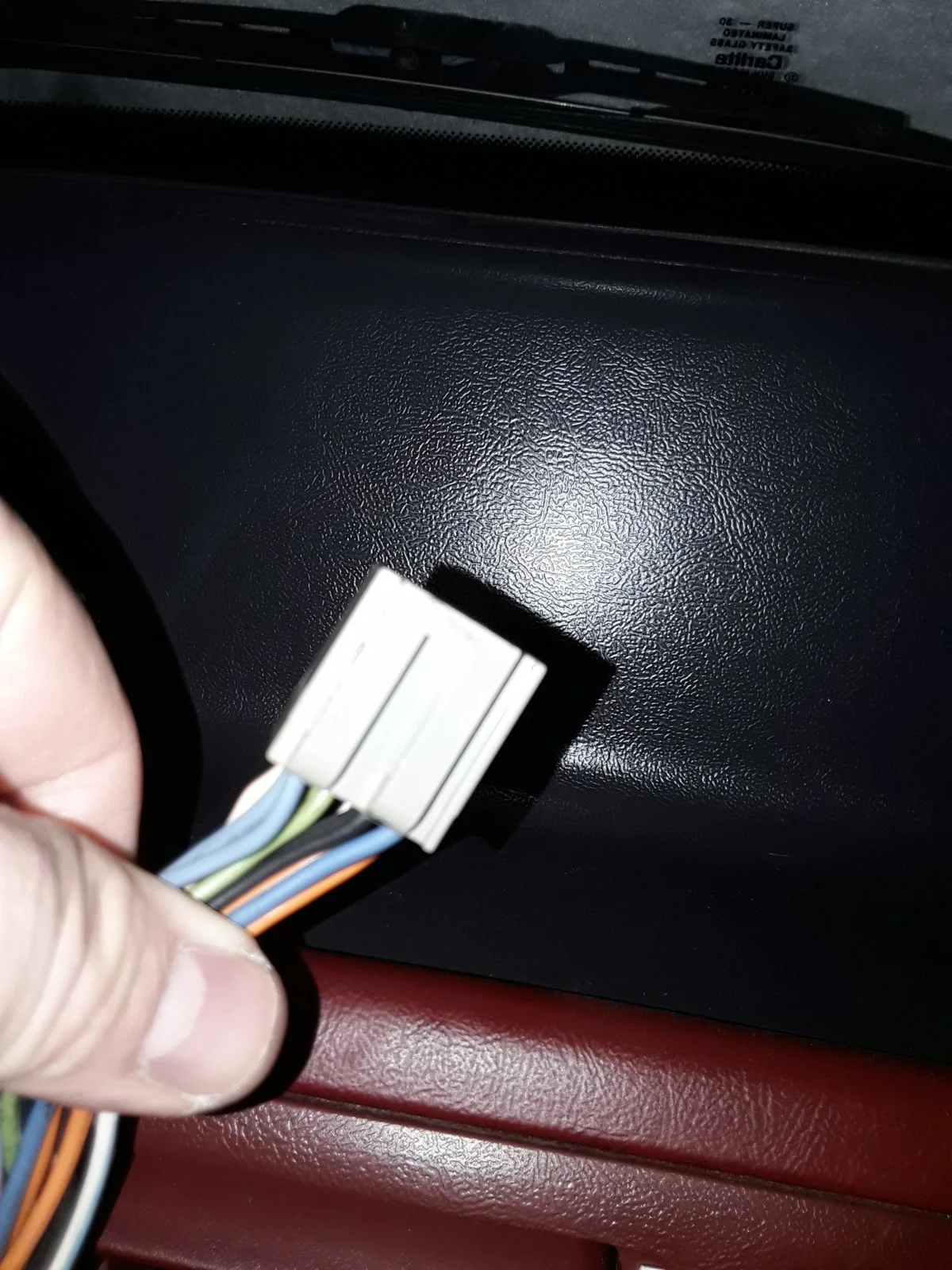

I just checked my car and I believe the diagram in the old thread is accurate. See my attached photos of my plug. My harness seems to have a pink wire where the W/R is showing on the diagram, but beyond that, all matched up.

I'm attempting a repair first, using JB weld to hold the wires into the plug. If that does not work, I'll just replace the plug with the new one from LMR when it gets here. This was taken before I corrected the wire locations


Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods

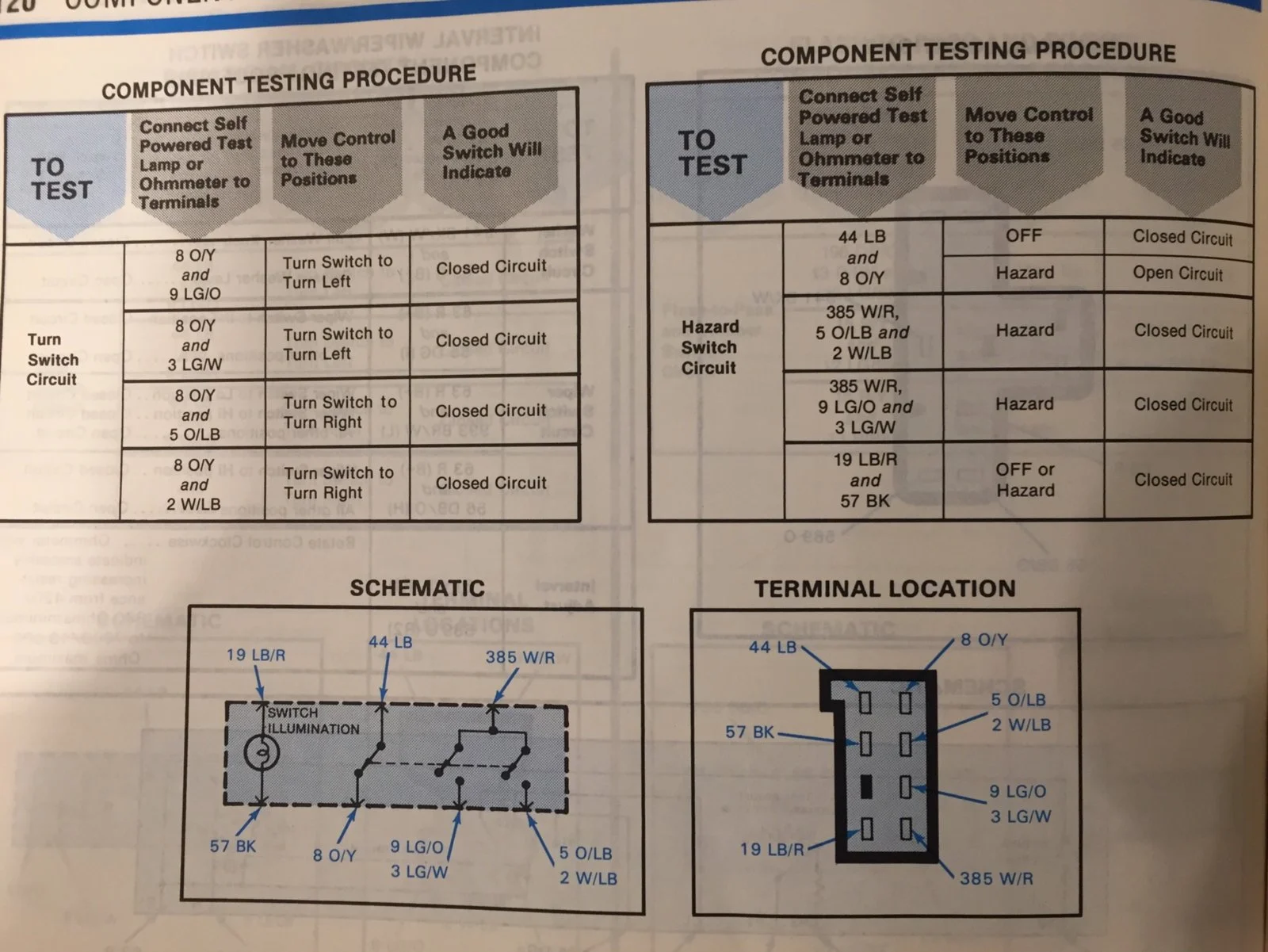

Here’s the same page from the 1987 EVTM


Thanks. By the looks of your chart I have 2 of them wrong based on the chart in the link of my original post. Oh well. They are glued in now so when the epoxy is set I'll try em and see what I have. If I have them wrong I'll just install the lmr plug when it comes in

Looks like the positions of the w/r and lg wires changed between the two. Yours has the w/r on the bottom position, the one I used from the old post has that wire one up from the bottom. And the lg ones on the bottom.

Who knows why that would have changed as all others are in the same positions

Thanks


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
34,017
10,291
224
Massachusetts
The wiring changed in 1990.

The link you posted is the 90-93 wiring colors for the hazard switch.

The pic I posted applies to 1987 to 1989


Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods
Ok well this is interesting guys.

Using the 87-88 hazard switch connector diagram, I reversed positions of the two light green wires with the one in my harness which is Pink. My harness does not have a white with a red in it. The only white one I have is white with a blue stripe, which is showing on diagram.

Unfortunately, when I switched the wires, it makes no difference. With the wires the way I had them hooked up, or reversing them so they match the diagram for the 87, I have no Hazard flashers.

Connected up either way, I have left and right turn signals. And even with the wires disconnected completely, I still have left and right turn signals.

The turn signal switch in this car has been replaced by someone else prior, and I believe I had Hazard flashers before I took the dash cluster out. But I can't be certain.

So, at this point I'm not sure what to do. I believe the balance of the wires are connected correctly I just had the light greens and the white or in my case pink reversed on the connector.

Is there any chance the convertible harness for the hazard flasher is different from the other cars? All the other wires in the harness except for that pink one match the diagram for the 87 cars. If you look at the third photo of my original post you'll see what I mean.

Any other thoughts on this would be appreciated.

Thanks, Greg


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,317
2,649
234
74
Dublin GA
lowendmac.com
@Gs87GT

The fix for connector pins that keep falling out is found at Walmart. It less than $10 if you already have the acetone and Q-tip type swabs.
This method does work and I have used on the hazard light switch. :)

You will need:
Small size hot glue gun, a package of small, high temp (450°) glue sticks. The small size hot glue gun is easier to maneuver around the closely spaced wiring. The high temp glue sticks work to keep everything in place if the connection tends to get hot. Connections get hot because they have a higher resistance than a few tenths of an ohm and carry more than 5 amps.

Some acetone to clean the area of inside of the pin plastic shell and some Q-tips. Acetone is also a solvent for most hot glue, so it you are messy, the acetone may be what you need to clean up with.

Clean the wiring connector pins with a swab soaked in acetone. Rub the outside of the plastic connector shell with the swab soaked with acetone and observe that it doesn't soften or harm the connector shell. After about 10 minutes, check the connector shell to make sure the acetone didn't damage it. If it looks OK, then proceed to swab the hole where the pin came out with the acetone swab. When you finish, the swab should come out clean looking; this may take more that one pass.

Look very carefully at the orientation of the connector pin to make sure you get it inserted in the correct position on the first try. Be sure you have the pin lined up correctly like the other pins!!!

Take the hot glue gun and make a glue ring around where the wire is crimped onto the connector pin. Avoid getting hot glue on the contact part of the connector pin. Work quickly since the hot glue has a limited time before it sets and becomes immobile. Once the pin has fully seated, add a little more hot glue between the wire and the back end of the connector shell. This is a permanent fix and undoing it and then doing it a second time probably isn't going to work well at all.


Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods
Jrichker, many thanks as always, but my issue is I had already glued the wires in place using three 1990 diagram. But my biggest issue is that my harness appears to contain a pink wire and not white with red stripe. All of the others match the 87 and 90 diagrams. The wire coding itself does not appear to have changed 87-89 and 90 on, only the location on the connector of the W/R wire and the two LG wires(one with red stripe I believe)

My issue here is regardless of what I do with those wires I have no 4 ways. Connected, reversed, disconnected, all the same result so I'll need to do some more diagnosis and go from there.

Question- the diagram mentions testing with a multi meter using ohms but mentions no readings? Any idea what they are looking for? (I may buy a power probe also which will make figuring this out a lot easier.

Thanks
Greg


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
34,017
10,291
224
Massachusetts
Not really ohms, you just testing continuity between the wires to see if there’s a connection, or not.

The hazard worked before the wires pulled out right? Have you checked the fuse?


Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods
I believe they did, but cannot be certain. Thanks for your post, I appreciate it. I need to find some time to get further into it and iron it out. The car has had some prior electrical repairs so that does not help


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
34,017
10,291
224
Massachusetts
Page 54 (actual book page number, not google doc page) of the '88 EVTM linked in post #4 applies to 87 as well if you need to trace wires to see what's going on.

  • Like
Reactions: Gs87GT

Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods
Page 54 (actual book page number, not google doc page) of the '88 EVTM linked in post #4 applies to 87 as well if you need to trace wires to see what's going on.


Ok thanks! Much appreciated. Question. - I should already know this but cannot remember right off. On the front end lights, are the turn signals the center most lights only? When I was doing some initial testing only the center most lights flashed, the outsides did not. I believe they (outer most/corner lights) are parking lights only, but if that's not correct then I have more issues.

Thanks again.


Gs87GT

Active Member
Sep 25, 2019
238
77
38
Penn's Woods
I didn't get to work on the car much yesterday, but I did some and find the following.

- with the key off I have no power at the hazard switch connector.
- the fuse for the hazard lights is good

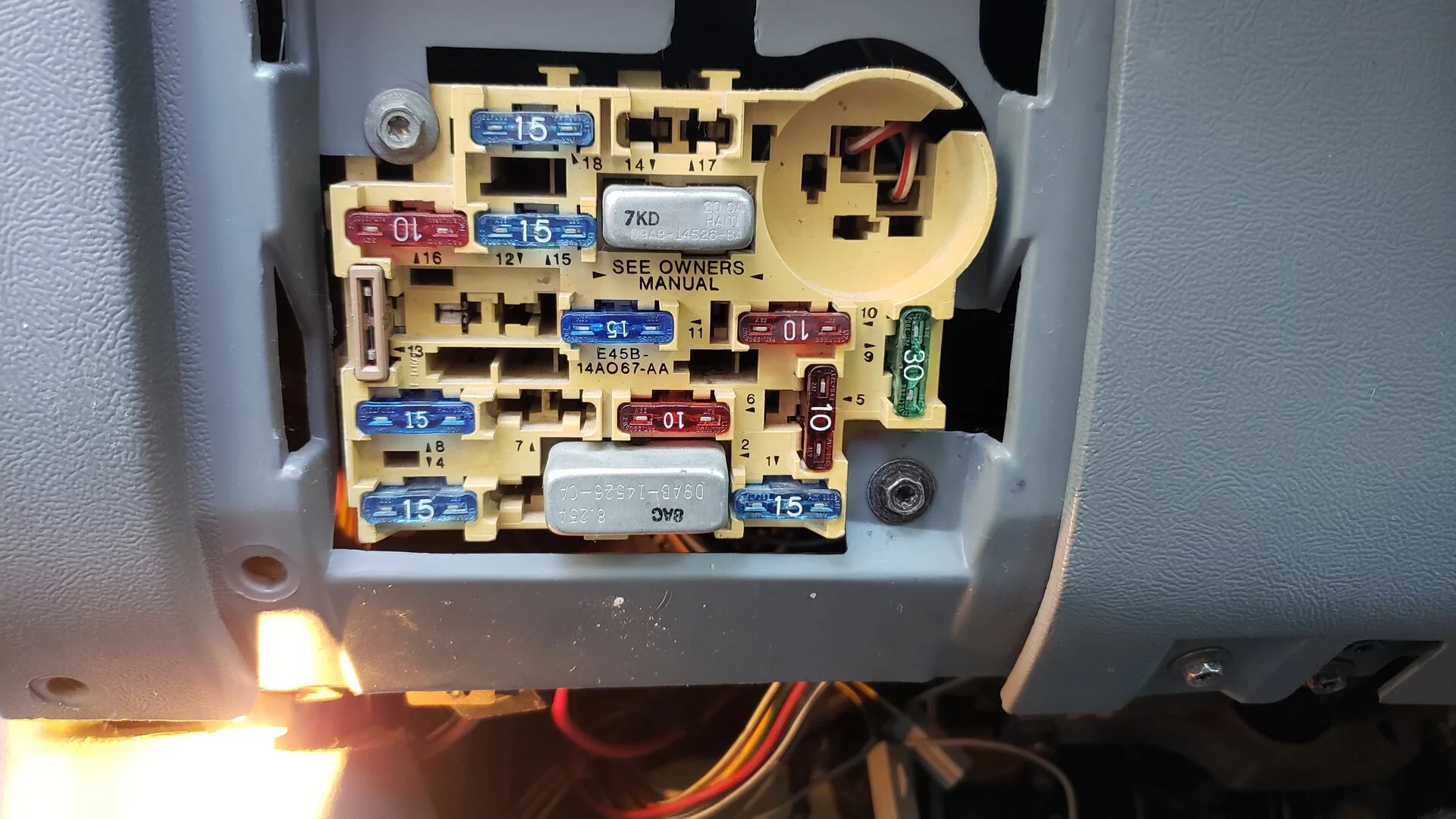

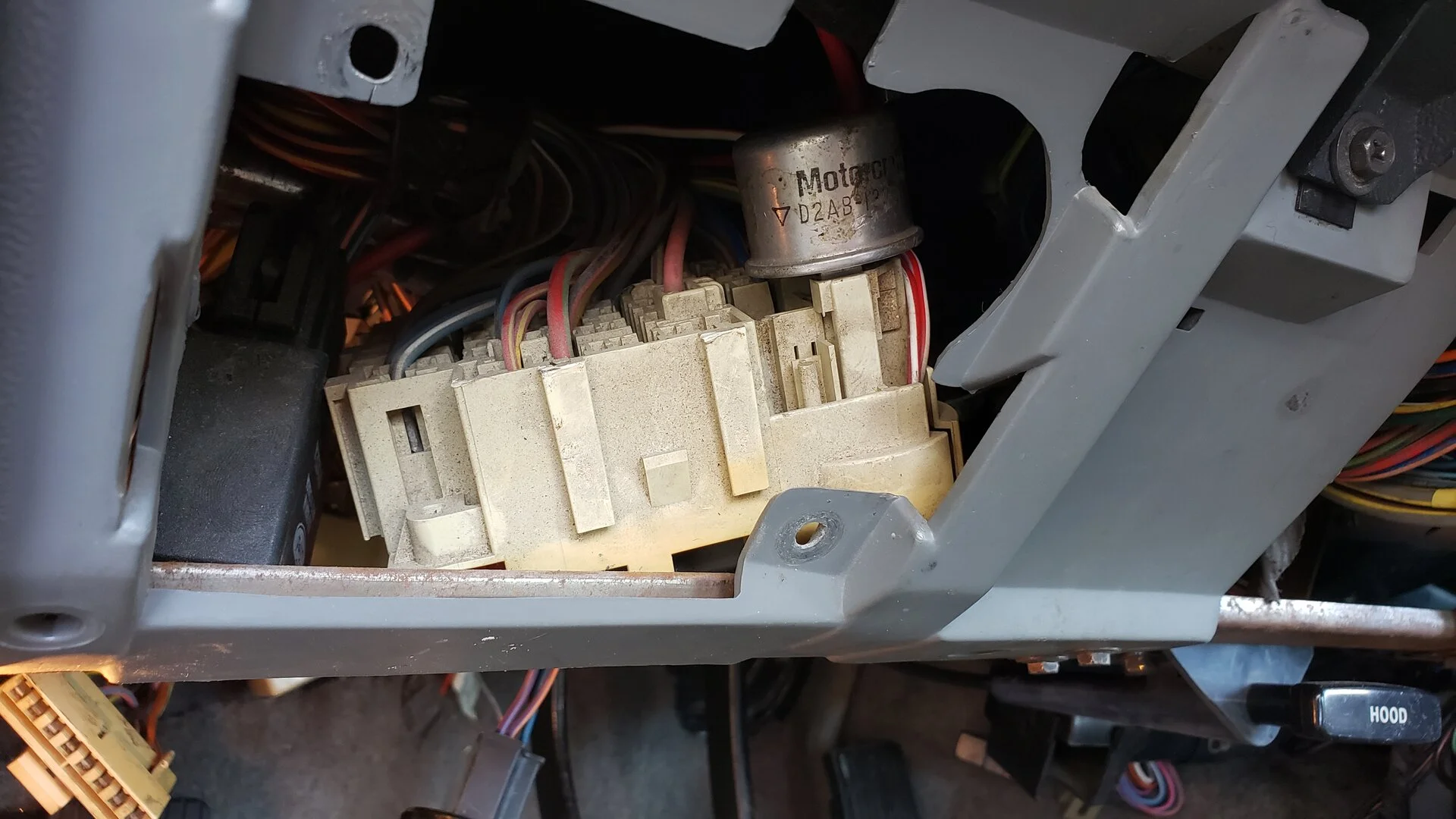

- I realized yesterday the car has 2 flashers, one for turn signals, one for the hazard lights. (Someone has reversed the connections and had the hazard flasher stuck in from the back side of the fuse block...yes as said there's been some inappropriate wiring done on this car that until I figure out what and why it's making figuring stuff out harder...remeber my horn does not work either and the PO rigged up a temporary one to pass inspection)
