Electrical 1990 connector under passenger kick panel

[foxbodykid315]

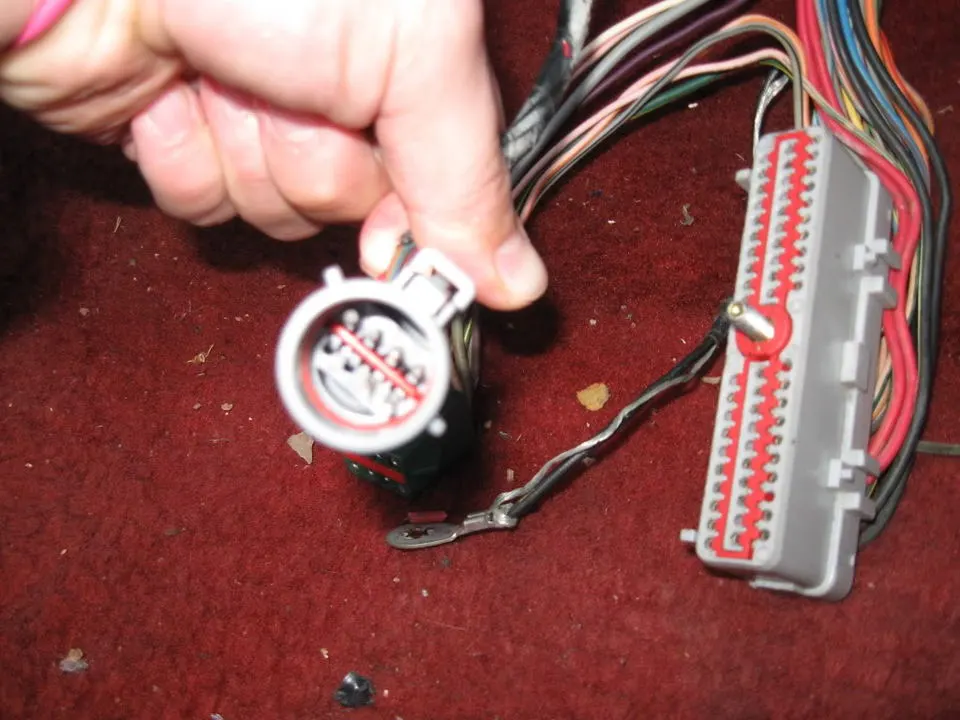

this isnt my photo so if not allowed im sorry. But i replaced the heater core and while unhooking the connectors i found one thats corroded awful. I cant seem to find anywhere in wiring diagrams or pictures what it actually is. Im sure its a dumb question but im still learning. Thanks everyone



[General karthief]

Ok, so no picture of the connector and there are very few dumb questions but lots of dumb answers. Does it come from the harness that runs along the bottom of the dash or up top under the windshield



[foxbodykid315]

Sorry i went back and edited it and pasted the picture. Its comes from the harness along the bottom of the dash connects directly beside the ecm



[jrichker]

@foxbodykid315

Please post the wire colors with the solid color and stripe color. They help identify the circuit and its function. Do not depend on a photograph to do the job, since the camera and then the device the photo is viewed on can alter the color presentation. Clean the wires with some solvent before trying to identify them.



[Boostedpimp]

also what year car is this?



[fredfifty]

looks like the oxygen sensor harness



[Blown88GT]

In that location, there are three 8-pin connectors. From only the picture, looks like C135. It's bundled with the 60-pin ECU connector. It's mate should be the only one that reaches to it. I believe all 3 are keyed differently.



[foxbodykid315]

Hey sorry for the extremely late reply i have been gone for work and no time to look at car but ill try and get the color of the wires tonight



[Blown88GT]

Hey sorry for the extremely late reply i have been gone for work and no time to look at car but ill try and get the color of the wires tonight

Get yourself the 1990 Ford Mustang EVTM manual. Can't do what you are trying to do without it.
