Progress Thread 68 Gt500kr Vert - Take Two

68GT500KR_Vert

5 Year Member
Aug 21, 2006
353
60
59

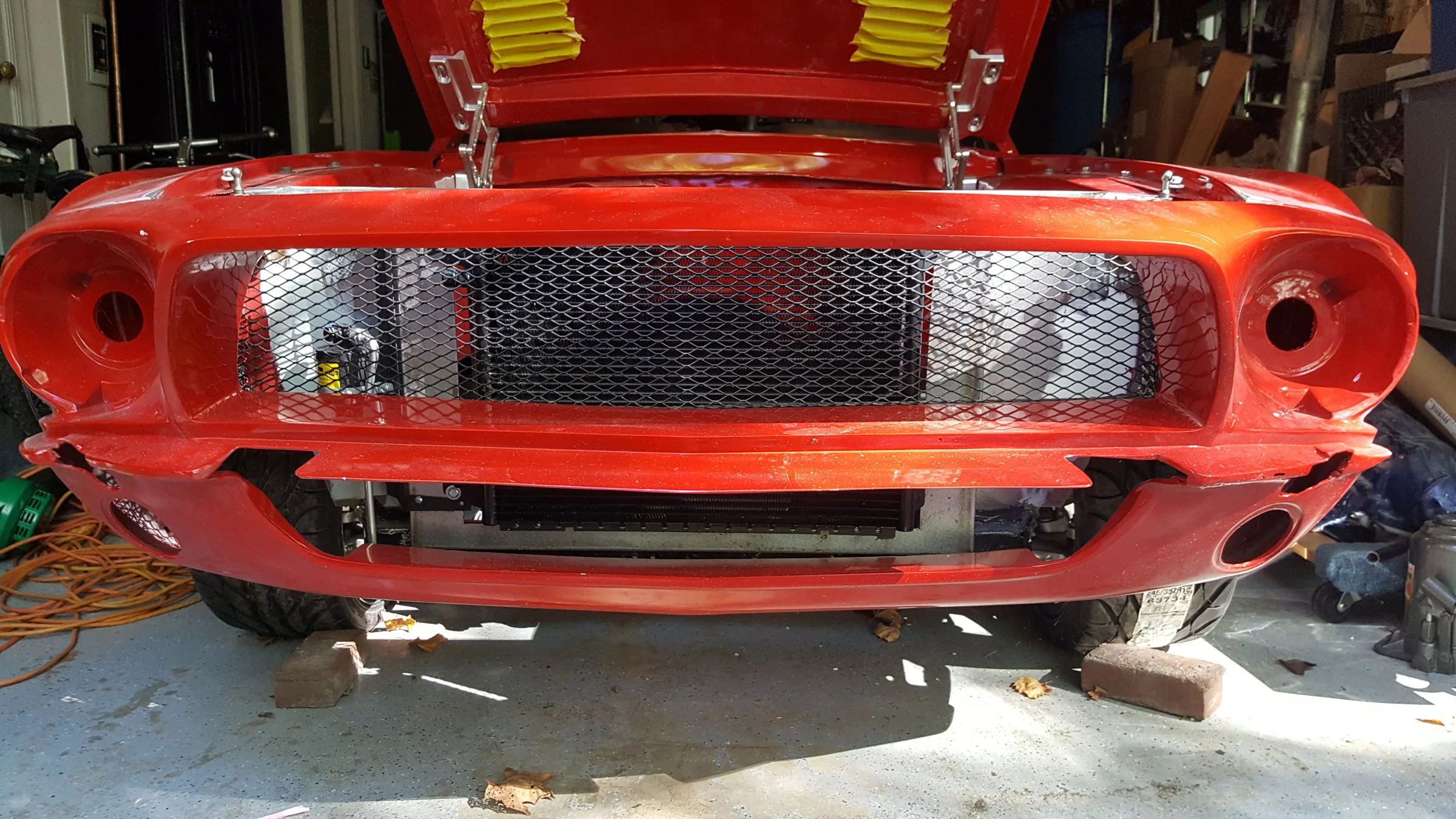

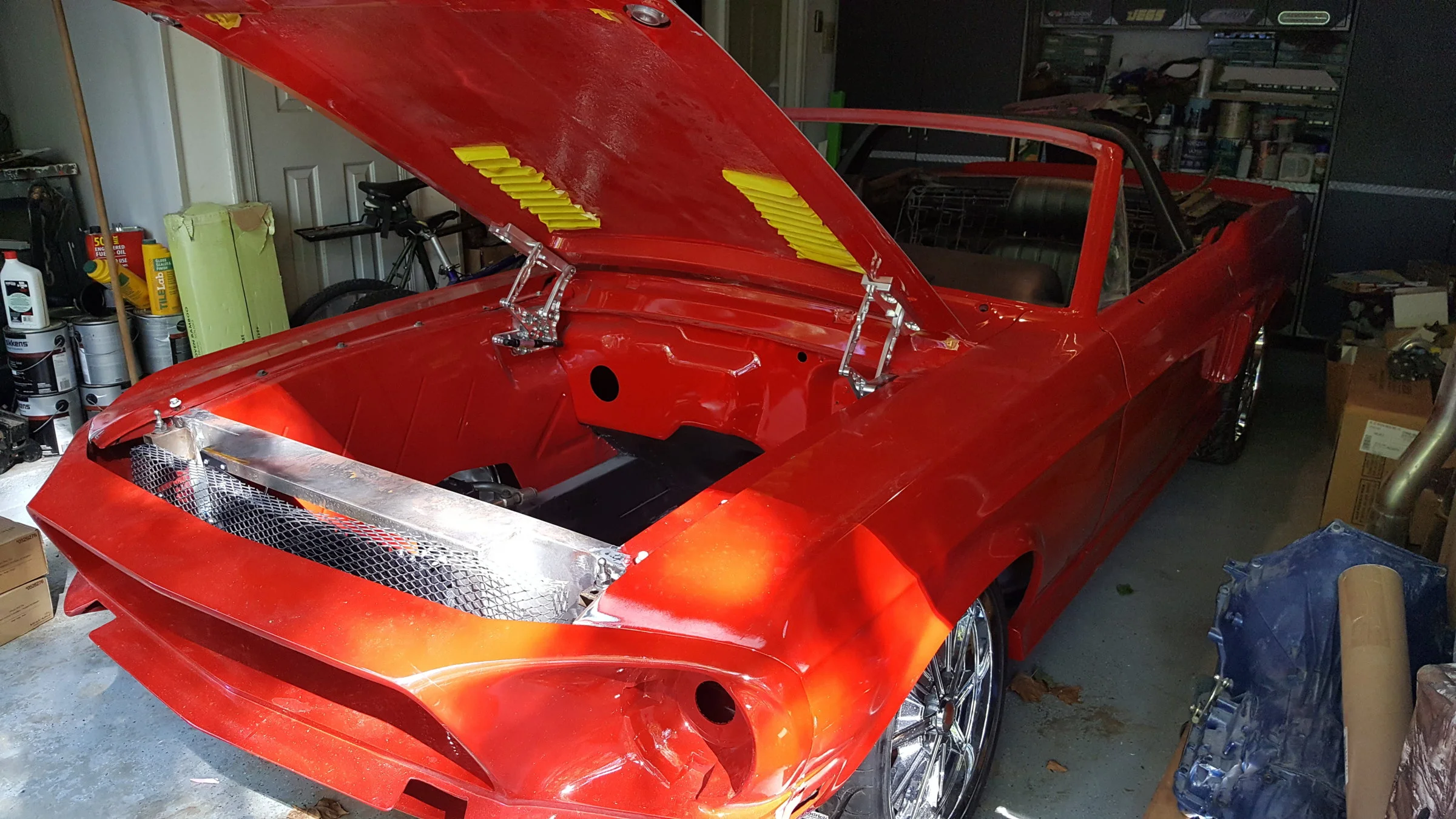

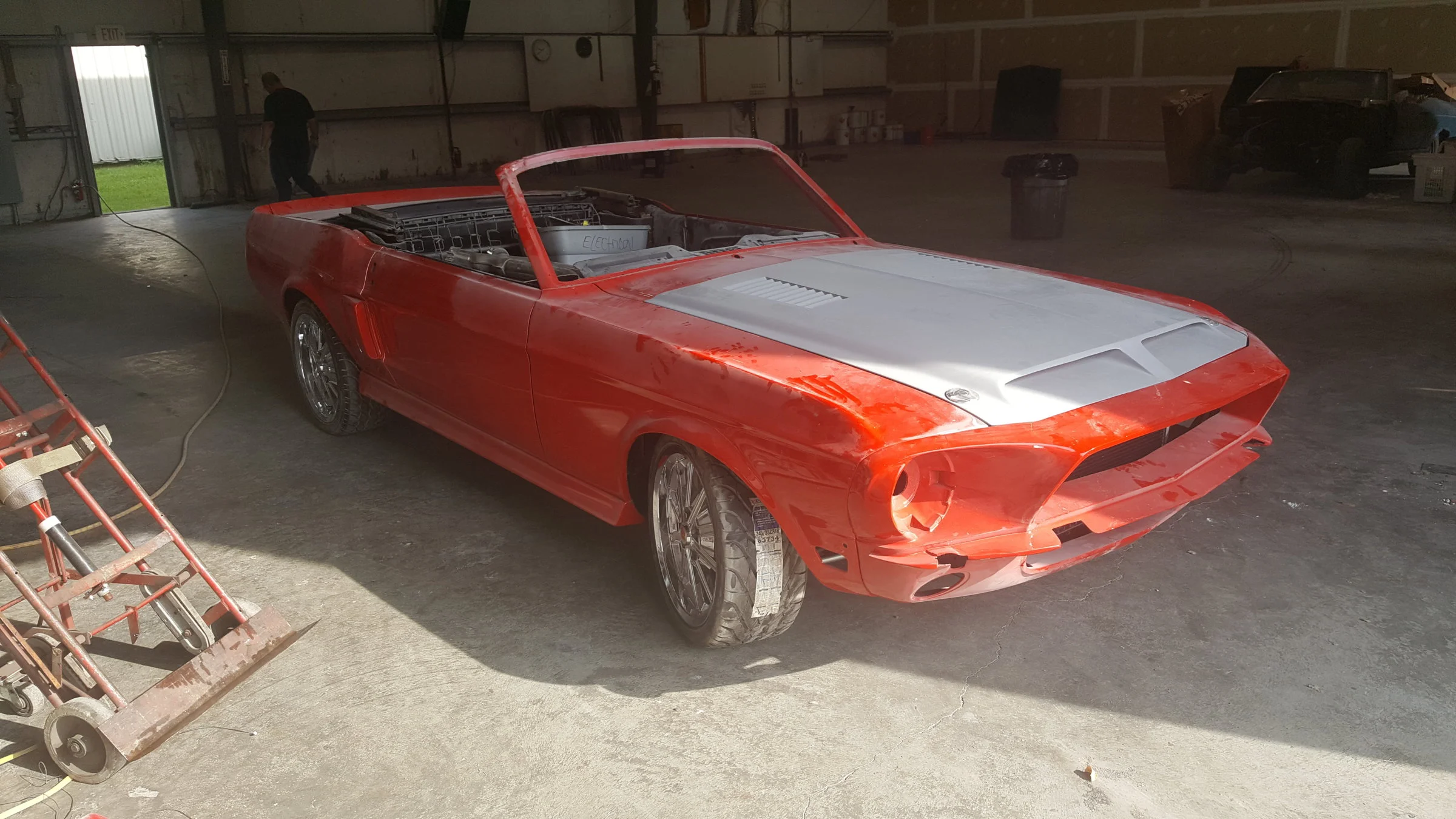

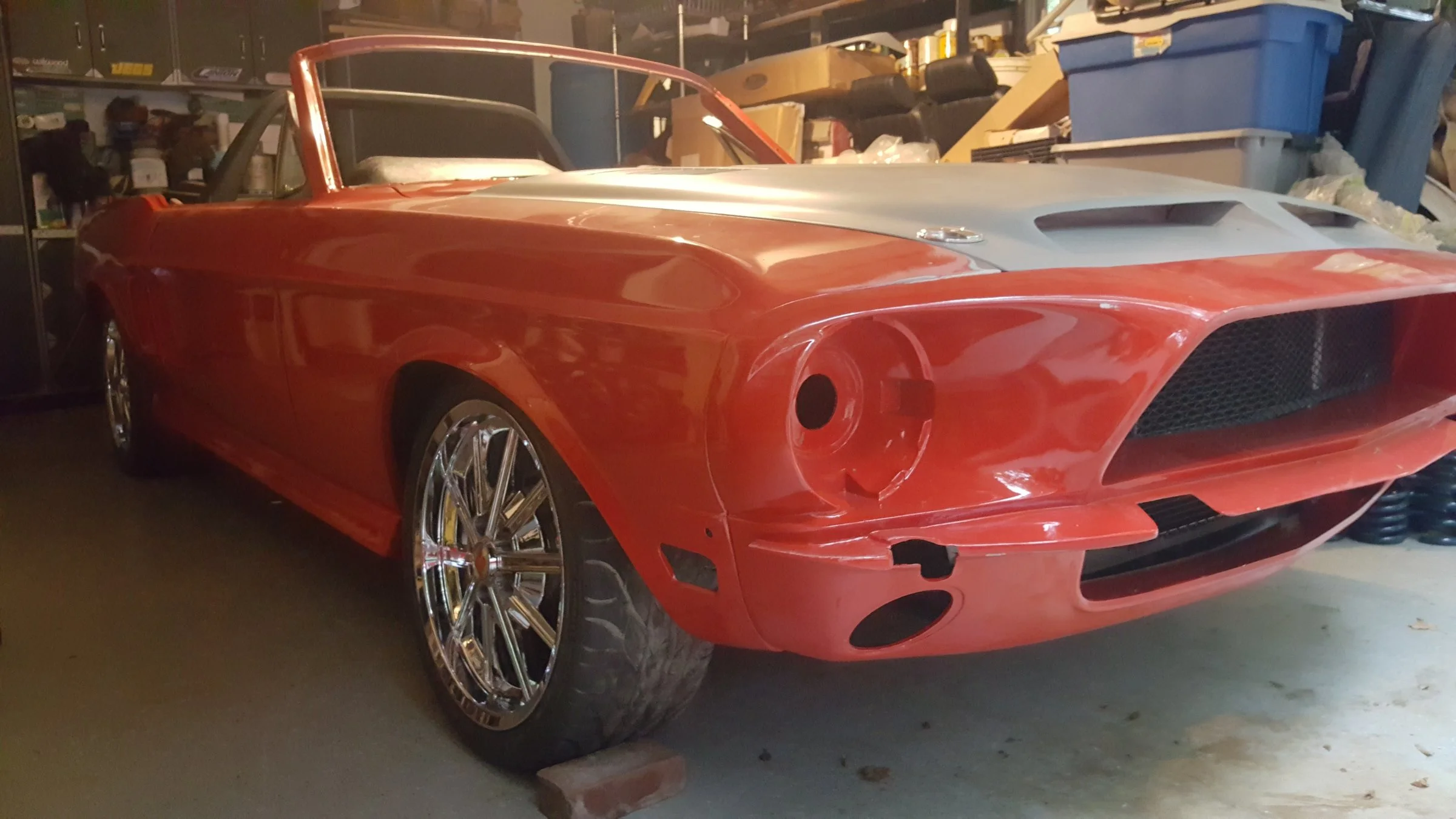

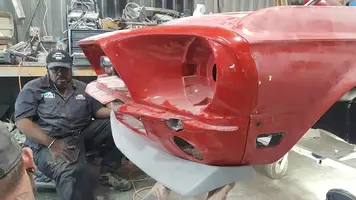

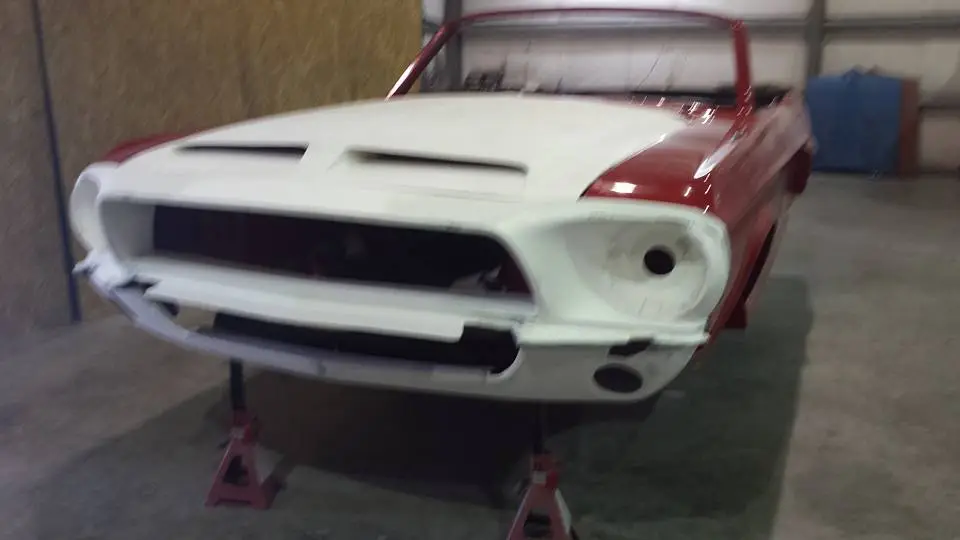

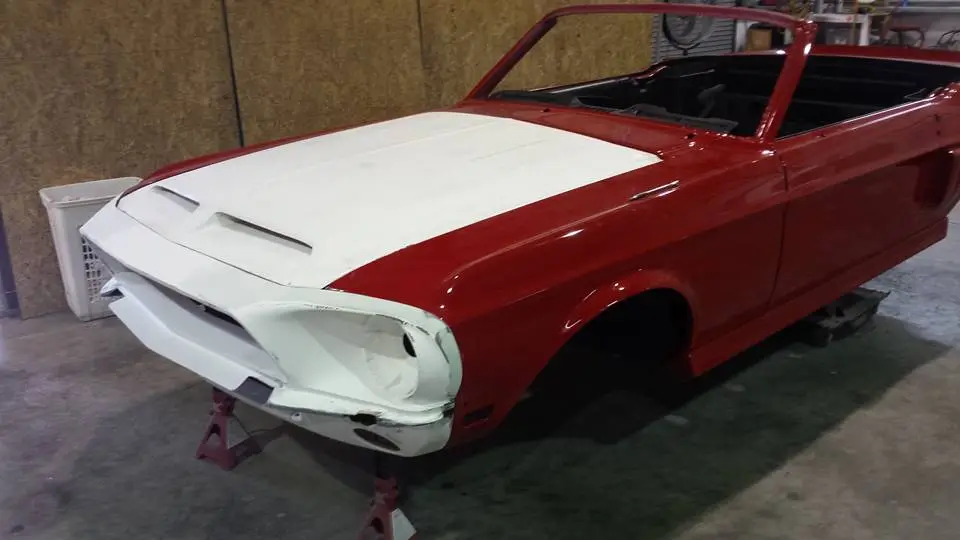

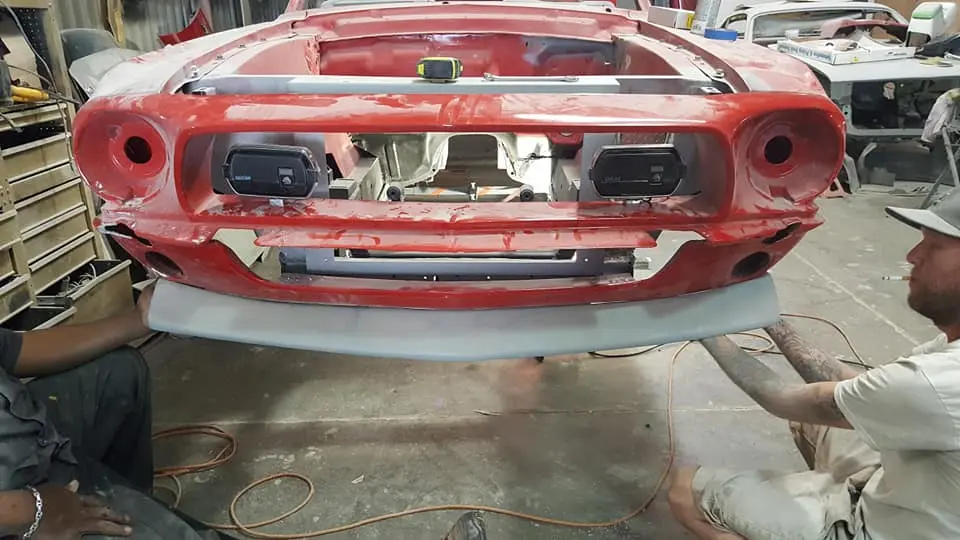

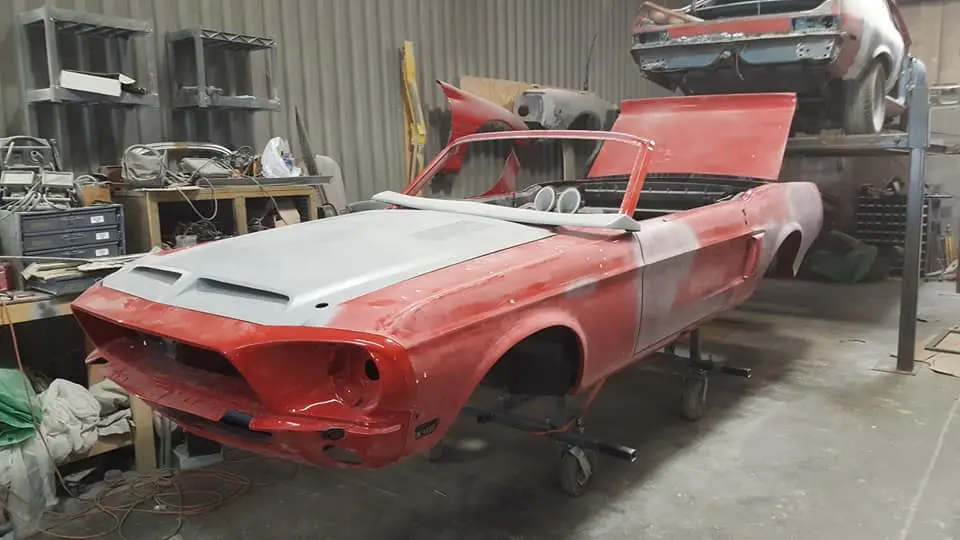

The Shelby Nose is made up of 5 different fiberglass parts - they don't fit well together and aren't that strong bolted together. We glued and fit the nose as one piece now. Looks so much better and it's easier to fit. Just have to do the final tuning on the hood and it's ready for paint.





68GT500KR_Vert

5 Year Member
Aug 21, 2006
353
60
59
The Shelby Nose is made up of 5 different fiberglass parts - they don't fit well together and aren't that strong bolted together. We glued and fit the nose as one piece now. Looks so much better and it's easier to fit. Just have to do the final tuning on the hood and it's ready for paint.





68GT500KR

Member
Mar 5, 2014
5
3
14

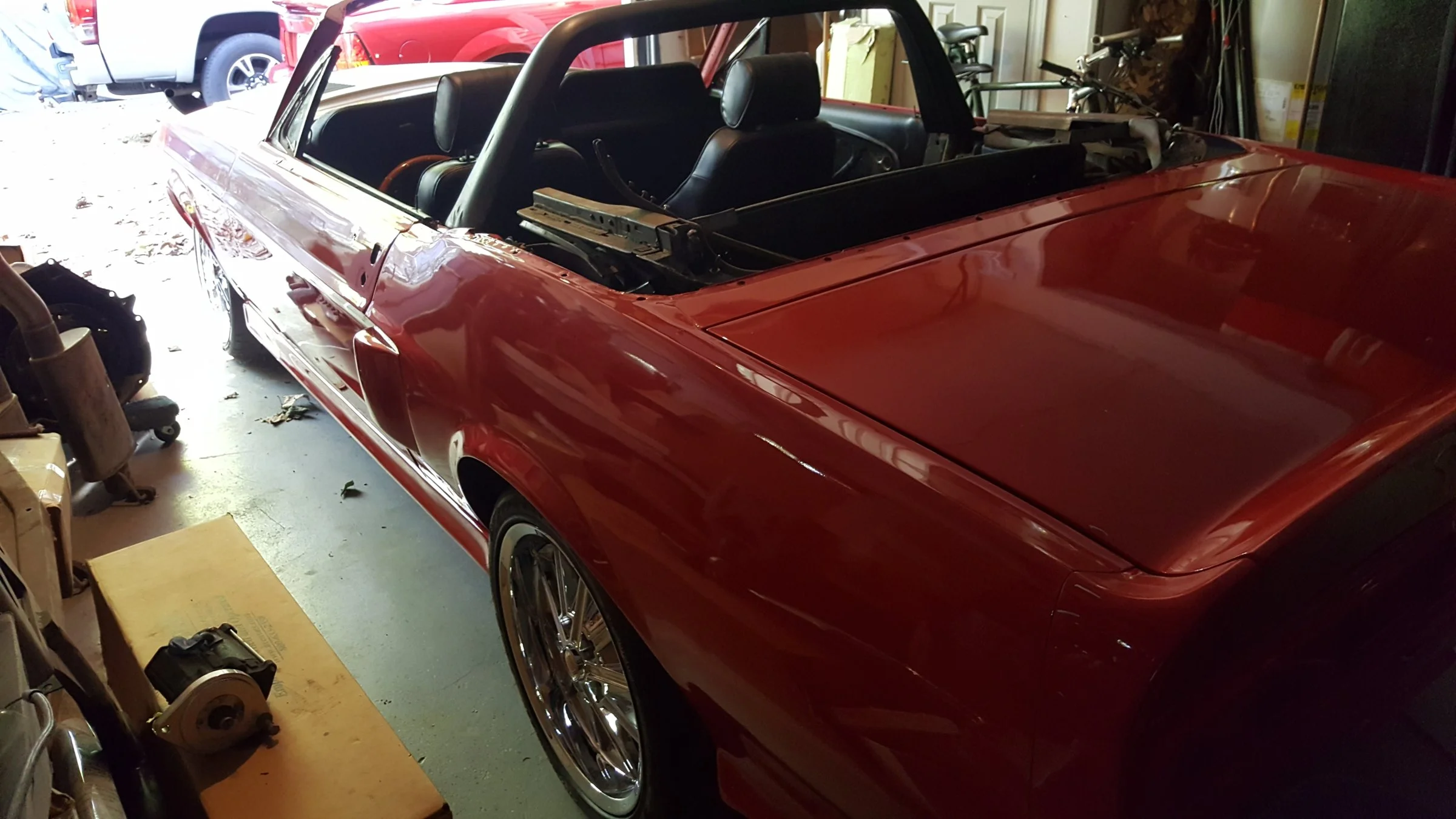

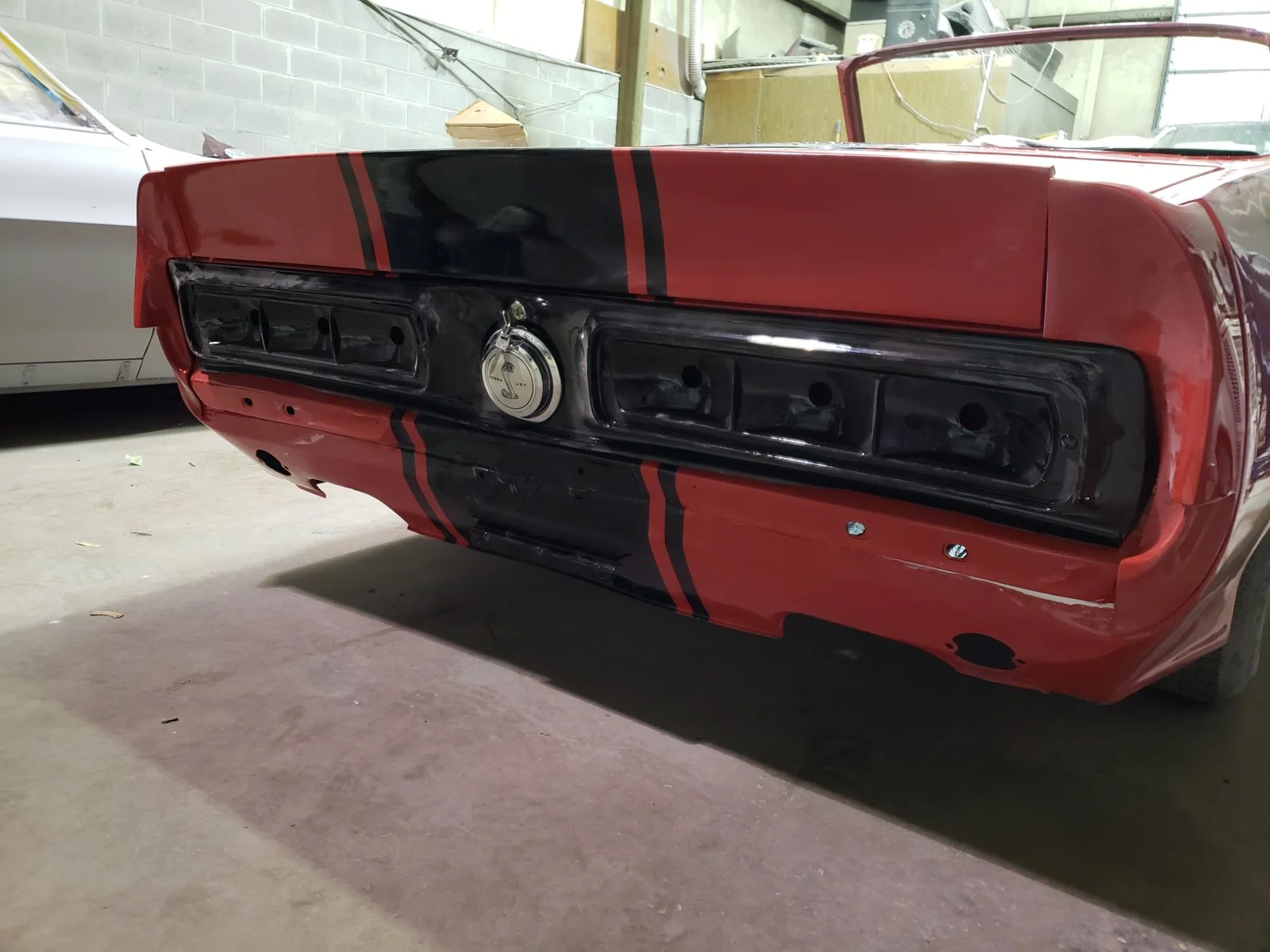

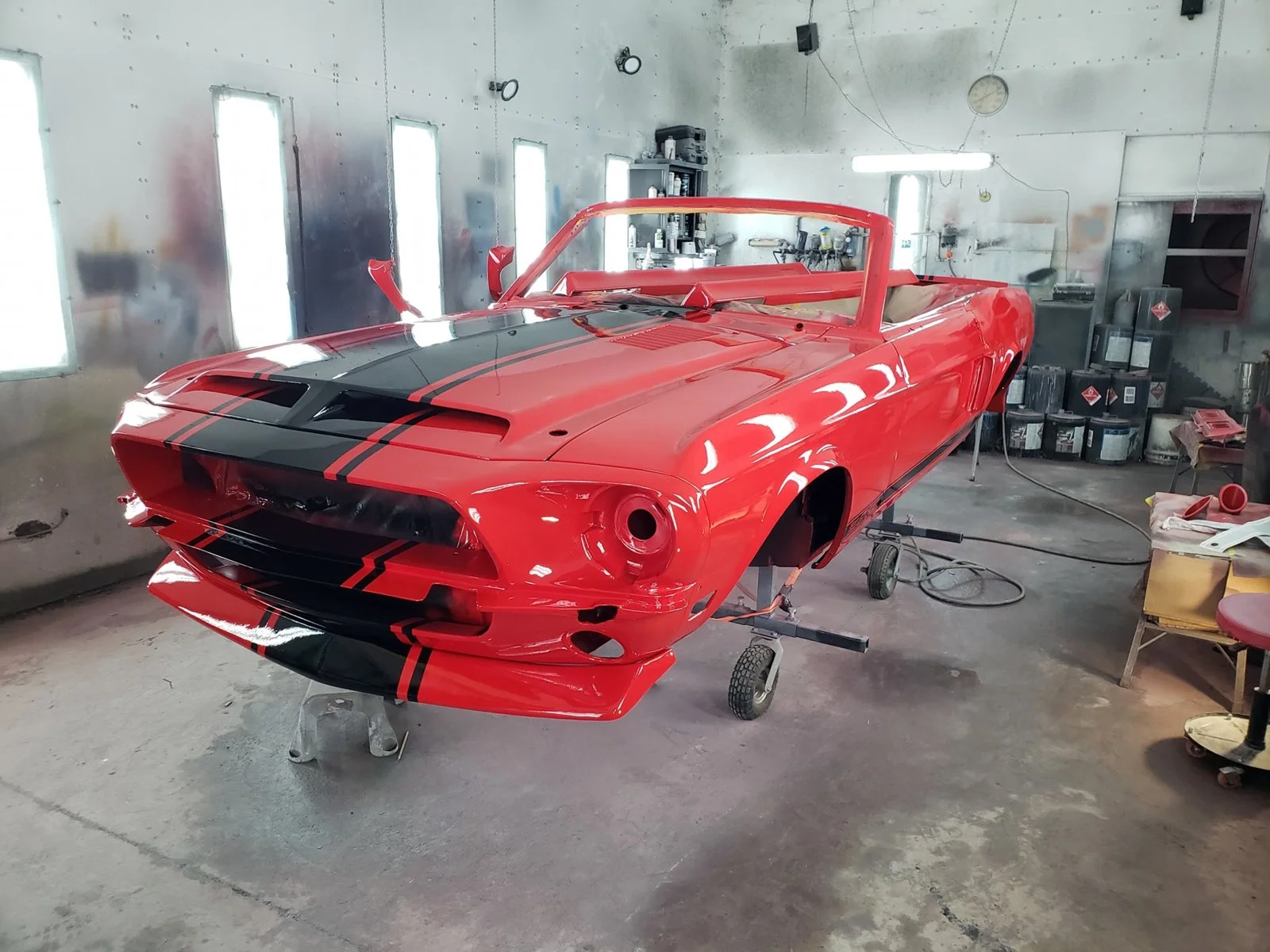

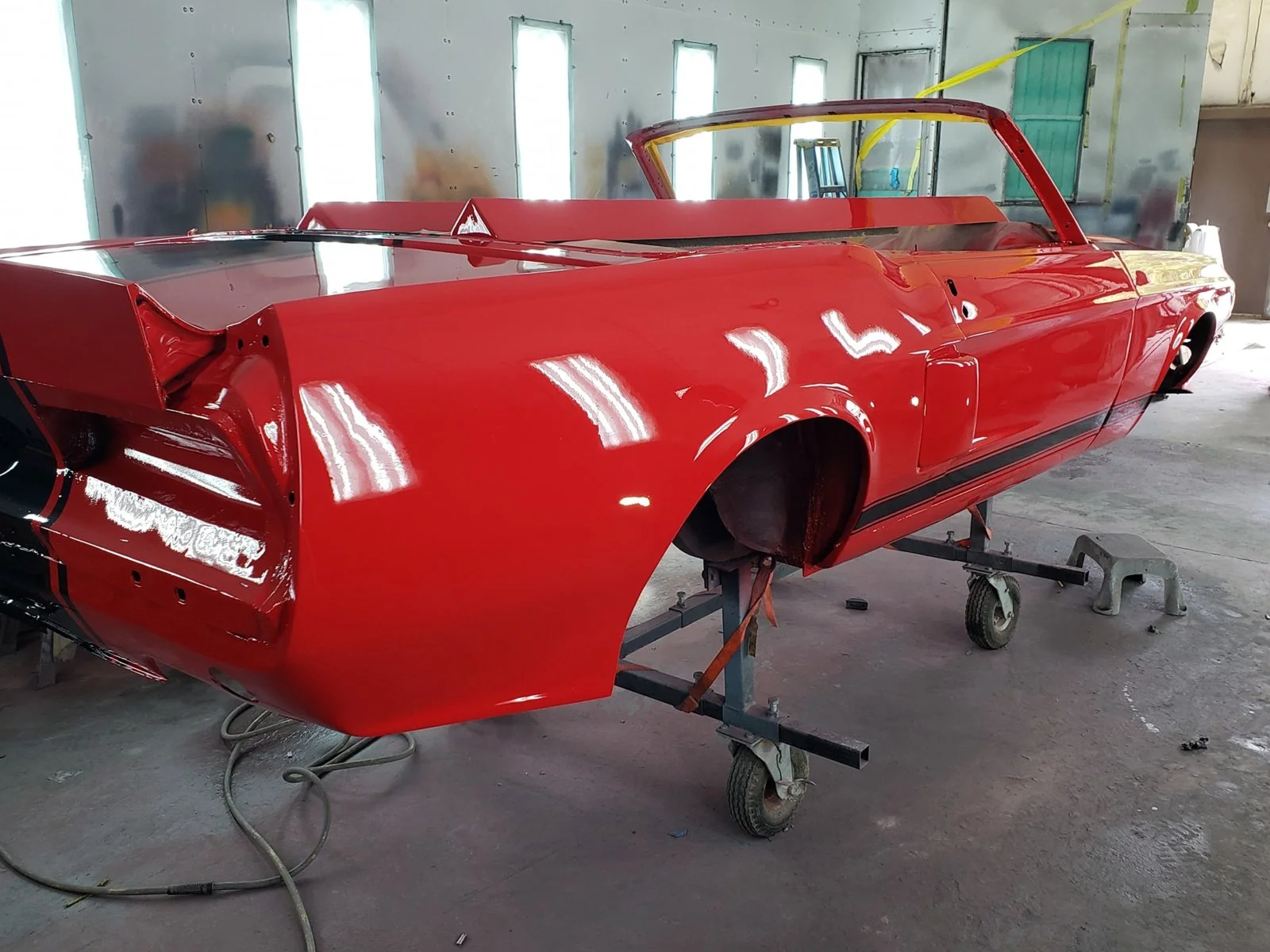

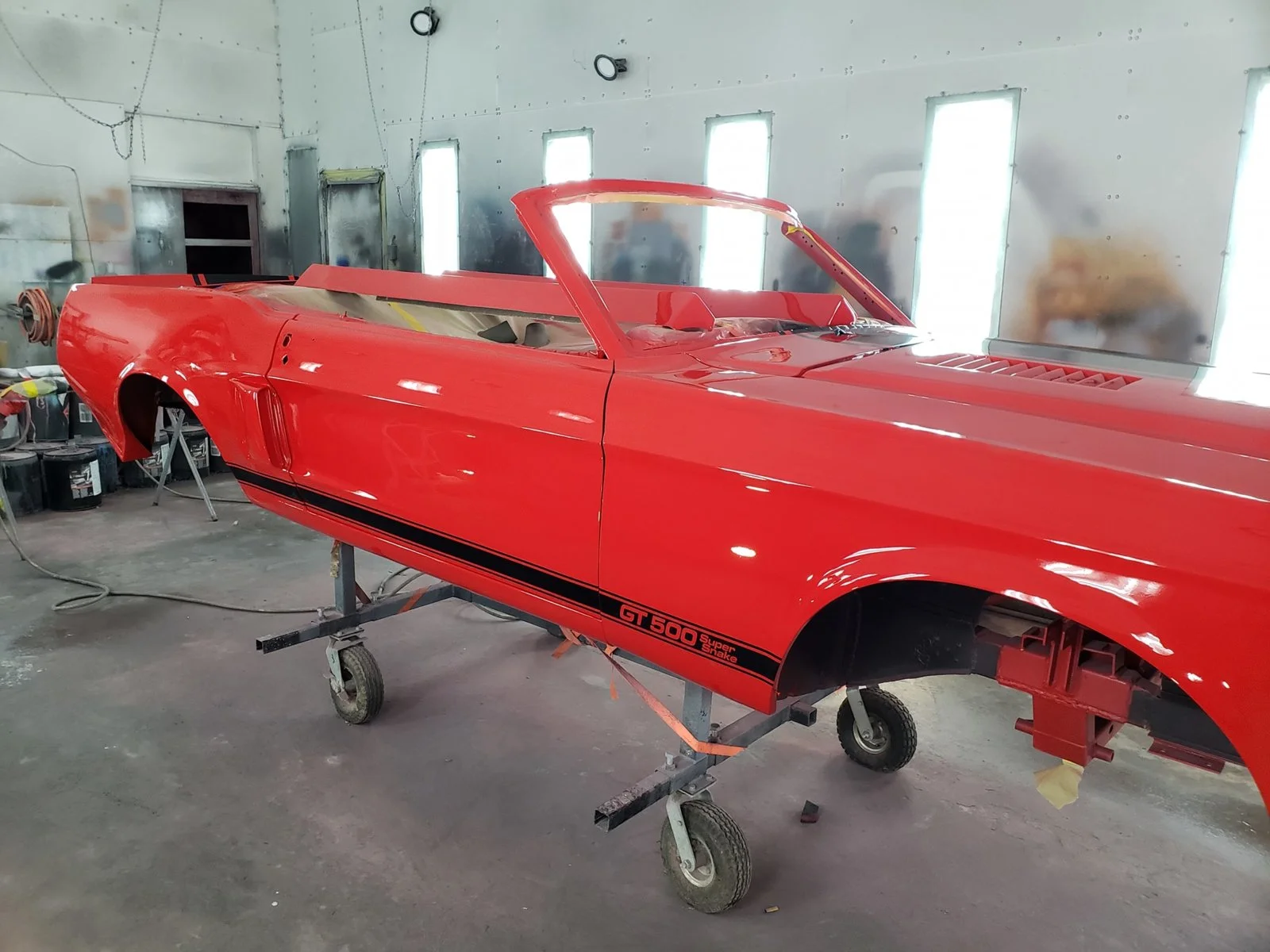

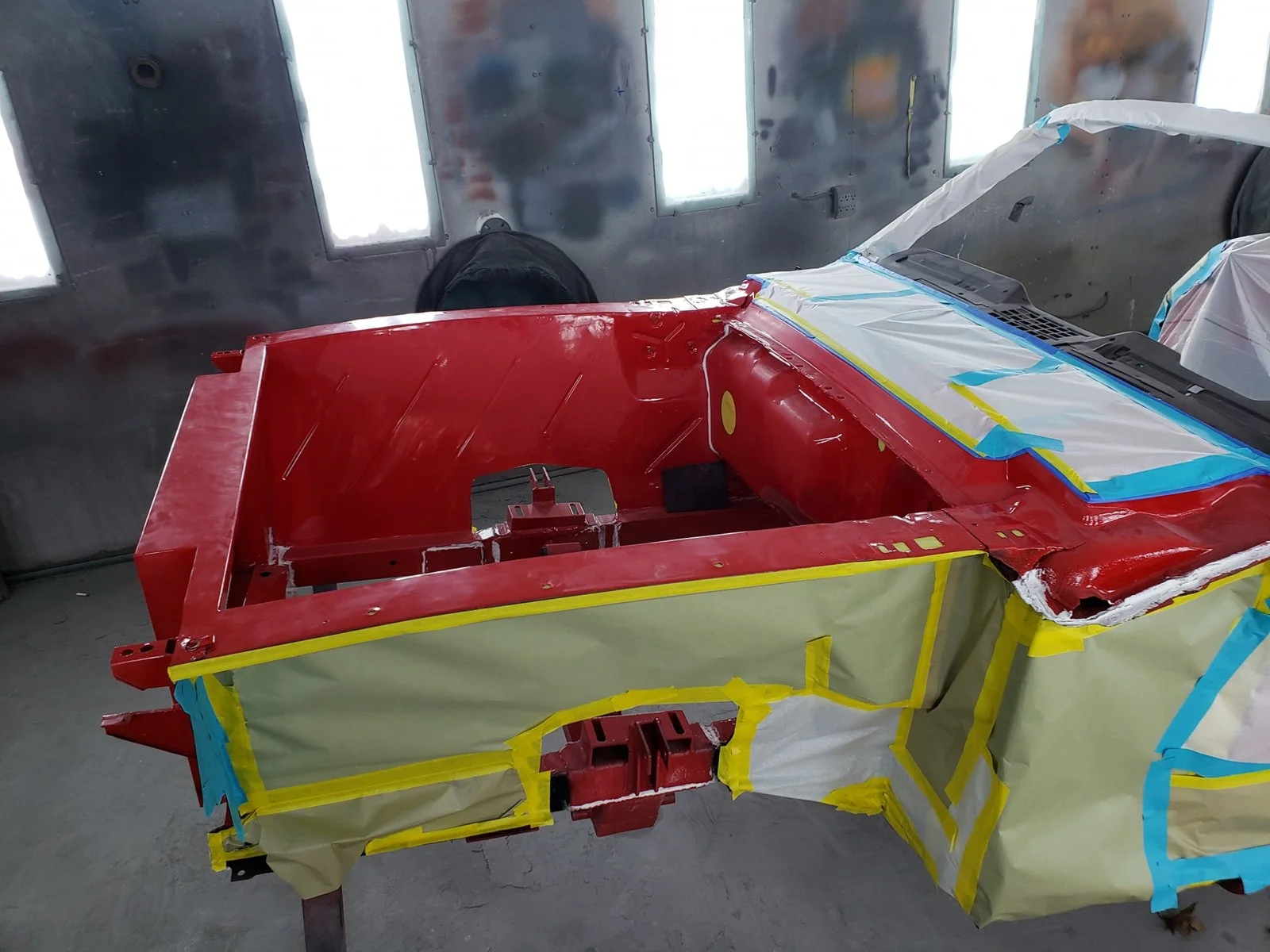

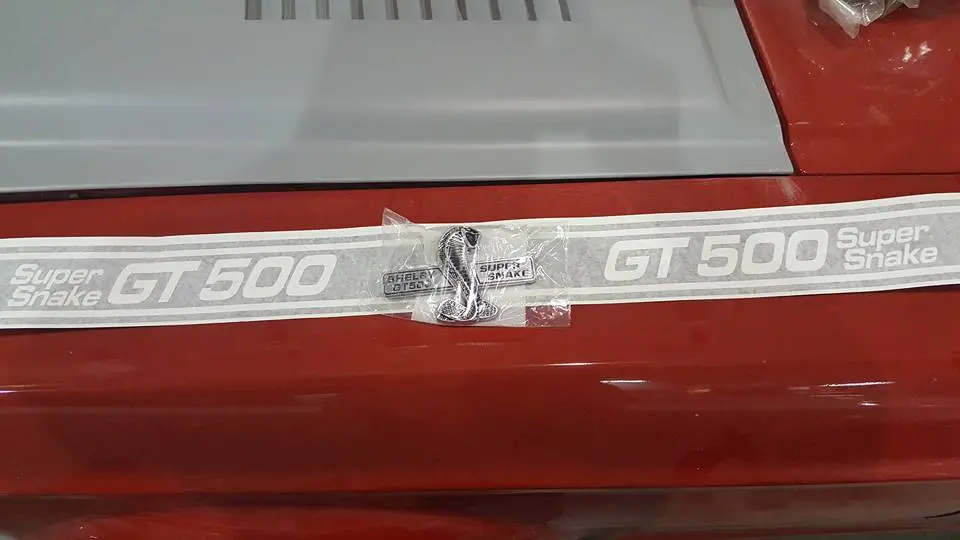

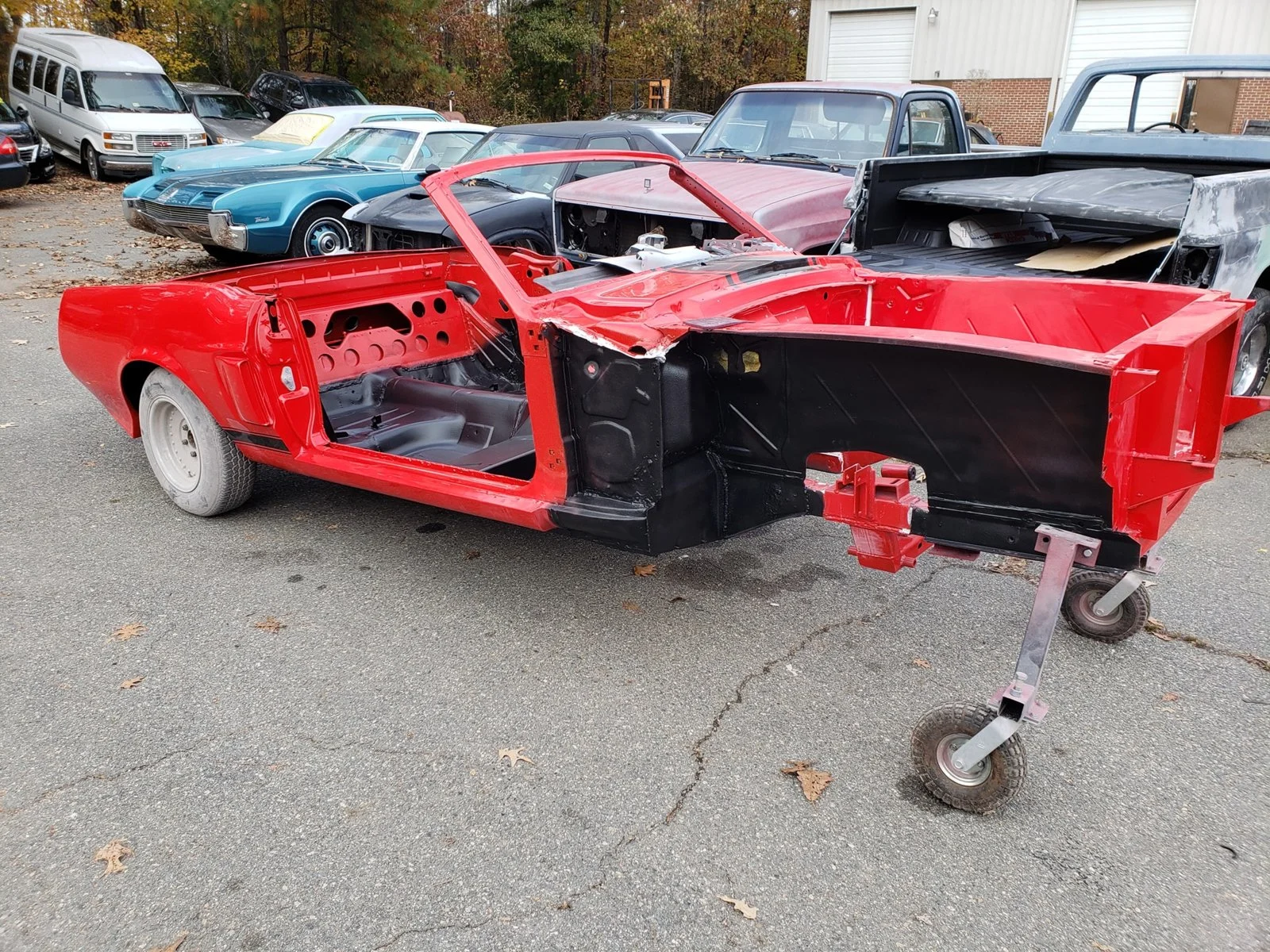

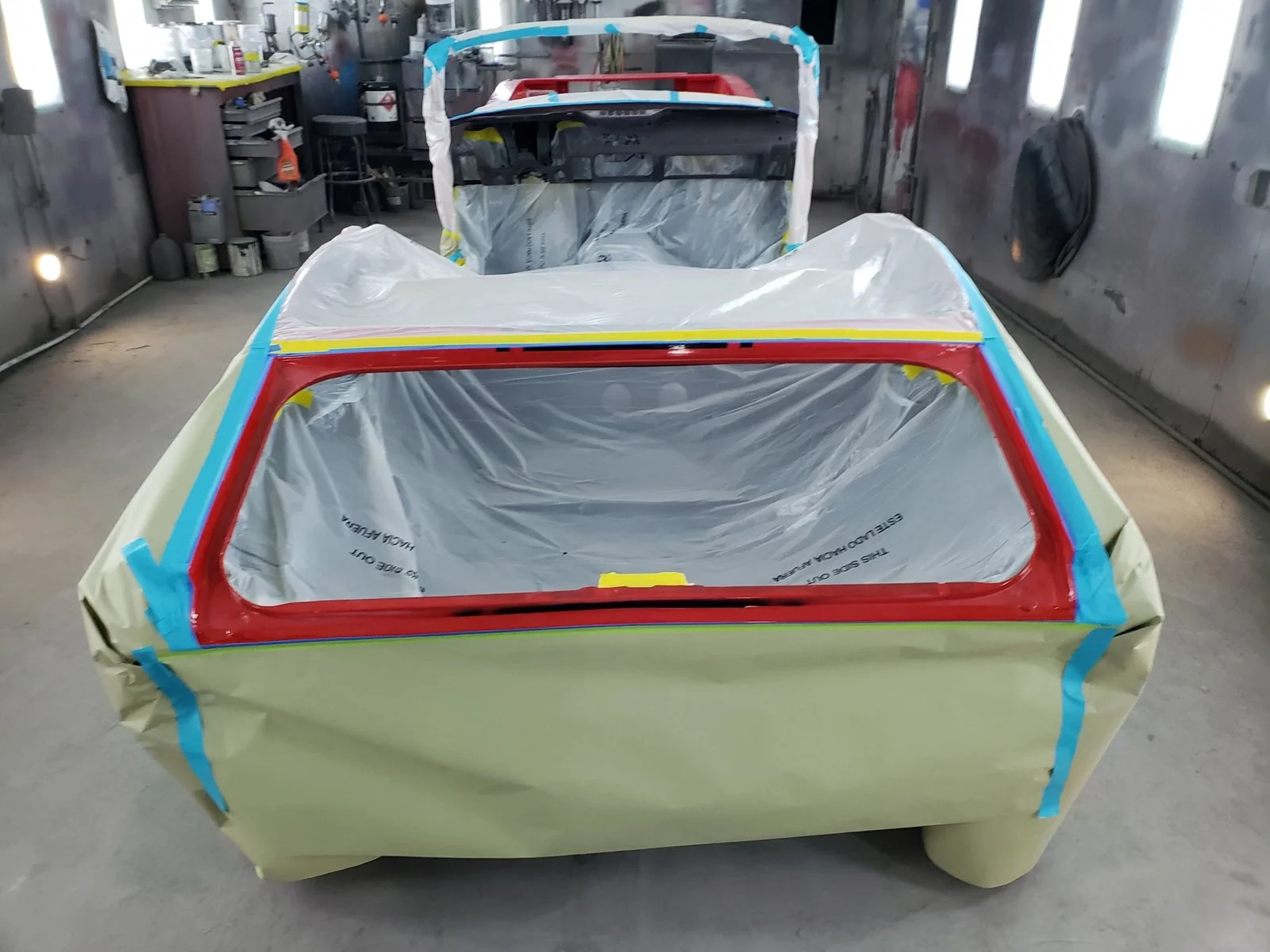

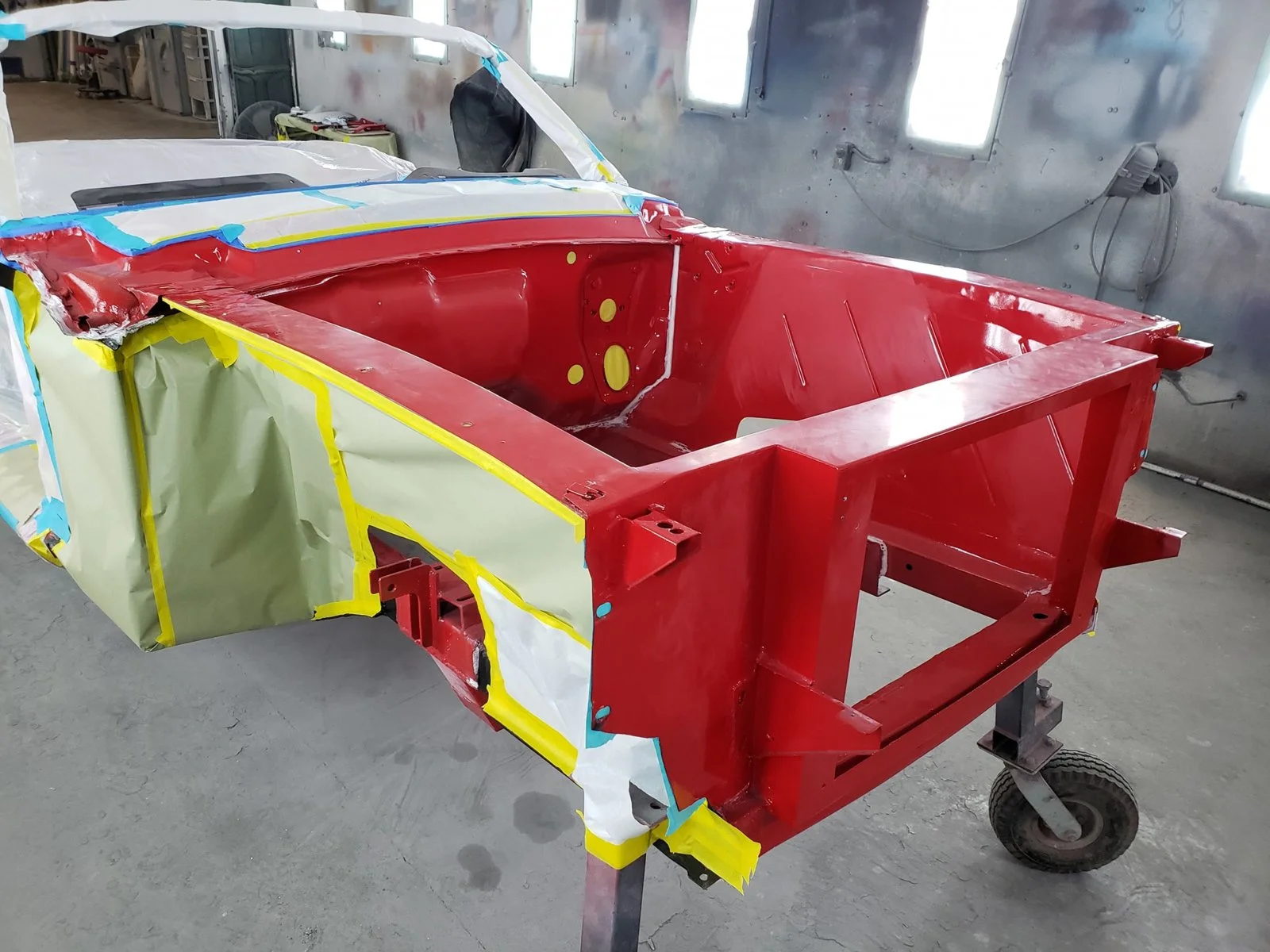

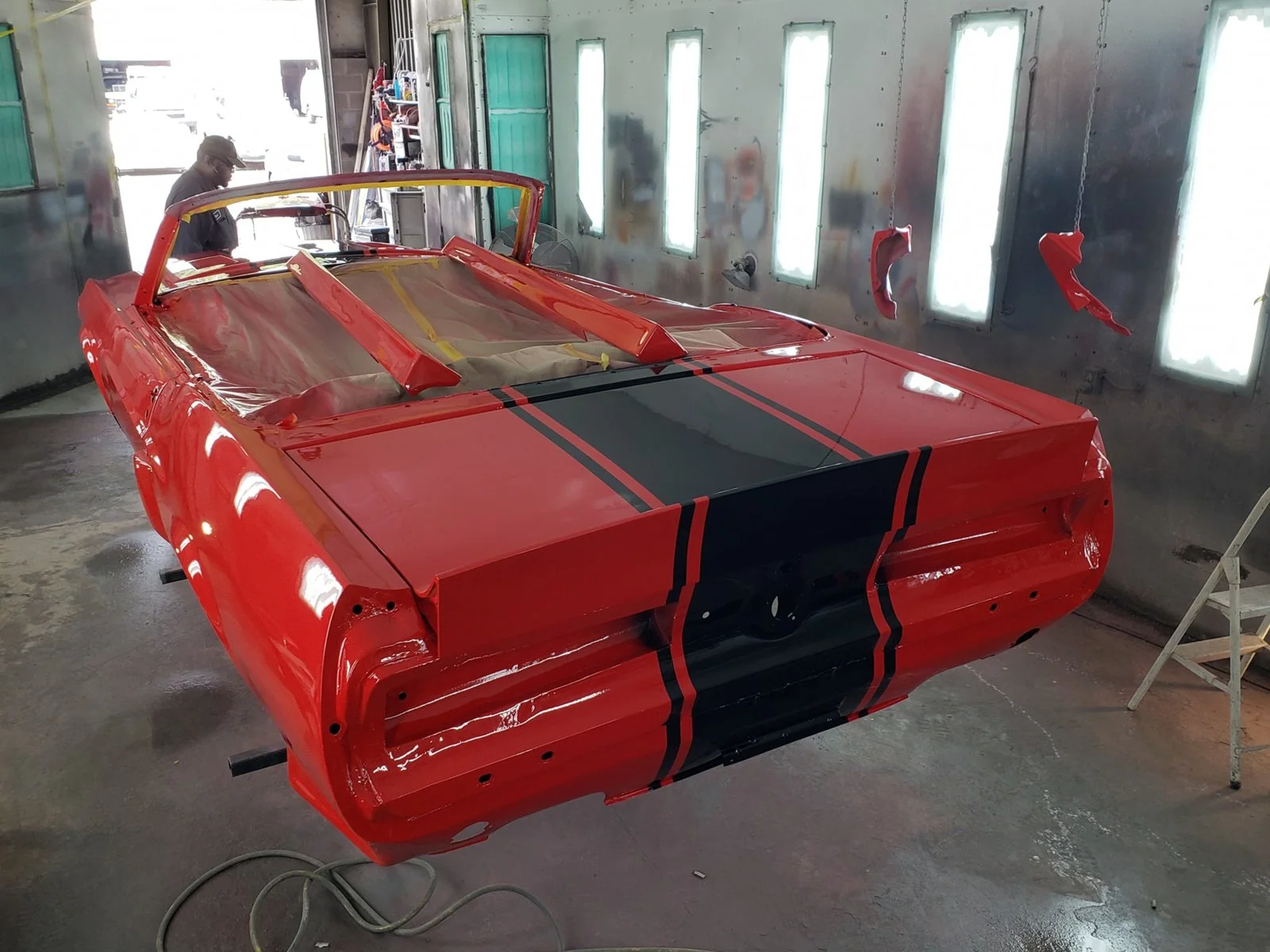

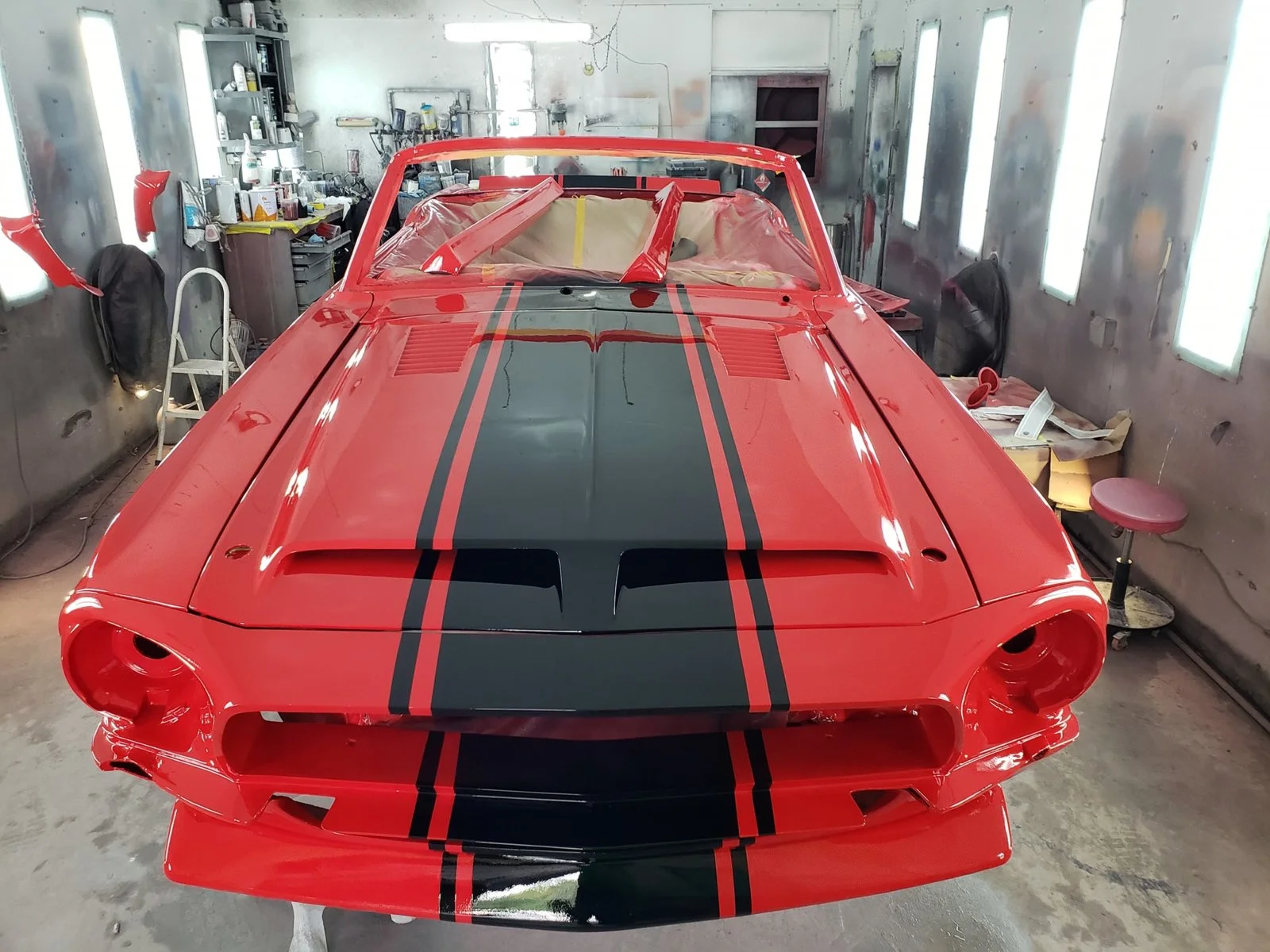

Wow, I haven't posted in a while...the car is back home again...latest body shop went bankrupt and closed.....I haven't had much luck with shops....on the hunt for a new one... The car is mostly painted and ready to finish up. Doing black Super Snake Top & Side stripes. The body shop lost a few parts on me and i lost a little money....The engine had to go a Machine Shop to be cleaned out, the body shop didn't properly seal it when they took it out, dust inside the motor. The shop is going to clean it out and put it all back together.

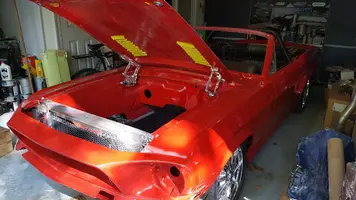

20171019_141726.jpg 20171019_141658.jpg 20171019_141649.jpg 20171019_141642.jpg 20171019_141638.jpg 20171019_141632.jpg 20170915_105854.jpg 20170911_184832.jpg 16508212_10154333282903424_3161647729311077568_n.jpg 20170911_094223.jpg

  • Like
Reactions: 2 users

Edbert

Founding Member
Jul 13, 2002
3,548
32
109
Looking good! I'm doing a Shelby-ish restomod on a '67 vert. I spent a year trying to find a paint/body shop and when I did I spent another year on the waiting list. But 8 months later I got the car back. I hope you did not have to deal with (pay for) much rust repairs, welding/drinding/fabricating new steel was about 67% of my cost at the shop.

I am doing ALL of the mechanical work except for hanging the doors and lining up the fiberglass.

https://photos.app.goo.gl/AGrdxIFXFpzRDzCi1


68GT500KR_Vert

5 Year Member
Aug 21, 2006
353
60
59

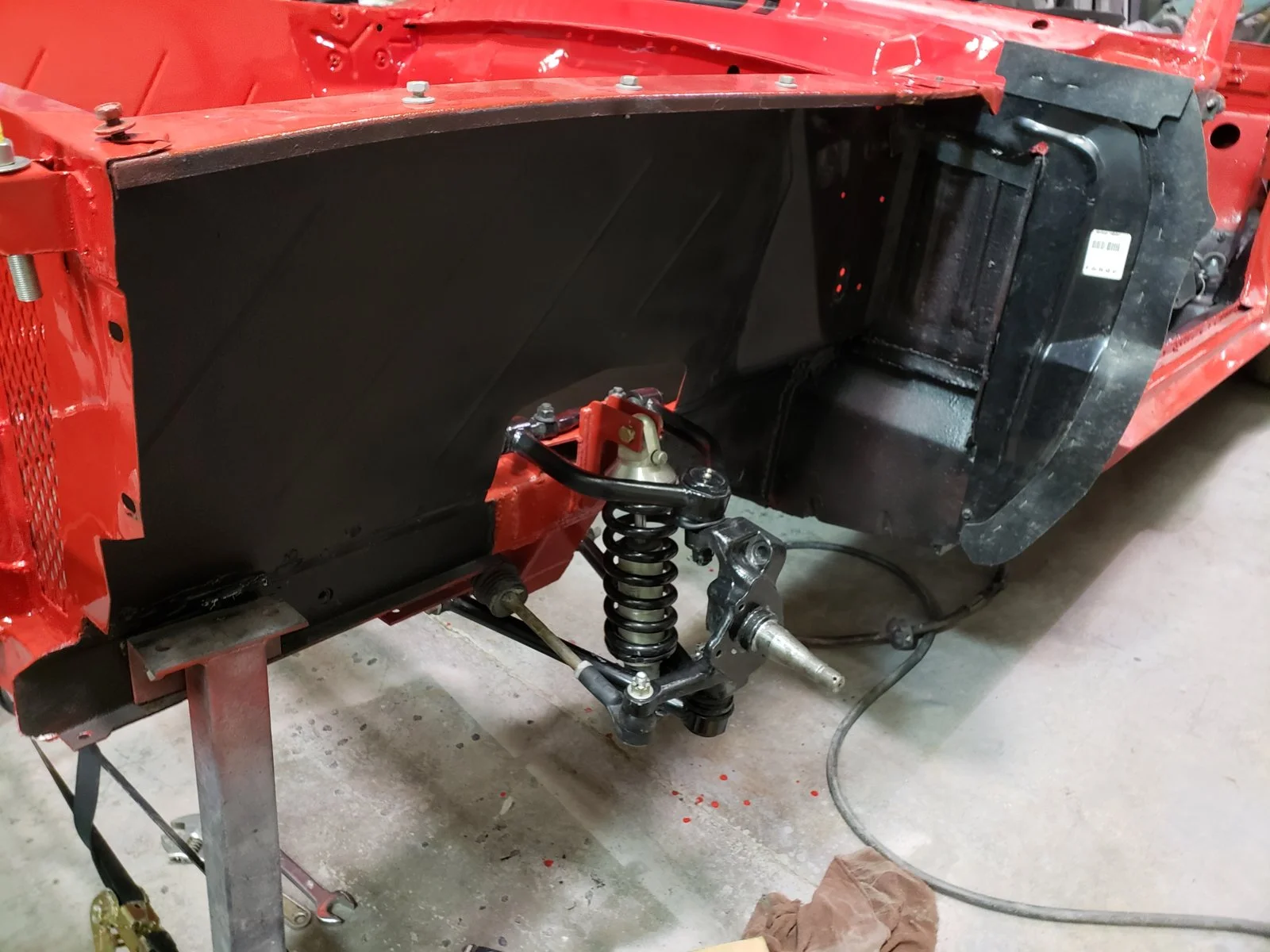

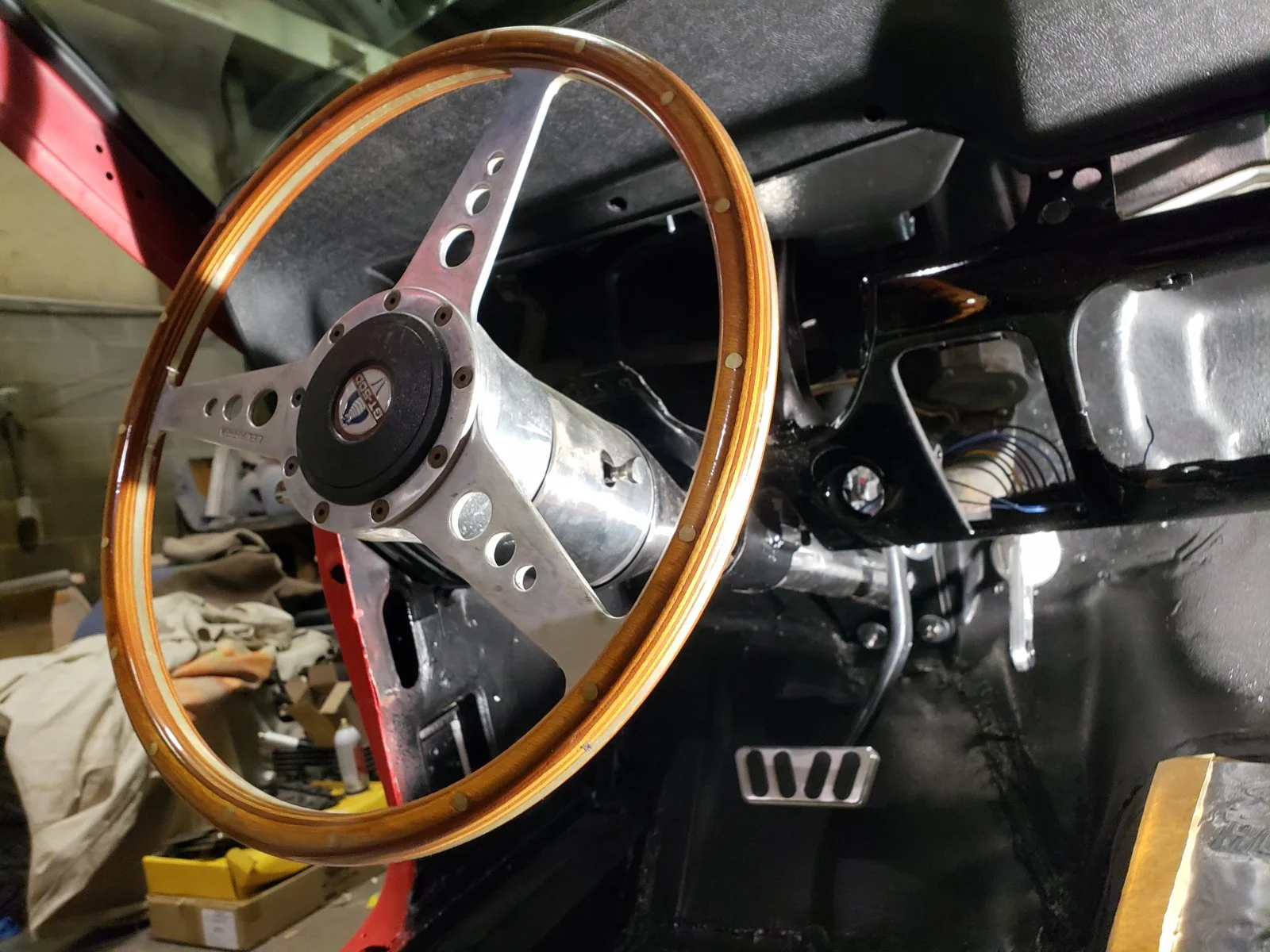

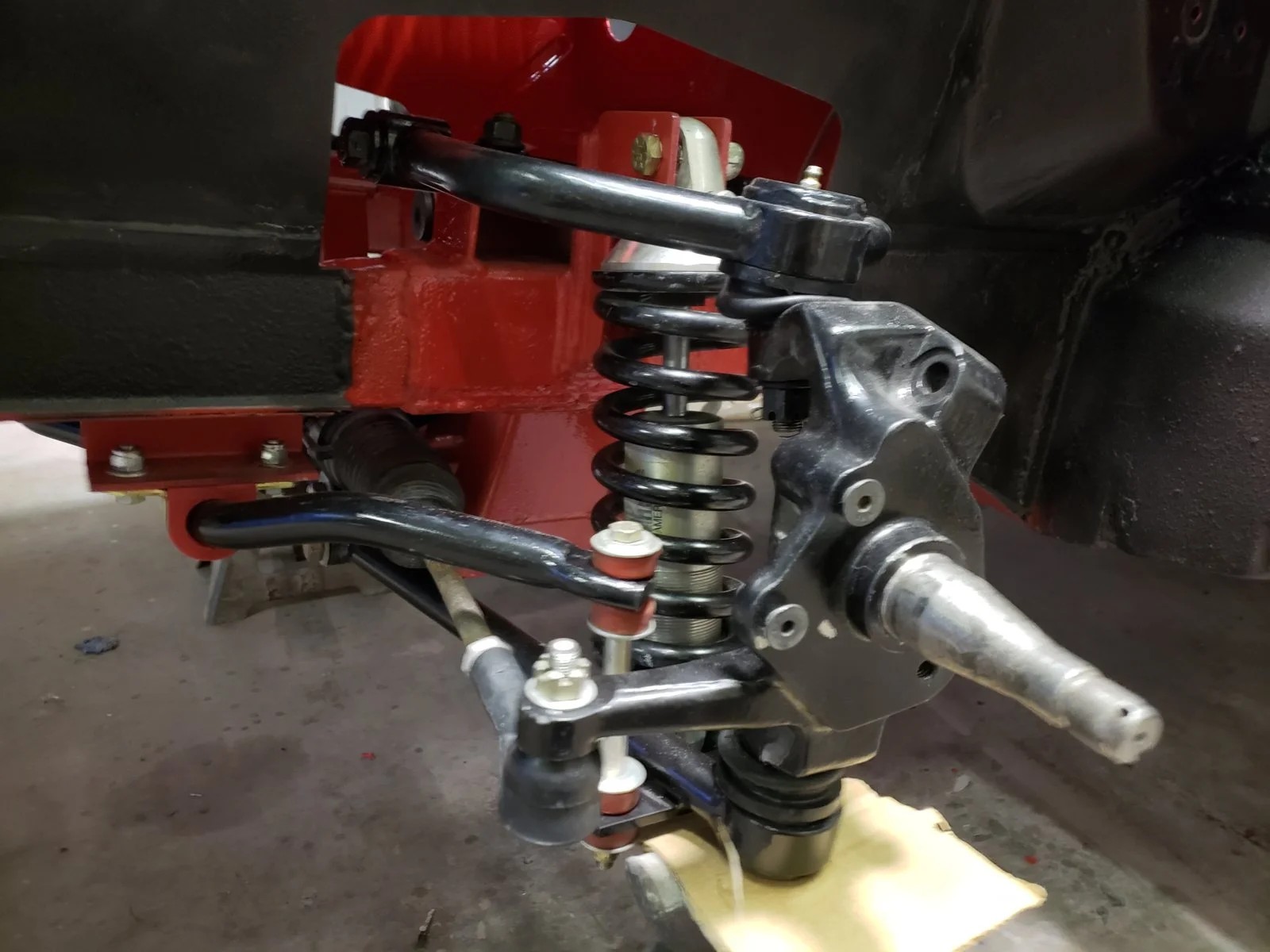

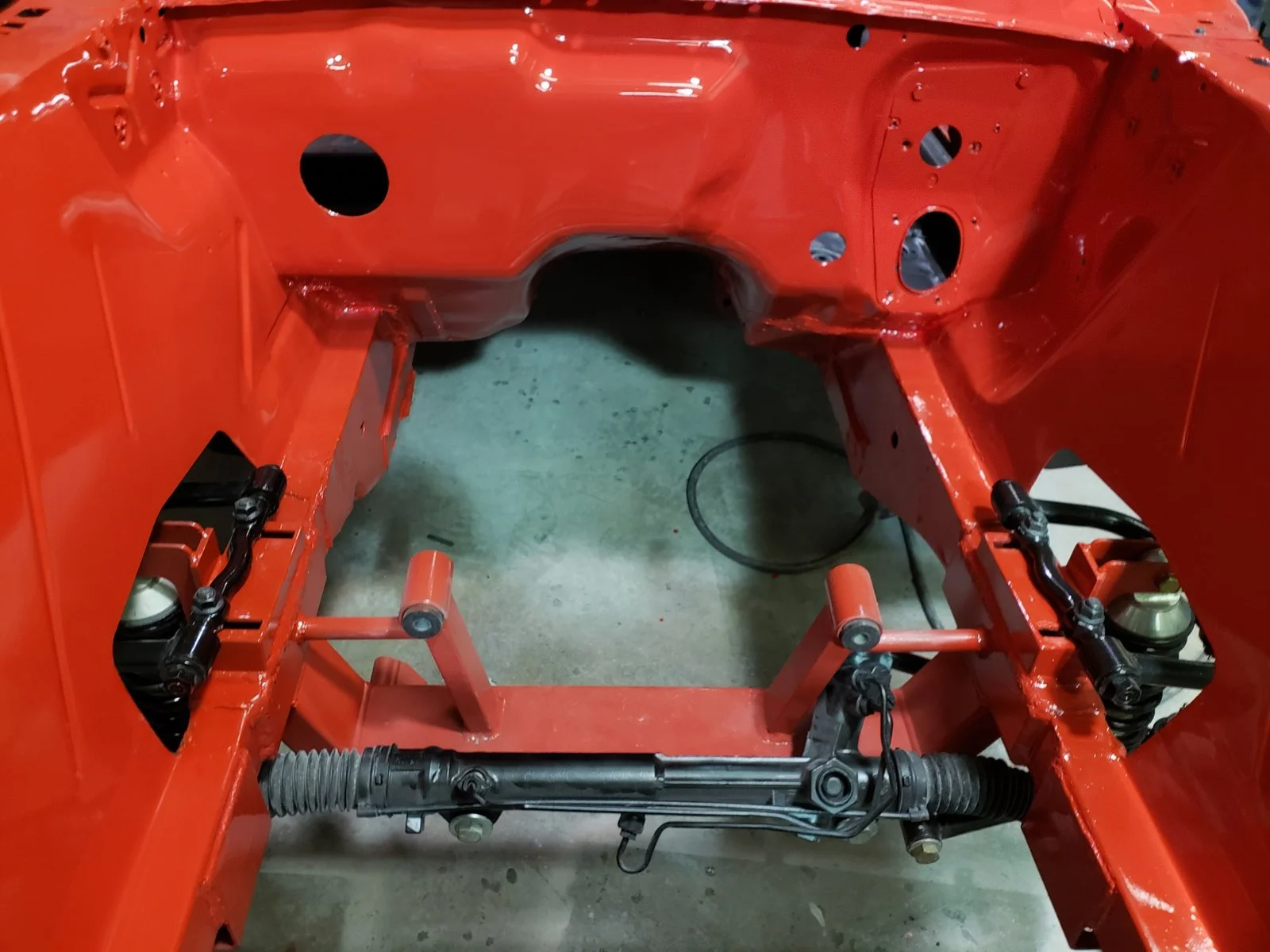

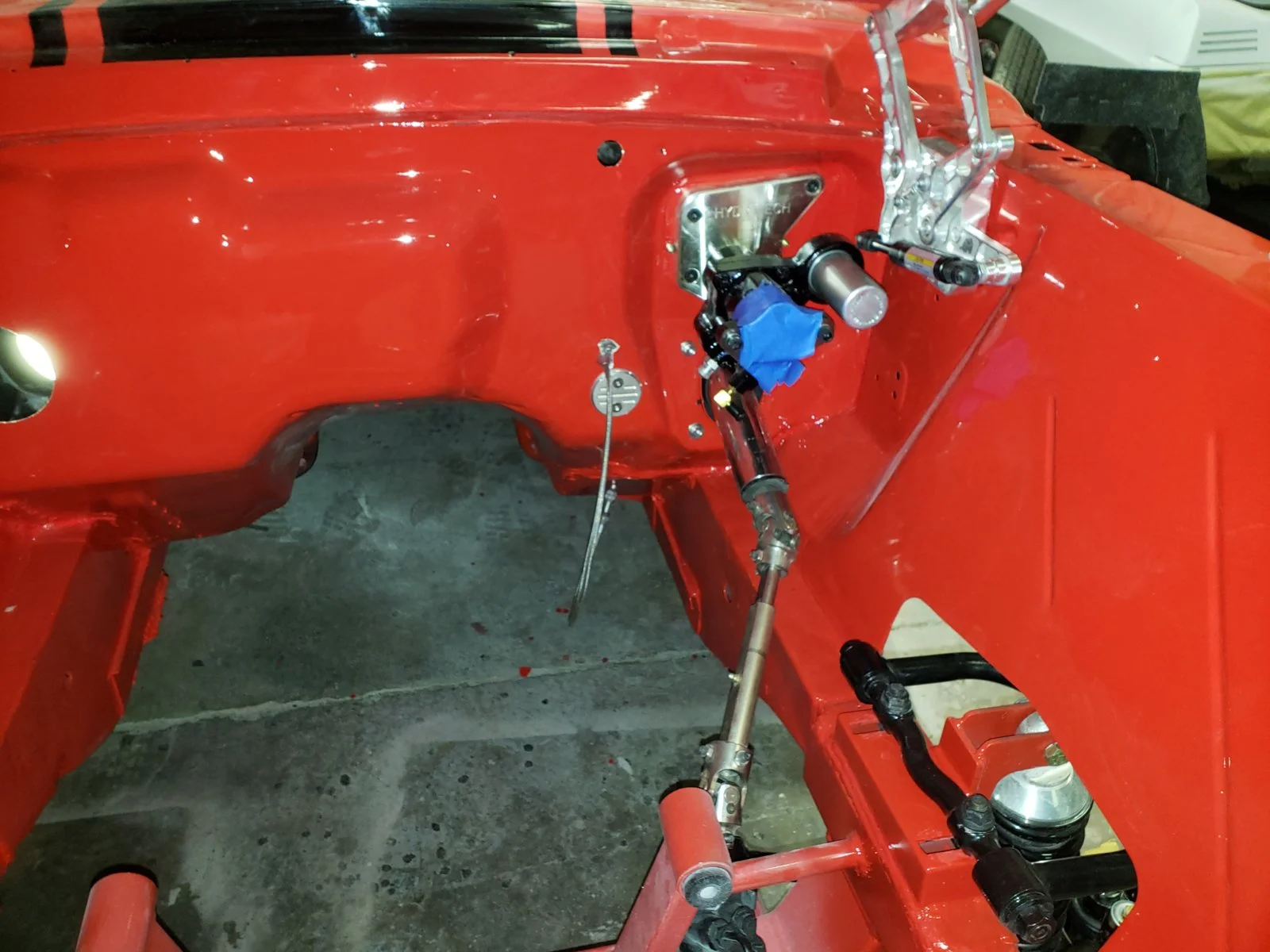

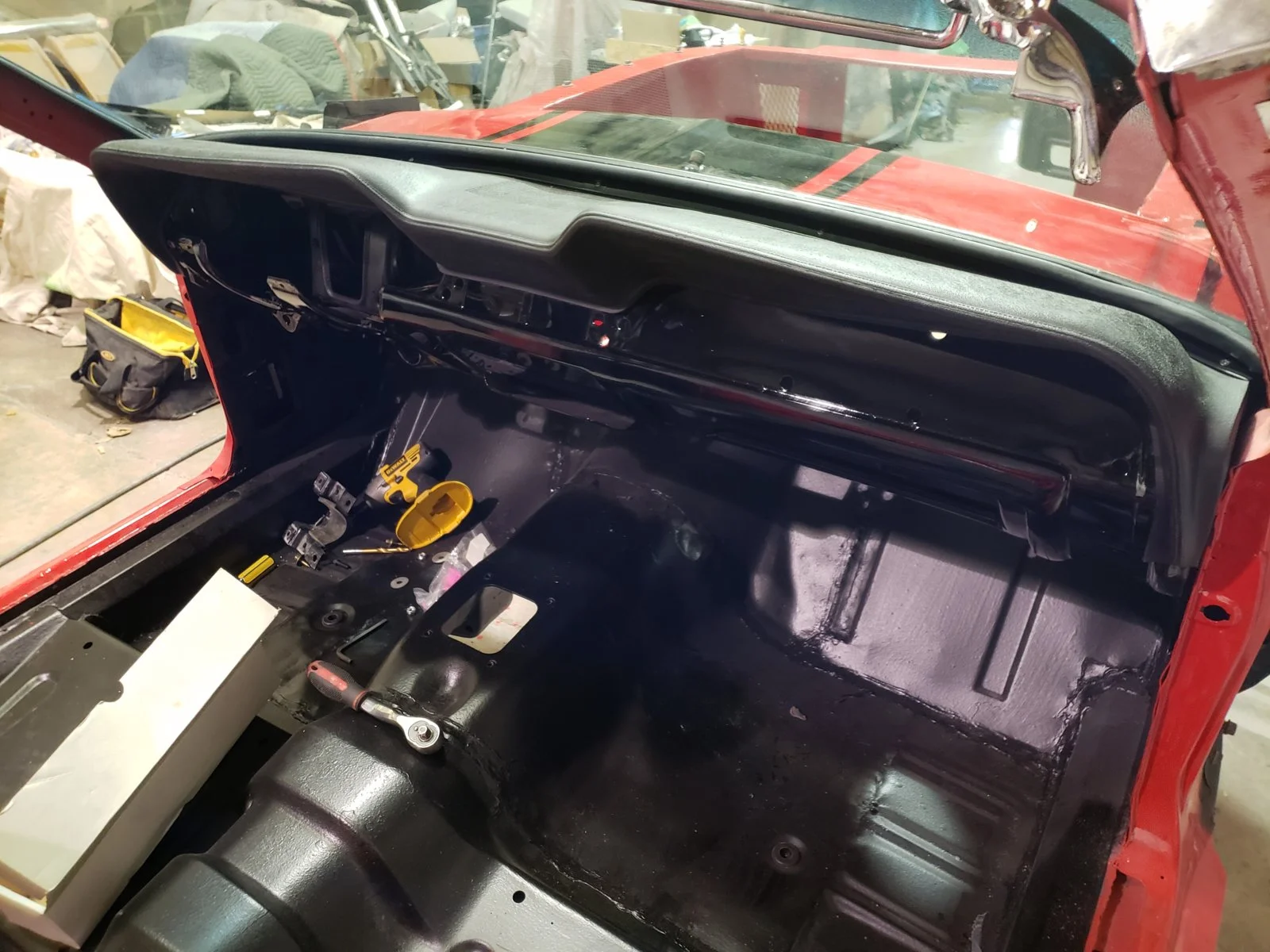

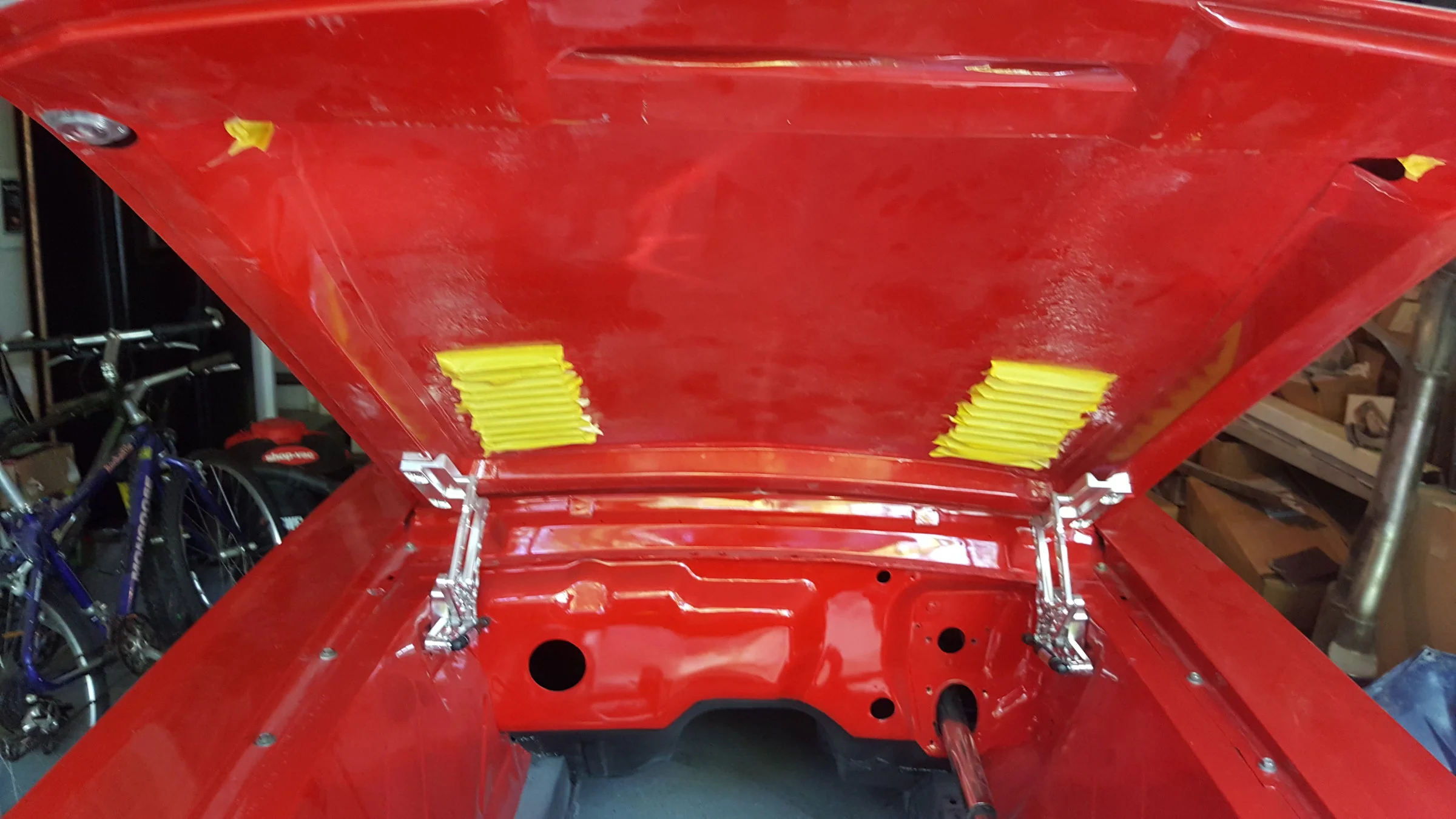

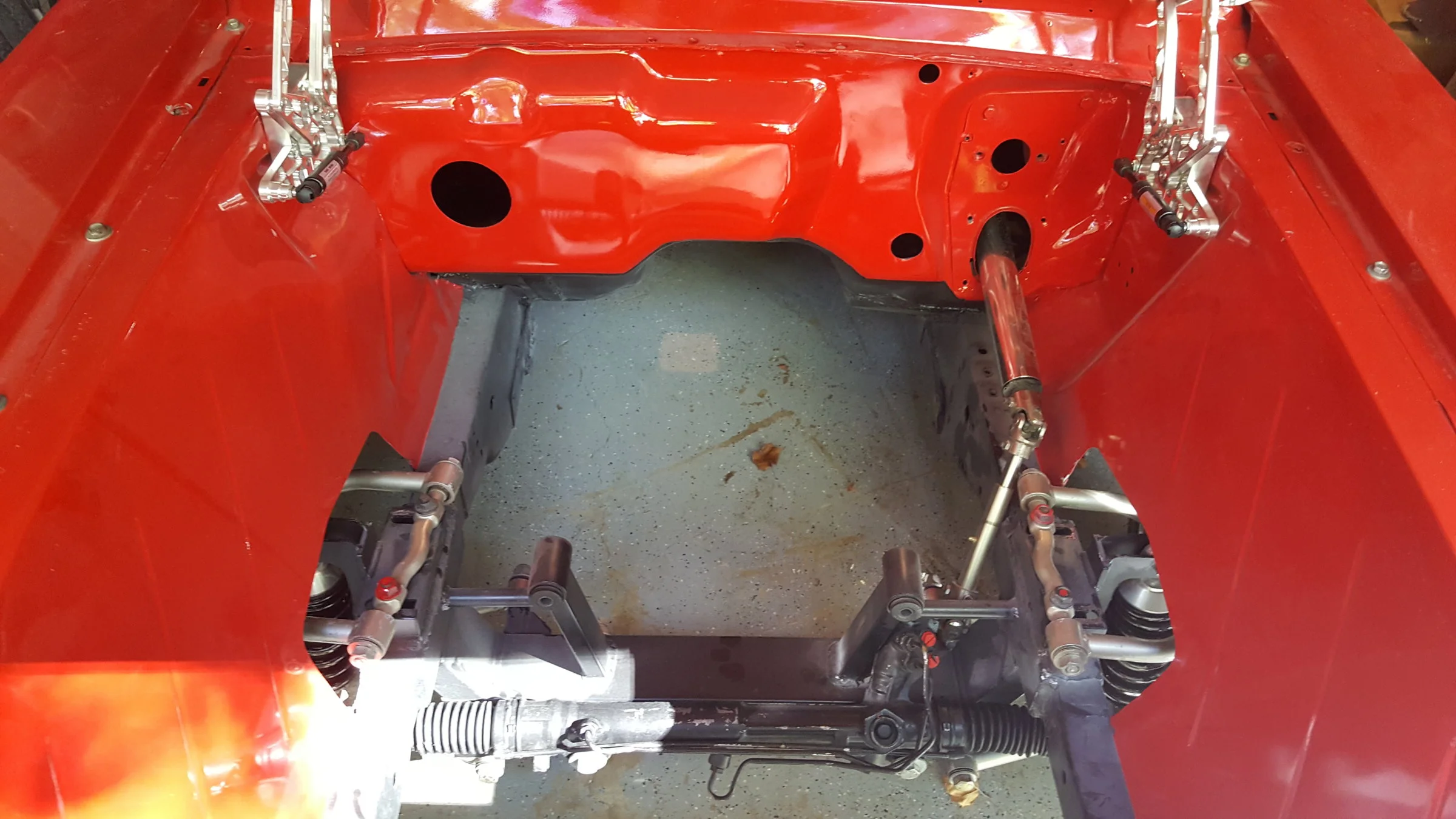

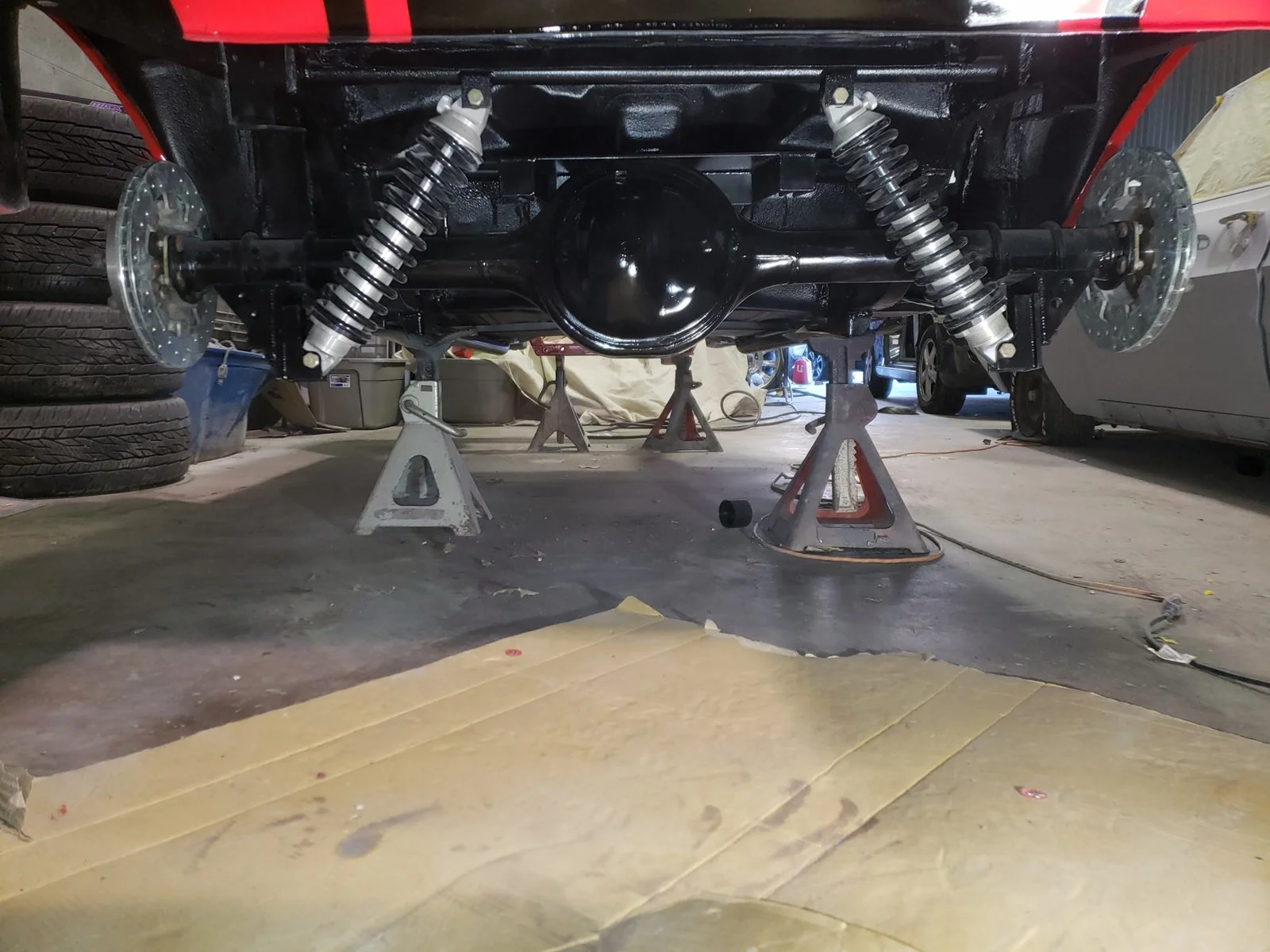

I love getting stuff done... installed: steering column, hydrabrake system, brake pedal, gas pedal, oil cooler, radiator, hood and hinges, finished the front suspension, tapped all the threads on painted stuff, and a bunch of other little things.

  • Like
Reactions: 1 user

68GT500KR_Vert

5 Year Member
Aug 21, 2006
353
60
59

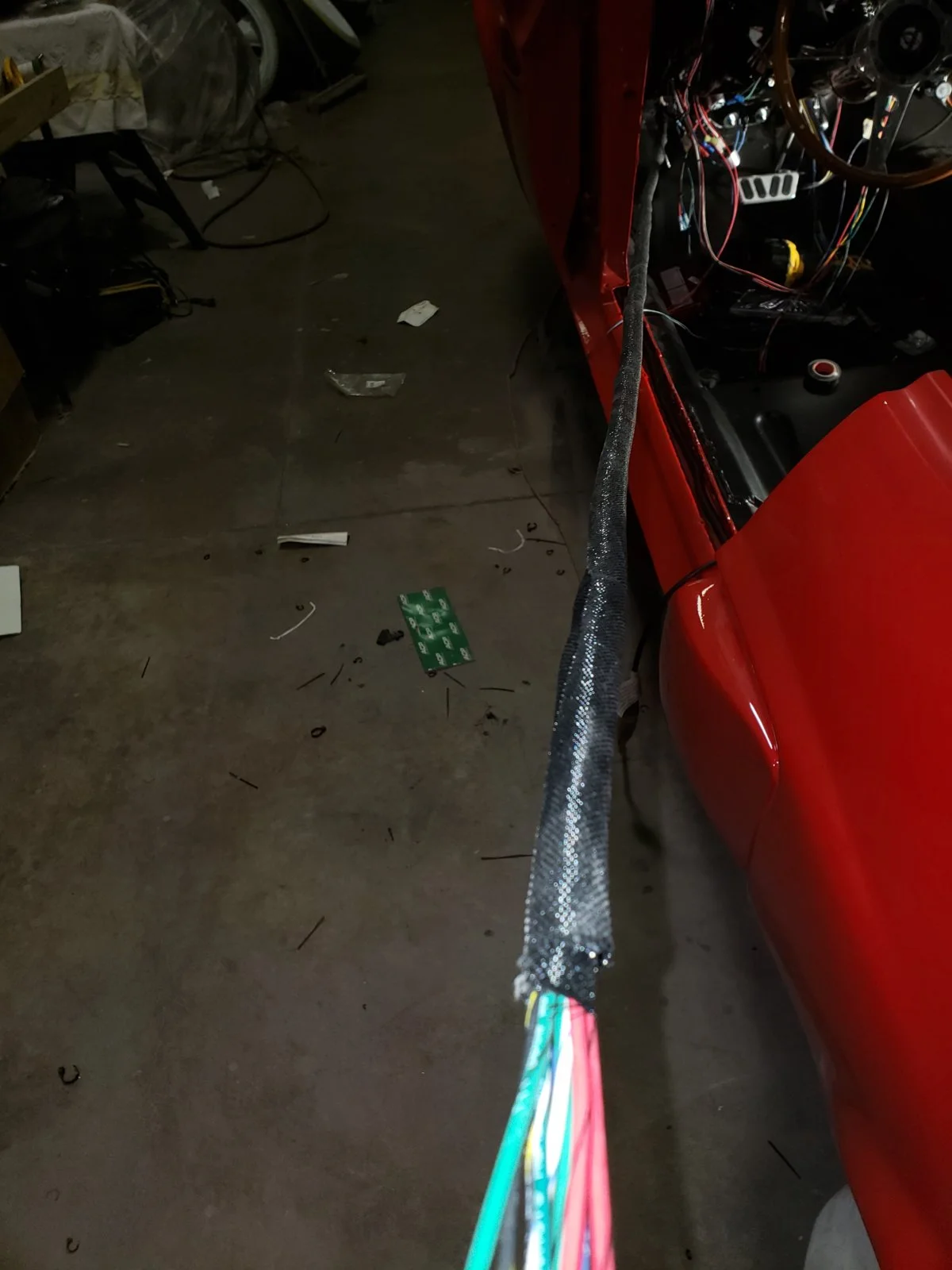

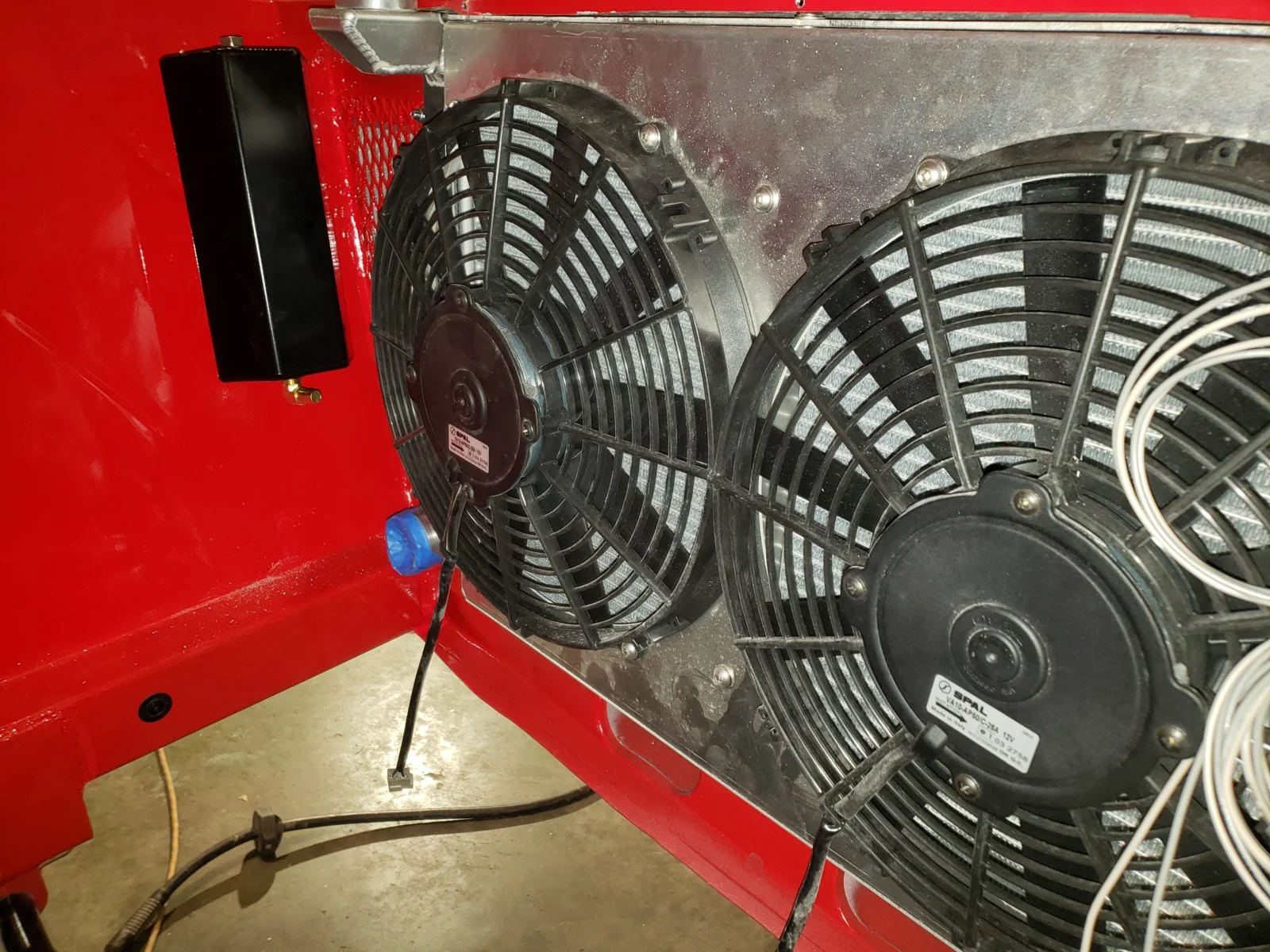

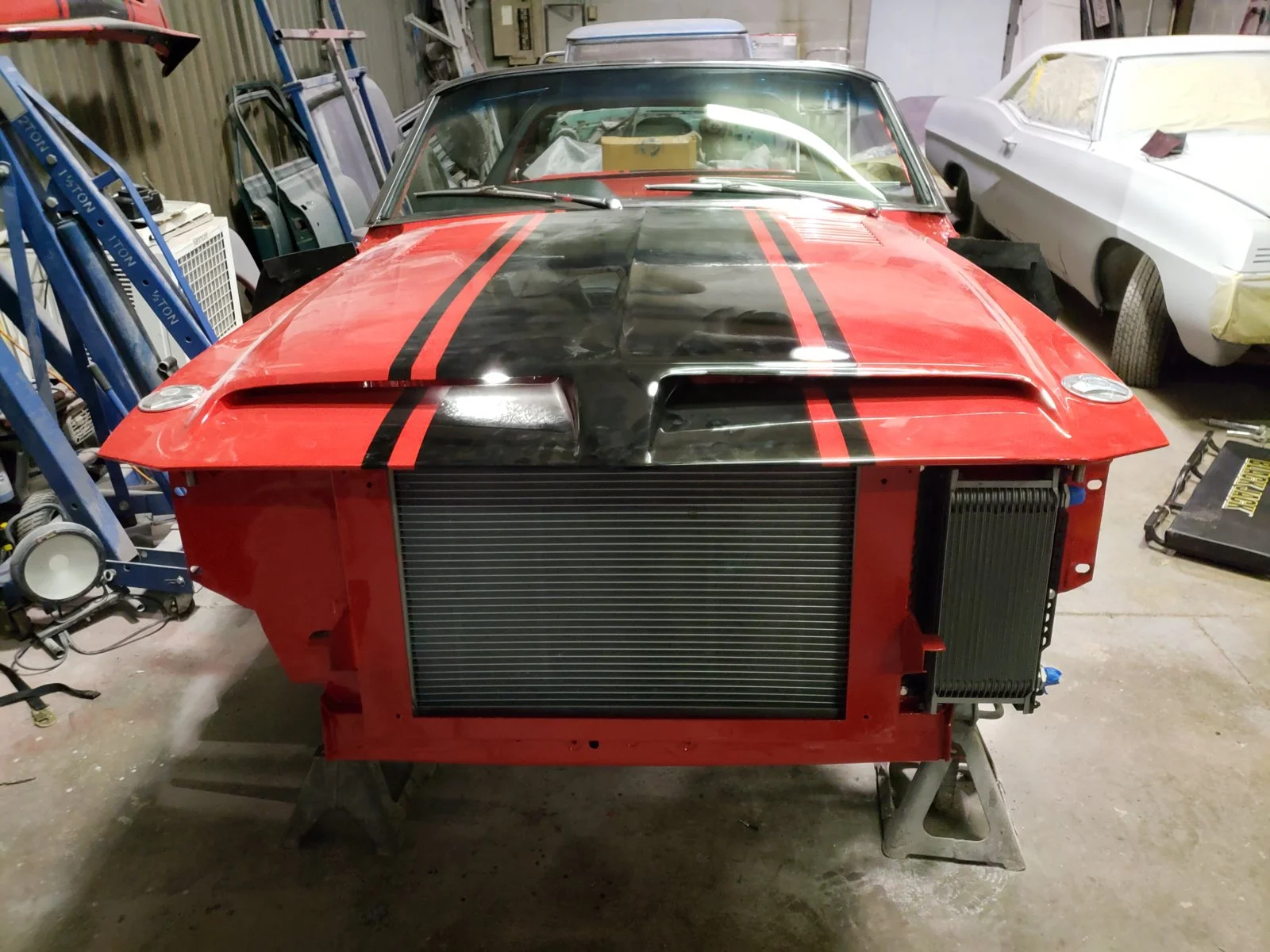

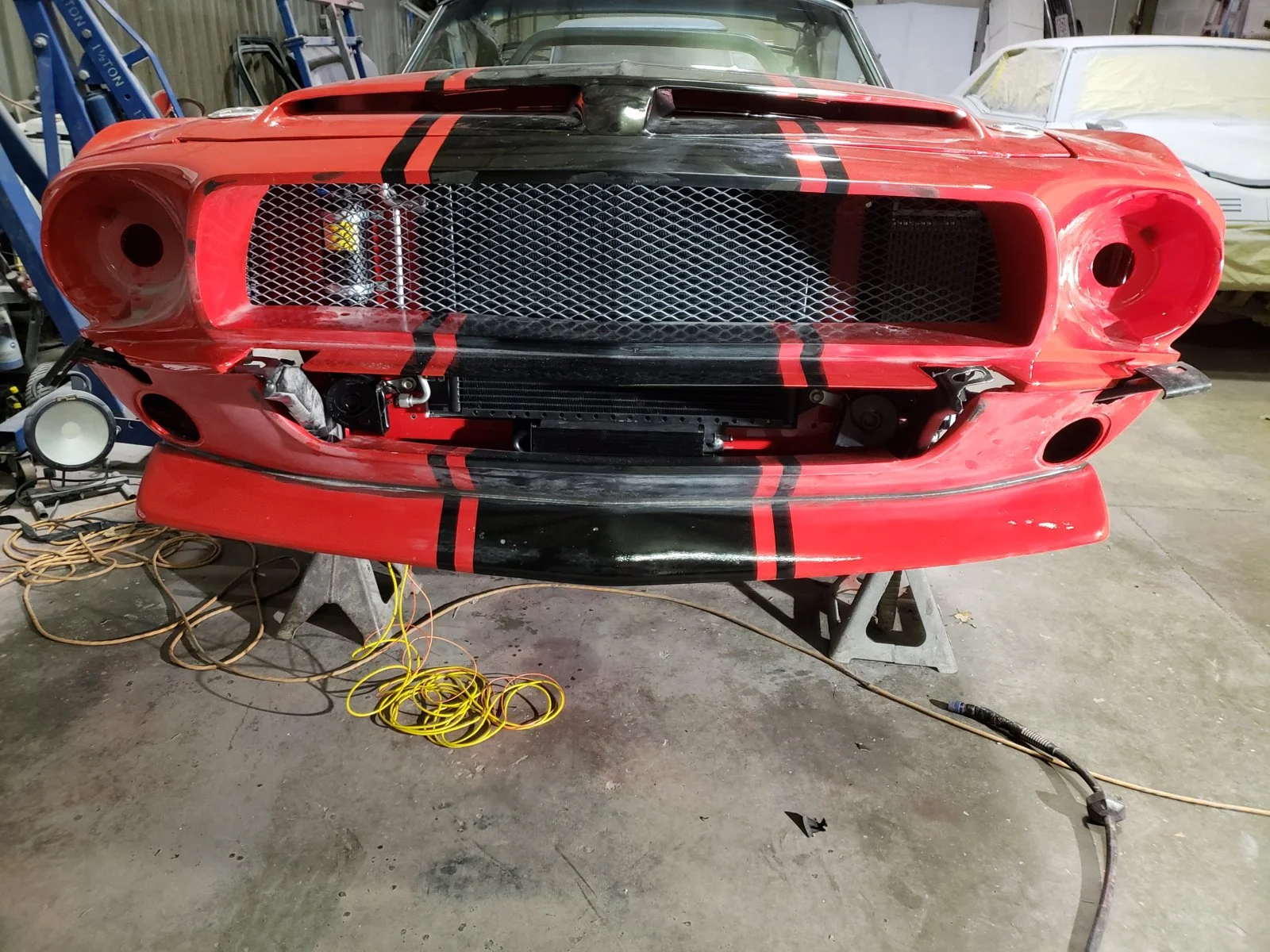

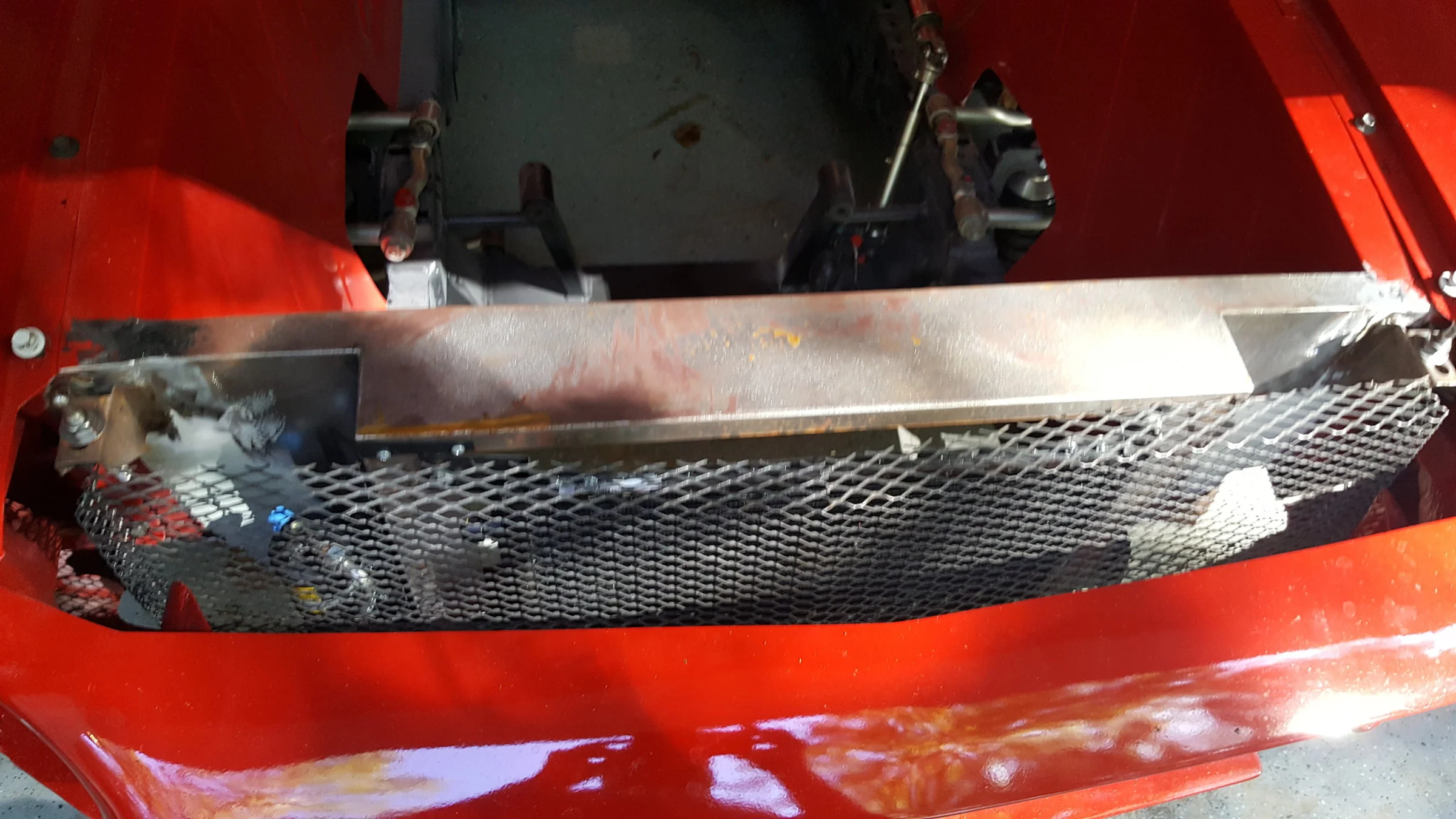

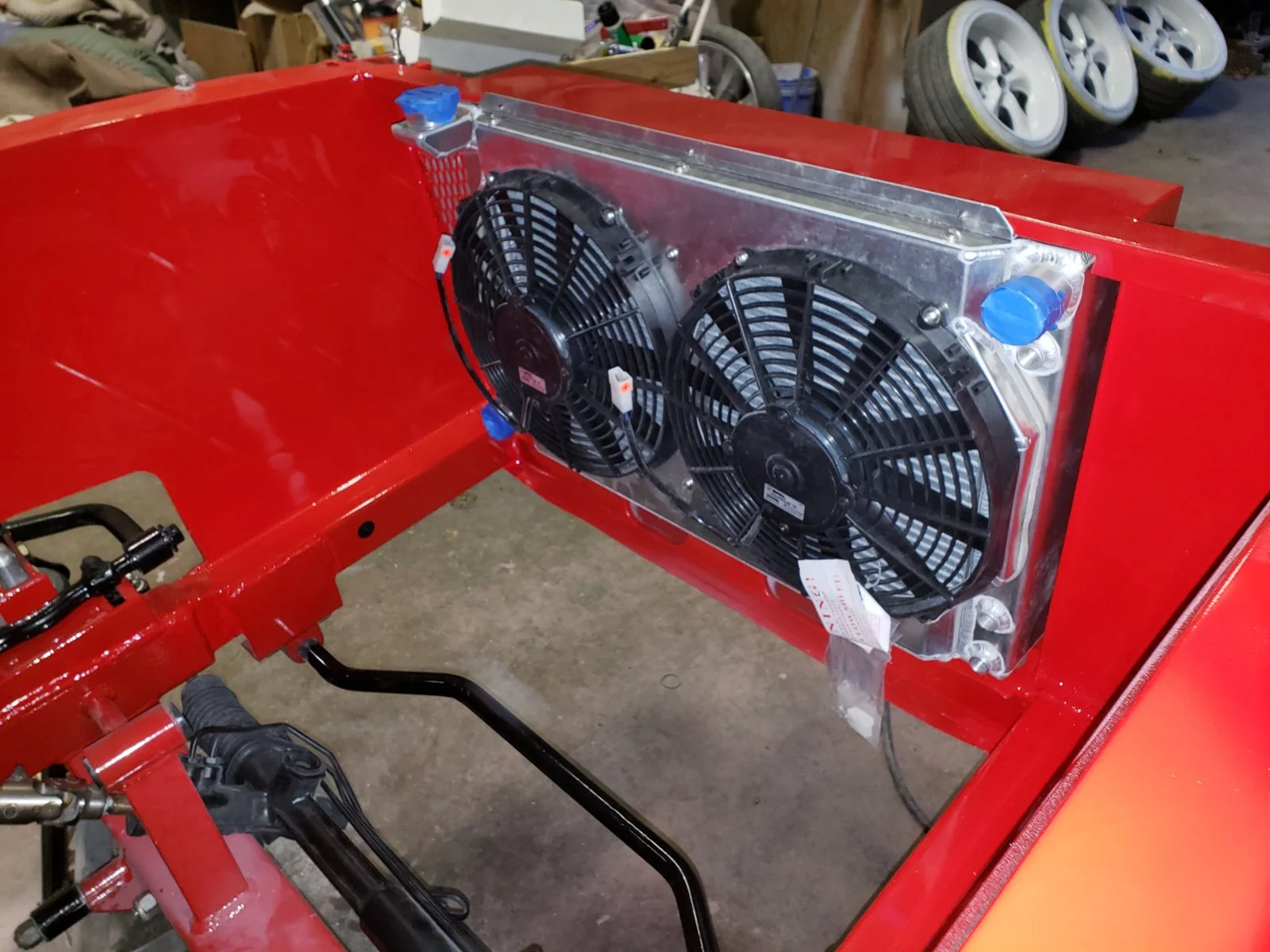

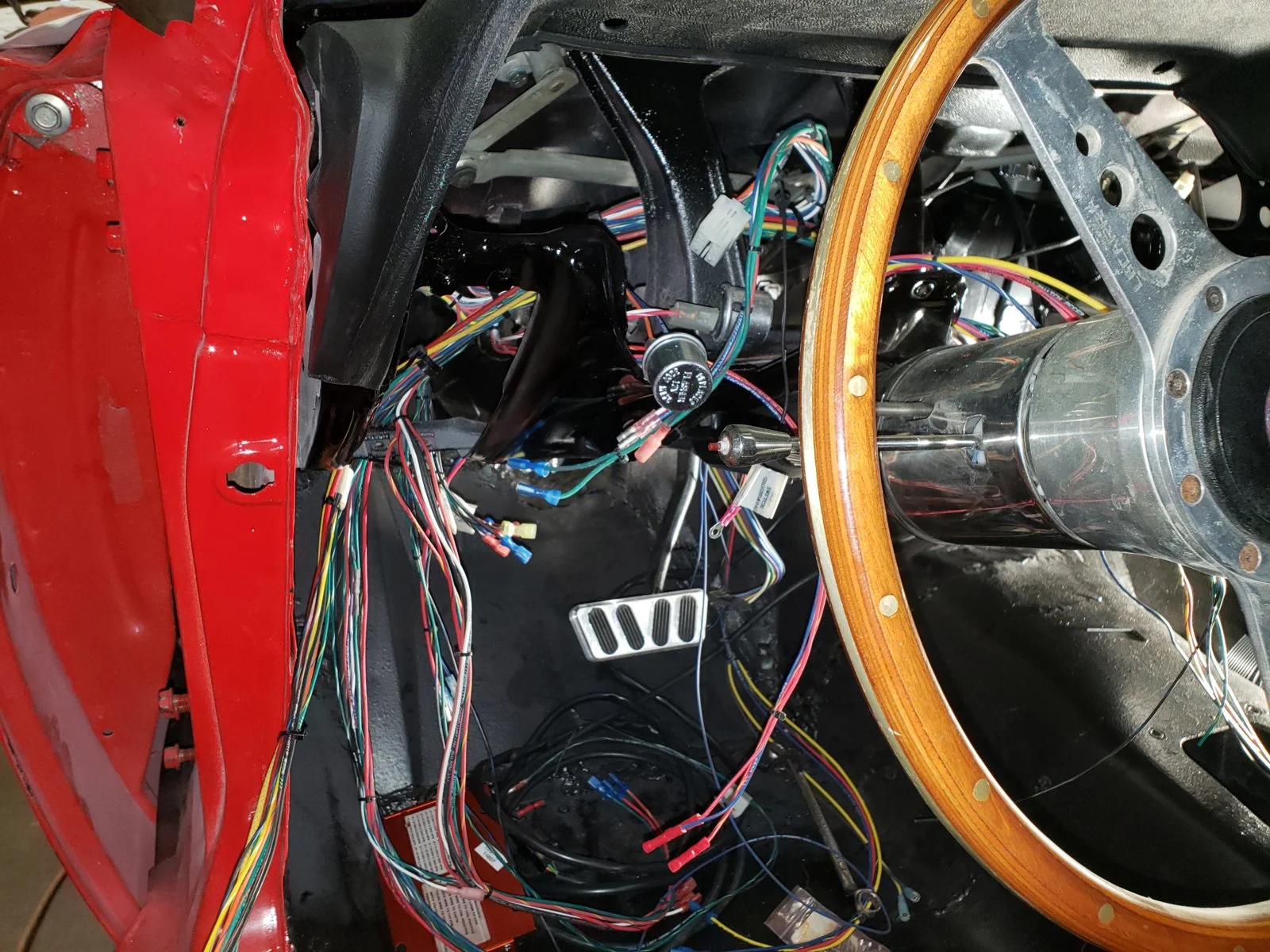

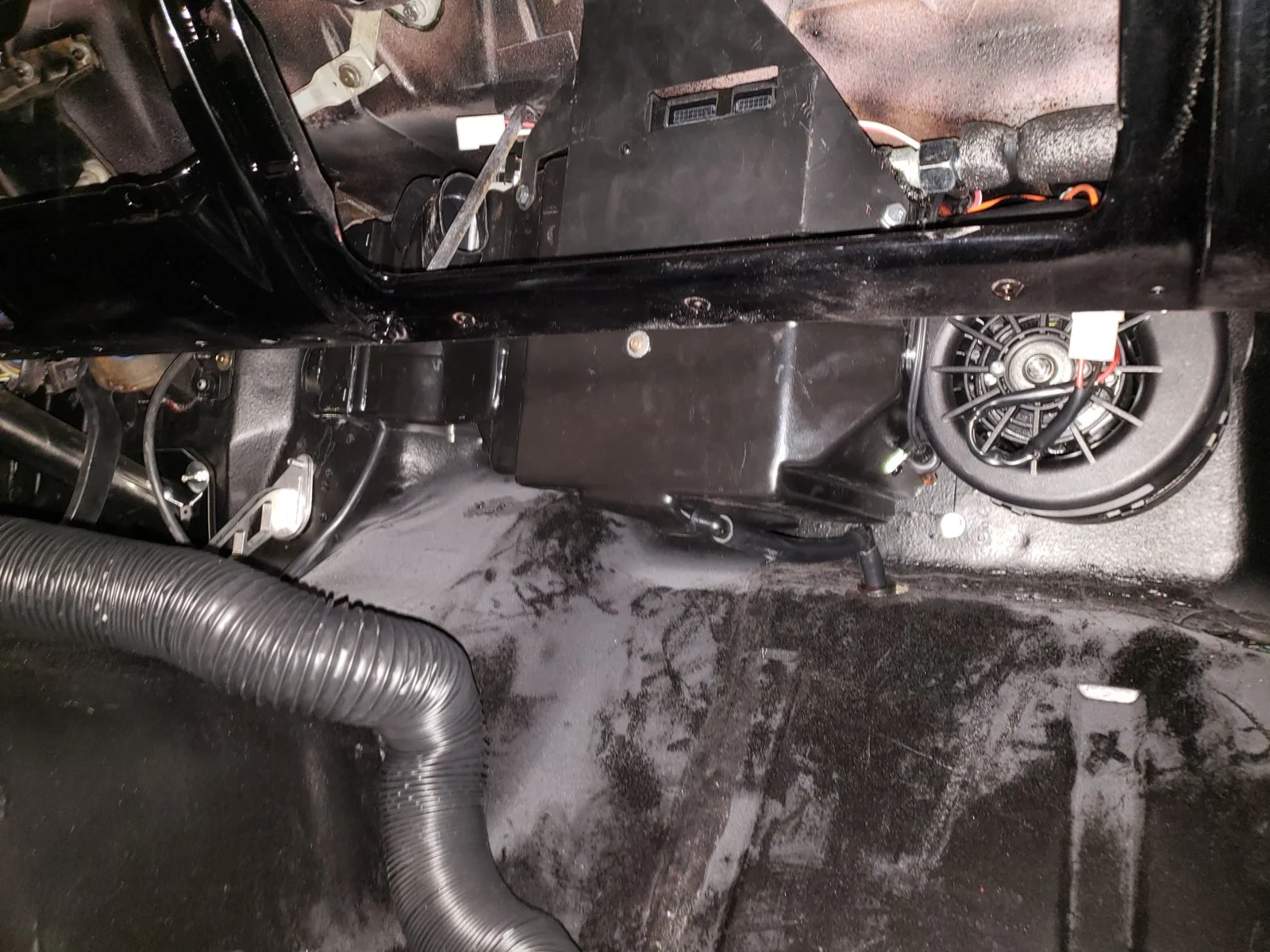

Put the nose and fenders back on..fit the radiator, ac system, fan relays, overflow tank, power steering cooler, horns, grille, started the wiring, installed interior ac unit, ran the engine electric lines, ignition system, rear electric lines, front fog and headlight lines, and a bunch of other little stuff

  • Like
Reactions: 1 users

68GT500KR_Vert

5 Year Member
Aug 21, 2006
353
60
59

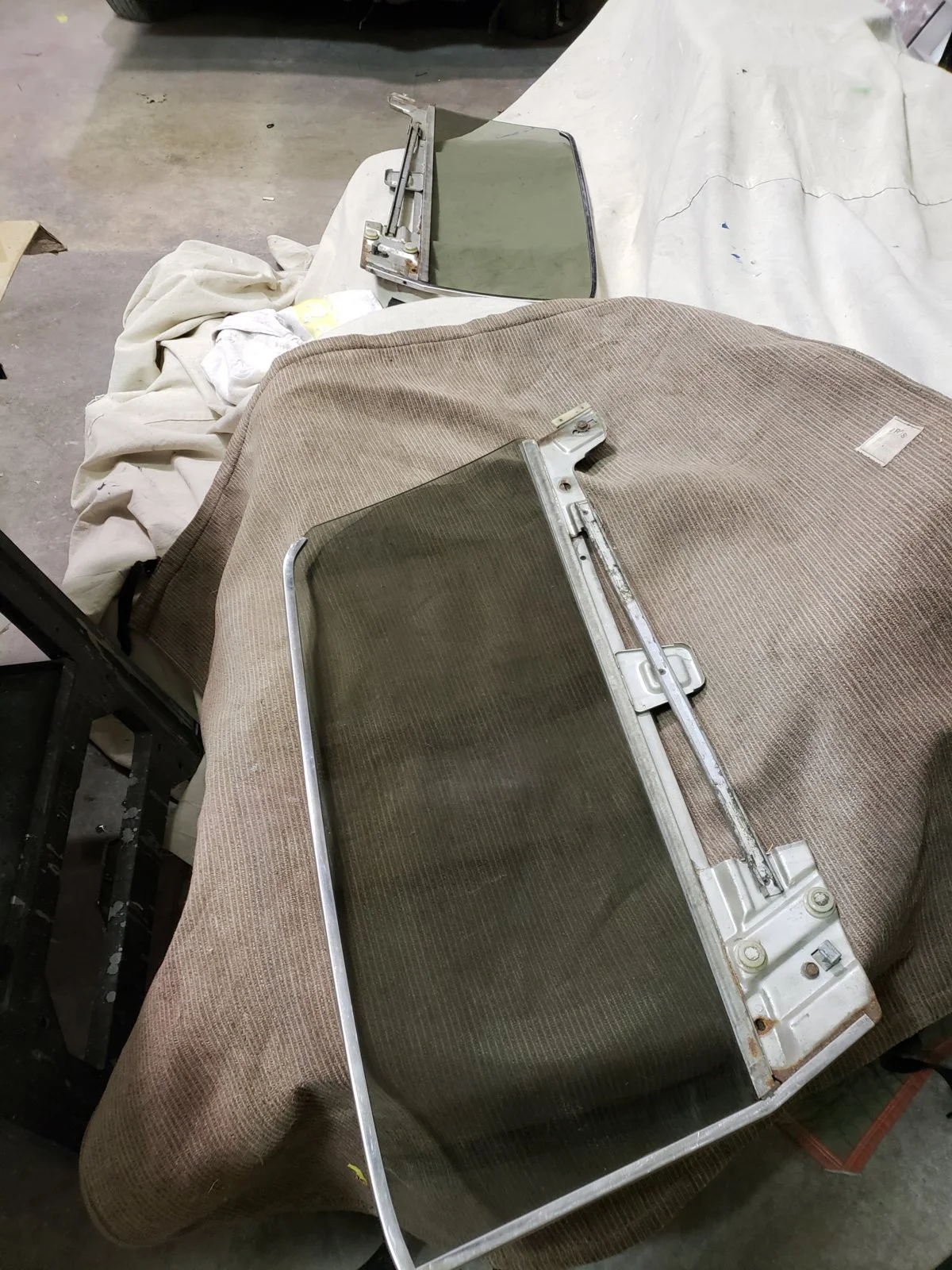

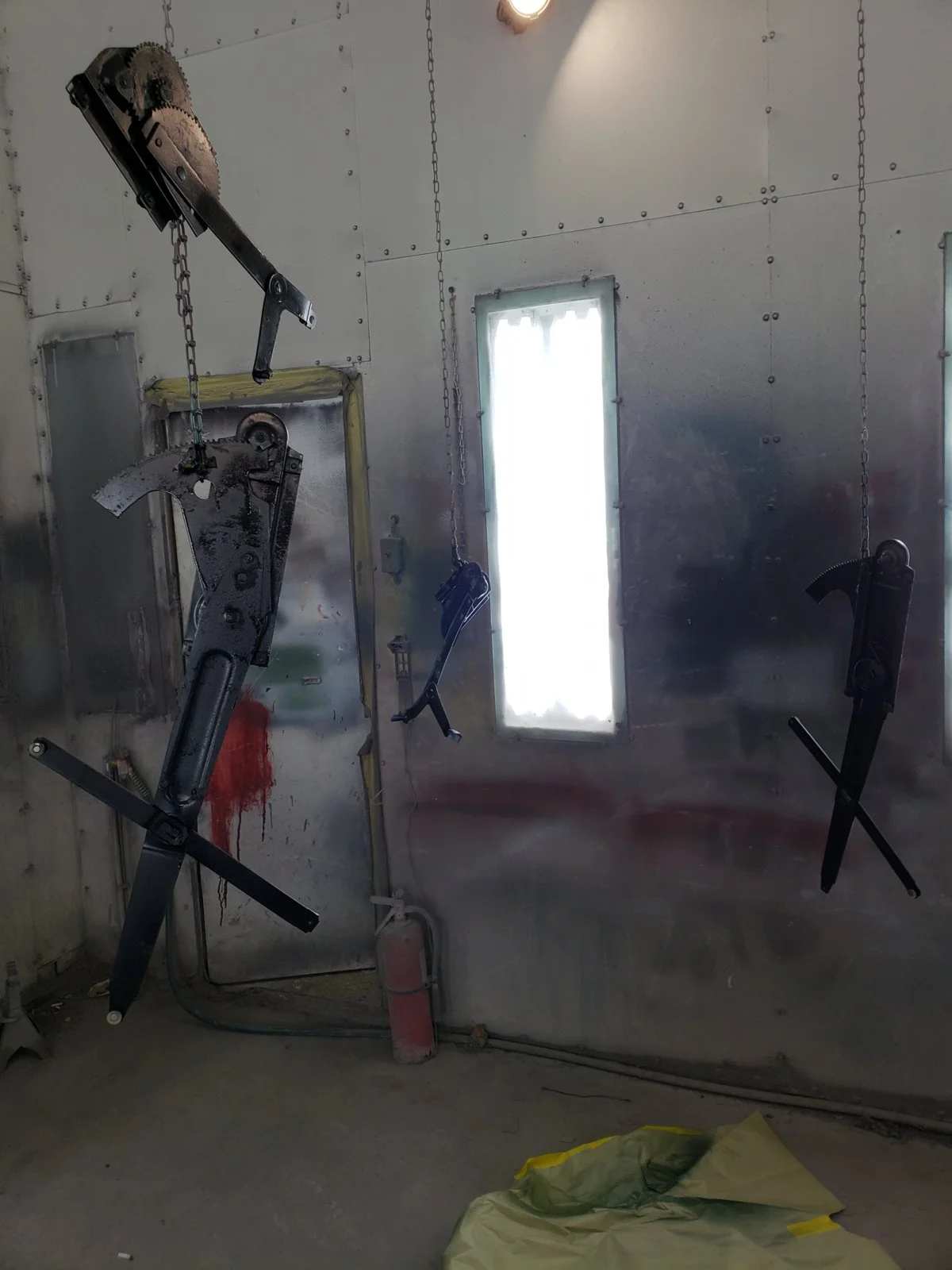

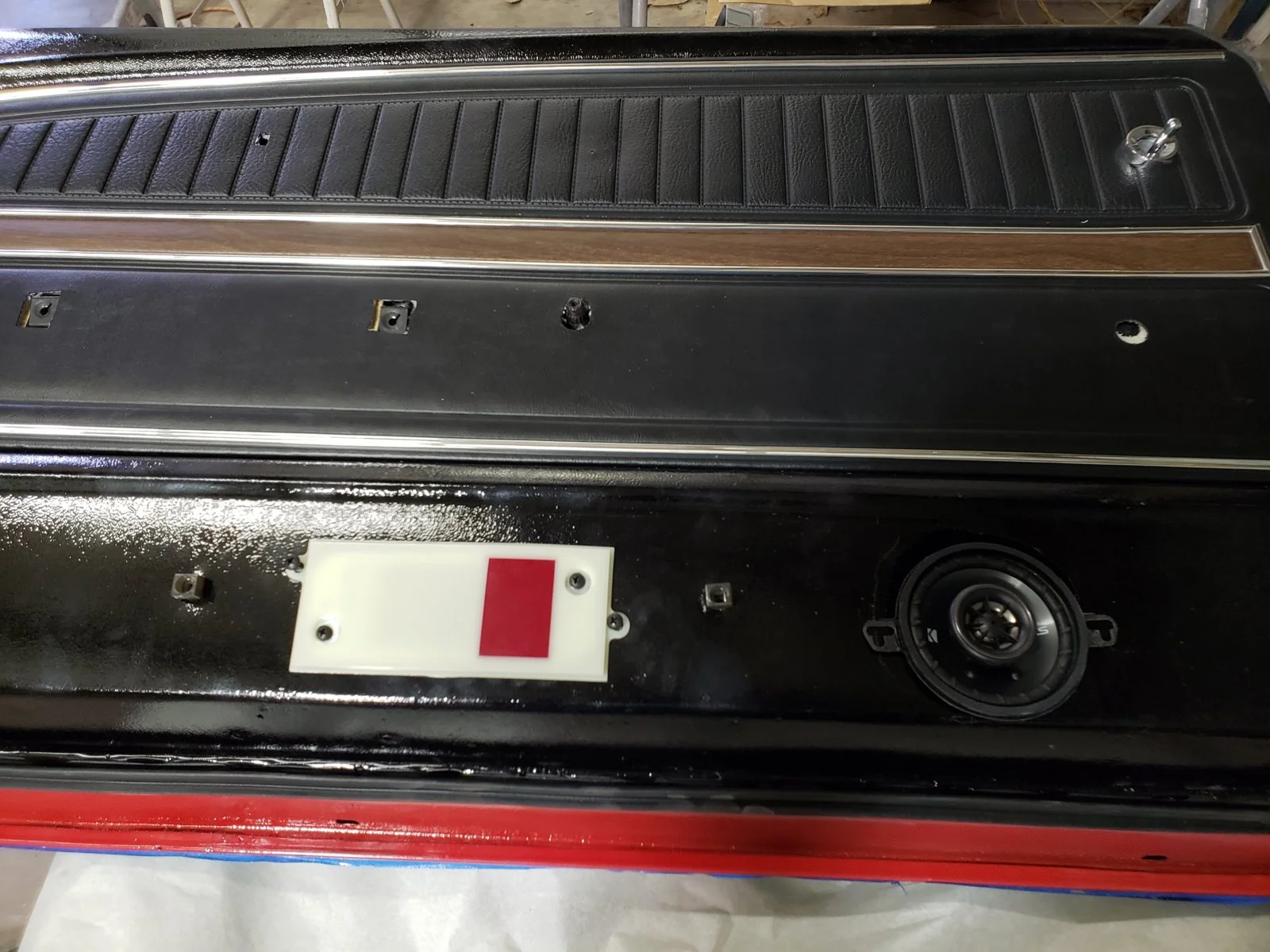

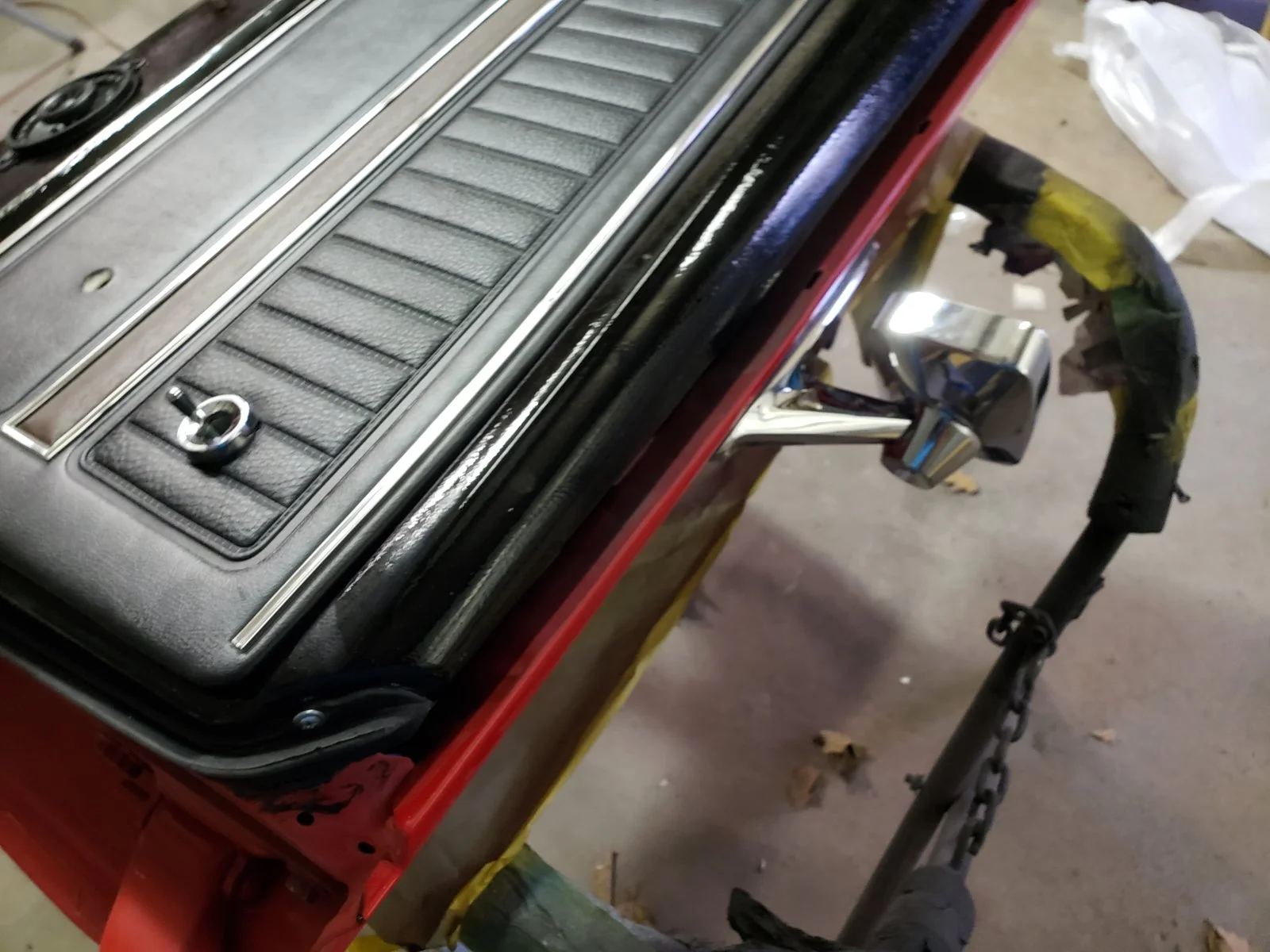

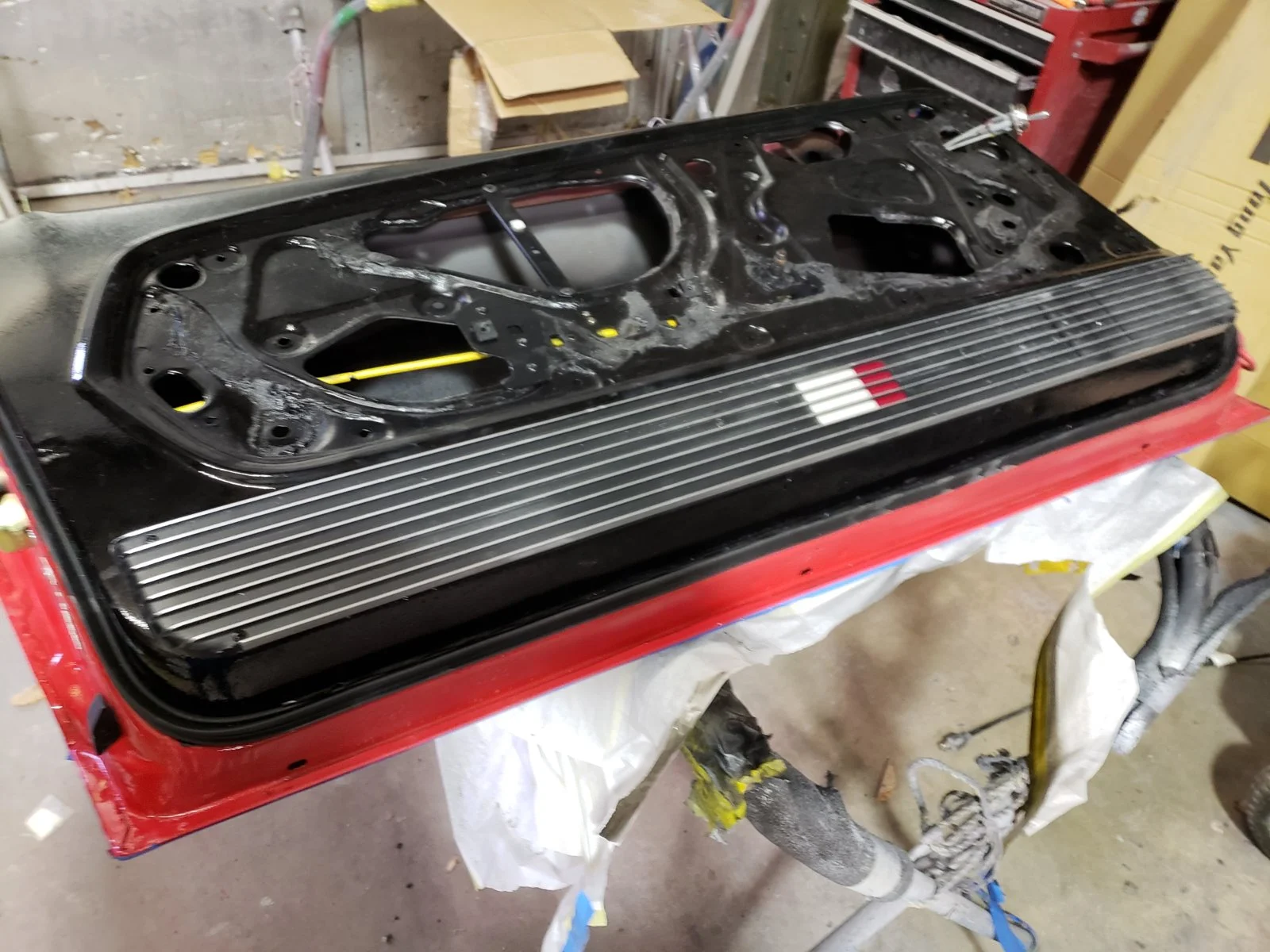

I setup the deluxe doors.. what a pain in the ass... no instructions or examples anywhere on the internet.. plus the driver side door turned out to be a 67, different metal setup under the panel, had to make a metal bracket for the arm rest. Installed the courtesy lights, door pulls, speakers, remote mirror, pass mirror, painted the insides of the doors with rust converter, installed the panels, installed new latches and weatherstrip. Started on the windows setup. Painted the mechanism and tinted the windows.

  • Like
Reactions: 1 user
