Anyone know what the Evaporator Gasket Vacuum Line Does???

[AnthonyR23]

Anyone know what the Evaporator Gasket Vacuum Line Does??? Is it related to A/C.. two passenger side vacuum lines through firewall. One is the Evaporator Gasket Vacuum line which I have no idea what that does.. and I have no idea what the other line is for.. Any ideas would be greatly appreciated!!!!



[jrichker]

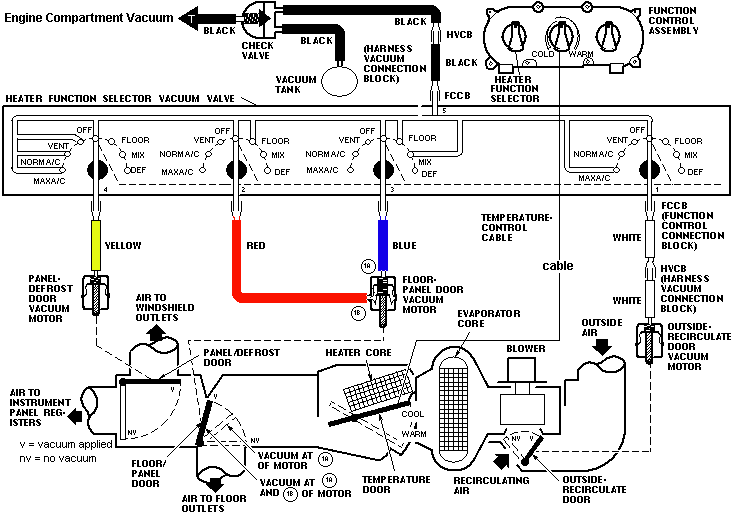

It must be the feed to the HVAC control panel inside the car

Diagram scourtesy of Tmoss & Stang&2birds. Be sure to visit their site.

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel pump, alternator, ignition & A/C wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Computer, actuator & sensor wiring
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Fuse panel layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

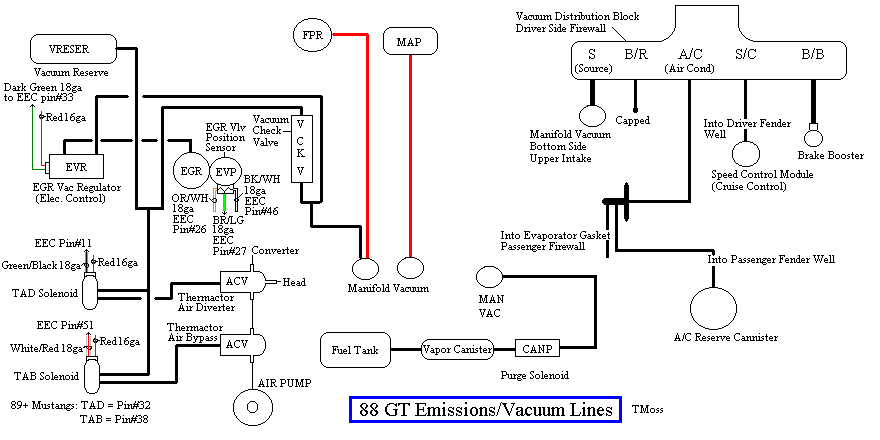

Vacuum routing
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg
