Brake Line Help Needed

[thobecat]

I have a 69 Mach 1 that had drum front brakes and I am converting it to 70 Mach 1 style power disc brakes on front and I bought factory lines for the 70 from Kentucky Mustang the are pre bent. I have a proportioning valve off the 70 also but I have no diagram showing where all these lines go. Does anyone have a 70 they could send me some pictures of the valve and where the lines under hood run? Very much appreciate the help.



[horse sence]

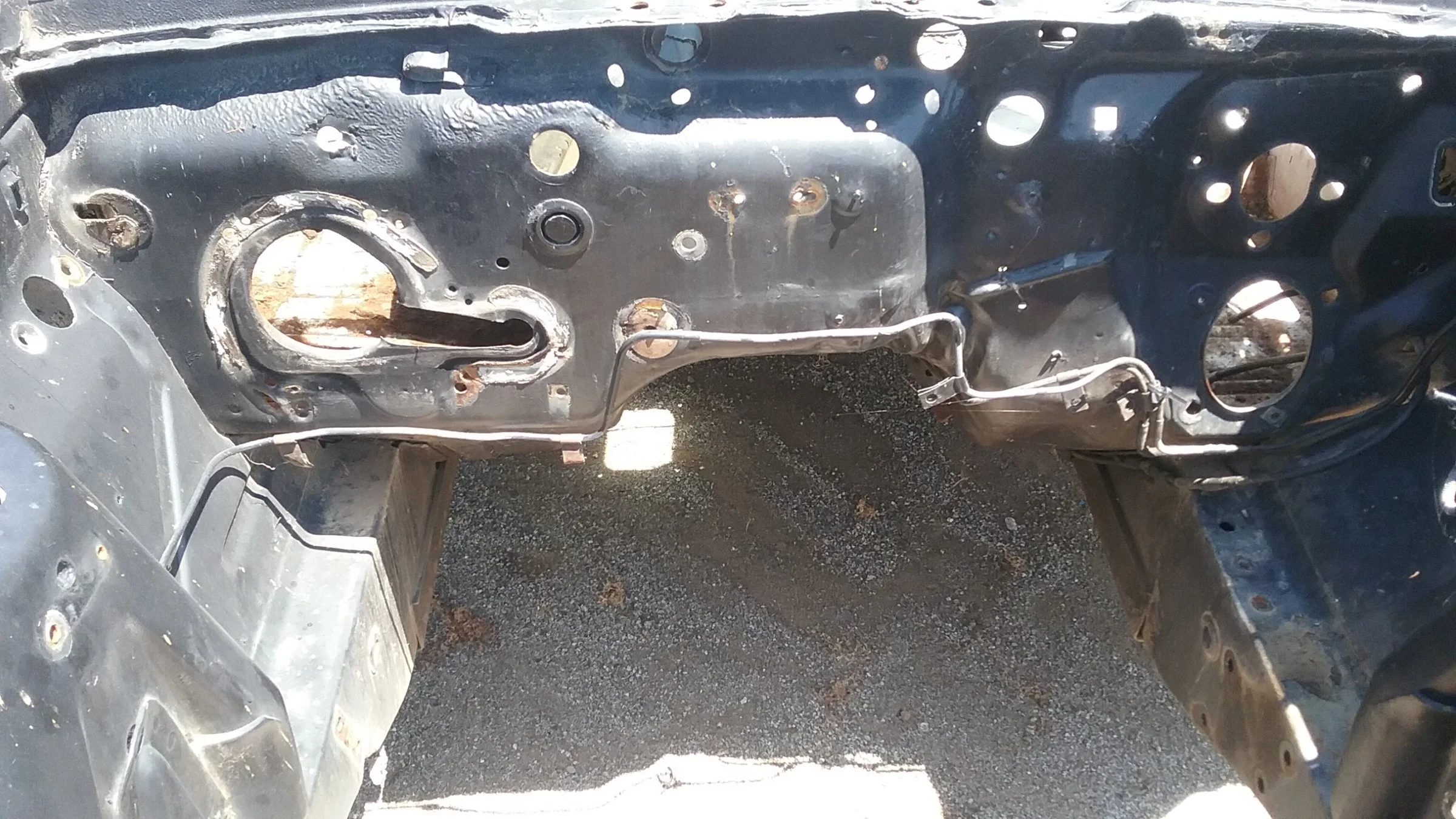

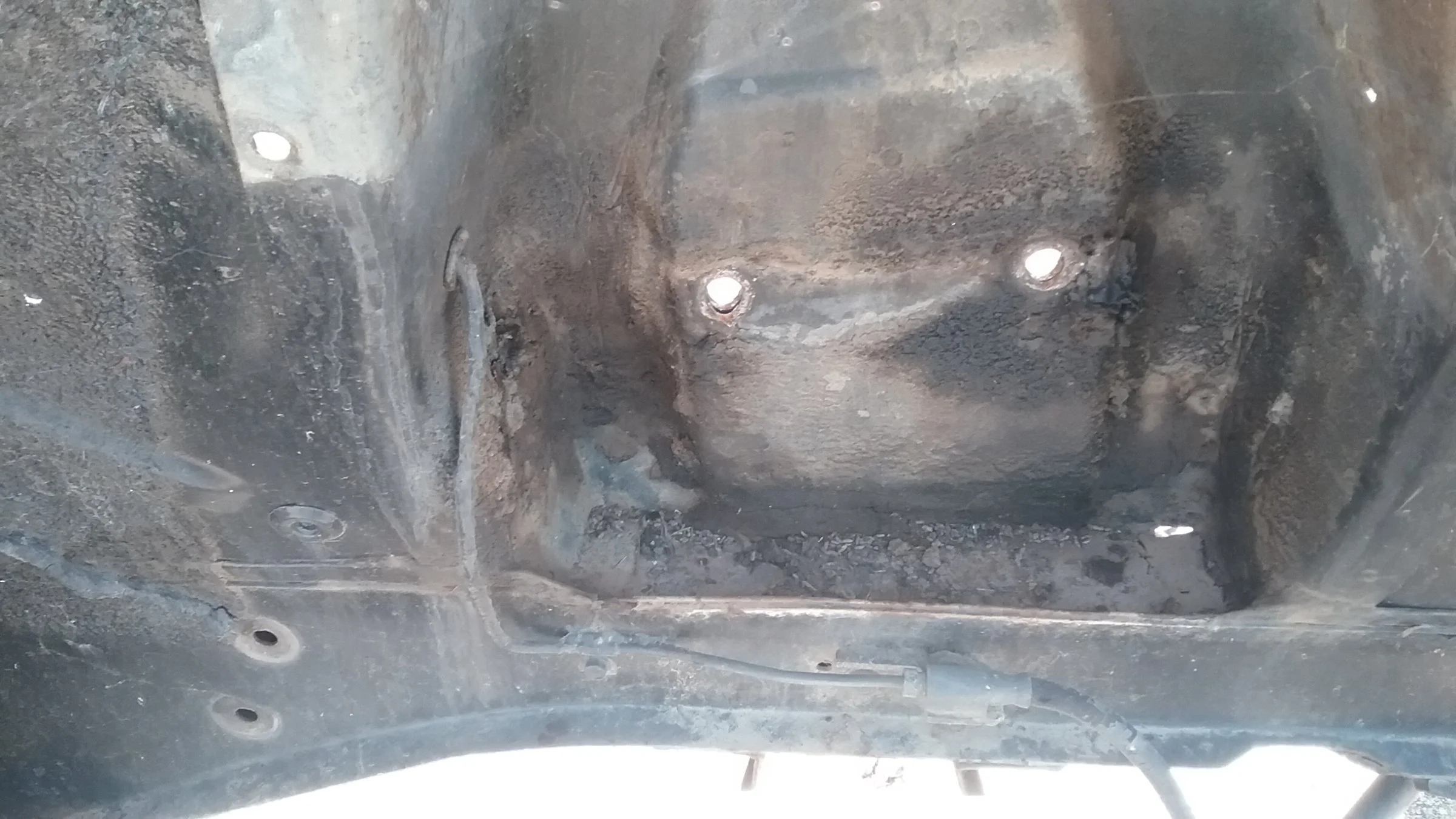

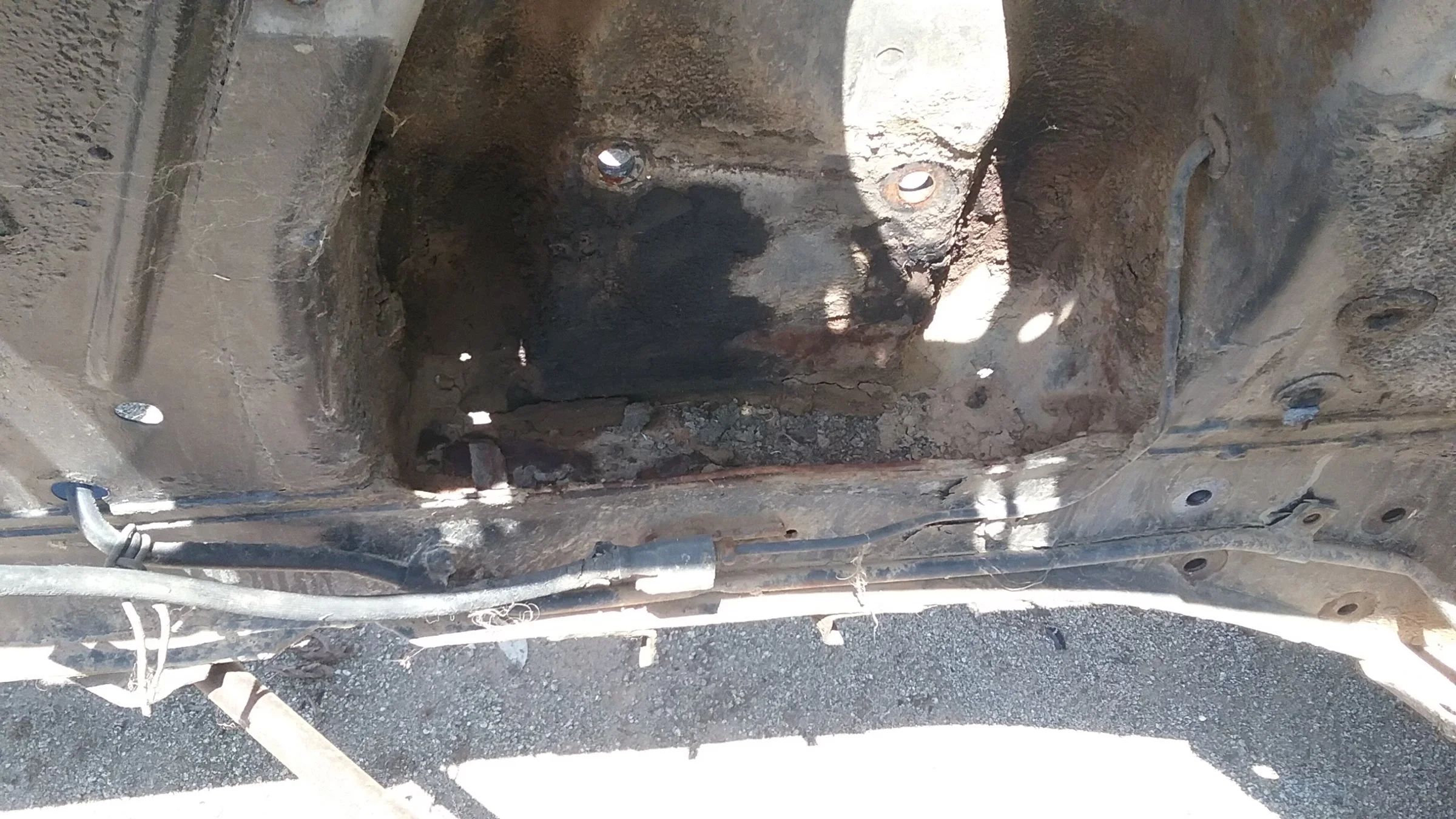

This is a 70 coupe with disk brakes ,the only thing left in it is the brake lines



[thobecat]

This is a 70 coupe with disk brakes ,the only thing left in it is the brake lines

Thank you very much. This was very helpful. Much appreciated



[thobecat]

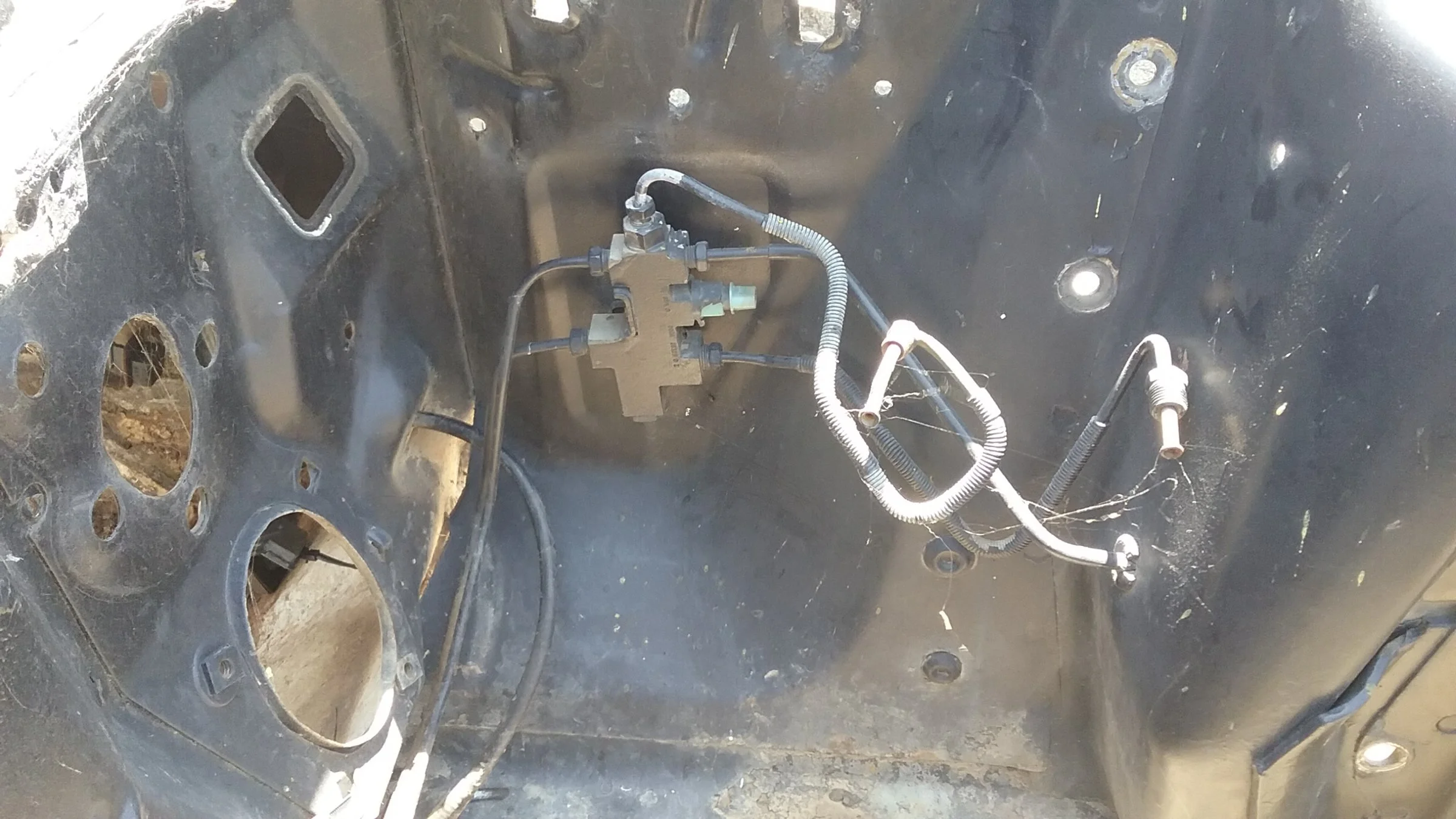

Just asking to make sure this is factory installed because I have never seen 1 mounted this way before. That's how I mounted mine on my new rails but the pre-bent brake lines were not set up right. That's why I am asking.



[horse sence]

Yes this is factory



[thobecat]

Thank you very much
