Engine Bringing Charcoal Canister Back, Need Help

silverlx50

Active Member
Apr 4, 2007
122
50
38
I'm reinstalling a new charcoal canister, purge solenoid, harness and vacuum lines on the car that were taken off and trashed nearly 20 years ago.

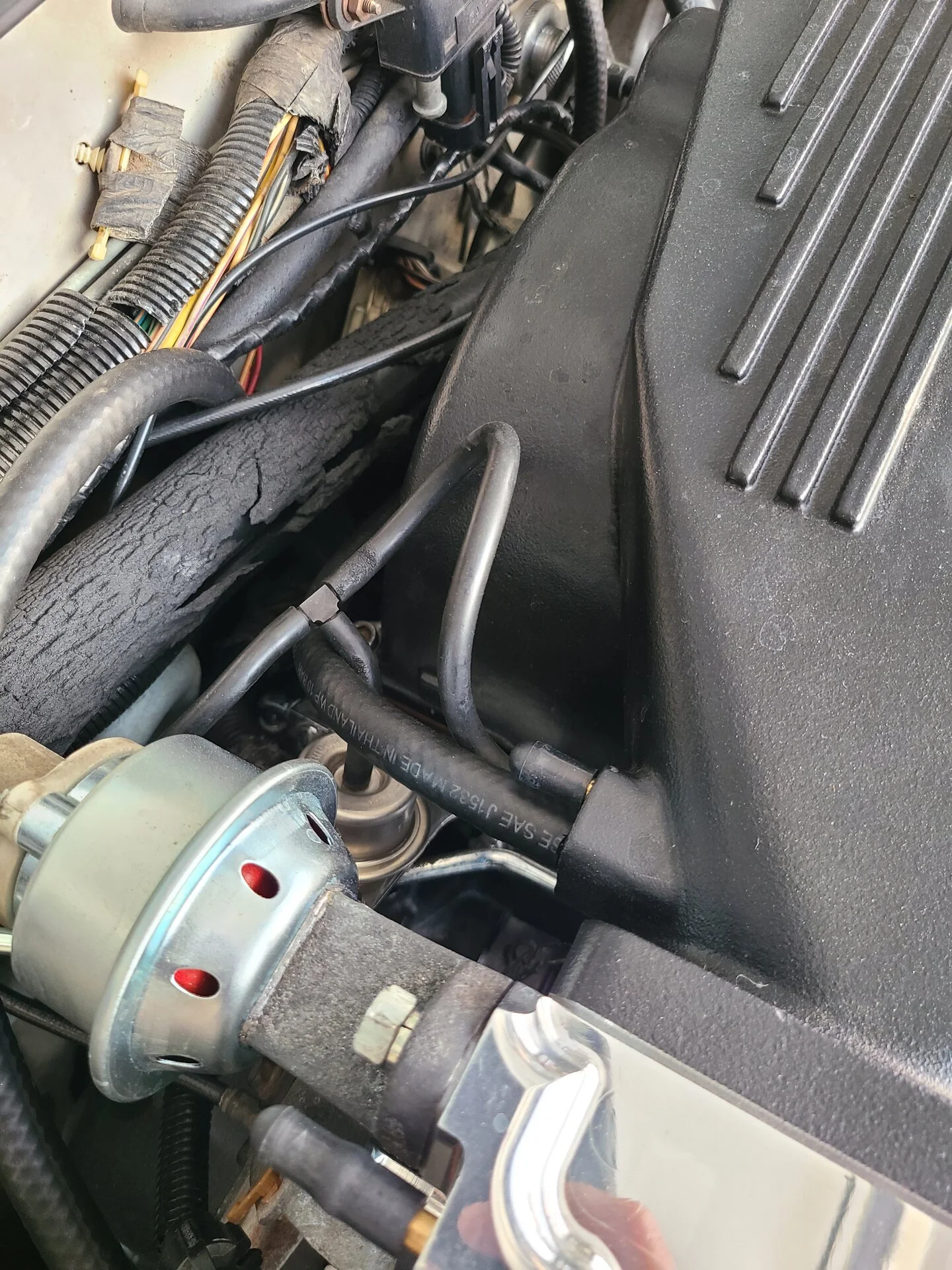

I bought new stuff from LMR. I have the canister on and know the two large nipples are vents, the small nipple is where the gas tank vent hose goes. The last nipple is where the hose from the purge solenoid goes. Now, the other nipple from the solenoid is where the intake vacuum line goes, my question is, can I run that vacuum line from the purge solenoid to the intake here on the capped off connect?

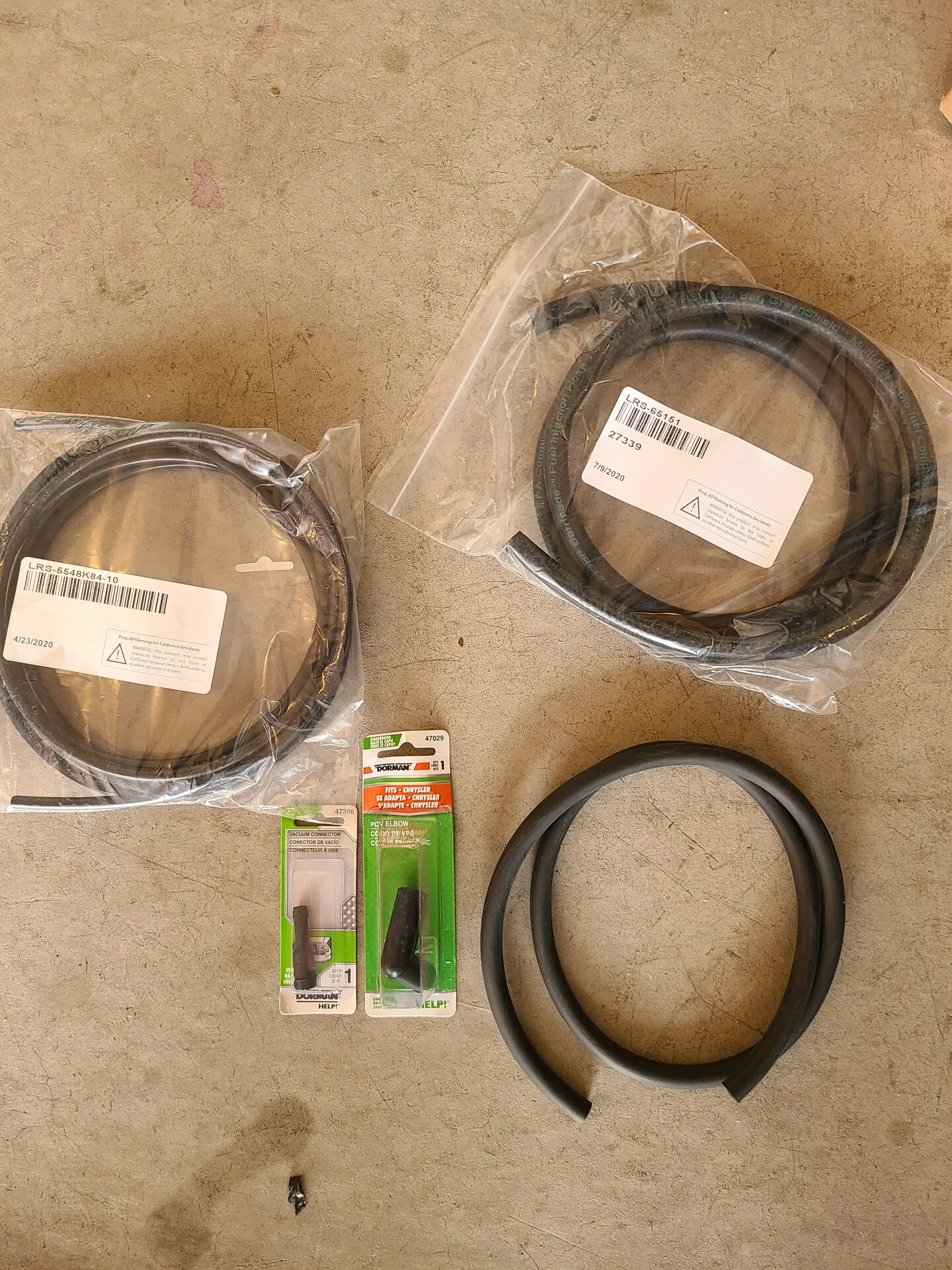

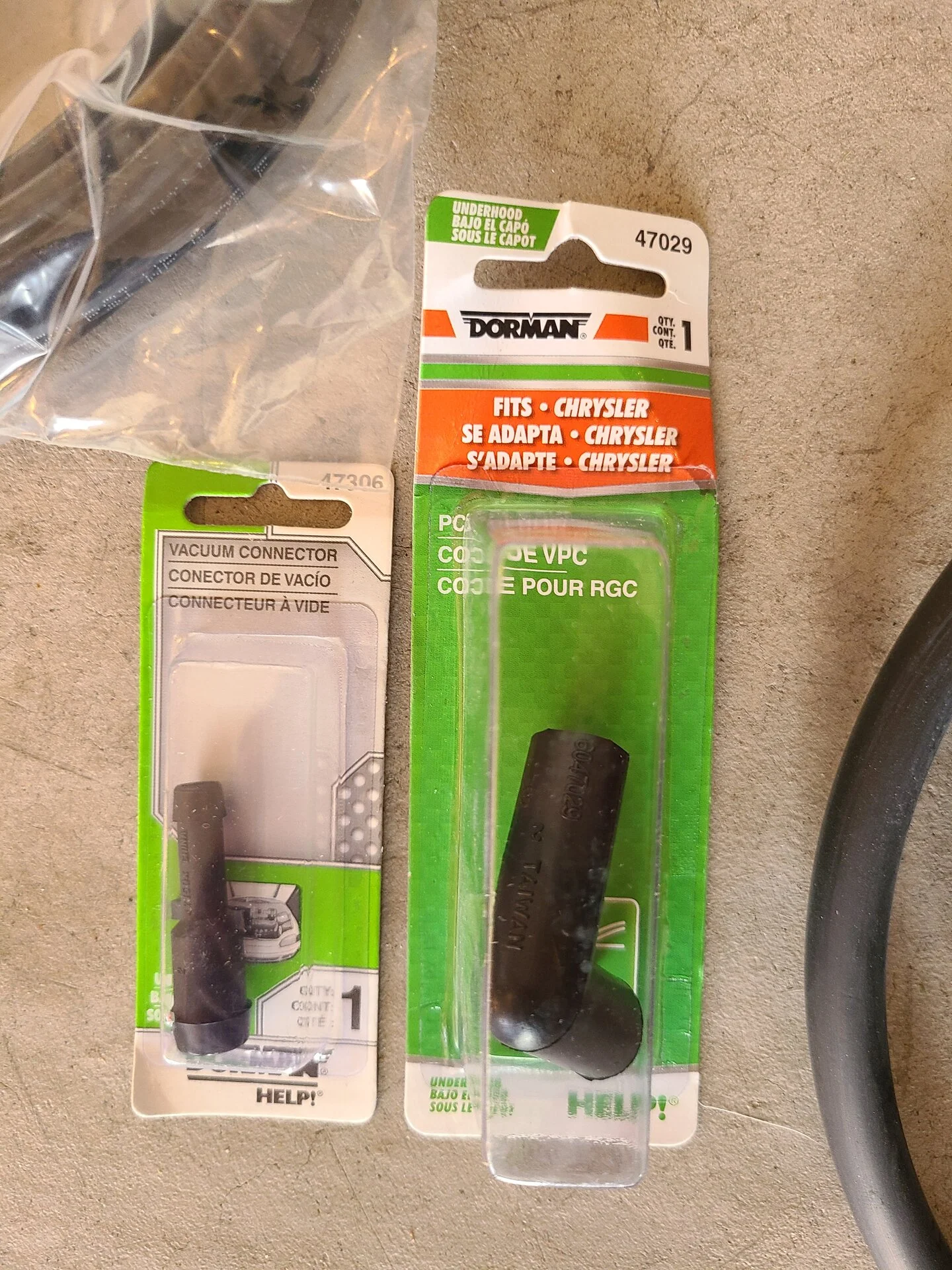

LMR sent this stuff and I'm not sure I need all of it for this...


Attachments

  • 15966776503625511174530679791010.jpg
    574.6 KB · Views: 41
  • 20200805_191752.jpg
    764.7 KB · Views: 40
  • 20200805_191755.jpg
    632.2 KB · Views: 34
  • Sponsors(?)


90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,257
4,340
203
42
That nipple is kind of small. On my systemax intake there is a plug on the front side of that same part of the intake. Its standard 3/8 NPT thread. I think I use a 3/8 nipple screwed in that spot for my pcv. ( now... I actually use an adapter and -06 AN lines from catch can ).

You don't want to " T " into the brake booster hose...not sure about tapping the pcv line either. I believe that the port was dedicated to the canister on factory cars.

I wish Holley would've added another decent sized port.

A actually know very little about how much vacuum drops when the solenoid is open pulling vapors from the canister.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,508
9,777
224
Massachusetts
That port should be fine as long as it’s dedicated. Front, back...doesn’t matter.

your fuel pressure regulator has a Tee in it as well. Where does the other end go to? You typically want a dedicated line for the FPR with no taps


silverlx50

Active Member
Apr 4, 2007
122
50
38
That nipple is kind of small. On my systemax intake there is a plug on the front side of that same part of the intake. Its standard 3/8 NPT thread. I think I use a 3/8 nipple screwed in that spot for my pcv. ( now... I actually use an adapter and -06 AN lines from catch can ).

You don't want to " T " into the brake booster hose...not sure about tapping the pcv line either. I believe that the port was dedicated to the canister on factory cars.

I wish Holley would've added another decent sized port.

A actually know very little about how much vacuum drops when the solenoid is open pulling vapors from the canister.
The front nipple, I use my catch can from there too.

  • Like
Reactions: 90sickfox

silverlx50

Active Member
Apr 4, 2007
122
50
38
That port should be fine as long as it’s dedicated. Front, back...doesn’t matter.

your fuel pressure regulator has a Tee in it as well. Where does the other end go to? You typically want a dedicated line for the FPR with no taps

Thanks, I'll run it to that rear nipple.

The FPR is tee'd off and runs to the Vortech Bypass Valve.
