C4 oil change question

[Restomod 67]

I just removed the oil filter and a spring with some kind of a dowel pin came out. Now, i don't know wich side is up for the pin. Does the flat side goes against the spring or inside the valve body?

Thank you



[NorCal66]

The face of the valve goes into the VB first with the spring on top.

btw, just to let ya kno, it's just transmission fluid, not oil



[Restomod 67]

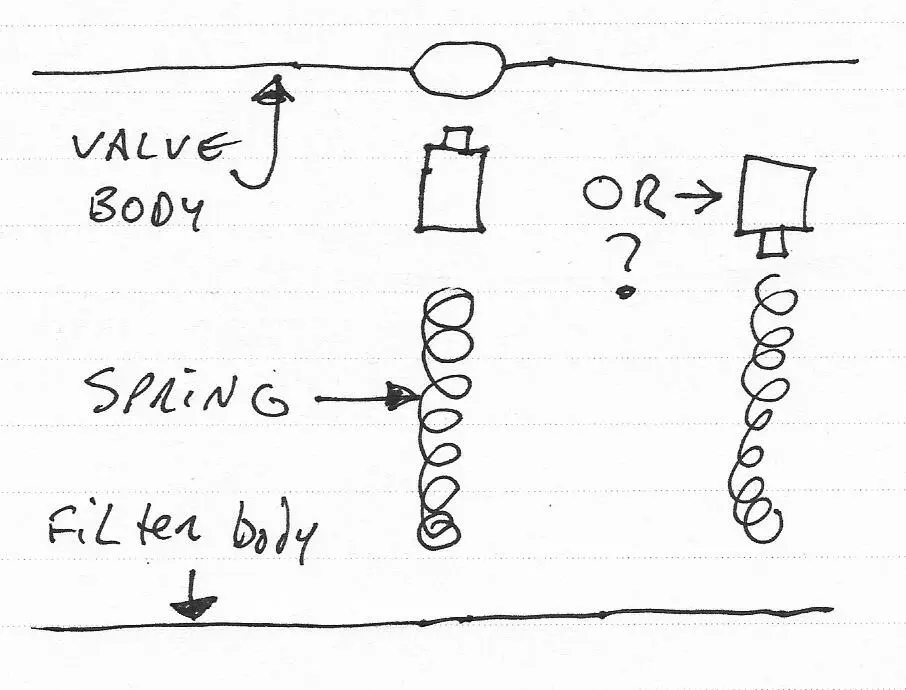

I've included a drawing, maybe this will help.



[Ronstang]

Second option....the small end of the metal valve goes in the spring to keep it located and it seals against the valve body dividing plate.
