Dyno Comparison for TFS 44cc Ported Heads vs PI Ported Heads with same VT Stage 2 Cams

So I was just going through some old Dyno Charts and wanted to share some of the comparisons I found and notes to help those looking to add power to their 2Vs.

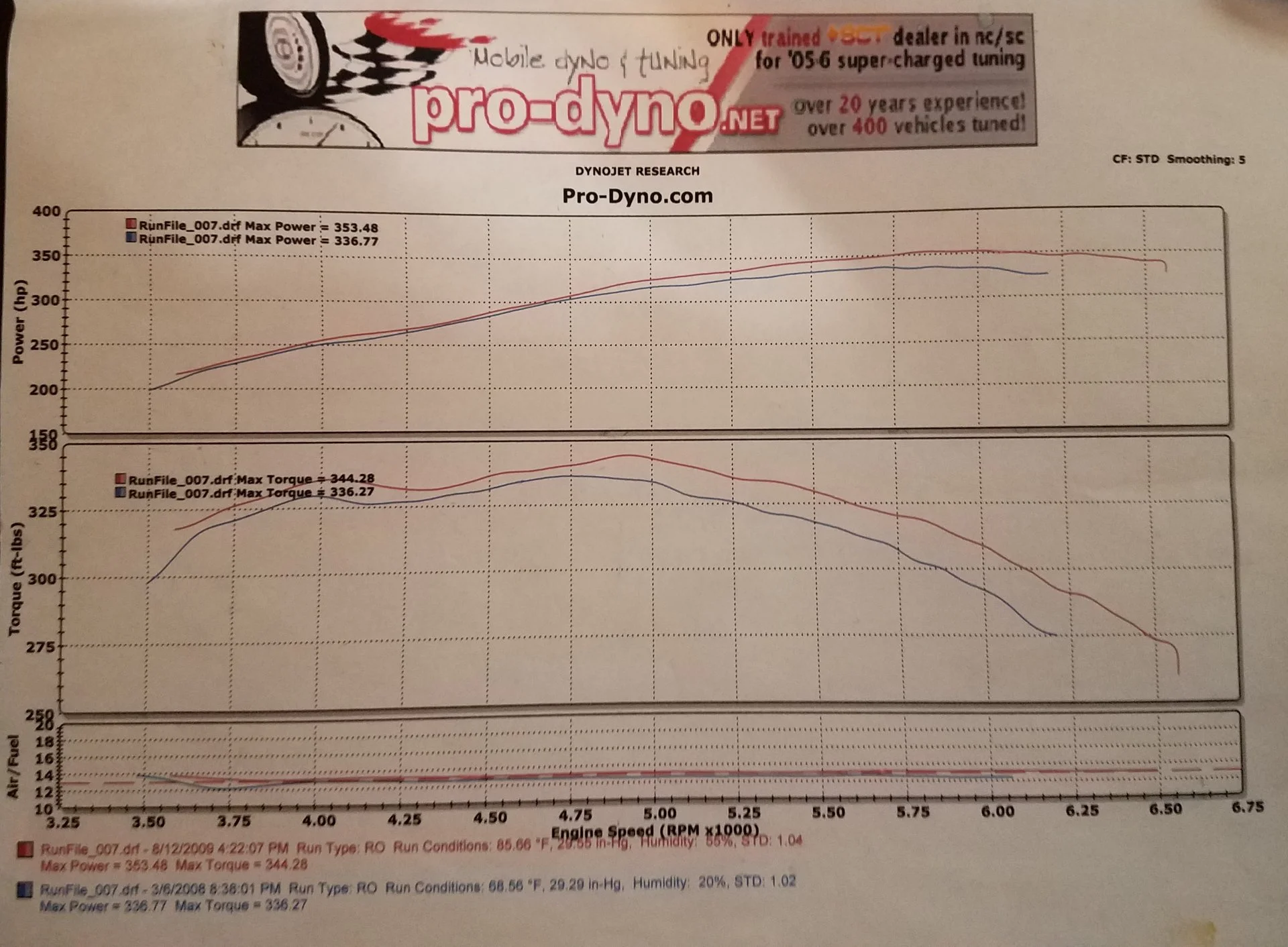

Below is a Dyno comparison that Pro-Dyno did back in the day (2007ish) to show what type of gains can be made from Ported PI heads and switching to TFS Heads (Which were ported by Fox Lake).

A Couple of things to note:

- This was on different day's and about a few weeks apart.
- The same VT Stage II cam was used
- I did find out much later that the exhaust valve timings were off due to PI specific cams in a TFS Heads but does show a good comparison as a baseline.
NOTE: The valve timing on the exhaust could be off as much as 10 degrees and MHS has a video on youtube that explains this..
- This is with the Stock PI intake and 78mm BBK TB Combo
- The TFS Heads would have benefitted from a higher lift cam and proper timing - Dan from Pro-Dyno had to tune around the issue in low/mid Timing and Fuel curves as he noted something was odd at the time due to the PI cam in the TFS Head as we now know...
- This would have picked up more HP and TQ with a higher lift on intake and exhaust so could have been a bunch on the table in the low, mid and high ranges since the 2v likes a lot of timing in the low to mid range which launches into the higher RPM range...

Apples to apples it was a great increase and shows the potential for the TFS Heads and setup..


Attachments

  • Dyno Comparrison Ported TFS vs Ported PI Heads.jpg
    Dyno Comparrison Ported TFS vs Ported PI Heads.jpg
    403.6 KB · Views: 103
  • Sponsors (?)


The best pulls I did after a few tweaks were 357/355 to the tires... car ran 12.20s with the Ported PI Heads and then ran 11.6s with the TFS heads....MPH went from 111 to 116 in 1/4 mile trap speed Naturally Aspirated ...

Working to really see what these heads can do on a 5.3l Ford Racing 5.0 block/stroker.... with a correct TFS Cams ....

Ed

Another thing to note is power from 3000 to 4750 was really affected by the PI cams in the TFS heads due to the Exhaust valve events that were off ..... you can see that in the chart where the lines almost overlap in power.... having a lot of experience with tuning this is the point where the rpms launch for timing and fuel trims .... as noted Pro-Dyno had to adjust the timing and fuel trims at low and mid rpm range to compensate and try to tune out some of this..... assuming the same grind with the exhaust events set for the TFS Heads I believe there was another 10-12hp over the current top graph ....with more lift supporting the TFS heads another 20-25 down low and mid curves is possible and 12-16 in the upper range based on PI intake curve I would assume with a slightly better cam profile to match the heads and flow these heads produce..... The ported TFS flow 263cmf at .055 lift and 268cmf at .060 as an example.... If I remember correctly the Patriot Ported PIs were around 228 cmf at .050 as a comparison but dont have the flow numbers anymore.....

Ed

So I have been researching various builds and set ups with cam profiles. I found a lot of interesting data on what people have done.

I talked with MHS Team and 400 to tires seems fairly common now with the 5.3l BB Stroker, stage 4 cams with their TFS R heads, long tubes, and Eddy Intake combo....most are pushing 440ish with this set up but haven't seen any dyno sheets for curves.

I reach out to Trick Flow and did some research on their engine dyno builds from the past few years with their 5.3l, TFS R Heads, 11.6 to 1 CR on pump gas and cam profiles...... They put down 466hp and 414tq with their intake using their cam with .580/.580 lift and 274/274 duration building peak power at 6400 rpms and peak tq at 5100rpm.....

I saw they did a second test, same combo with a special comp cam grind of .625/.625 lift with much less duration using a 252/256 duration ....put down 518hp at 6900 and peak tq of 417 at 4700rpms.....

Looking at the 2 results using the 5.3 l and TFS R Heads it seems the flow of the R head combined with the addition of 42 cubic inches will support a lot more airflow and responds drastically with lift and less duration.... basically with going from .580 to .625 lifts on smaller profile netted 52 hp and 3 tq on a much better power curve..... the TQ curve was much flatter and power curve was much broader

I have been trying to reach an old friend who was building his wild NA car based on the eddy intake and back then he was using a corborated setup and put down 408 to the tires....don't remember the tq..... but saw recently that he did a custom cam, 12.5 to 1 CR on pump gas even, and switched to an EFI setup with the eddy intake....he didn't have cam specs but the car put down 500hp and 460is tq....I didn't see the power curve or peaks but really impressive...

I also found a build similar to mine with a bullet intake with the 5.3l using normal TFS 38cc Heads, MHS stage 4 cams, long tubes, and supporting mods and put down 393hp/398tq.... One big thing to note is the stage 4 cam behaved like a stage 2 cam with the larger bore stroker.... MHS claims the stage 4 cam shift the rpm range to 6700-6800 on a stock bore/stroke..... but with the larger bore the peak power and tq cam in under my set up with peak TQ coming in at 4000 and peak power coming in around 5200rpms..... this was with a .575 lift cam..... but the power dipped down well before 6600 so it seem the cam behaved almost like a stage 1.5 to stage 2 cam in that set up...

I am thinking with the added airflow of the stroker and TFS R heads, a higher lift cam but keeping the stage 4 profile would really improve power across the board, especially about 4800-5200 rpms and up..... considering intakes used and lift it could be worth 20-40hp more to the tires....

Still doing some more research on compression, cam profiles, and how to approach my build but thinking the 5.3l combo with the MHS TFS 44cc heads (they upgrade valves, guides, seats, and do some runner touch up... with a .600 to .615 lift on a 111.5 lsa with 236/238 duration would hold the power curve like a stock 281 with heads/cam combo with PI intake and 78mmbbk TB combo and full supporting mods to around 420-440hp and tq....

Having new edge power in a lightweight 2v with 1000 less lbs of weight would make for a super fun street sleeper..lol.. My ultimate goal is to make over 400+ HP/TQ, run in the 10's in the 1/4 and will just be a cruise car for car shows with an occasional trip to the drag strip...

Has anyone else been planning a build for their old play toy?

Ed
