Fox Fuel lines??

[mattys91gt]

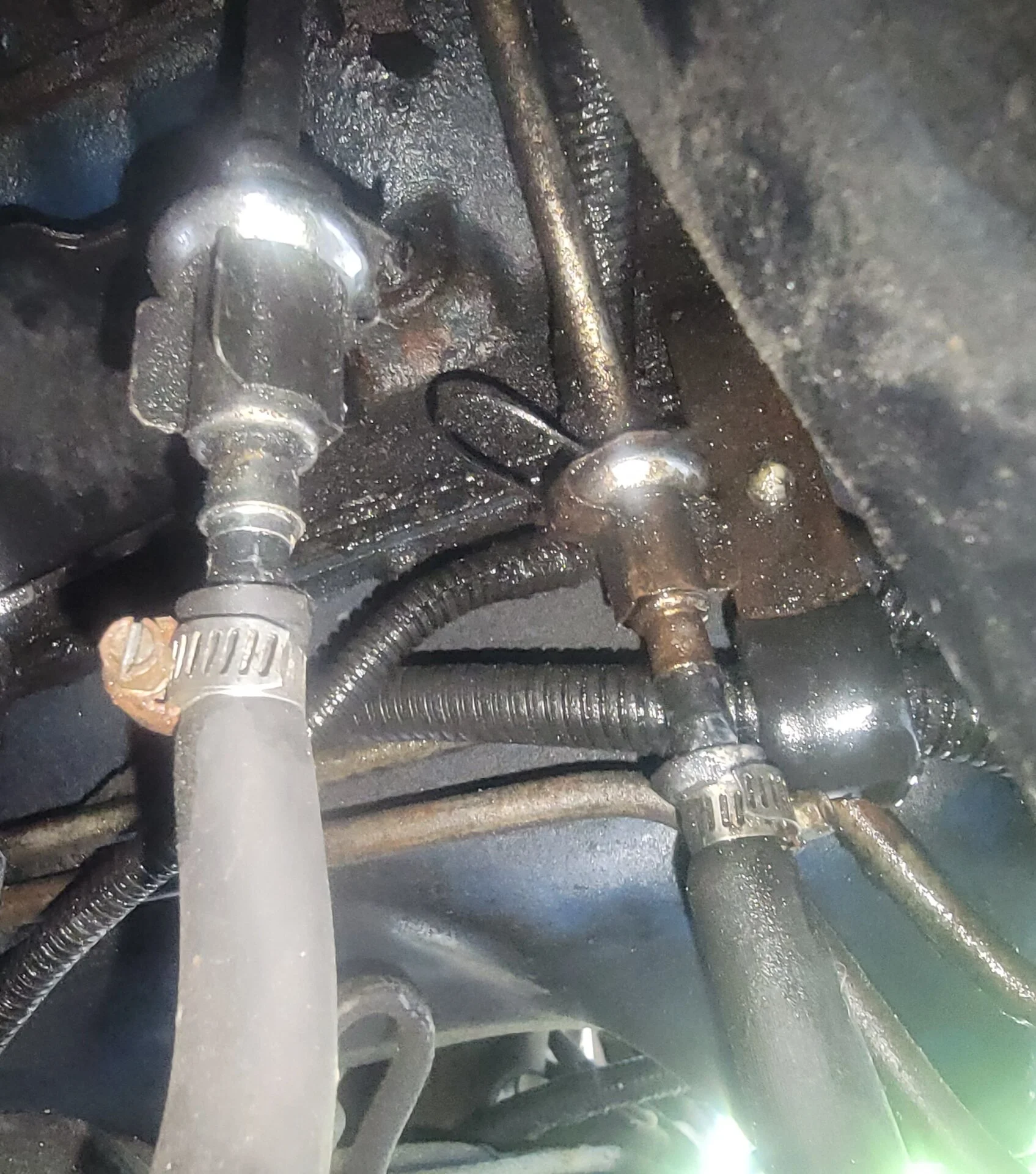

I'm not sure what these are but I'm pretty sure something was cut off and a clamp put on..
Now this at the front passenger side near front of oil pan



[96pushrod]

You would be correct.



[rednotch]

Some one replaced the crimped soft line section of the factory fuel lines... Judging by the swelling on the one, not sure that's high pressure fuel hose either...



[General karthief]

That's a disaster that's gonna happen.



[mattys91gt]

That's a disaster that's gonna happen.

The whole fuel system has been hacked back together I'm just seeing this now after a year what type of line does that take there



[Mustang5L5]

Yeah that's a fire waiting to happen. I'd fix that ASAP and carry a fire extinguisher



[mattys91gt]

Yeah that's a fire waiting to happen. I'd fix that ASAP and carry a fire extinguisher

What type of fuel lines and quick clamps do I need



[Mustang5L5]

What type of fuel lines and quick clamps do I need

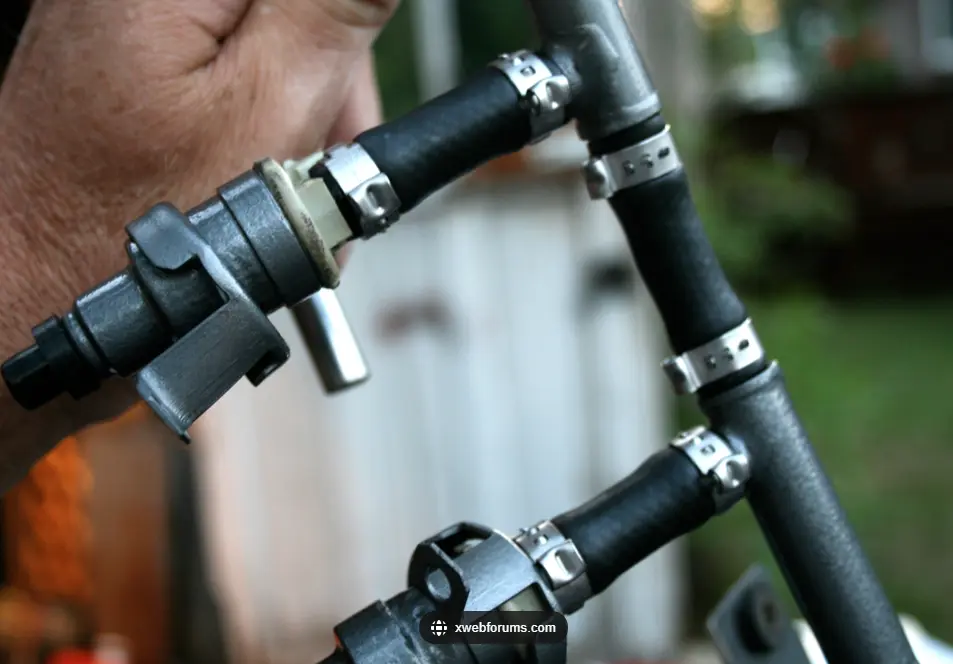

Fuel injection hose, and I would use pinch clamps like Oetiker clamps

I do not know what ID hose is needed however or I would recommend one
