I've already been to the Tmoss website, but I'm still struggling to clearly identify these 2 distinct wires/circuits.

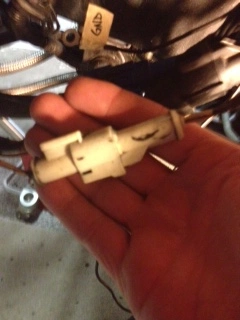

The first one labeled (wip2) is a 2 wire, white plug. It currently runs along the drivers side.
The wires appear to be tan with black stripe -and- yellow with white stripe.

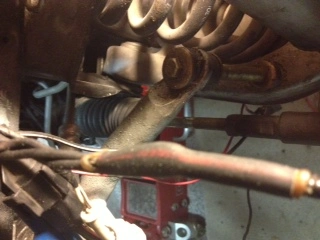

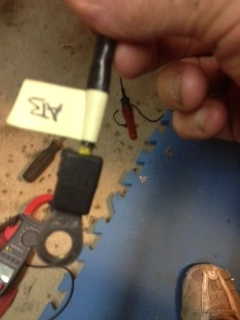

For the next one, I took 2 pictures. See pic wip1-B: I believe the ring-end should go to the constant power source side of the solenoid. The ring-end has a yellow wire, but this wire has been spliced into 3 other BLACK wires. The union between the ring-end and 3 black wires appears to be Black with a red stripe (see pic wip1-A)... it also appears to be a Fused link, but there are no markings, so I can't determine if it's a fused link, or just some funky unit used to join the ring connector to these 3 black wires. Black wires typically denote GROUND, but I don't think that's the case here and this is why I'm asking the forum for help/input.
Perhaps, someone could take a look at what comes off their constant power side of the solenoid.
Any help would be appreciated.
-D
