**HELP NEEDED** O2 PIGTAIL WIRES

Dvnii.Blendz

New Member
Sep 19, 2019
3
0
1
18
Lincoln Ca

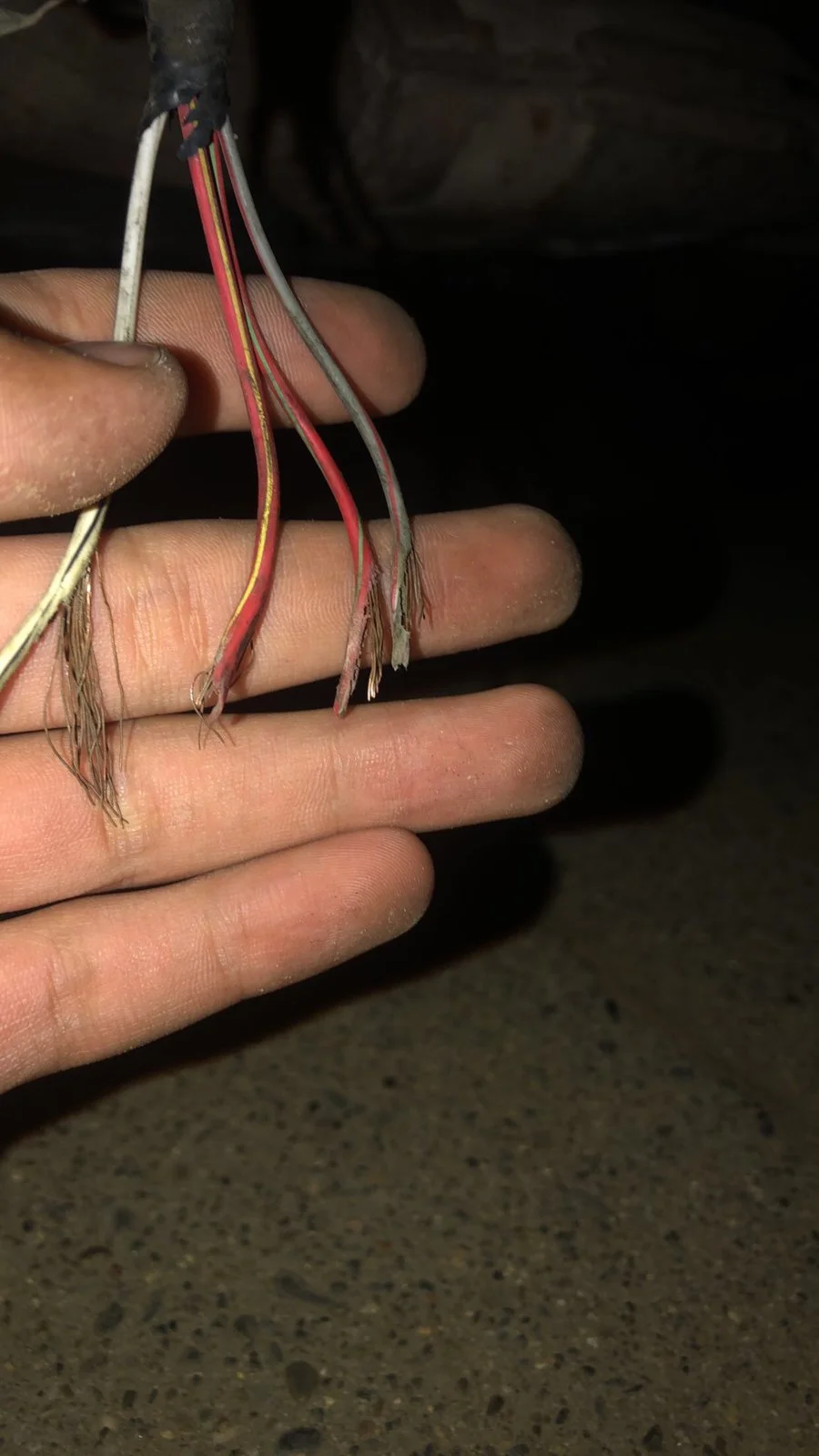

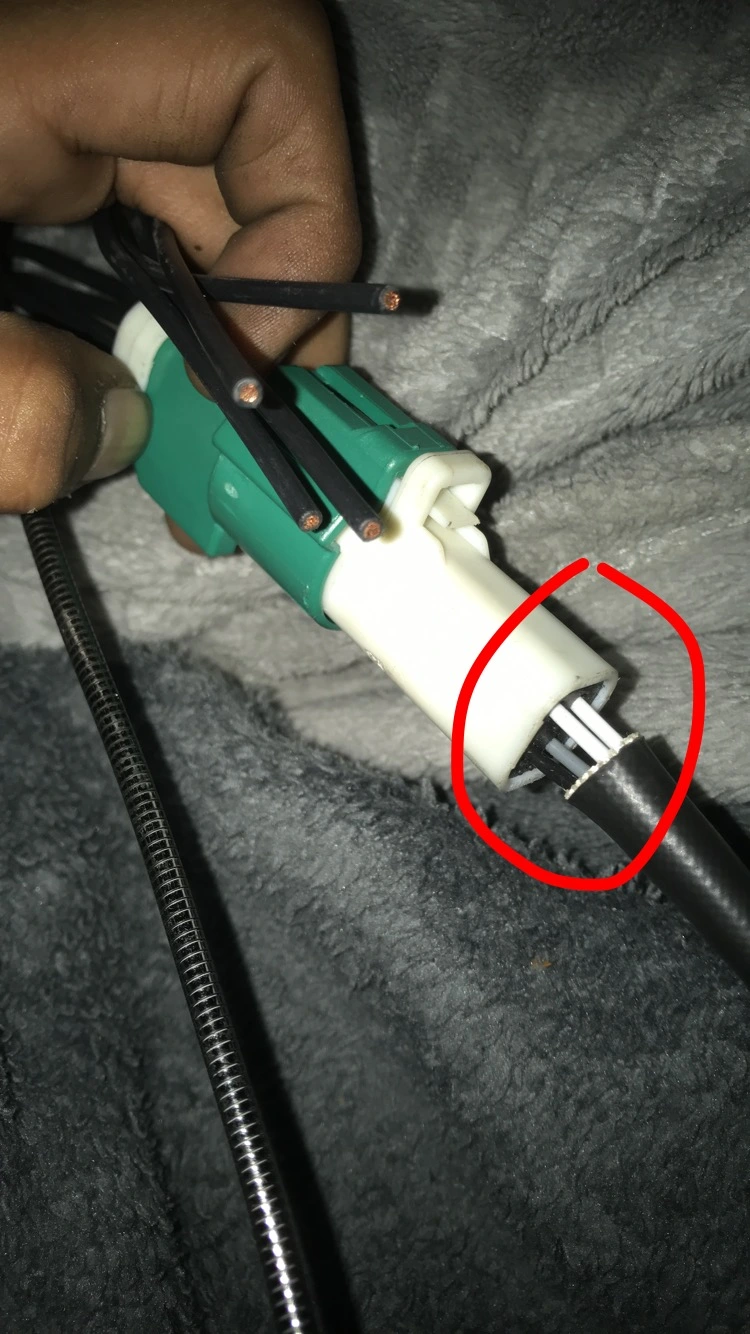

O2 Pigtail Was Cut Off, Bought A New One, Was Universal All Black Wires Dont Know Which Wires Connect To Which. Pigtail Was All Black But The O2 Sensor Wires Were 2 White 1 Grey And 1 Black. The pigtail That Came From The Car were White W A Black Stripe, Red W A Yellow stripe, Red W A Green Stripe And Grey W A Red Stipe.
2000 Mustang Gt 4.6


Attachments

  • Sponsors(?)


wmburns

SN Certified Technician
Aug 14, 2009
5,807
499
164
Houston Texas
It would help if you gave us WHICH O2 sensor you are looking for the wire colors of?

But if by chance this is Bank 1 sensor 2, then C196:

Pin#
1 391 (RD/YE) Voltage supplied in Start and Run (overload protected)
2 389 (WH/BK) Heated Oxygen Sensor (HO2S) #12 (9G444), heater
3 359 (GY/RD) signal, return
4 392 (RD/LG) Heated Oxygen Sensor (HO2S) #12 (9G444), input

Here's a replacement connector so that you can perform the repair right.

MOTORCRAFT WPT742
