Help with T-5 ID

[SPEEDYLIFSAVR]

I am bidding on an T-5 on E-bay . Seller states tag #is 13-52-097-913 . I used the identifier on the All FORD MUSTANGS site and it says "NEVER RELEASED" .

What does this mean? is this guy full of crap? I e-mailed him twice to confirm # .



[ss93cobra]

Try getting ahold of the guys at D&D Performance in MI, they're very helpful and know quite a bit about the t-5's.



[jrichker]

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine

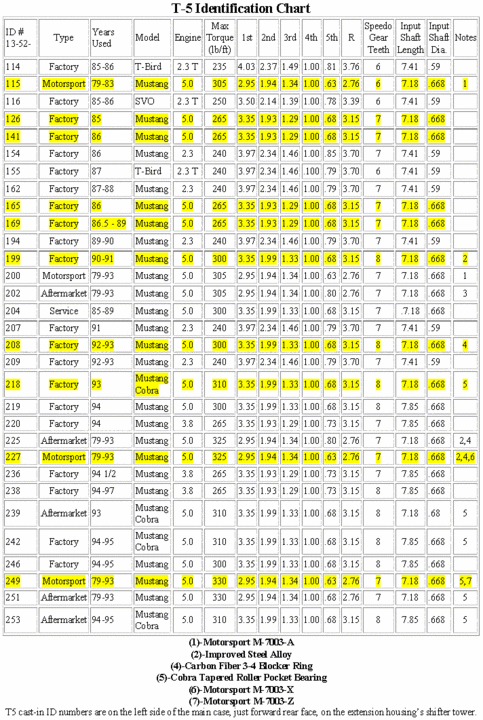

Diagram courtesy of Tmoss & Stang&2birds



[PuterAmI]

jrichker, That is the same chart on the website that speedylifsavr mentions in the OP.

I also do not see 097. It starts at 114. Am I missing something in that chart?



[SPEEDYLIFSAVR]

I really appreciate everyones help , I was outbid thankfully and wont be bidding again , I asked him if he was 100% sure it was out of a 5.0 and wether it was a WC or NWC and he never returned my E-mail , just afraid it may be a 4cyl tranny .

Here is a linkhttp://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=8036546272&sspagename=ADME%3AL%3ARTQ%3AUS%3A1



[TheBocSez]

I think the number he gave you was from the case. On those charts, it says it has to be the number from the tin tag bolted to the rear housing, no other numbers matter.
