ignition switch and reverse sensor + wiring diagrams

[1992mustangLX]

1992 mustang lx 5.0 ho 5 spd

First can someone give me a wiring diagram for the ignition switch to the starter relay. The kid who owned the car before me just cut the wires to the relay and ran a switch from the battery to inside the car, must of ad a ignition switch gone bad.

Also he cut the reverse sensor wires and ran a switch for the reverse lights too. Where on the tranny is the reverse sensor and is the a diagram you can give me for that too? thanks.



[Saleen0679]

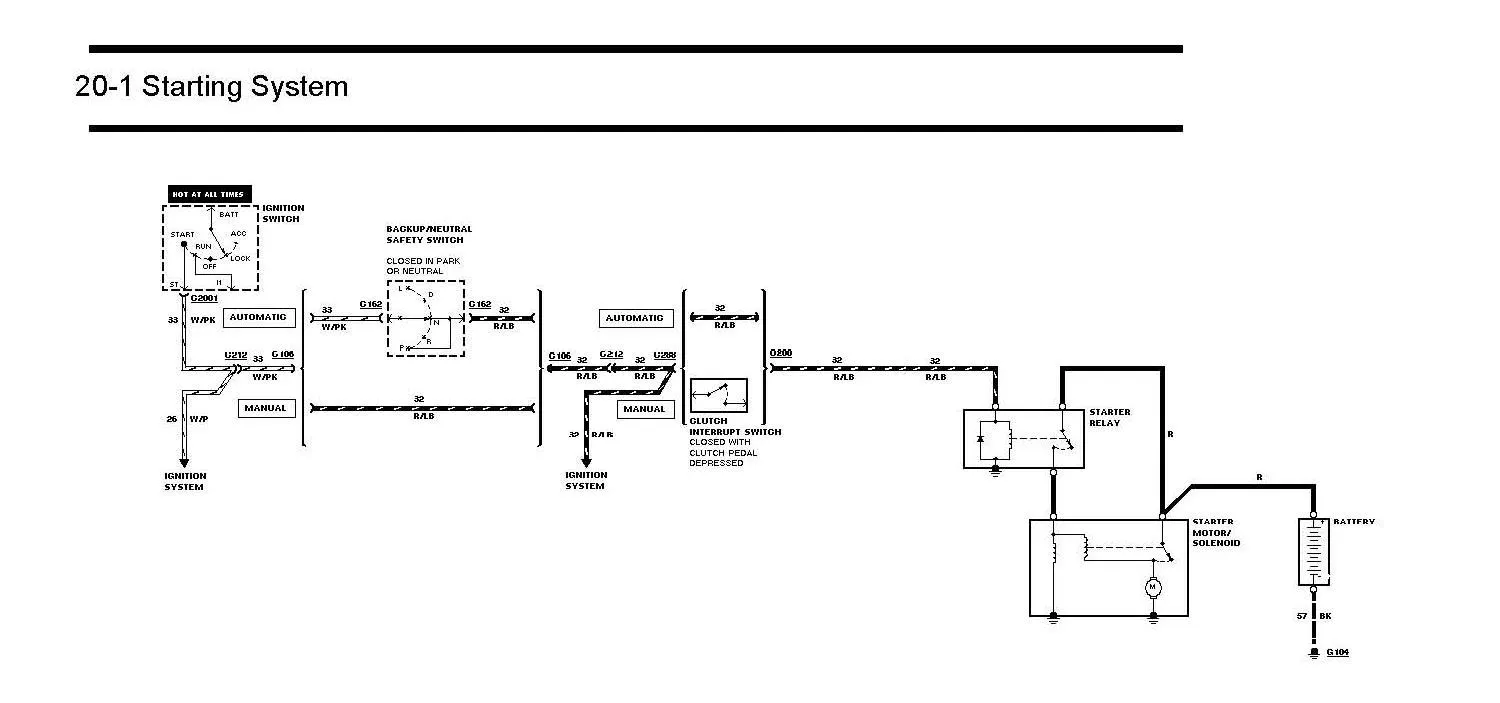

1992 Ignition switch/starter relay diagram.

1992 Backup Lamp diagram. See post #6 at

http://forums.stangnet.com/showthread.php?t=670262
