Just bought 1983 Mustang GT dies when put in nuetral

1983foureyegt

New Member
Mar 21, 2019
5
0
1
35
Illinois
Hello I just purchased a 1983 Mustang GT and it runs good but when ever I come to a stop sign and go to put in nuetral to come to a stop it dies on me every time the only way to keep it alive is my tapping the gas to keep it running , has anyone else had a problem like this and know how to fix it any help would be great thank you

  • Sponsors (?)


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
11,642
3,713
193
polk county florida
Back to basics, make sure tune up is good, check timing then adjust the carb mixture screws ( did they still have adjustable carbs then?) And you need to check for vacuum leaks too.


1983foureyegt

New Member
Mar 21, 2019
5
0
1
35
Illinois
Thank you, your help is appreciated pretty sure the carb is not adjustable but I will check vacuum leaks and timing this weekend do you have any tips on how to check for vacuum leaks?

Last edited:

General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
11,642
3,713
193
polk county florida
Get the engine up to operating temp, spray carb cleaner around base of carb, along intake gasket, vacuum lines and pcv area. If the engine rpm rises that area has a vacuum leak.


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
26,724
2,494
224
73
Dublin GA
Engines that originally came equipped with a carburetor had a dashpot on the carburetor throttle linkage that was supposed to speed up the idle when the car slowed to a stop. Check to see if it is working; put the transmission in neutral by speeding the engine up to 2000 RPM and the releasing the throttle. If it dies, then the dashpot is not doing it 's job.

See https://www.google.com/search?q=ford+carburetor+dashpot+1983&source=lnms&tbm=isch&sa=X&ved=0ahUKEwjAiI73_ZrhAhVQMt8KHeqEBocQ_AUIDygC&biw=1024&bih=674 for pictures of what the dashpot looks like


Finding vacuum leaks

Revised 6 May 2018 to add carbon canister plumbing as a common leak area.

There is no easy way to find vacuum leaks. It is a time consuming job that requires close inspection of each and every hose and connection.

Small vacuum leaks may not show much change using a vacuum gauge. The range of "good readings" varies so much from engine to engine that it may be difficult to detect small leaks. The engine in my first Mustang pulled about 16.5" of vacuum at 650-725 RPM, which I consider rather low. It was a mass market remanufactured rebuild, so no telling what kind of camshaft it had. Average readings seem to run 16"-18" inches at idle and 18"-21" at 1000 RPM. The only sure comparison is a reading taken when your car was performing at its best through all the RPM ranges and what it is doing now. Use one of the spare ports on the vacuum tree that is mounted on the firewall near the windshield wiper motor.

Use a squirt can of motor oil to squirt around the mating surfaces of the manifold & TB. The oil will be sucked into the leaking area and the engine will change speed. Avoid using flammable substitutes for the oil such as starting fluid, propane or throttle body cleaner. Fire is an excellent hair removal agent, and no eyebrows is not cool...

After you have done the simple visual checks and the check for vacuum leak on the underside of the intake manifold, consider doing a smoke test.
Some of the guys here have built smoke machines used to find automotive vacuum leaks. They seem to work quite well and are made mostly with parts you would have laying around in your garage. Check out smoke machine vacuum leak - YouTube and see if there is one that you could build.

The vacuum line plumbing is old and brittle on many of these cars, so replacing the lines with new hose is a good plan. The common 1/8” and ¼” vacuum hose works well and isn’t expensive.

The PCV grommet and the power brake booster check valve grommet are two places that often get overlooked when checking for vacuum leaks. The rubber grommets get hard and lose their ability to seal properly. The PVC grommet is difficult to see if it is correctly seated and fitting snugly.

The hoses and connections for the evaporative emissions (carbon canister and purge valve) are other common sources of vacuum leaks. The large vacuum outlets on the bottom side of the upper intake manifold are common hiding places for deteriorated vacuum lines and caps over unused vacuum ports.

Fuel injector O rings can get old and hard. When they do, they are prone to leaking once the engine warms up. This can be difficult to troubleshoot, since it is almost impossible to get to the injectors to squirt oil into the fuel injector mounting bosses. If the plastic caps on the fuel injectors (pintle caps) are missing, the O rings will slide off the injectors and fall into the intake manifold.

Fuel injector seal kits with 2 O rings and a pintle cap (Borg-Warner P/N 274081) are available at Pep Boys auto parts. Cost is about $3-$4 per kit. The following are listed at the Borg-Warner site ( http://www.borg-warner.com ) as being resellers of Borg-Warner parts:
http://www.partsplus.com/ or http://www.autovalue.com/ or http://www.pepboys.com/ or http://www.federatedautoparts.com/

Most of the links above have store locators for find a store in your area.

Use motor oil on the O rings when you re-assemble them & everything will slide into place. The gasoline will wash away any excess oil that gets in the wrong places and it will burn up in the combustion chamber. Heat the pintle caps in boiling water to soften them to make them easier to install.



Diagram courtesy of Tmoss & Stang&2birds

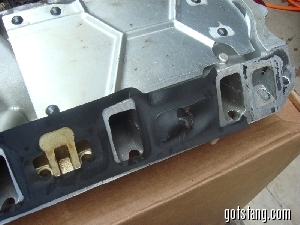

Vacuum leak due to slipped lower intake manifold gasket...

Ask Nicoleb3x3 about the intake gasket that slipped out of place and caused idle and vacuum leak problems that could not be seen or found by external examination. I don't care what you spray with, you won't find the leak when it is sucking air from the lifter valley. It simply isn't possible to spray anything in there with the lower manifold bolted in place.





Determining if you have a leak due to a slipped intake gasket as shown above. This test is only good if you can get the engine to run somewhere in the 1000-1700 RPM range
If your valve cover oil filler & PVC systems are still in the original configuration, try this:
Cap or plug the hose from the intake manifold to the PVC valve with a bolt.
Cap or plug the PVC valve with a piece of hose with a plug or bolt in it.
At that point the only vent for the crankcase is the tube from the oil filler neck to the throttle body.

Disconnect the tube that runs from the oil filler neck to the throttle body. Make sure the oil filler cap is on securely. Start the engine and put your thumb over the end of the tube that comes from the oil filler cap. If you feel suction, there is a leak. Another thing to do is to extend the tubing from the filler neck so that there is enough to stick the end in a jar or cup filled with motor oil. If it sucks up the oil, you definitely have a leak at the underside of intake manifold.

This isn't necessarily the definitive test, but it is the best thing I could come up with on short notice. If there is a lot of blowby, this obviously won't be of much help.

See the picture below to see the breather tube where in connects to the throttle body. It is close to the TPS and runs over the top of the IAC.

The following are diagrams courtesy of Tmoss & Stang&2birds



See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

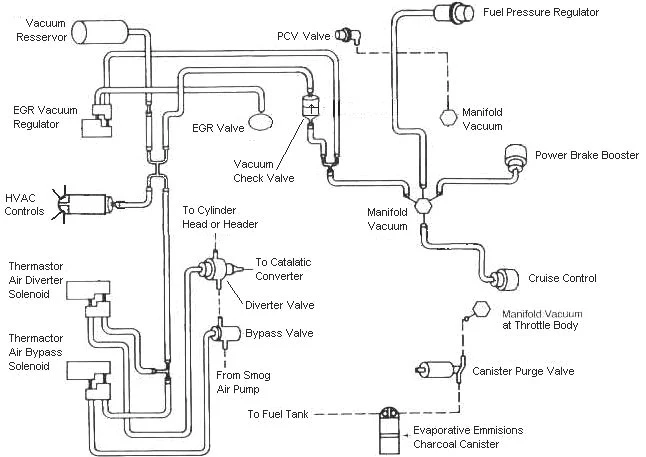

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif
