Engine Maf problem or Fuel?

[Boogdidit]

I recently purchased a 1988 Mustang 5.0 Auto Original v8 car. The problem is when i go to start the car it cranks but wont start. If i bump the key a few time moderately fast instead of holding it to start itll fire up. If i hold key it just cranks for long time then finally catches but has a hard time catching. This is the weird part. When i get it running itll idle fine without the MAF plugged in but if i plug it in itll die out. It was converted but im not sure if the MaF conversion was done right. An when i goto give it gas it wants to die. Any insight would be greatly appreciated



[jrichker]

Two things come to mind: Is the computer MAF compatible?
b]Computer & interchange information for 5.0 Mustang [/b]

Revised 16-Oct-2011 to add O2 sensor harness warnings

The Mass Air computers from 89-93 are interchangeable with a few exceptions. Just be sure you use the MAF & MAF sensor from the same series computer. The auto transmission computers use a different start circuit than the manual computers. You can use an auto trans computer in a 5 speed car with no problems or changes. I have done it in my original 89 Mustang GT, and I know it works OK. I would recommend avoiding using a 5 speed computer in an auto trans car due to the possibility of damaging the computer’ internal signal ground circuitry.

The odd duck is the 93 Cobra computer, labeled X3Z which is internally calibrated for 24 lb injectors. Use the MAF & MAF sensor from the X3Z computer to avoid problems with the computer's internal calibration. Try and avoid the 93 Cobra computer if you can.

Some cautions about O2 Sensor harnesses need to be observed to avoid damage to the computer.
Only run a 5 speed trans O2 harness with an A9L. Do not run an Auto O2 sensor harness with an A9L. Doing so will damage the computer’s internal signal ground.
Only run an Auto trans O2 sensor harness with an A9P in a car that has an Auto trans. Using a 5 speed trans O2 sensor harness with an Auto trans will cause no crank problems.
See http://forums.corral.net/forums/general-mustang-tech/1094179-oxygen-sensor- harnesses-manual-auto-differences-year-differences.html for more O2 sensor wiring harness info
If you have a damaged computer with signal ground problems, See http://www.stangnet.com/mustang-forums/749974-computer-issue.html#post7490537 for Joel5.0’s fix to the computer internal signal ground.

The computer ID code is on a label on the opposite side of the wiring connector.
There is no simple way to view the label without removing the computer.
You have to remove the passenger side kick panel and disconnect the wiring connector to remove the computer.

All the following are mass air
A9L - 89-93 5.0L Mustang 5-spd Mass Air
A3M - 93 5.0L Mustang 5-spd Mass Air
X3Z - 93 5.0L Cobra 5-spd Mass Air internally calibrated for 24 lb injector
A9P - 89-93 5.0L Mustang Auto Mass Air
A9S - 88 5.0L Mustang California Mass Air
C3W - 89-93 5.0L Mustang Auto
8LD - MANUAL 88 5.0L Mustang - California
8LF - Auto 88 5.0L Mustang - California
8LG - Auto 88 5.0L Mustang - California



Dump codes sticky

Look at the top of the 5.0 Tech forum where the sticky threads are posted. One of them is how to dump the computer codes. Codes may be present even if the CEL (Check Engine Light) isn’t on. You don’t need a code reader or scanner – all you need is a paper clip, or if your lady friend has a hair pin, that will do the job.
I highly suggest that you read it and follow the instructions to dump the codes. http://www.stangnet.com/mustang-forums/threads/how-to-pull-codes-from-eec4.889006/



[Boogdidit]

Two things come to mind: Is the computer MAF compatible?
b]Computer & interchange information for 5.0 Mustang [/b]

Revised 16-Oct-2011 to add O2 sensor harness warnings

The Mass Air computers from 89-93 are interchangeable with a few exceptions. Just be sure you use the MAF & MAF sensor from the same series computer. The auto transmission computers use a different start circuit than the manual computers. You can use an auto trans computer in a 5 speed car with no problems or changes. I have done it in my original 89 Mustang GT, and I know it works OK. I would recommend avoiding using a 5 speed computer in an auto trans car due to the possibility of damaging the computer’ internal signal ground circuitry.

The odd duck is the 93 Cobra computer, labeled X3Z which is internally calibrated for 24 lb injectors. Use the MAF & MAF sensor from the X3Z computer to avoid problems with the computer's internal calibration. Try and avoid the 93 Cobra computer if you can.

Some cautions about O2 Sensor harnesses need to be observed to avoid damage to the computer.
Only run a 5 speed trans O2 harness with an A9L. Do not run an Auto O2 sensor harness with an A9L. Doing so will damage the computer’s internal signal ground.
Only run an Auto trans O2 sensor harness with an A9P in a car that has an Auto trans. Using a 5 speed trans O2 sensor harness with an Auto trans will cause no crank problems.
See http://forums.corral.net/forums/general-mustang-tech/1094179-oxygen-sensor- harnesses-manual-auto-differences-year-differences.html for more O2 sensor wiring harness info
If you have a damaged computer with signal ground problems, See http://www.stangnet.com/mustang-forums/749974-computer-issue.html#post7490537 for Joel5.0’s fix to the computer internal signal ground.

The computer ID code is on a label on the opposite side of the wiring connector.
There is no simple way to view the label without removing the computer.
You have to remove the passenger side kick panel and disconnect the wiring connector to remove the computer.

All the following are mass air
A9L - 89-93 5.0L Mustang 5-spd Mass Air
A3M - 93 5.0L Mustang 5-spd Mass Air
X3Z - 93 5.0L Cobra 5-spd Mass Air internally calibrated for 24 lb injector
A9P - 89-93 5.0L Mustang Auto Mass Air
A9S - 88 5.0L Mustang California Mass Air
C3W - 89-93 5.0L Mustang Auto
8LD - MANUAL 88 5.0L Mustang - California
8LF - Auto 88 5.0L Mustang - California
8LG - Auto 88 5.0L Mustang - California



Dump codes sticky

Look at the top of the 5.0 Tech forum where the sticky threads are posted. One of them is how to dump the computer codes. Codes may be present even if the CEL (Check Engine Light) isn’t on. You don’t need a code reader or scanner – all you need is a paper clip, or if your lady friend has a hair pin, that will do the job.
I highly suggest that you read it and follow the instructions to dump the codes. http://www.stangnet.com/mustang-forums/threads/how-to-pull-codes-from-eec4.889006/

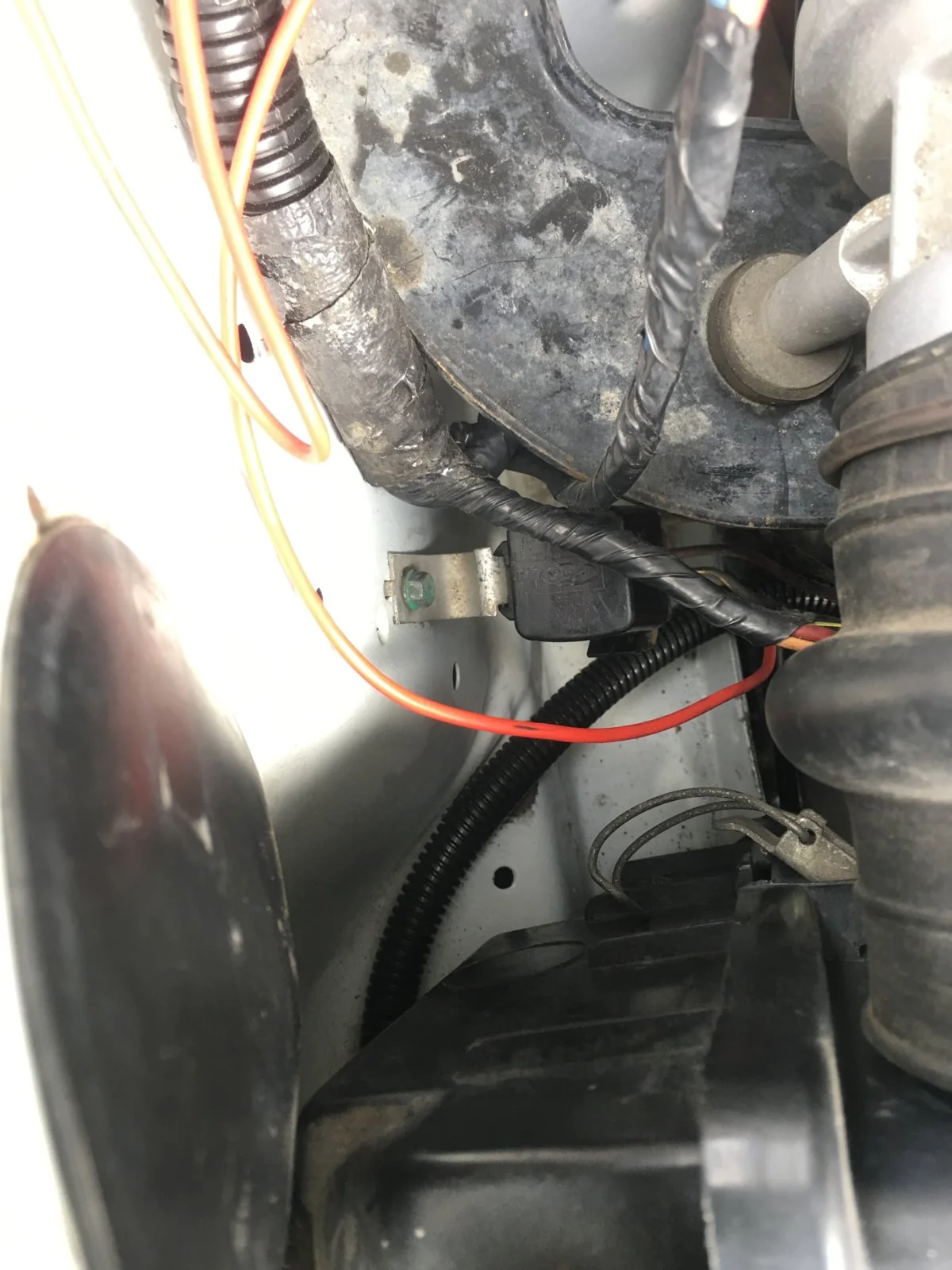

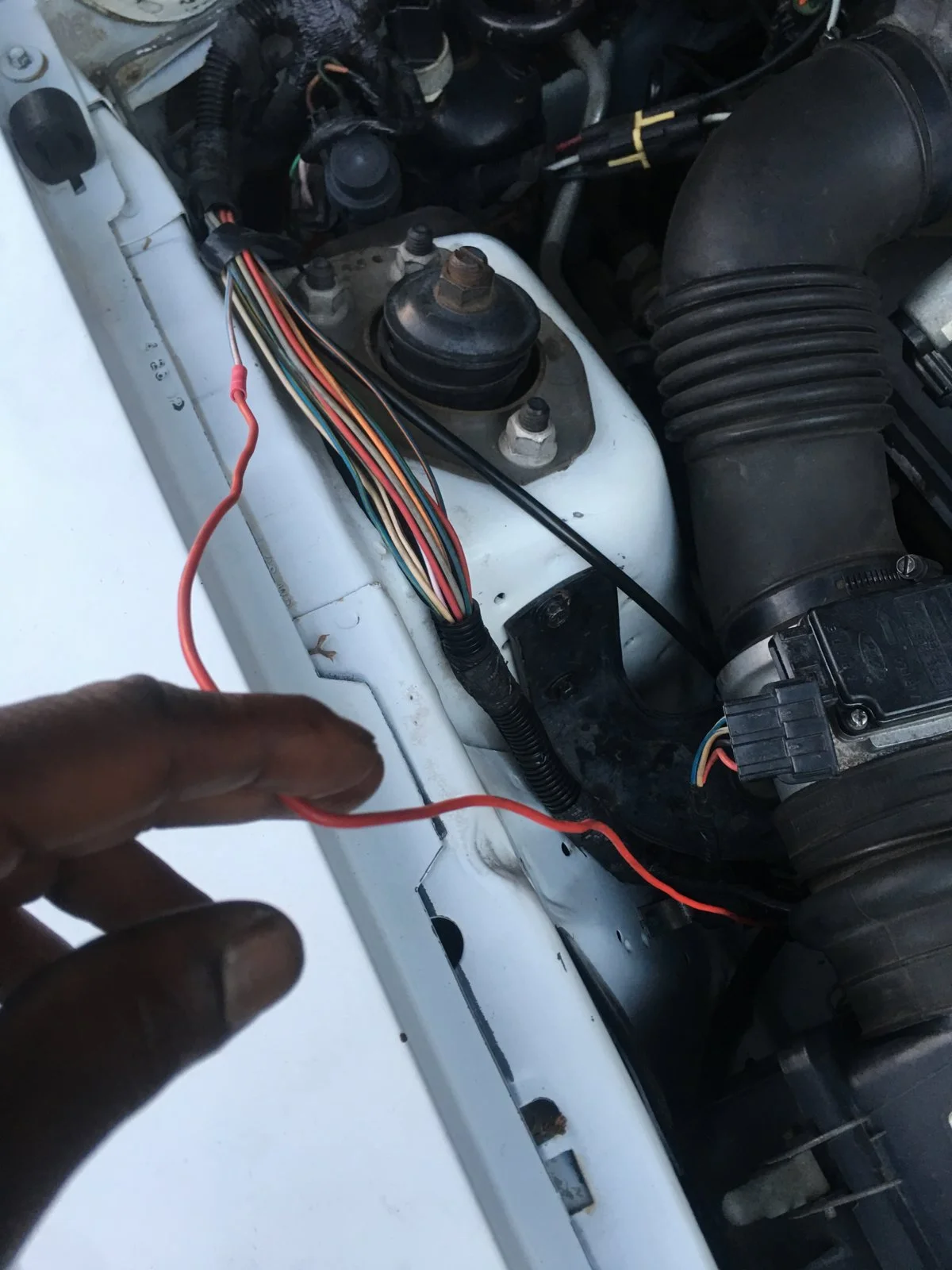

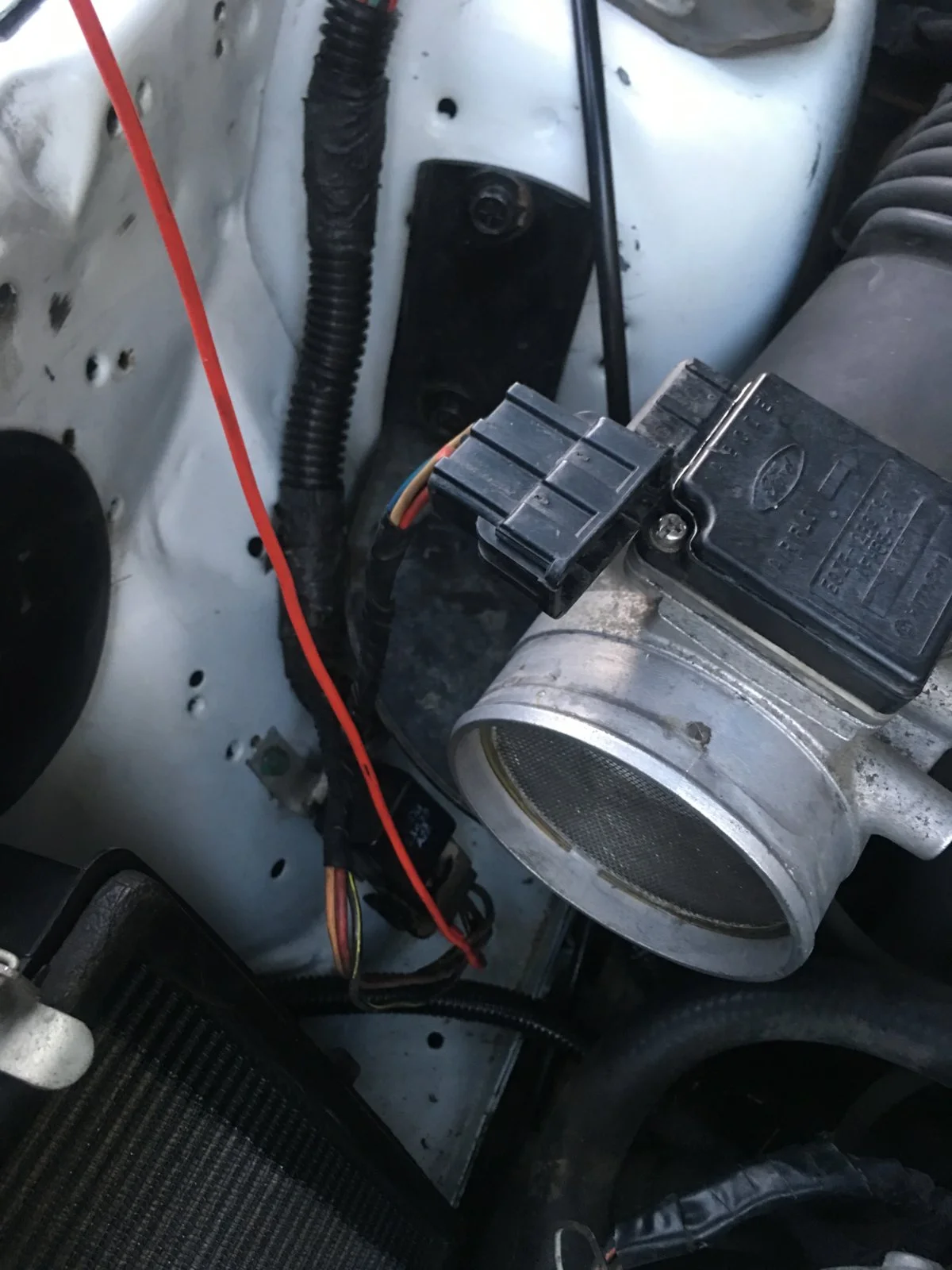

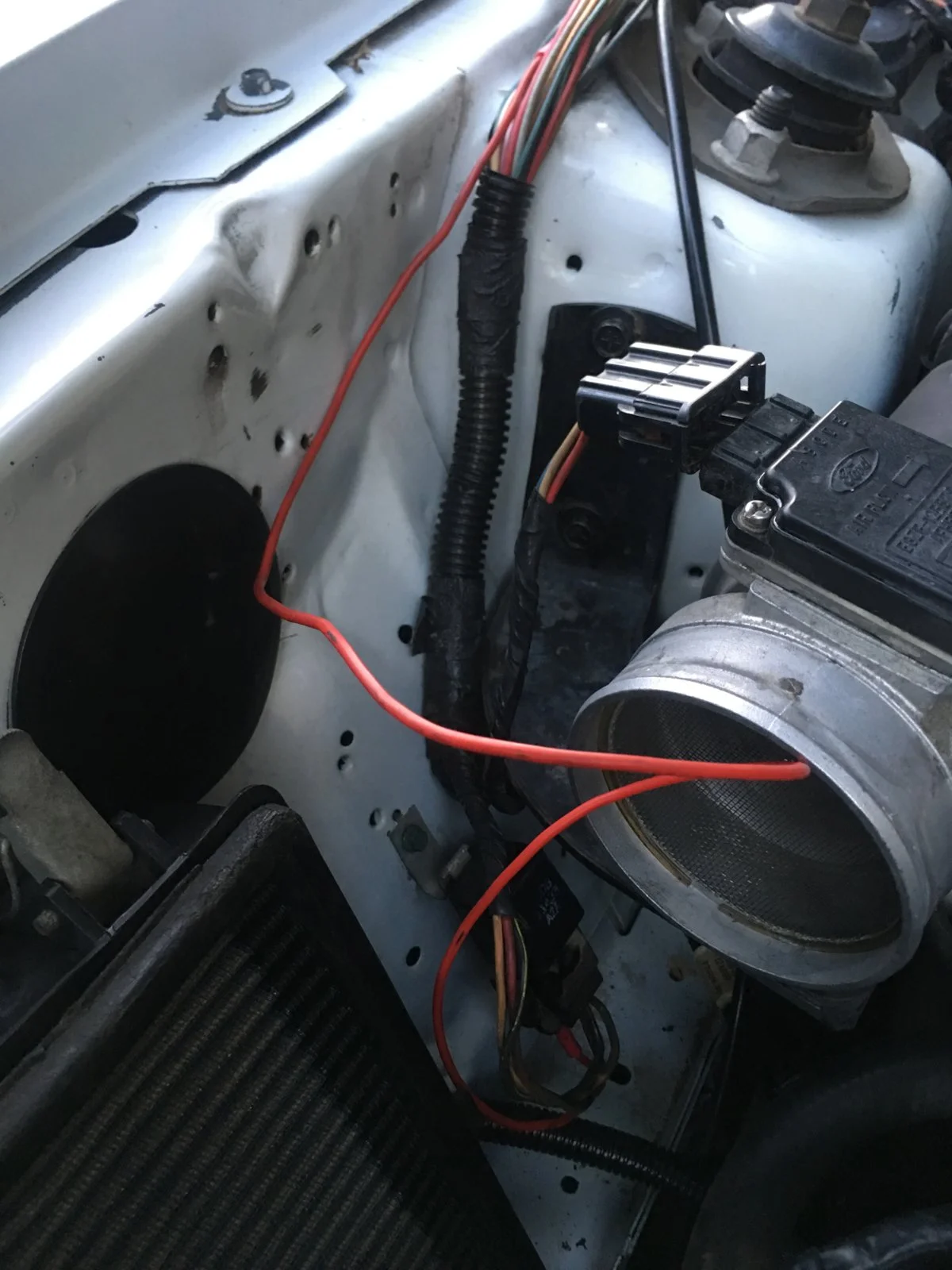

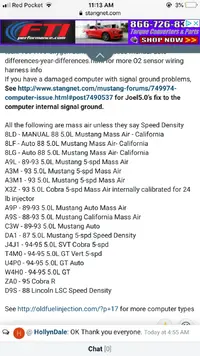

Ok So its an 1988 Cali 5.0 which came stock MAF computer number 8LF. Im unsure of this wiring in the engine bay though. What does the pink/blue wire go to? Is that little relay with the red wire ran to it stock? Ill post computer pics as well



[Boogdidit]

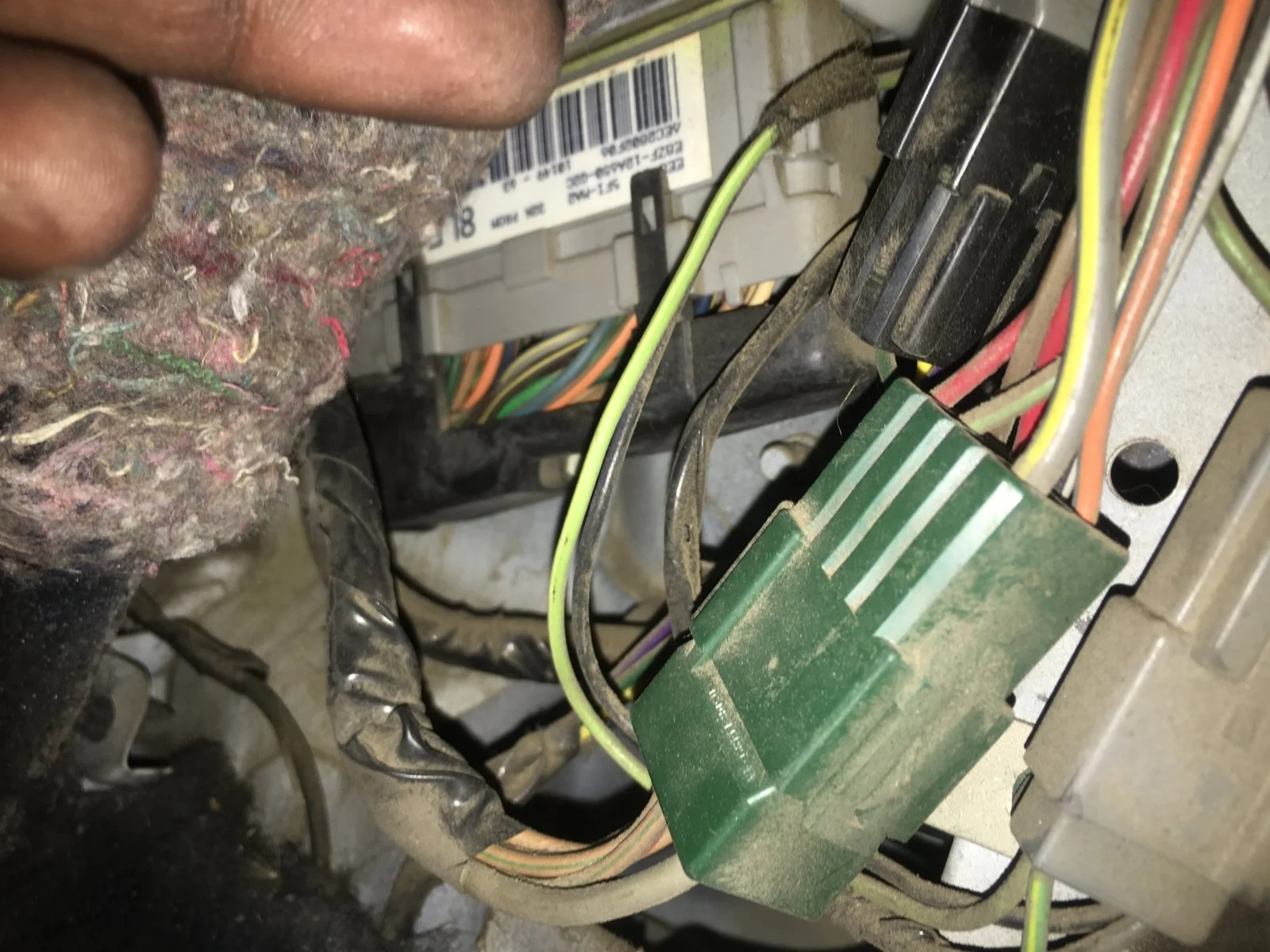

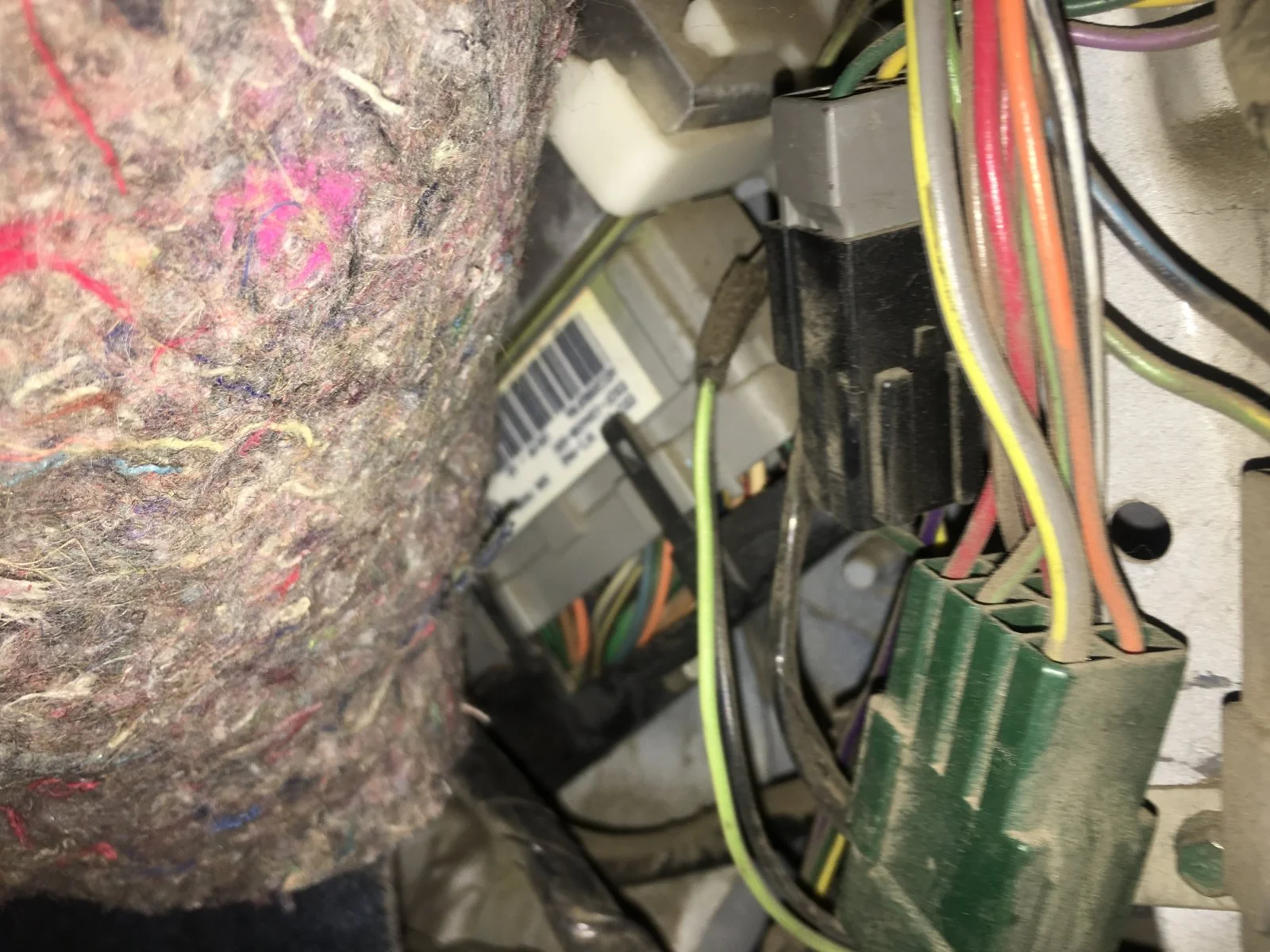

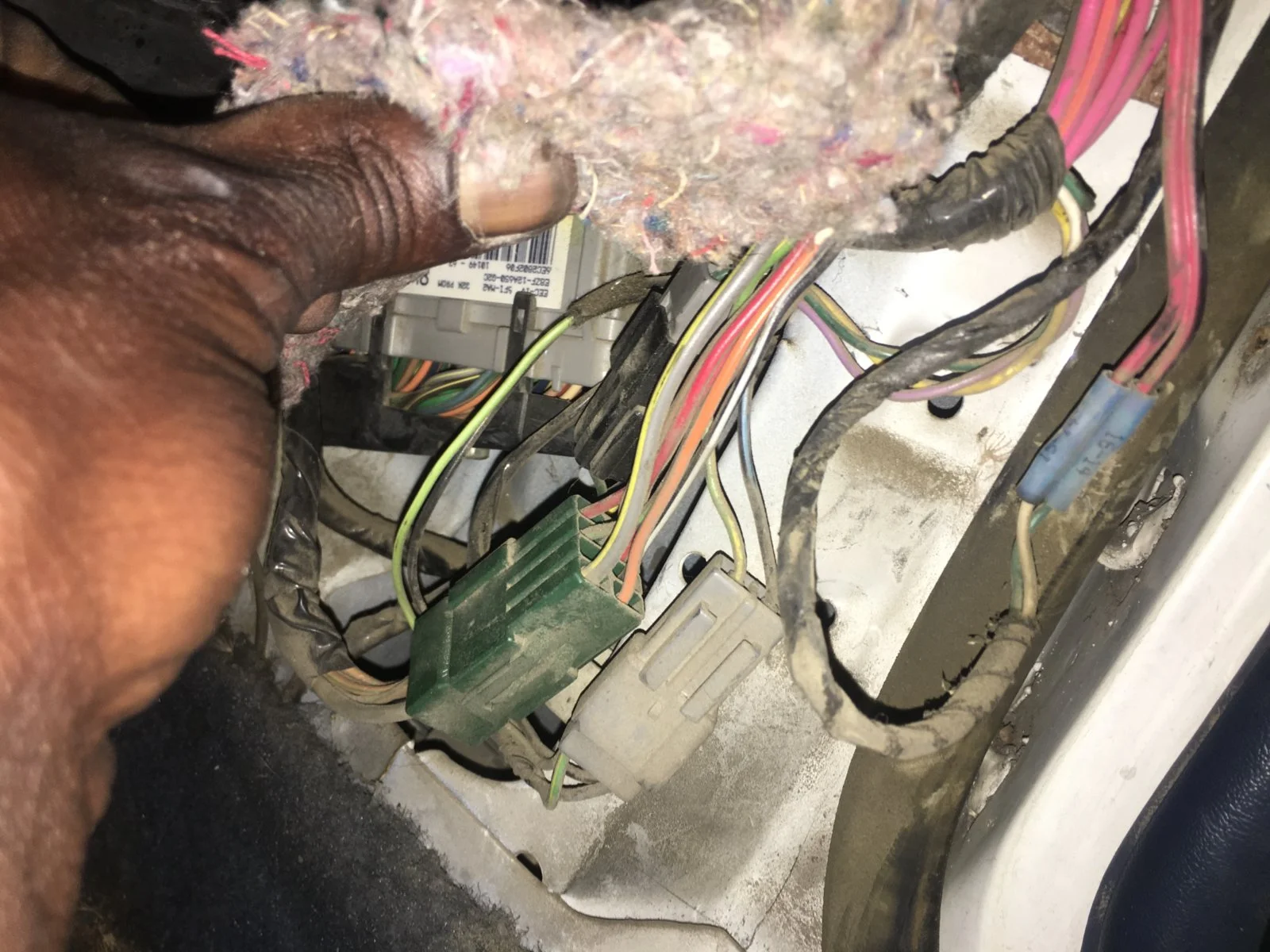

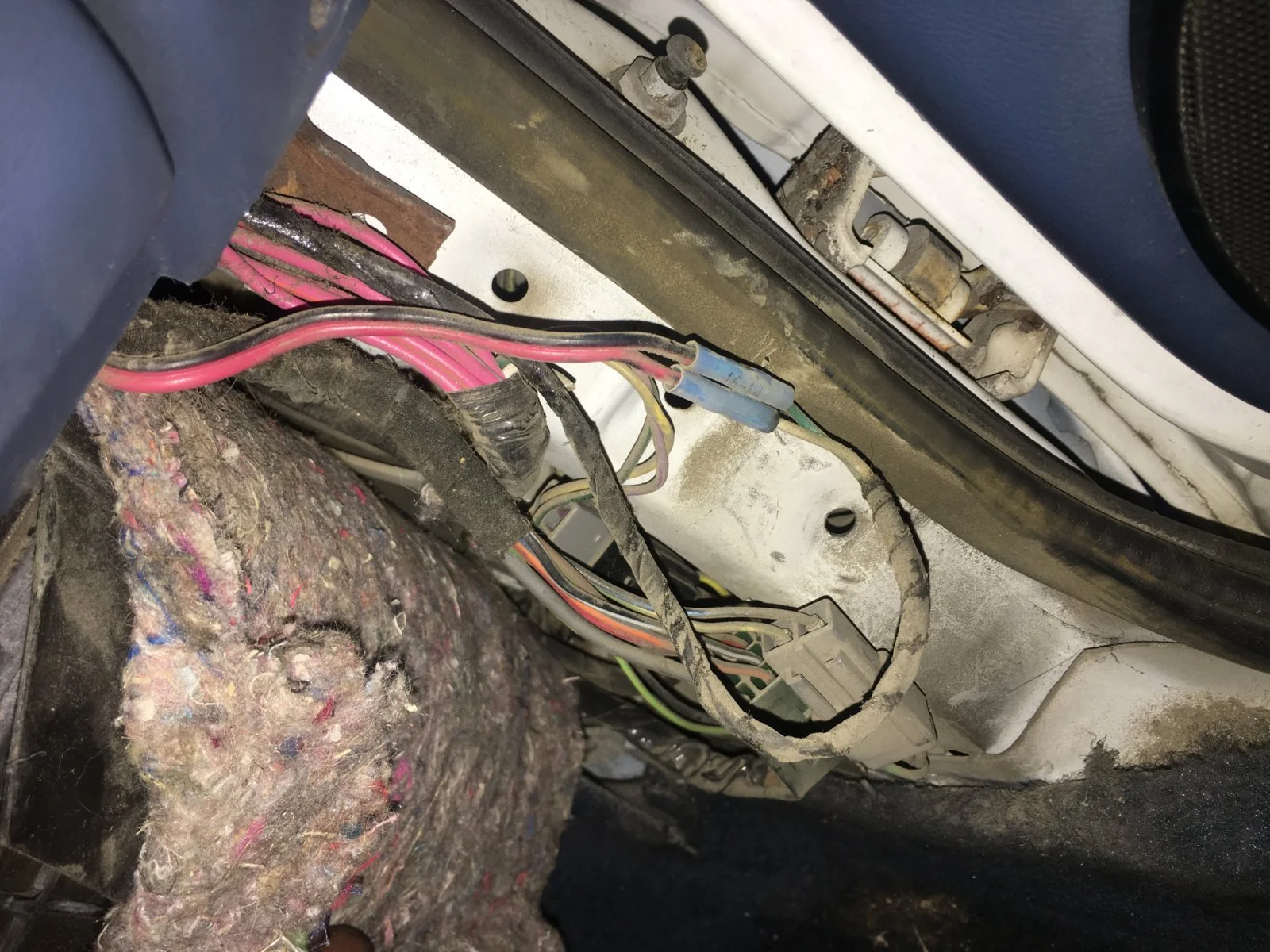

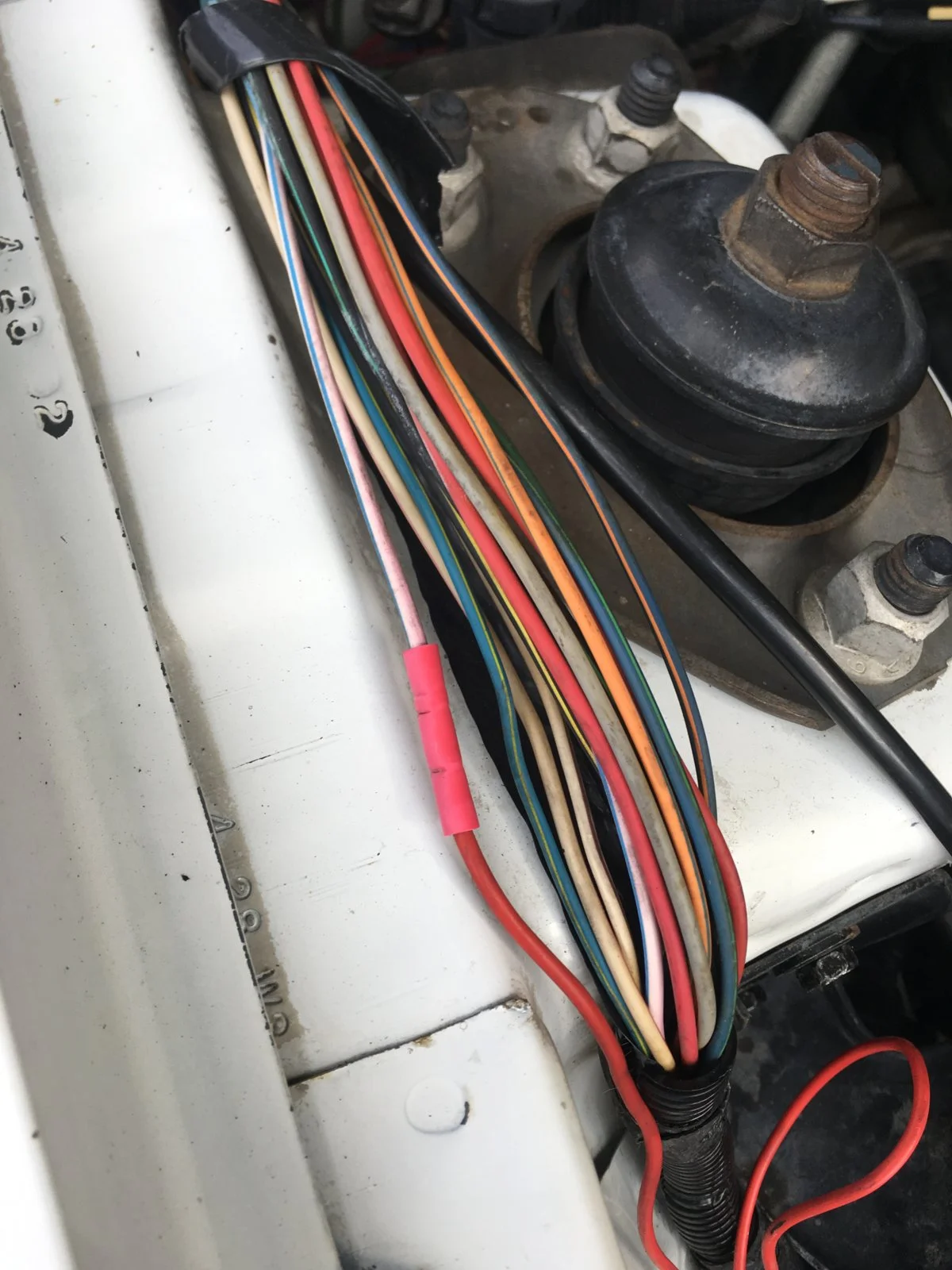

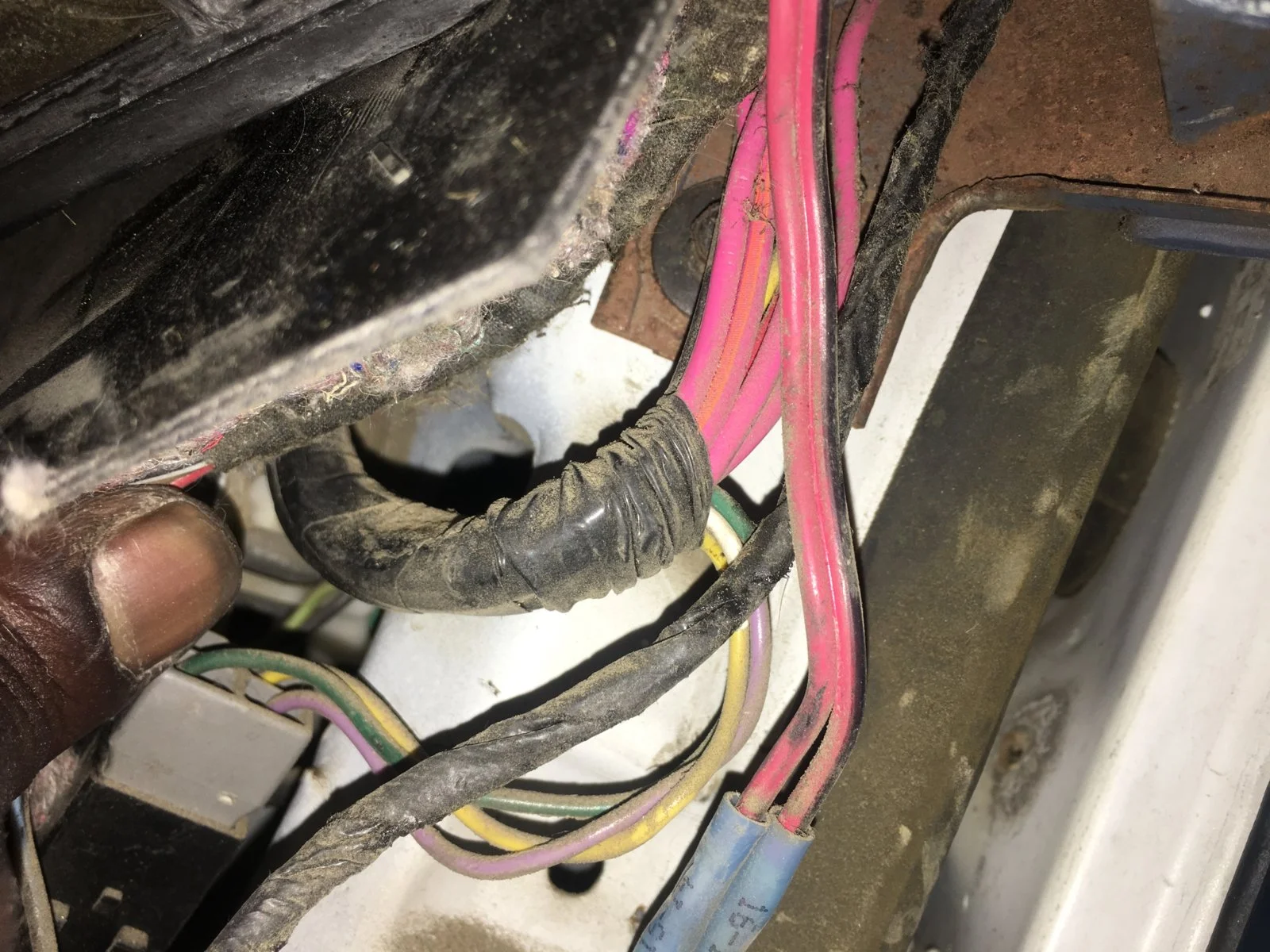

Computer And surrounding wiring pics



[jrichker]

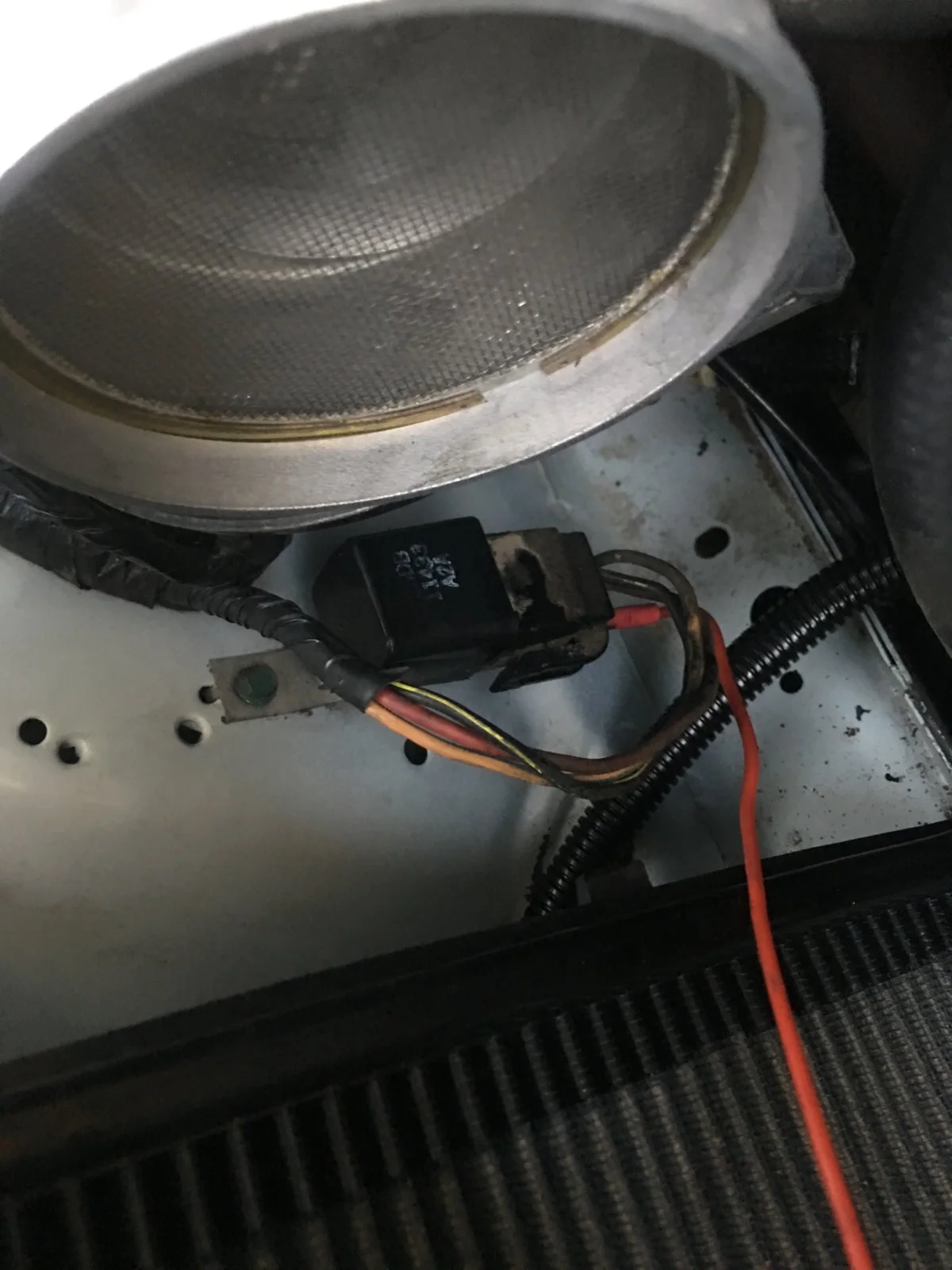

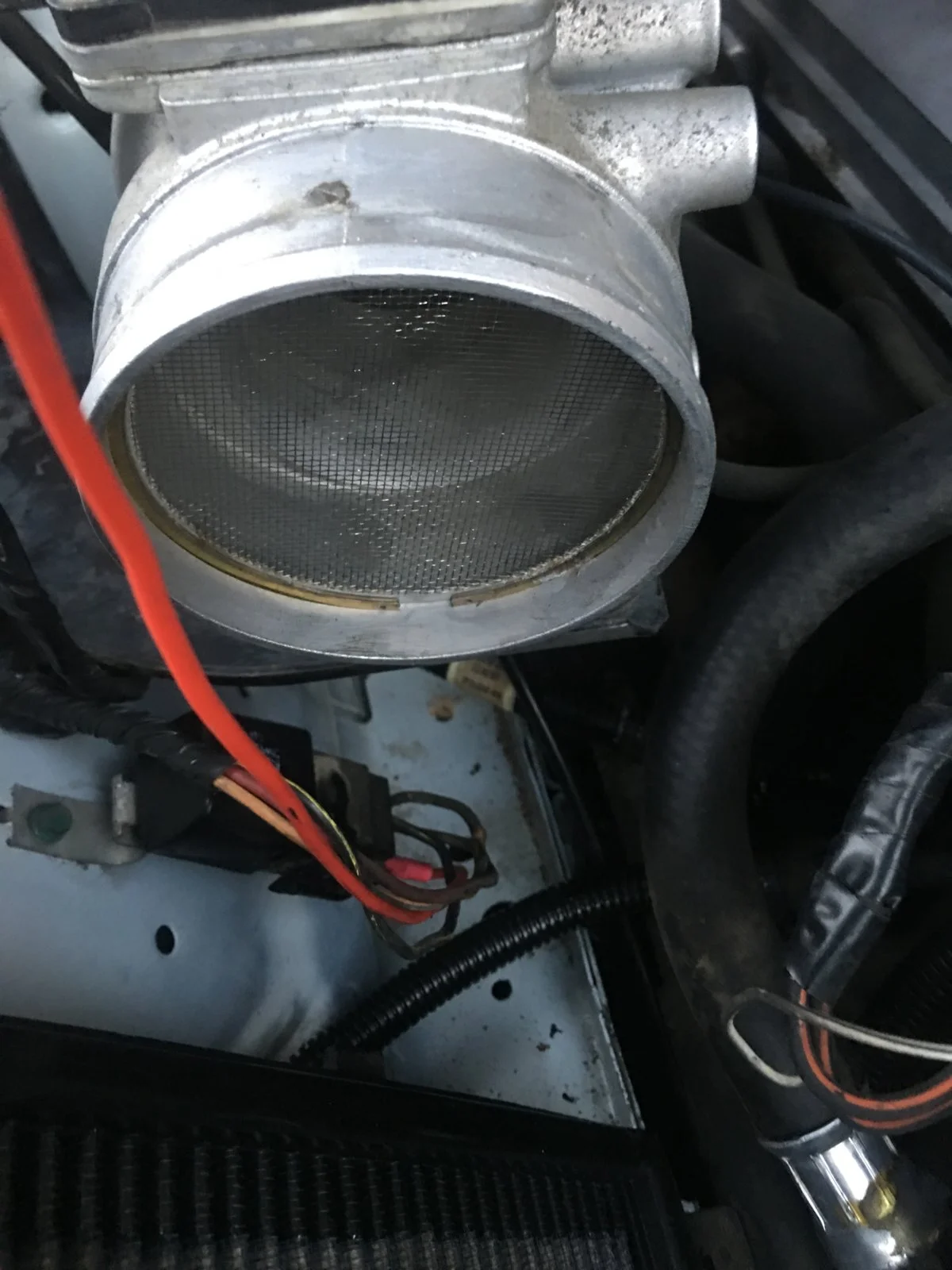

The relay under the MAF is the WOT Relay for the air conditioning. It shuts off the A/C when the throttle is wide open (WOT).

The following are diagrams courtesy of Tmoss & Stang&2birds

Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs

5.0 wiring diagram for Fuel Injectors, Sensors, and Actuators

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring; http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

TFI module wiring for 94-95 Mustang GT
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-IgnitionControlModule.gif

Complete computer, actuator & sensor wiring diagram for 94-95 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/94-95_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

5.0 wiring diagram for Fuel Injectors, Sensors, and Actuators
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Mustang 5.0 Lights and Radio schematic, by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxLights-Radio_diag.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

T5 Cutaway showing T5 internal parts
http://www.veryuseful.com/mustang/tech/engine/images/5_Speed_Cutaway_Illustrated.jpg

Visual comparison of the Ford Fuel Injectors, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/Ford_Injector_Guide.jpg

Convertible top motor wiring http://www.veryuseful.com/mustang/tech/engine/images/mustang88VertTopMotorCkt.gif

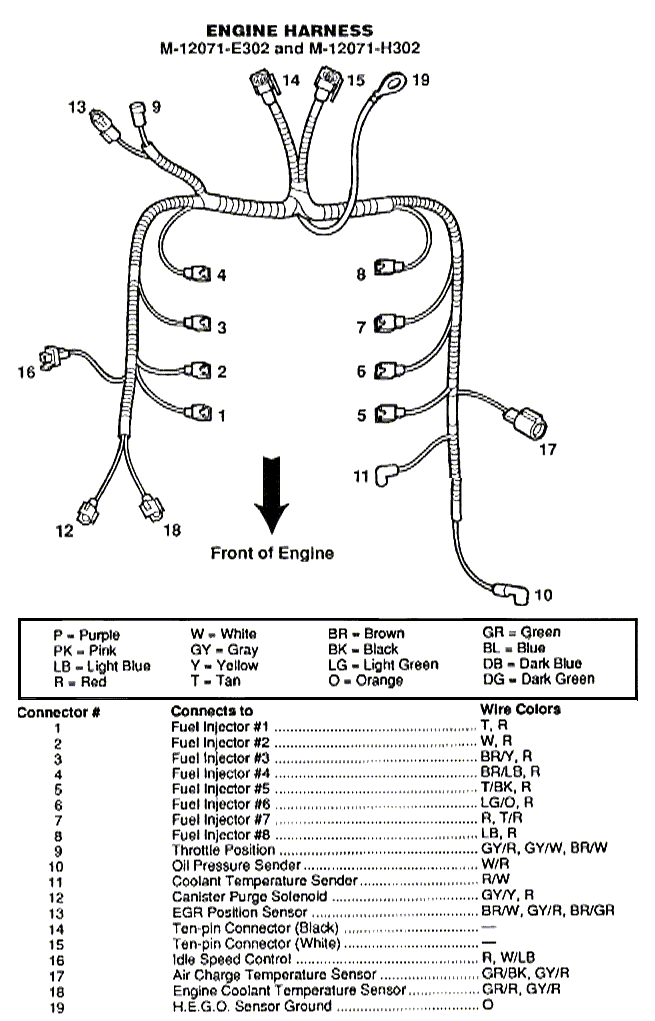

Engine mounted fuel injector harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangEngineHarness.gif

Location of the TPS, IAB, and the 10-pin connectors on a 5.0, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/TPS_IAB_Pic.jpg

Starter circuit
http://forums.stangnet.com/attachment.php?attachmentid=21328&d=1080916057

Alternator diagram for 94-95 Mustangs.
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-Alt.gif



[Boogdidit]

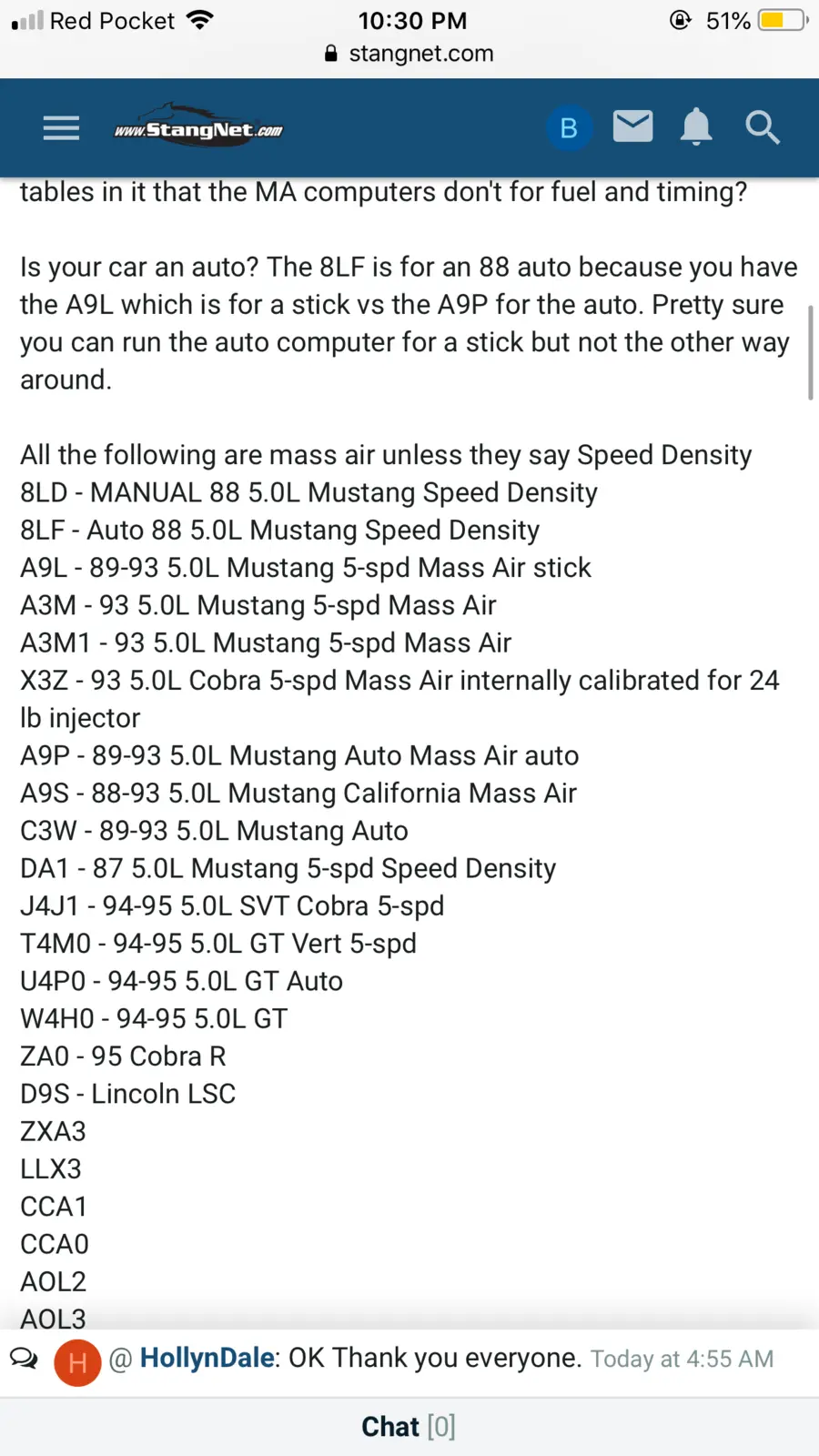

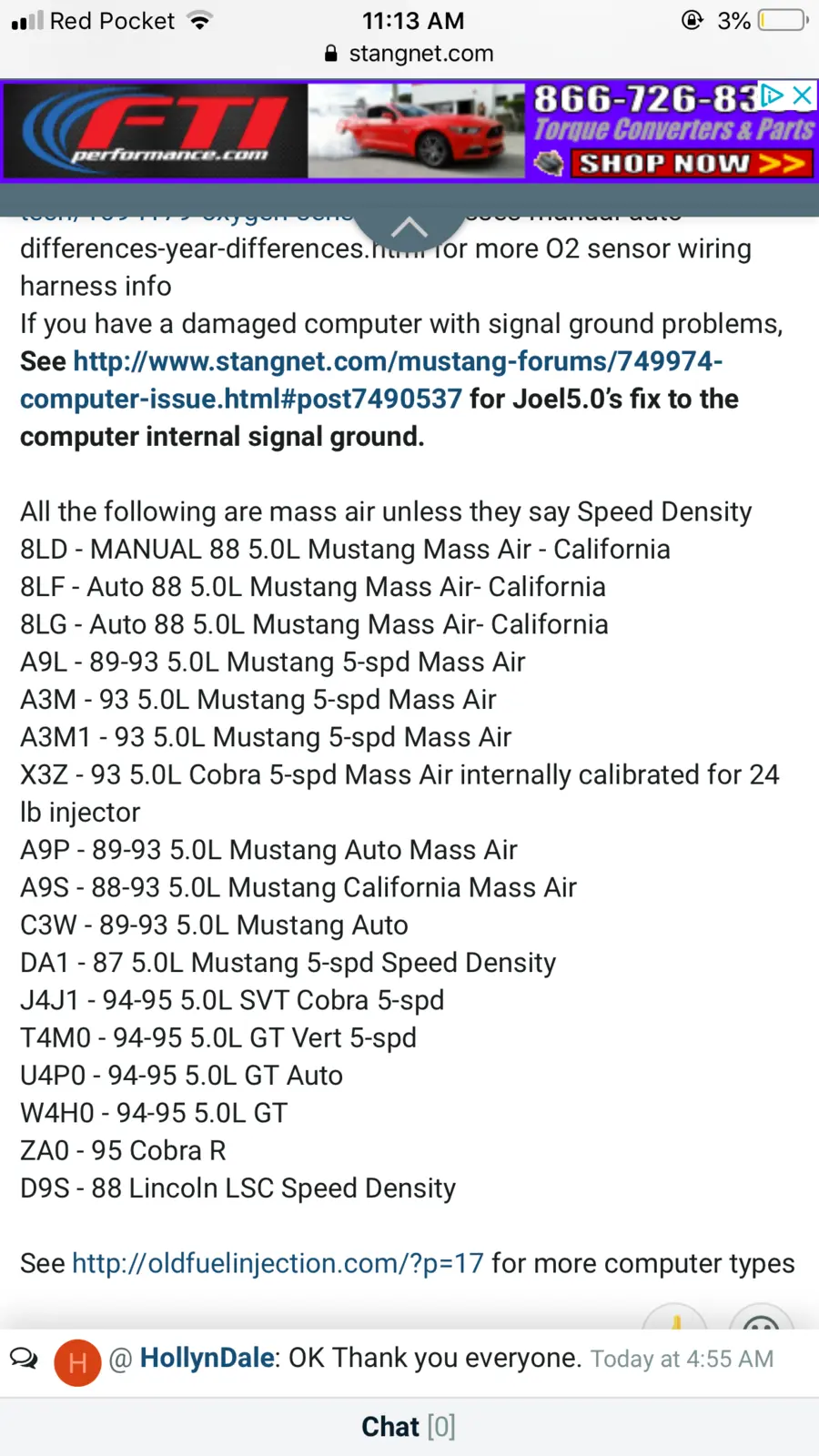

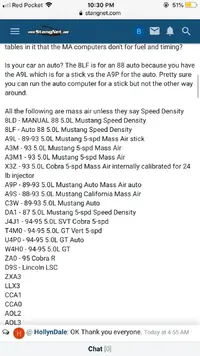

Ok so im looking at two identical list that clssify computer number 8Lf as different type. One says its speed density the other says Mass air flow. Which is correct? Is 8Lf speed density or MAF
