New MSPNP2 user!

Blown88GT

Founding Member
Nov 13, 1999
2,076
481
134
Palm Beach Gardens, FL

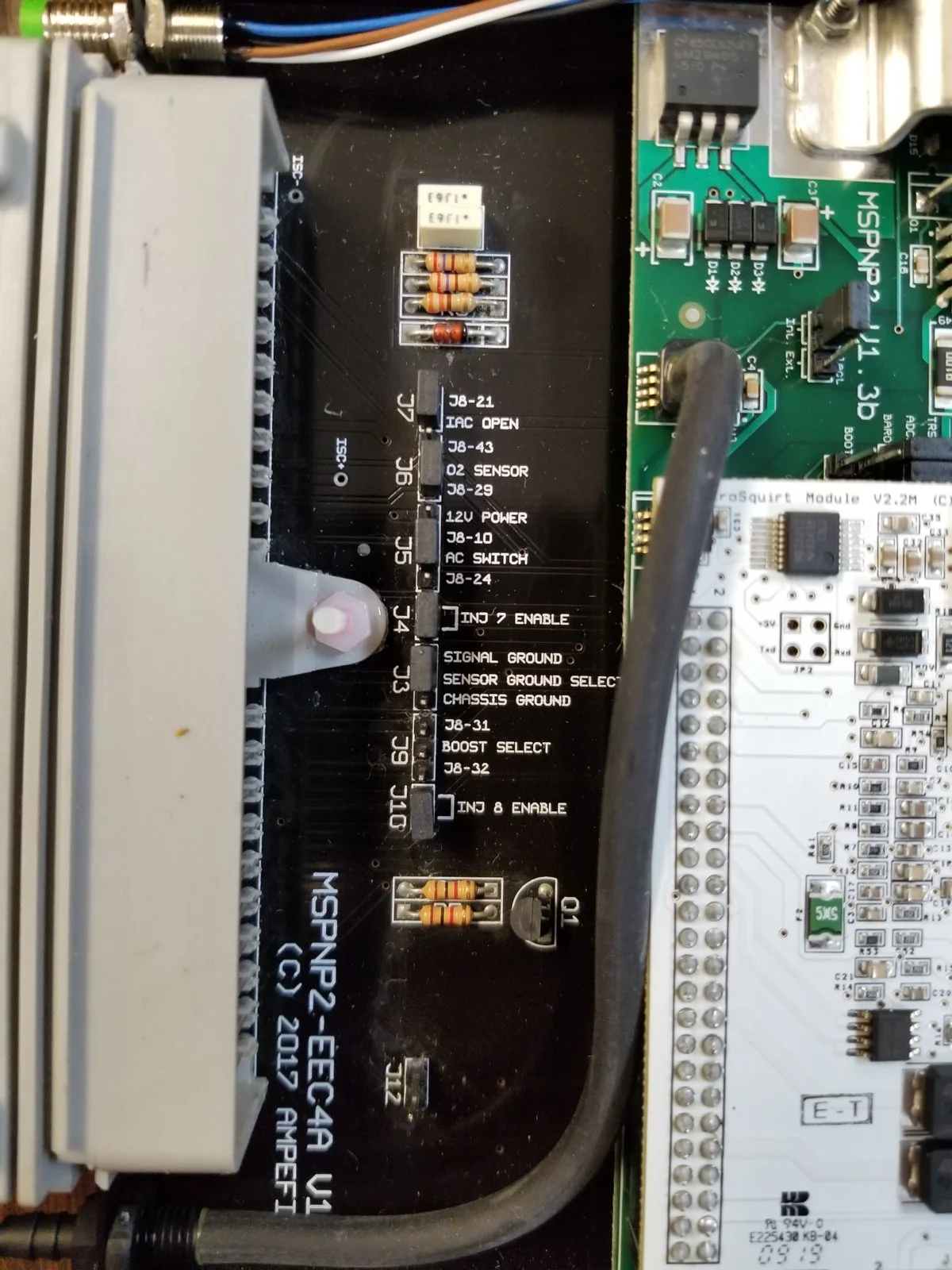

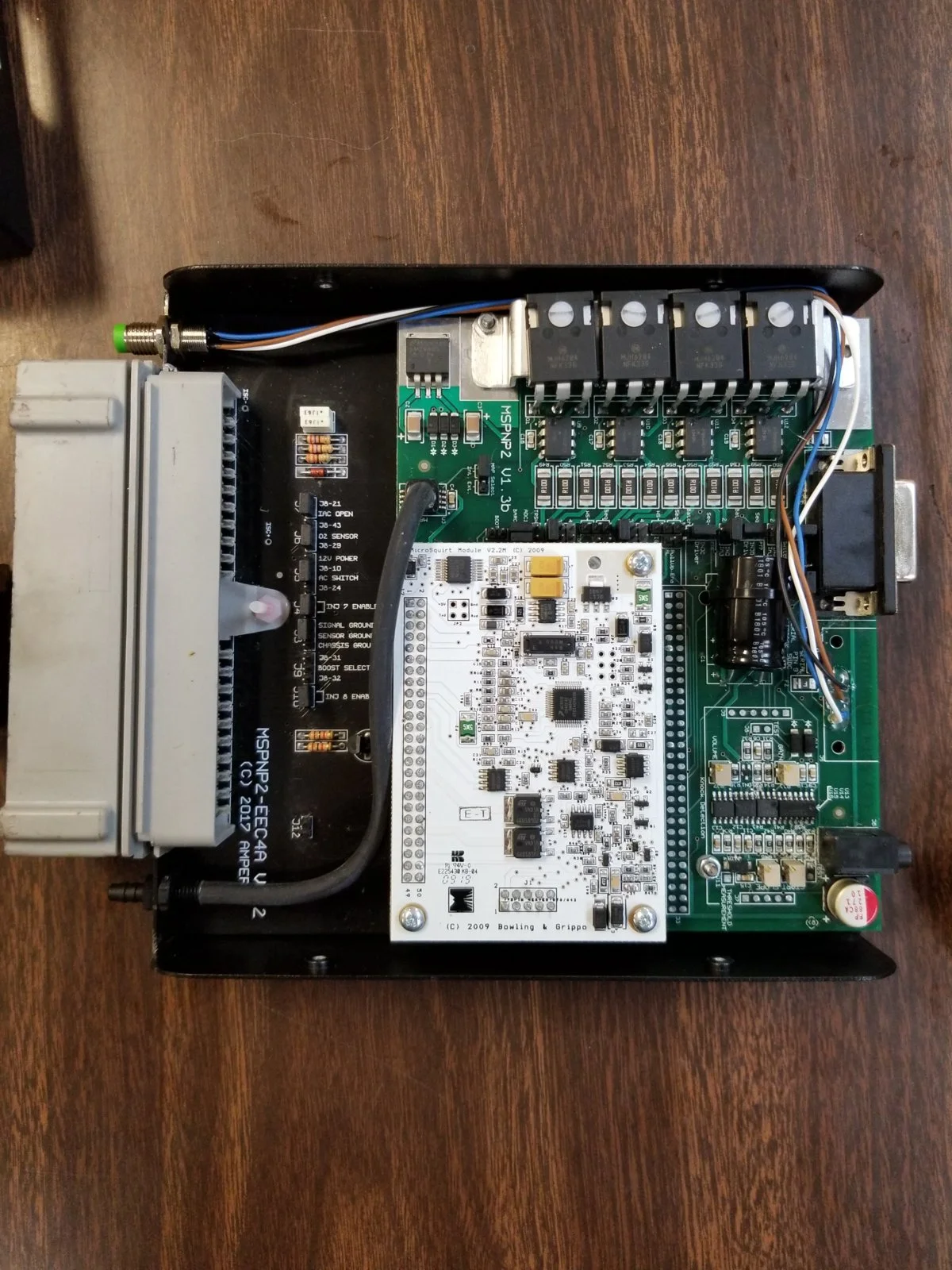

MSPNP doesn't use 3.57 board from MS2. What it uses is unique to it. Online docs have errors which DIY refuses to fix. I don't have MSPNP to verify WOT relay operation. I found some internal pics online. Might have something to do with jumper J5. No docs to tell you how to configure it, other than it should not be changed.


Attachments

Last edited:
  • Sponsors(?)


Blown88GT

Founding Member
Nov 13, 1999
2,076
481
134
Palm Beach Gardens, FL
633208

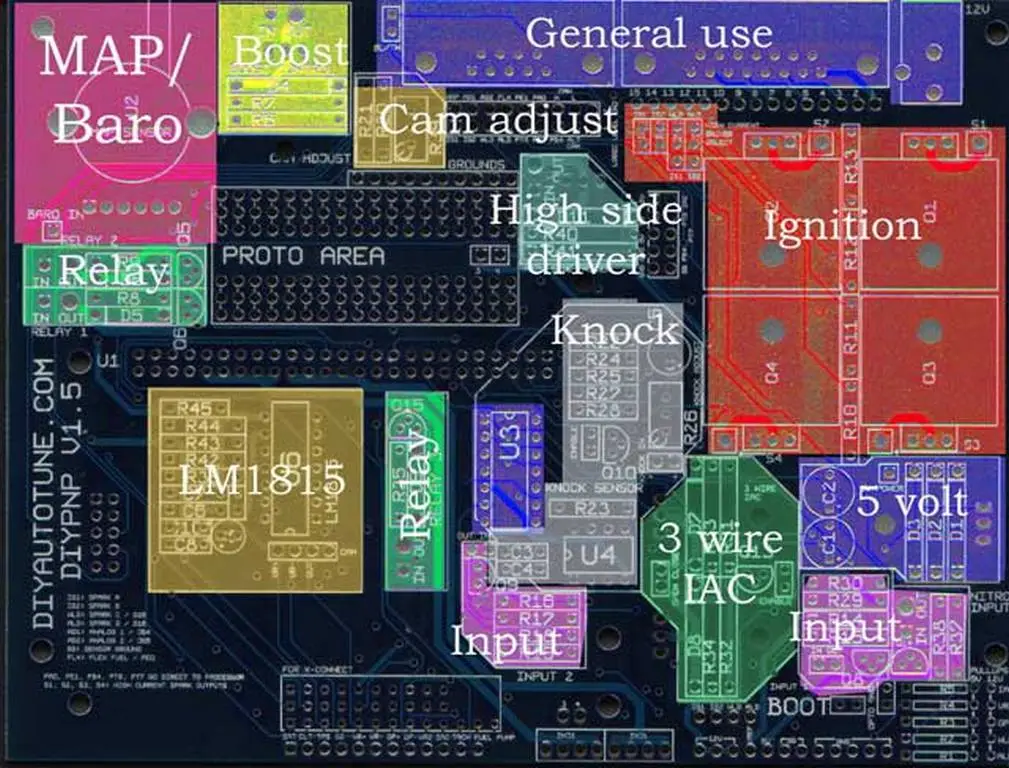

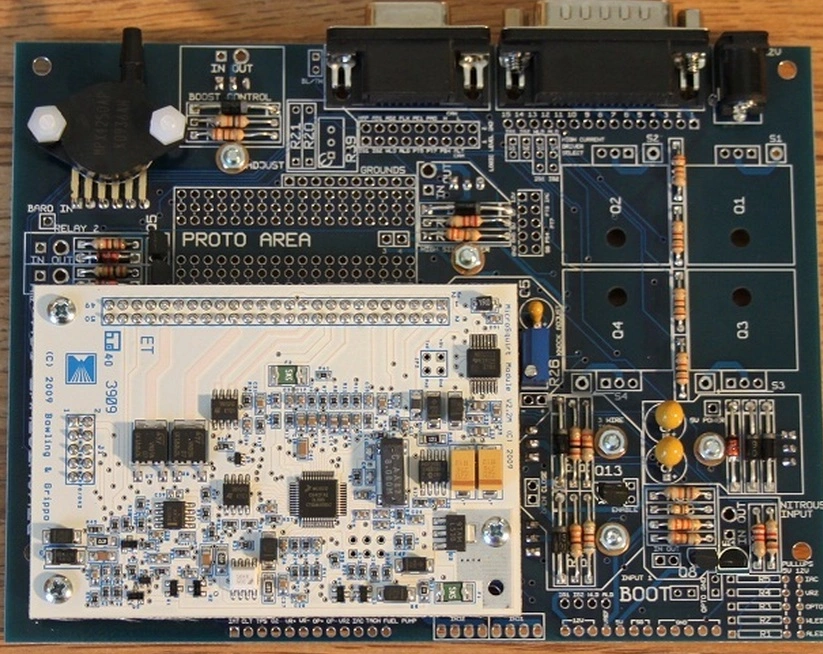

This pic is from DIY's old website.

633209

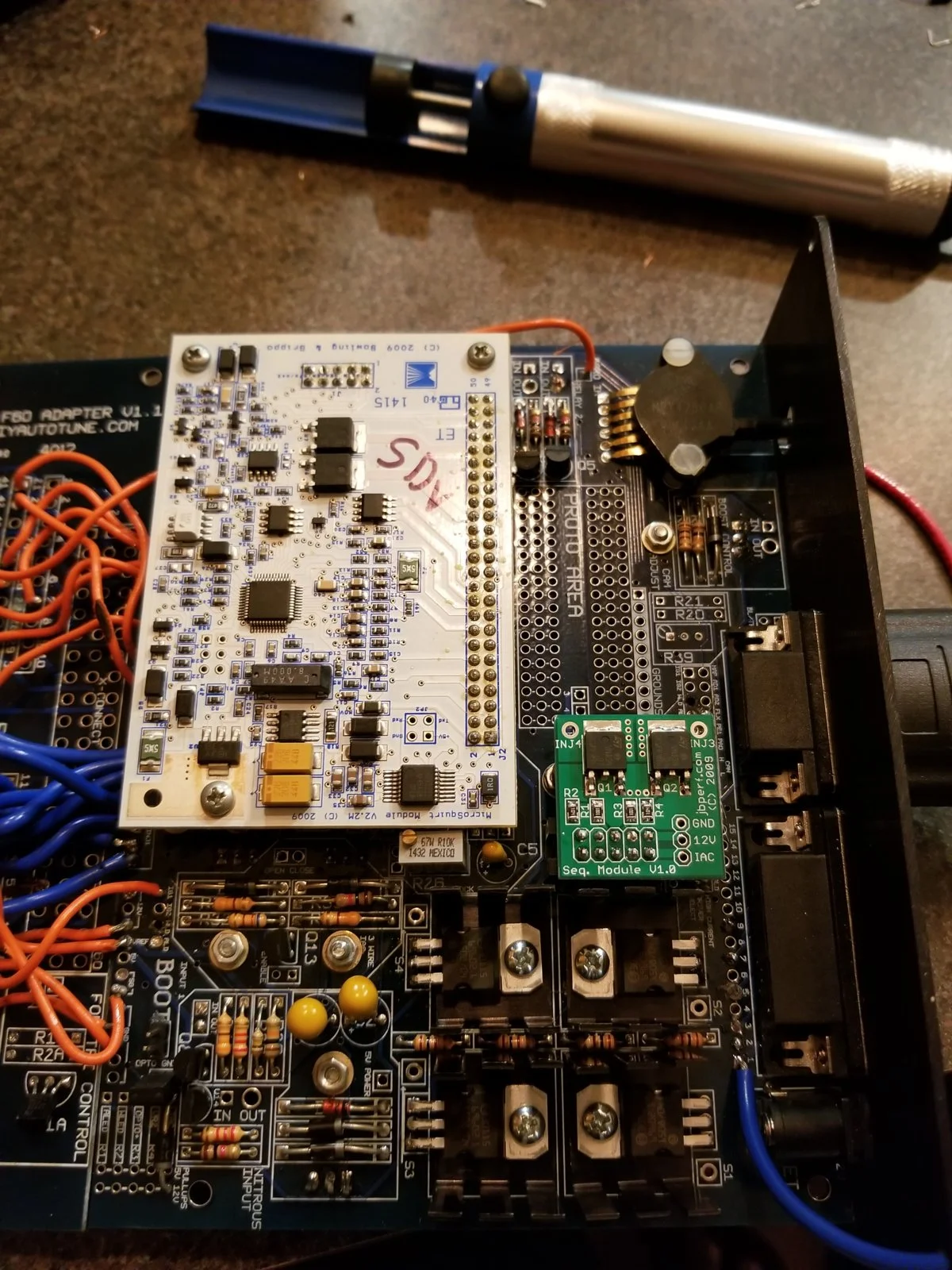

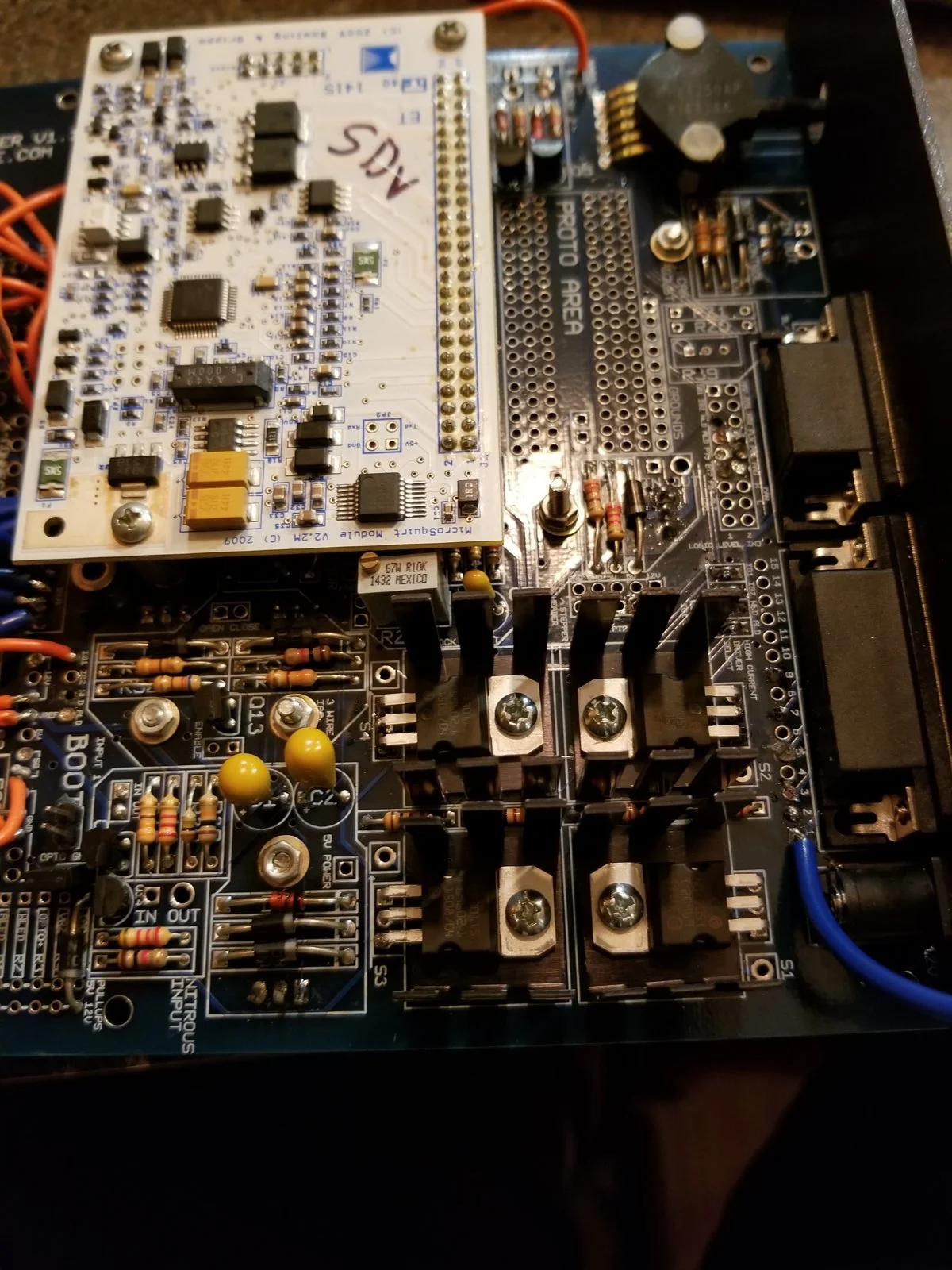

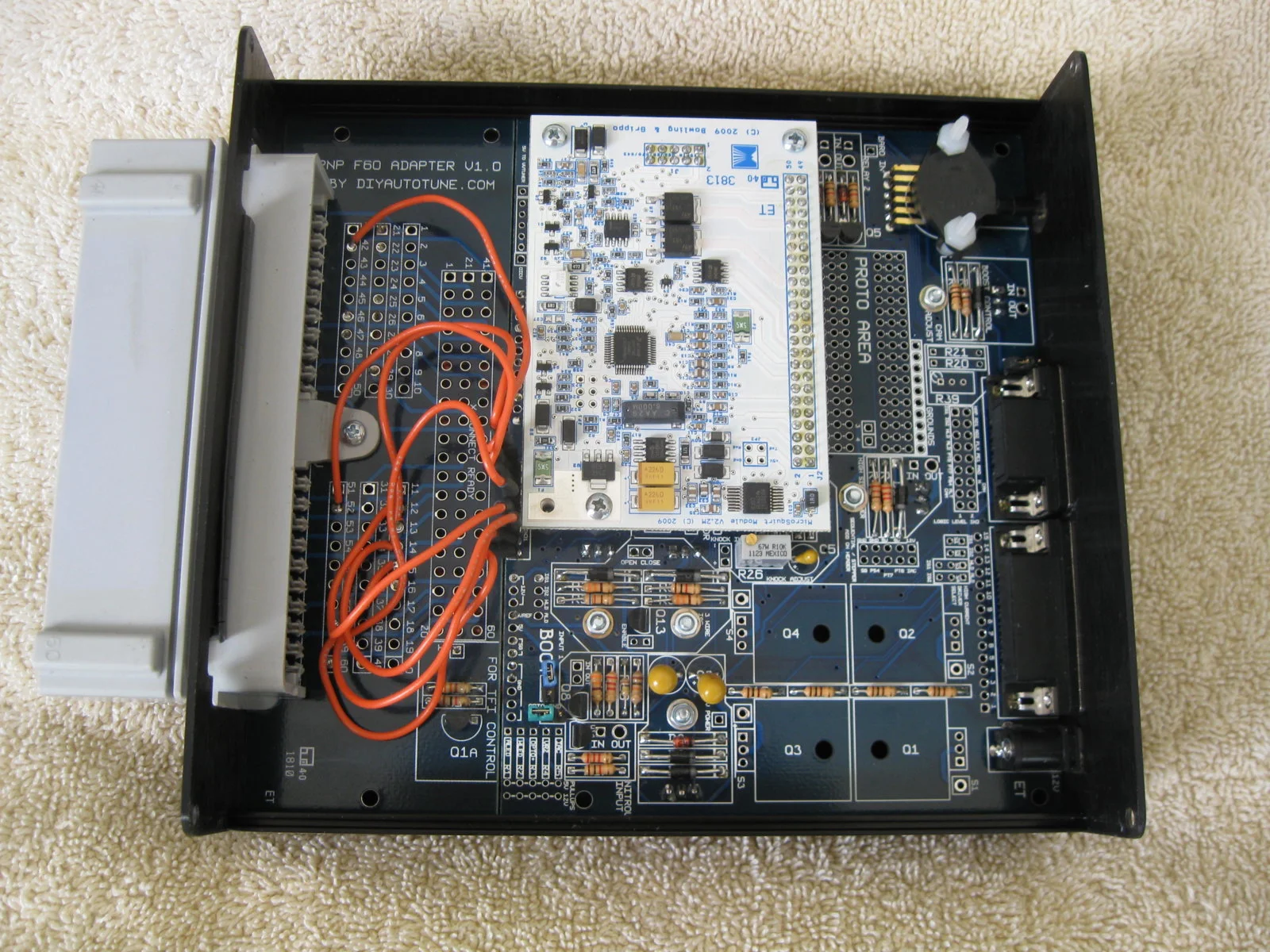

This pic is mine. Says DIYPNP F60 V1.0. My later pics have more mods.
The F60 is only for the Ford (i.e. Ford 60-pin connector)

633210

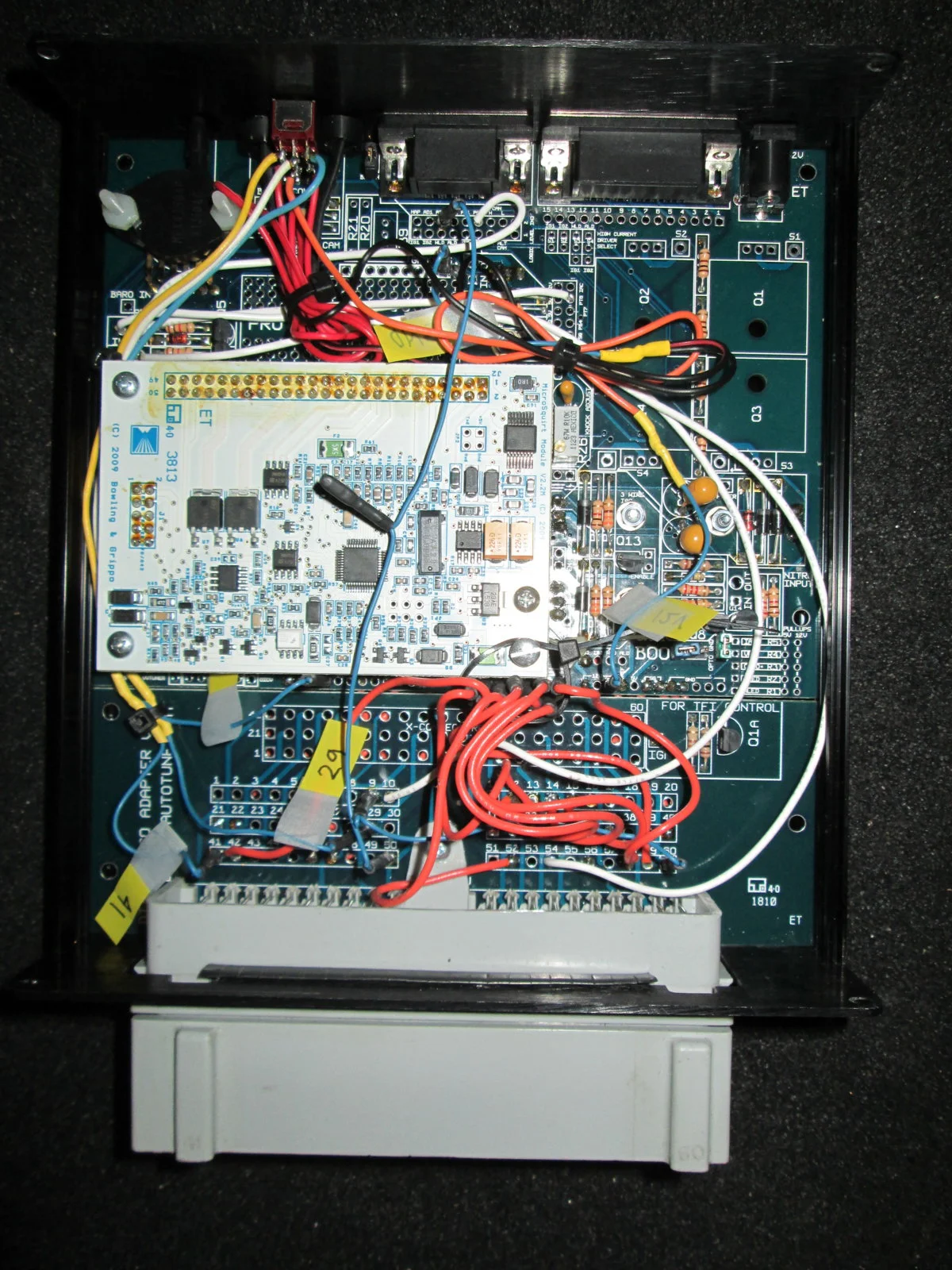

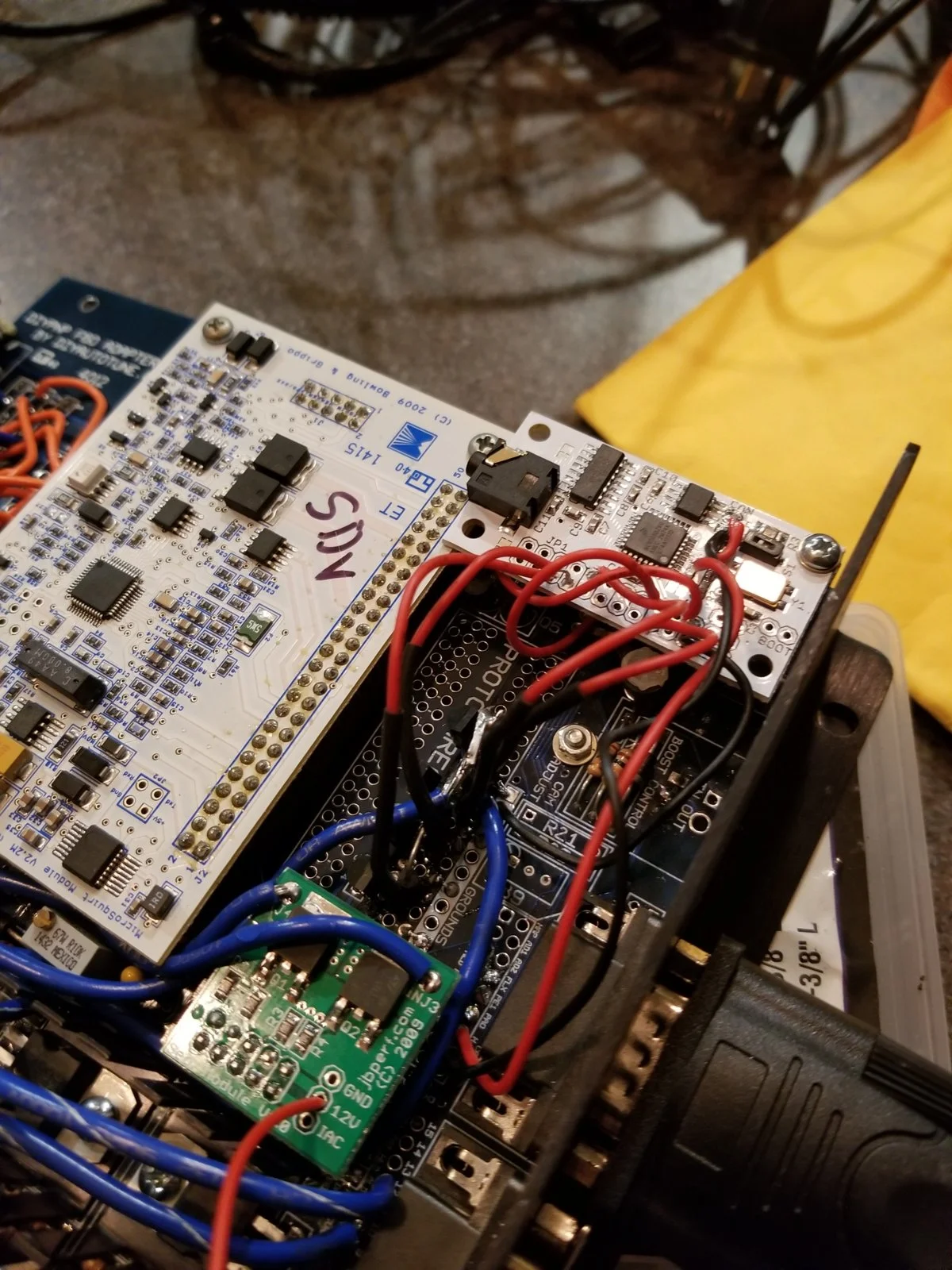

Latest version with all my additions (messy).

Last edited:
  • Like
Reactions: Anti_Hero0932

Blown88GT

Founding Member
Nov 13, 1999
2,076
481
134
Palm Beach Gardens, FL
Had to look this up in my manual: "The DIYPNPF60 does not include any of the transistors Q1 through Q4."
They must be for the direct coil control, a.k.a. EDIS

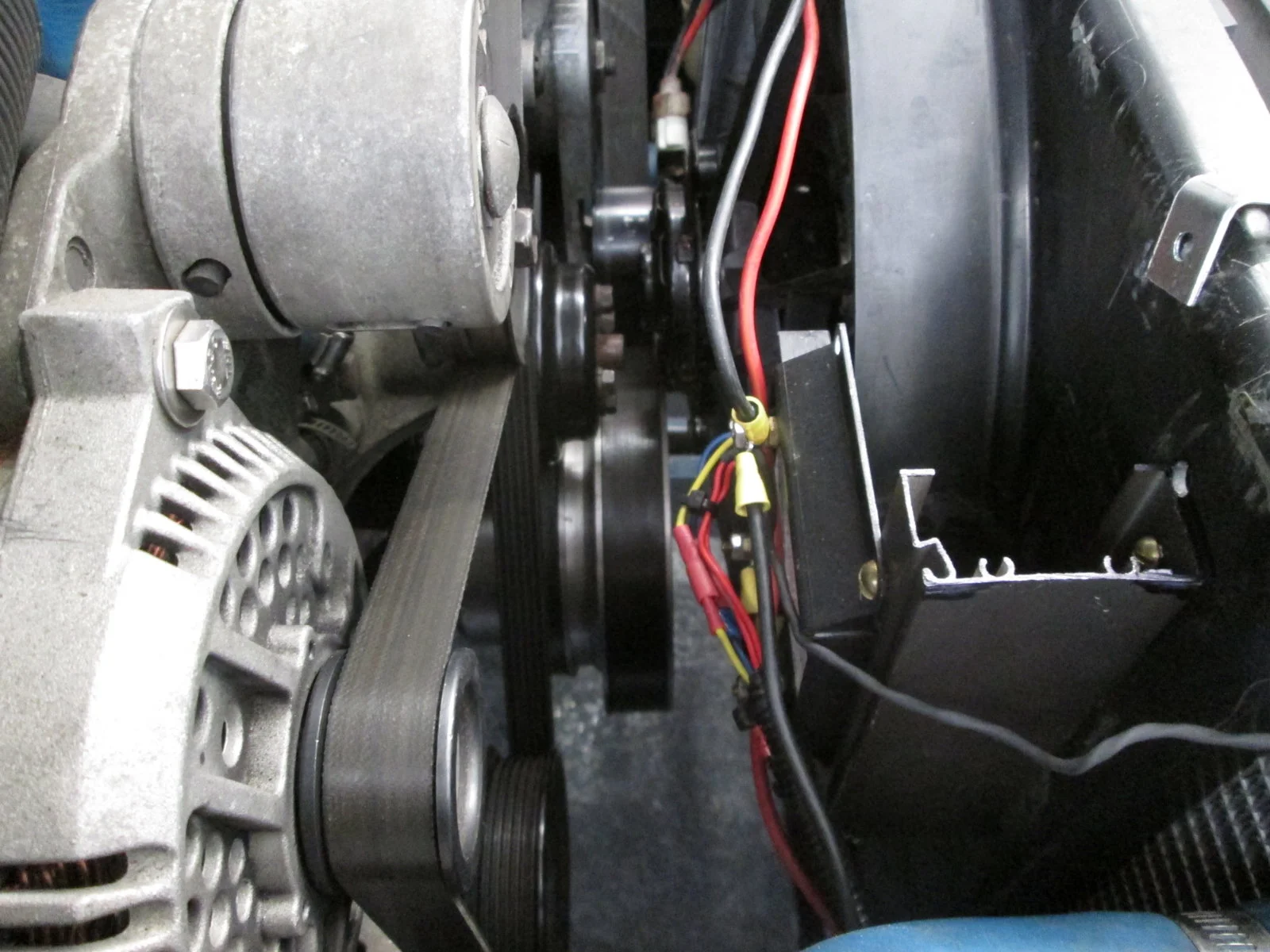

With the oversize supercharger crank pulley, I have no room at all for a crank sensor.

I guess this is settled?
The DIYPNP is unique, not like the MSPNP (other than the Microsquirt Module) or MS 3.57.
All versions use the same cpu (microcontroller), Motorola (now Freescale) MC9S12C

One of my mods is a selector switch to disable the WBO2 & enable the NBO2 on the passenger side.
Never had to use it, yet.

I just found my folder with all the pics for the A/C mods.
There was a guy on the MSExtra forum that got me started.

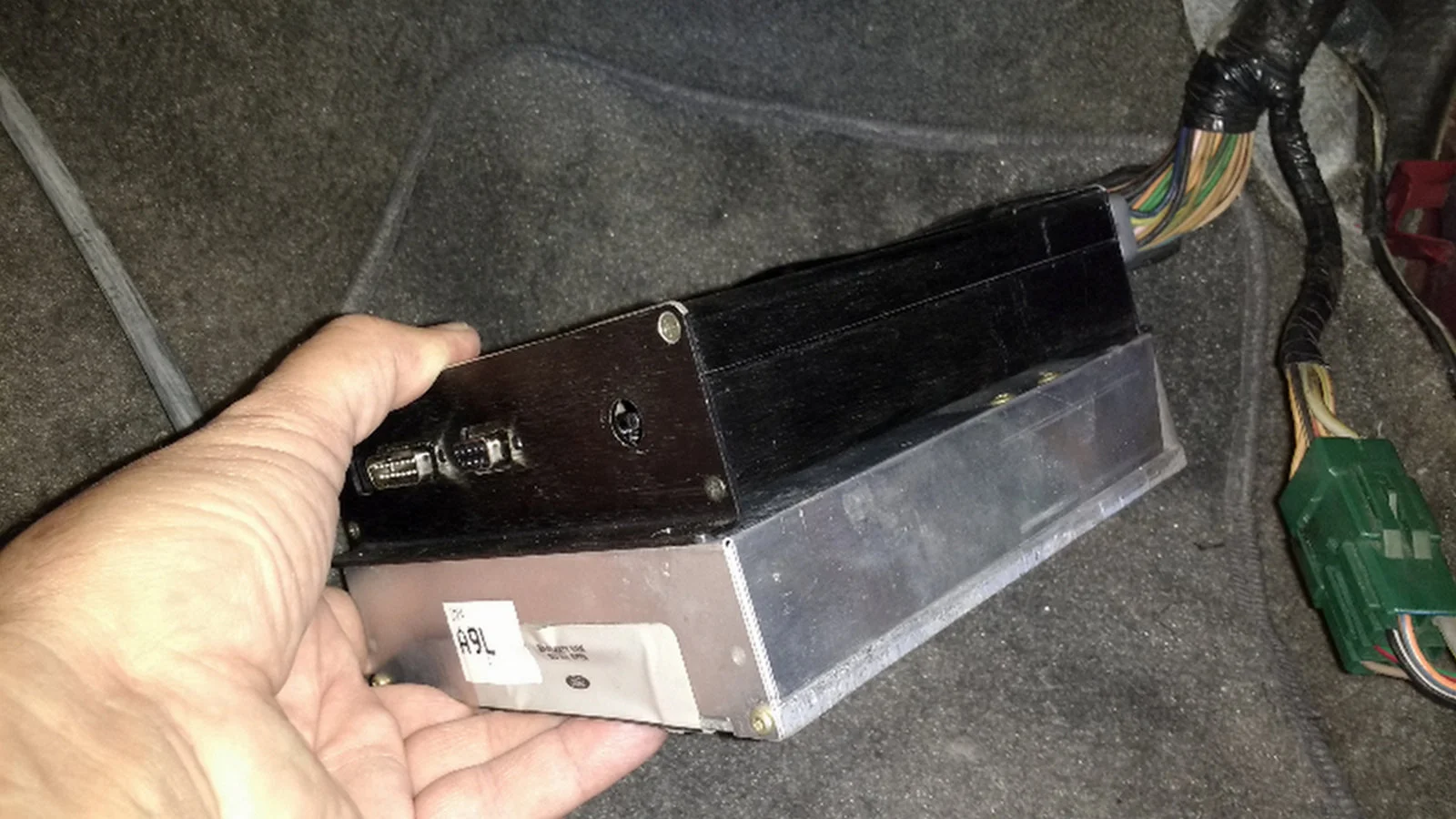

He actually had someone machine the DIY case to the same height as the A9L.
Since I'm satisfied with it mounted under the glove box (harness just reaches), no need for this.
My advantage is it can be removed in few minutes without kick panel contortions.
633311

Last edited:

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,196
6,105
204
31
Hillsborough county
I have a custom crank pulley made by asp, if you buy an aftermarket balancer that requires a spacer for proper fox dress fitment you can use a trigger and sensor from 64bittuning to get the job done.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,196
6,105
204
31
Hillsborough county

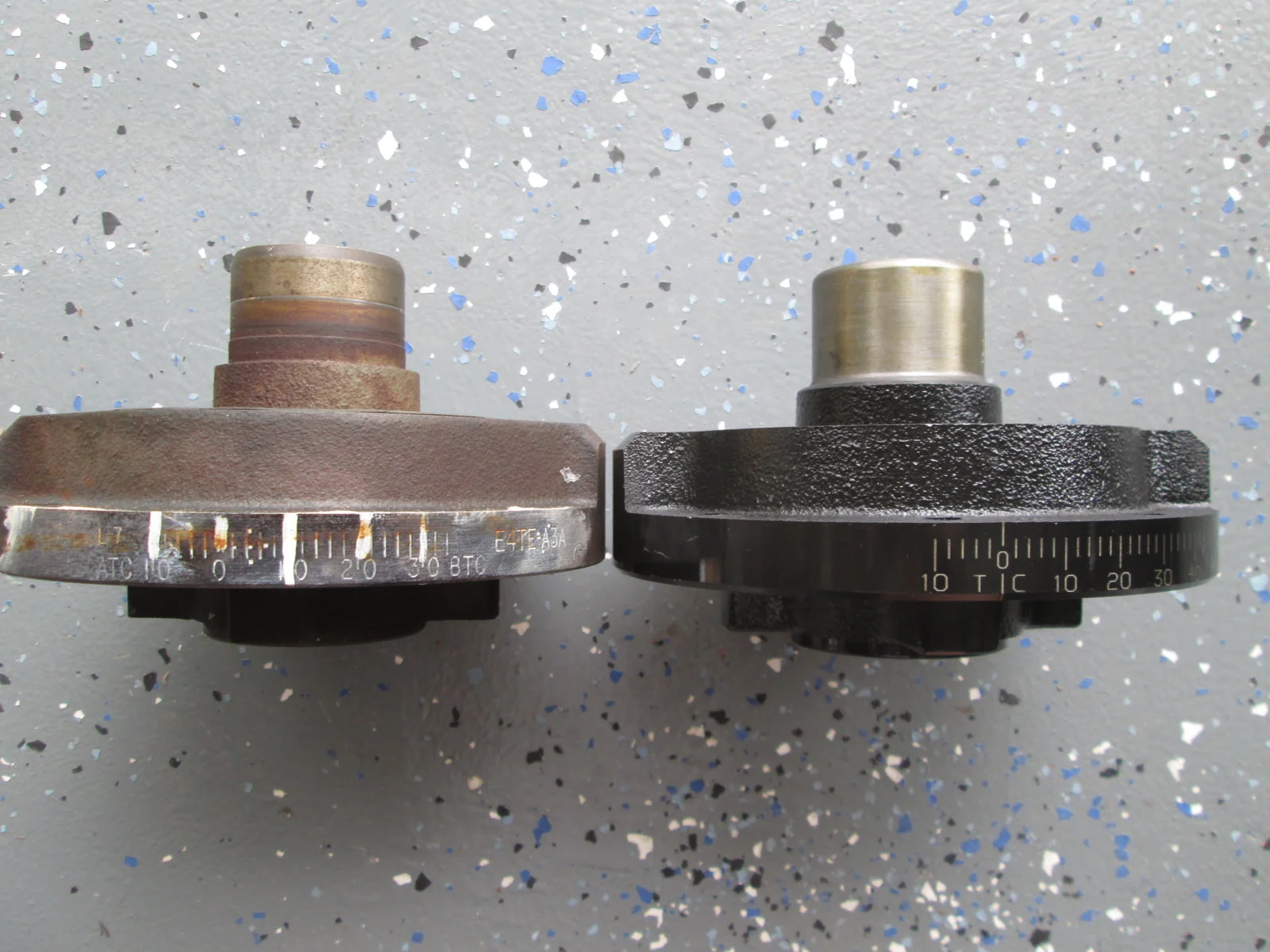

are you using the factory balancer? if yes then no you cannot add the wheel. If you buy a balancer that is more universal, say for a 240-351 sbf then it can be made to fit as it is shorter. A spacer would be required to get proper pulley alignment this is where the trigger and spacer come into play.
