I was encouraged to start a build/restoration thread for this car. So here it is. I don't have a name for this car project yet. "Pale Horse" seems to fit, but I haven't settled on anything. Feel free to offer suggestions.

Now a little history:

I bought a very nice, reliable, lightly modified daily driver '85 Mustang GT when I was 20. All I cared about then was speed, noise, and beating up on imports. In the desire to make the car fast, and only focus on engine power and weight, I ruined that car. Not figuratively, literally ruined it. Torn floors, torque boxes, gutted interior (threw it all away), parts installed in haste, removed any and all unnecessary wiring by just cutting it out, blew the engine up, etc. I regret it to this day.

Now, 16 years later I bought a 1993 Mustang GT with the intention of doing a restoration. I plan on a very streetable H/C/I combo, gears, stronger transmission, chassis upgrades, suspension upgrades based on the stock system (no coil over stuff), and make the car a very nice driver.

This car I picked up for $3600. I don't know the history, or how many miles, or how many owners this car has had. It's obvious that some of the previous owners shouldn't be let near a wrench. Coolant sensor and IAT sensor in the wrong location, wires replaced with no organization, emissions removed improperly, a very hasty R134 conversion, the car has been repainted at least once, it goes on and on. I almost gave up and sold the car. It was a little overwhelming, then I realized I needed to just focus on one thing at a time. It isn't a daily driver, and can sit whike I save for parts.

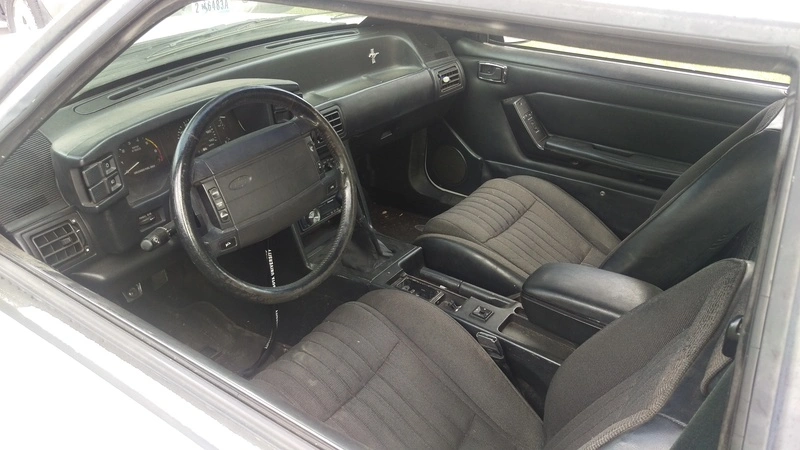

The passenger seat is coming through the floor at the rear mount, so floor patches are in order. Along with F/L subframe connectors, torque box reinforcements, seat mount reinforcements, and anything else I might find while in there.

This will be a fairly long project, I don't have a whole lot of money to dedicate to this car right now. Hopefully that will change in the future.

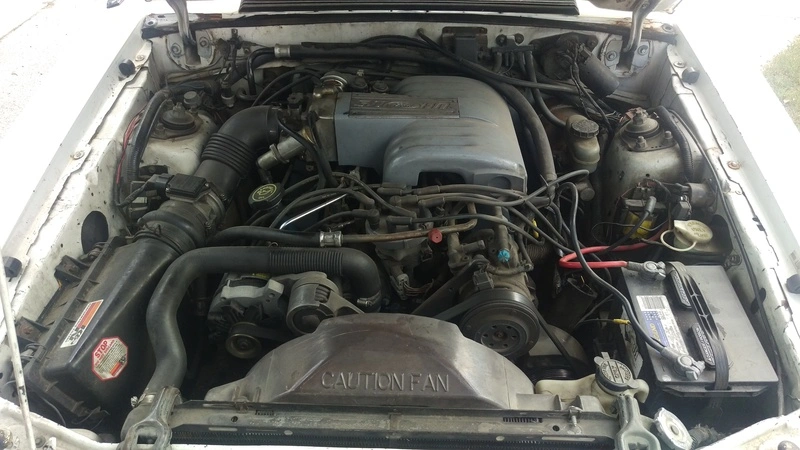

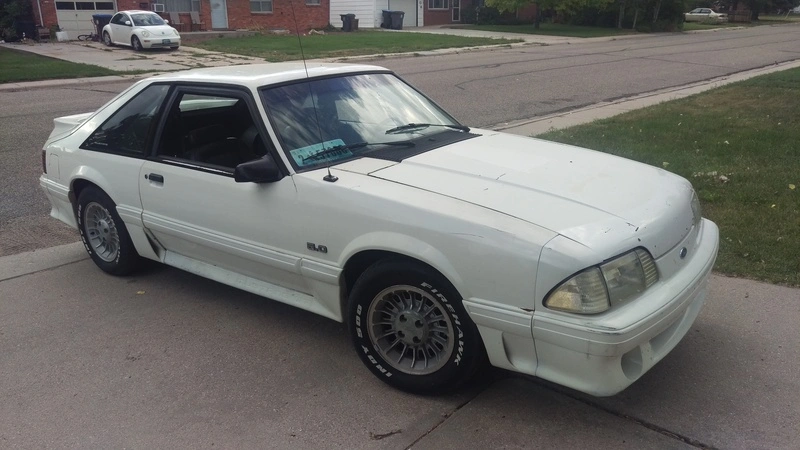

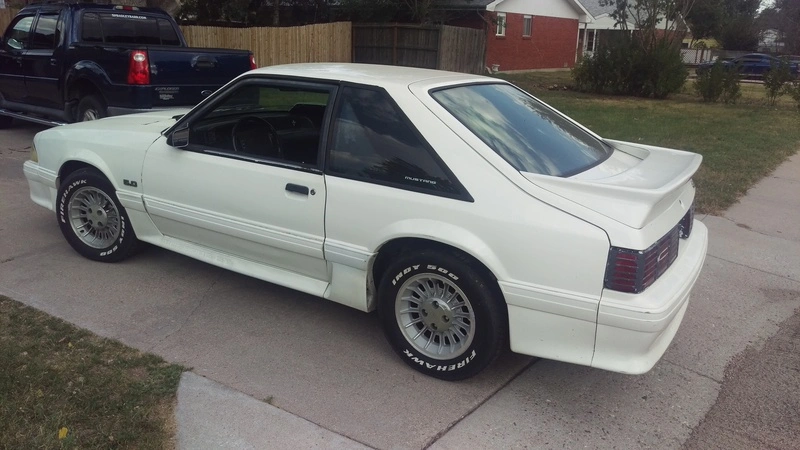

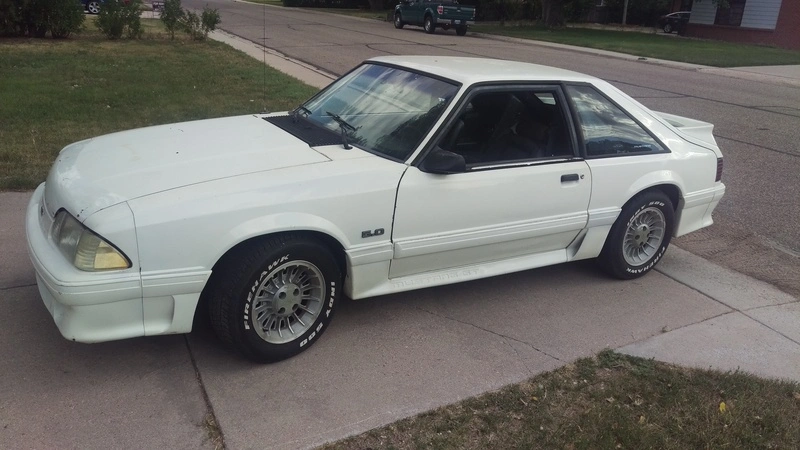

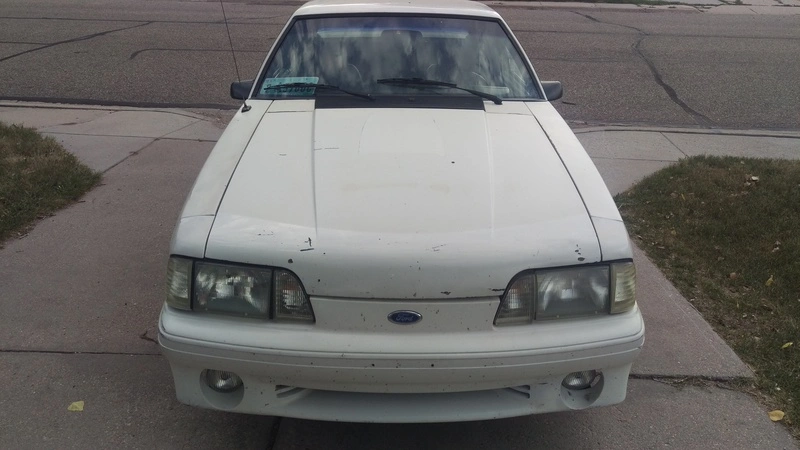

So, without further adieu....here she is.












Feel free to comment, criticize, or help with this project. I'll post updates as they happen, and hopefully get lots of pictures.

First things on the list are O2 sensors and making the engine run as it should, floor repairs, chassis upgrades, interior restoration and finishing touches, almost everything to do with the doors, and suspension. Not necessarily in order.

Last edited:
  • Sponsors(?)


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
Oh, forgot one thing... I'm fairly certain this car has been in a front end crash. If you look closely at the driver fender apron, you can see cracks in the metal near where the fender bolts down. There's also body filler all over the cowl panels, and on the fenders. I'll get better pictures up.

I'm also not sure why the fuel door rubs the body around it. The bumpers are there, and in good shape. The rear hatch also doesn't seal.


90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,319
4,359
203
42
I really like the look of that car. A bunch of us have been through ruining a car before we actually learned to appreciate fox bodies.

Its amazing how focus has changed over the years. Guess as we get older we learn that its more expensive, in the long run, to hack a car up.

I'll be paying attention to your posts. Davedacarpainter can probably give some good advise when you get into the floors.


Mstng93SSP

You have a nice rear end there Dave.
15 Year Member
Nov 29, 1999
1,950
2,276
174
Mililani, Hawaii
I'm usually not a fan of the turbine wheels, but for some reason they look really good on your car. IF it was in a front end crash (and I'm not sure if it was without other pictures), it doesn't appear to be anything serious. Just keep plugging away at it and have fun! Car looks like a great starting point for a really cool car.


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
I'm torn on the wheels. I normally don't like the turbine wheels, but they do look pretty good on the car. I want to put wider wheels and tires on it, and was planning on some silver PonyR 17x8 and 9's. I also want to do a two tone white/titanium gray paint.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,101
9,237
224
Massachusetts

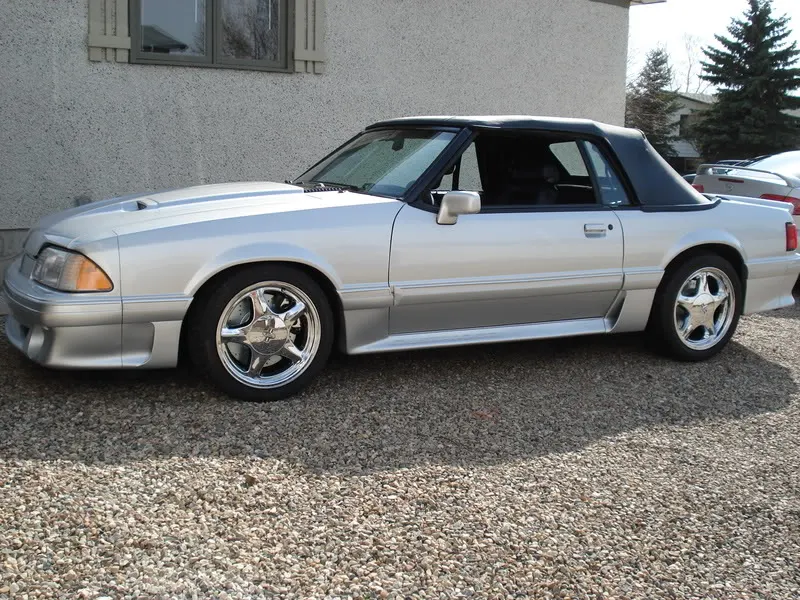

Well, since it's a 1993, the correct wheels for it would be pony wheels. A nice touch on a resto mod would be some 17" versions with more rubber out back.

Maybe even 5lug...


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
Very nice car. I'll probably leave it a 4 lug, you can't see the lugnuts with the pony wheels anyway. Unless I decide to 4 wheel disc it and I don't know if there are conversion kits with 4 lug axles.


Mstng93SSP

You have a nice rear end there Dave.
15 Year Member
Nov 29, 1999
1,950
2,276
174
Mililani, Hawaii
5 lug 4 wheel discs are easy, and if done right not too expensive. I swap all my cars to 5 lug 4 wheel disc. It's usually one of the first things I do. Just gather the parts slowly, keep the turbines on for now and when you have all the 5 lug stuff do the swap. You don't want to buy 4 lug wheels/tires and THEN decide to do the 5 lug swap. You will never recover the $ you would have spent on the 4 lug wheels.


Davedacarpainter

I think I've messed my pants
SN Certified Technician
Nov 28, 2015
11,913
11,383
193
58
Discordia
This will be interesting.

Just talk to us when it binds up on you. We all have experiences that'll help out.

Post pictures, pictures, pictures. We are picture whores here after all.


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
My concerns are that the coil over struts will put stress on the shock towers that they weren't designed to handle. Same with the rear shock mounts.


RaggedGT

check back later..
Mod Dude
Jul 20, 2014
4,645
3,072
193
35
Taylorsville ky
www.stangnet.com
My concerns are that the coil over struts will put stress on the shock towers that they weren't designed to handle. Same with the rear shock mounts.
The rears won't be a problem.
Mini Tubbing the rear will alleviate any concerns of weak shock mounts-cause you cut 'em off and make New ones.. Just ask Dave,he can tell ya :)

  • Like
Reactions: Davedacarpainter

JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
Subject change...

How do you manually test the O2 sensors? I get a bank 1 sensor code when I run the KOER test. This car was running pig rich when the IAT sensor was in the coolant port, and the coolant temp sensor wasn't working at all. It is better now, but I think the bank 1 sensor is bad. Just looking to verify.

I know that the sensor should read anywhere between 0-1 volt, and that it should fluctuate depending on rich/lean signal.


CarMichael Angelo

clearly, I’ve got something going on in that hole
SN Certified Technician
Nov 29, 1999
12,720
13,925
234
62
Birmingham, al
m.imdb.com
I really like the look of that car. A bunch of us have been through ruining a car before we actually learned to appreciate fox bodies.

Its amazing how focus has changed over the years.
Guess as we get older we learn that its more expensive, in the long run, to hack a car up.
I'll be paying attention to your posts. Davedacarpainter can probably give some good advise when you get into the floors.
Not everybody has learned that yet,...I can link you to a couple of threads if you need me to...


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
So I should just replace them both and go from there? Assuming the wiring is okay.


JMGlasgow

Mustang Master
Feb 19, 2017
627
321
93
39
Scoured the only local salvage yard that's open on weekends yesterday. No fox Mustangs to be found....bummer.

I did however find a 1997 V8 Explorer that was just delivered on Friday. Got some goodies from it (What I could afford anyway)

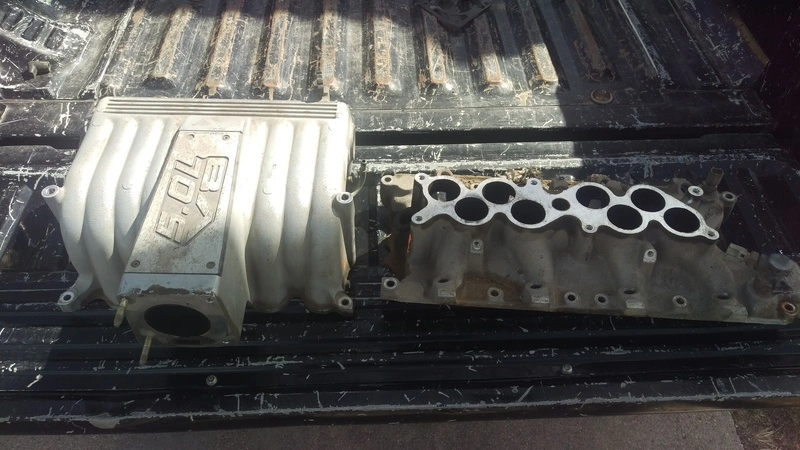

Explorer intake with internal EGR $75



The heads are GT40P, and I'm hoping to pick them up later. $31 per head is what they want for them.

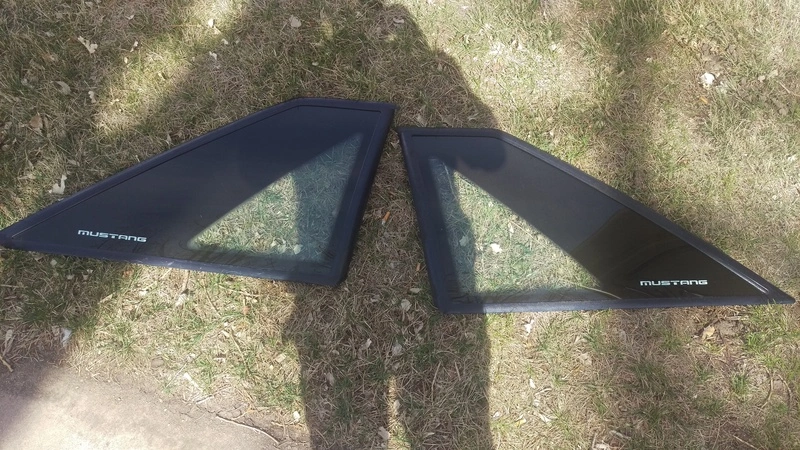

I also found some quarter windows locally on Craigslist. They need restored, but everything is there

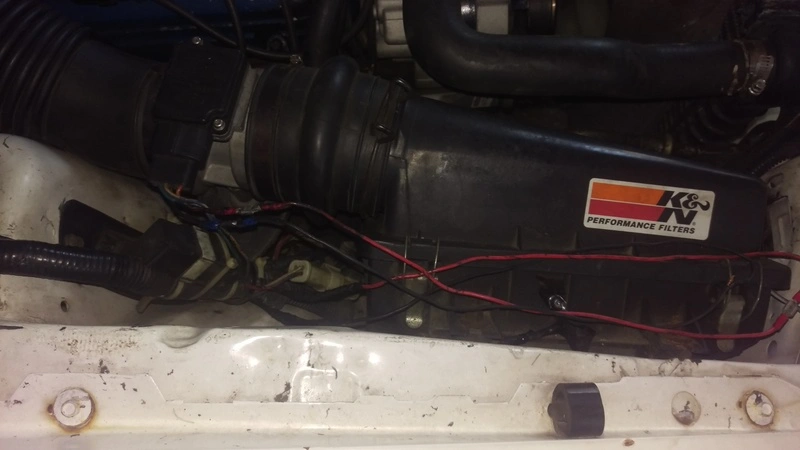

And finally, looking over the engine to see what's missing or needs repaired I found a vacuum leak at the vacuum port on the back of the manifold. The carbon canister has been removed, along with the smog pump. I also uncovered under electric tape some hacked up wiring going to the MAF. Going to need to fix that as well.



Not sure why someone modified the wiring like that, but I'll fix it easy enough.

This car has 4 catalytic converters, makes me think this was a California car.

Question for you EECIV gurus... This engine stumbles off idle, especially when cold and when the throttle is snapped open. What would be the cause? Only codes I found last time I scanned it are for the bank 1 O2 sensor.
