routing of short belt?

hey all. damn that server crashing really messed me up! :mad: o well at least im back on. anyway i had asked you guys a couple days earlier about how to route a short belt (bypassing the a/c and smog) but with the server crashing i couldnt check your answers. the very first time i asked this ? several of you guys gave me a diagram of the way the short belt should be routed and i losd it so if anyone could post that diagram again it would be awsome! :hail2:

Ask and ye shall recieve


Attachments

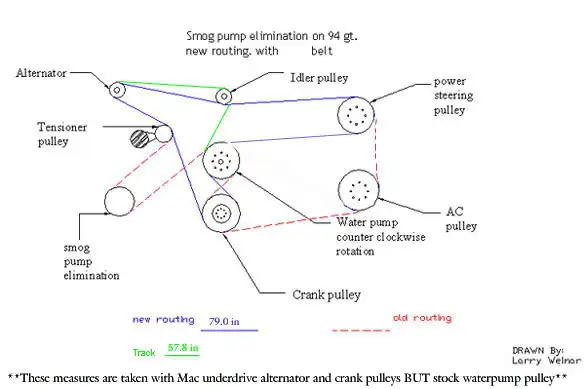

  • smogdelete__ac_copy.webp
    13.9 KB · Views: 120
