I need some advice...I welded in the drivers side steel engine bay panels from Scott Rod Fabrications into my fathers mustang and I didn’t think it came out the best (I’m a beginner), so I recommended my dad hire an experienced welder to do the other side...MISTAKE! The guy he hired to weld in the panel is a friend of mine and he is a very talented welder, but he had his kid do the work to “learn” and gain some experience. He ended up burning holes in the panel and therefore added a “patch” to the shock tower. The shock tower side and panel now has a lot of wave. I am tempted to cut out the panel and the side of the shock tower and weld in a patch from another tower and install a new panel from Scott Rod Fab myself. The question I have is about the panel seams and this repair. I have read several debates on forums regarding metal type fillers (all metal, metal to metal, etc) versus duraglass type fillers. My fear is cracking and bubbling after painted (especially being in an engine bay). I am a bit of a perfectionist (it’s a curse!) and want to make sure this engine bay come out smooth with no waves, cracks, or bubbles. Any advice is welcomed. Pics to follow. Note this has sat for a while and just getting back to it, so there is some surface rust that will be removed.


7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
7,387
2,745
194
Kearney, NE
Jan 5, 2020
#2
  • Jan 5, 2020
  • #2
Before we get into fillers, what is the intended use of this vehicle?
Did these panels go on top of the existing panels? If so, what is your plan to prevent water retention and horrible rust issues? Did you fill the holes behind it first?

F

F2Falcon

Member
Mar 15, 2013
6
1
13
Jan 5, 2020
#3
  • Jan 5, 2020
  • #3
7991LXnSHO said:
Before we get into fillers, what is the intended use of this vehicle?
Did these panels go on top of the existing panels? If so, what is your plan to prevent water retention and horrible rust issues? Did you fill the holes behind it first?
Click to expand...
This car will be for street use, car shows, and some auto crossing. The sheet metal was not removed behind the panels, but they were coated prior to welding. However, I am planing on cutting out what I can of the existing factory panel on the drivers side with a small Dremel metal cut off wheel and will be totally removing the passenger side from the factory pinch welds before welding in a new panel.


7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
7,387
2,745
194
Kearney, NE
Jan 7, 2020
#4
  • Jan 7, 2020
  • #4
If they are coated on the back (say with a weld through primer, And you are doing street driving, I would consider making sure there is a way for water to get out at the bottom and leave the panel on for strength. Most of our door panels seem to do well this way. You could probably spray in a rust protectant coating. I would be shocked if Eastman did not have a product with a flex tube for hard to reach places in restorations. And a couple of well placed drain holes could make splashed water not a problem.

Last edited: Jan 7, 2020

7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
7,387
2,745
194
Kearney, NE
Jan 7, 2020
#5
  • Jan 7, 2020
  • #5
I hope the link below comes up to where @Davedacarpainter talks about this type of install and the materials he uses.
I was going to reccomend getting the good filler from a FLAPS and see he did. Foose seems to use the same stuff in and out of the engine compartment on Overhaulin’. Unless your headers are close enough to cook the paint, I do not see it affecting the polyester primer when cured either.
@CarMichael Angelo will be another good source with his project experiences.

Body Work Help

Season’s greetings! I’m installing some Scott Rod inner fenders into my ‘91 LX and have a few questions. I am spot welding them in. How far down do I grind the welds in order to make hiding the seam easiest with Bondo? Does anyone have pics of what they did step by step? I’ve found numerous...
www.stangnet.com

J

Jdjrfox

Member
Jul 11, 2019
5
1
13
Ohio
Jan 11, 2020
#6
  • Jan 11, 2020
  • #6

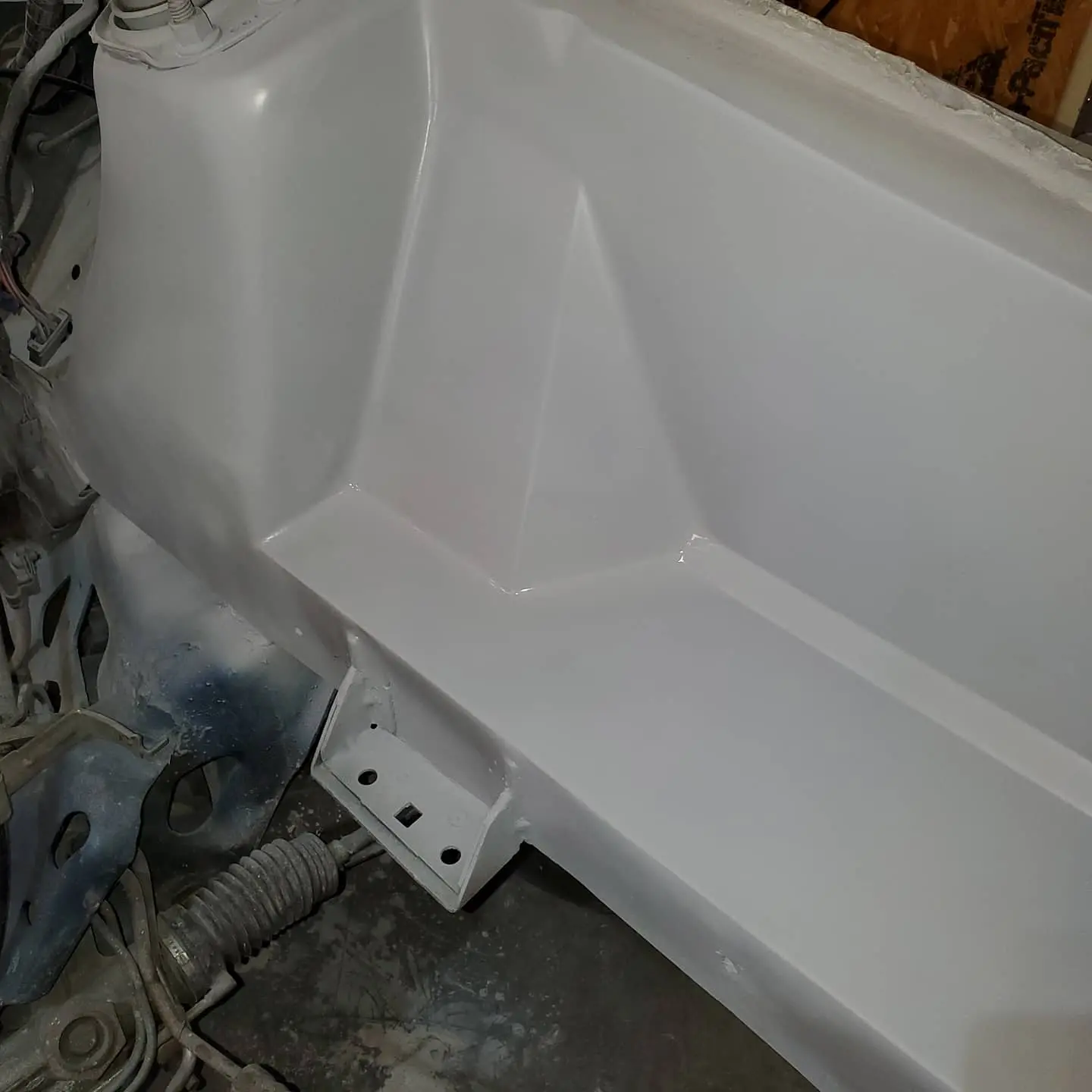

Use dolphin glaze it will make your life a lot easier ! That filler is nice and soft easy to work with


Attachments

  • 20200104_223417.webp
    228.9 KB · Views: 904
  • 20200104_154317.webp
    169.1 KB · Views: 601
  • IMG_20200105_143747_409.webp
    43.2 KB · Views: 590
J

Jdjrfox

Member
Jul 11, 2019
5
1
13
Ohio
Jan 11, 2020
#7
  • Jan 11, 2020
  • #7
Jdjrfox said:
Use dolphin glaze it will make your life a lot easier ! That filler is nice and soft easy to work with
Click to expand...
No I did not use it but I should have!!!!!!

Reactions: F2Falcon
F

F2Falcon

Member
Mar 15, 2013
6
1
13
Jan 11, 2020
#8
  • Jan 11, 2020
  • #8
Thanks for the tips.

J

Jdjrfox

Member
Jul 11, 2019
5
1
13
Ohio
Jan 11, 2020
#9
  • Jan 11, 2020
  • #9
F2Falcon said:
Thanks for the tips.
Click to expand...
Make sure u spread the filler about 2 inches because you will be able the feather it out alot easier


7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
7,387
2,745
194
Kearney, NE
Jan 12, 2020
#10
  • Jan 12, 2020
  • #10
The filler I like is effective for fiberglass work - on Sousaphones, not dolphins.
