Engine TFI relocation kit

[91GTstroked]

Hey guys,

I just bought the MRM mk3 TFI relocation kit. Does anyone have pictures of it installed?

The instructions suggest buying a new TFI module as well. Also trying to decide where to mount the sink.

Any help would be appreciated.



[Wayne Waldrep]

Please document this whole install if you will and post it in this thread. And on a side note....the kit should come with Arctic Silver 5 thermal transfer paste. Please be sure to use it as intended. I'm sure you know that but I just want to make sure. Hope to see the whole process as you do it.



[Wayne Waldrep]

So I just found this thread you posted in....looks like there's plenty of pics in there?

McCully TFI Mk3 Relocation Kit Installed

I installed the McCully Mk3 TFI Relocation Kit last week. I was impressed with the quality and the instructions. This kit uses a gutted doner TFI module on the distributor and has a 40” extension harness. They will do custom lengths for an additional fee. There are cheaper options that...

forums.corral.net



[91GTstroked]

So I just found this thread you posted in....looks like there's plenty of pics in there?

McCully TFI Mk3 Relocation Kit Installed

I installed the McCully Mk3 TFI Relocation Kit last week. I was impressed with the quality and the instructions. This kit uses a gutted doner TFI module on the distributor and has a 40” extension harness. They will do custom lengths for an additional fee. There are cheaper options that...

forums.corral.net

Thanks I forgot there where pictures. I had to click on the tabs.



[Wayne Waldrep]

Well don't let that keep you from doing your own write up. We like info and plenty of pics. Keep us posted.



[91GTstroked]

Well don't let that keep you from doing your own write up. We like info and plenty of pics. Keep us posted.

I certainly will post pictures and such. Thank you.



[Blown88GT]

How to make one has been here for many years.

Remote Mounted TFI Ignition Module - The Ranger Station

Fords produced from 1983 through 1995 experience problems with the engine dying or failing to start when hot due to the TFI ignition module.

therangerstation.com

The TFI issue is that Ford decided to ignore temperature coefficients of semiconductors. The TFI limit was about 250degF. The external surface temperature of the engine can rise above this limit. Newer TFI's have a higher temperature coefficient, so distributor mounting is not the issue it was.

Ford TFI Module National Class Settlement

%

www.autosafety.org



[vrm71]

i just installed their lower end MK2 kit just in front of the passenger side strut tower. That's as far as the supplied and factory harness would reach. I wish the harness was longer so it could be tucked away. I think the Fattfox version comes with a 9 foot harness vs 4 foot for the McCully Racing. I can post a pic later today.



[91GTstroked]

i just installed their lower end MK2 kit just in front of the passenger side strut tower. That's as far as the supplied and factory harness would reach. I wish the harness was longer so it could be tucked away. I think the Fattfox version comes with a 9 foot harness vs 4 foot for the McCully Racing. I can post a pic later today.

You can request longer lengths. I should have, would be nice to get it out of the engine bay.

Please post a picture when you have a chance. I may install my kit soon. I bought a new motorcraft TFI module to go along with the kit.



[vrm71]

I plan on installing msd box tomorrow so can post a pic then. I meant to order the Fattfox one but doing a Google search for TFI relocation the MRM popped up first so I ordered that one, wasn't until after I ordered that I saw I ordered the wrong one. It works just fine just would've preferred the wire tuck version. My bad for jumping the gun on the first thing that popped up.



[91GTstroked]

Finally might get this done this weekend. I might be seeing if I can mount in somewhere in passenger side fender area.



[Wayne Waldrep]

Finally might get this done this weekend. I might be seeing if I can mount in somewhere in passenger side fender area.

Camera in hand!



[vrm71]

Here's a link to a quick YouTube vid that's shows where I ended up installing the TFI.

View: https://youtu.be/XpEb1H8wUv8



[91GTstroked]

Looks good vrm71. I did a little mock up where I think I'll be installing mine. I think it will stay a little cooler further up front. Might only get two mounting screws on.

I do like the location you put yours in, did you go with factory harness length? Did you mount the ground wire to one of the mounting screws?



[91GTstroked]

Well I installed the kit. Starts right up, runs for a few minutes then shuts off. I installed a new motorcraft TFI module with the kit.

Installed it back to it's original state and the car stays running. Makes me wonder if the new TFI module is bad.



[91GTstroked]

Well guys just reinstalled the kit again. I returned a new motorcraft TFI module because it was defective. Put the old one that I know works on the heat sink.

I haven't road tested it yet, hopefully soon.



[Mindseye007]

Finally might get this done this weekend. I might be seeing if I can mount in somewhere in passenger side fender area.

do you have any pics of it installed ?



[91GTstroked]

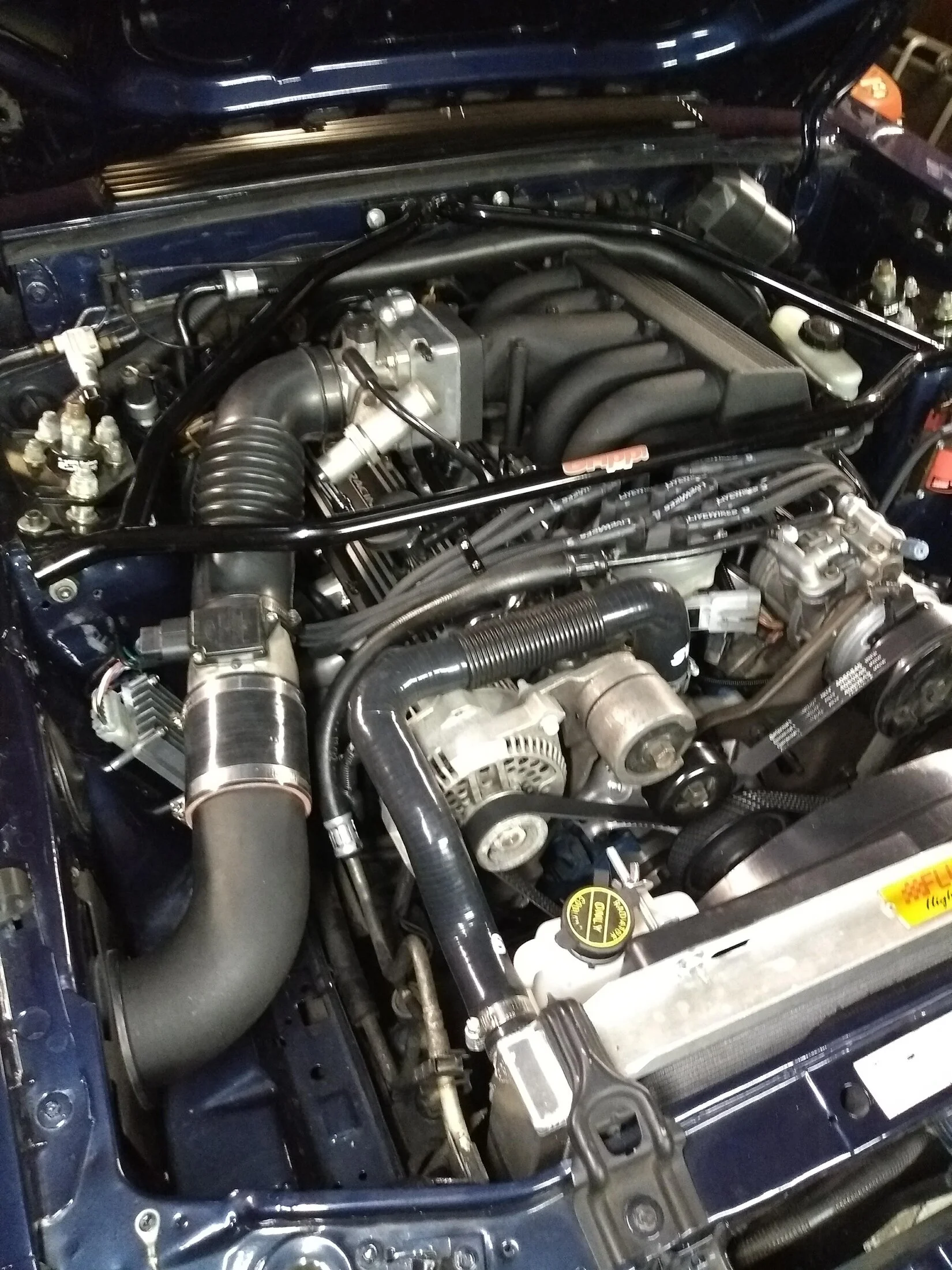

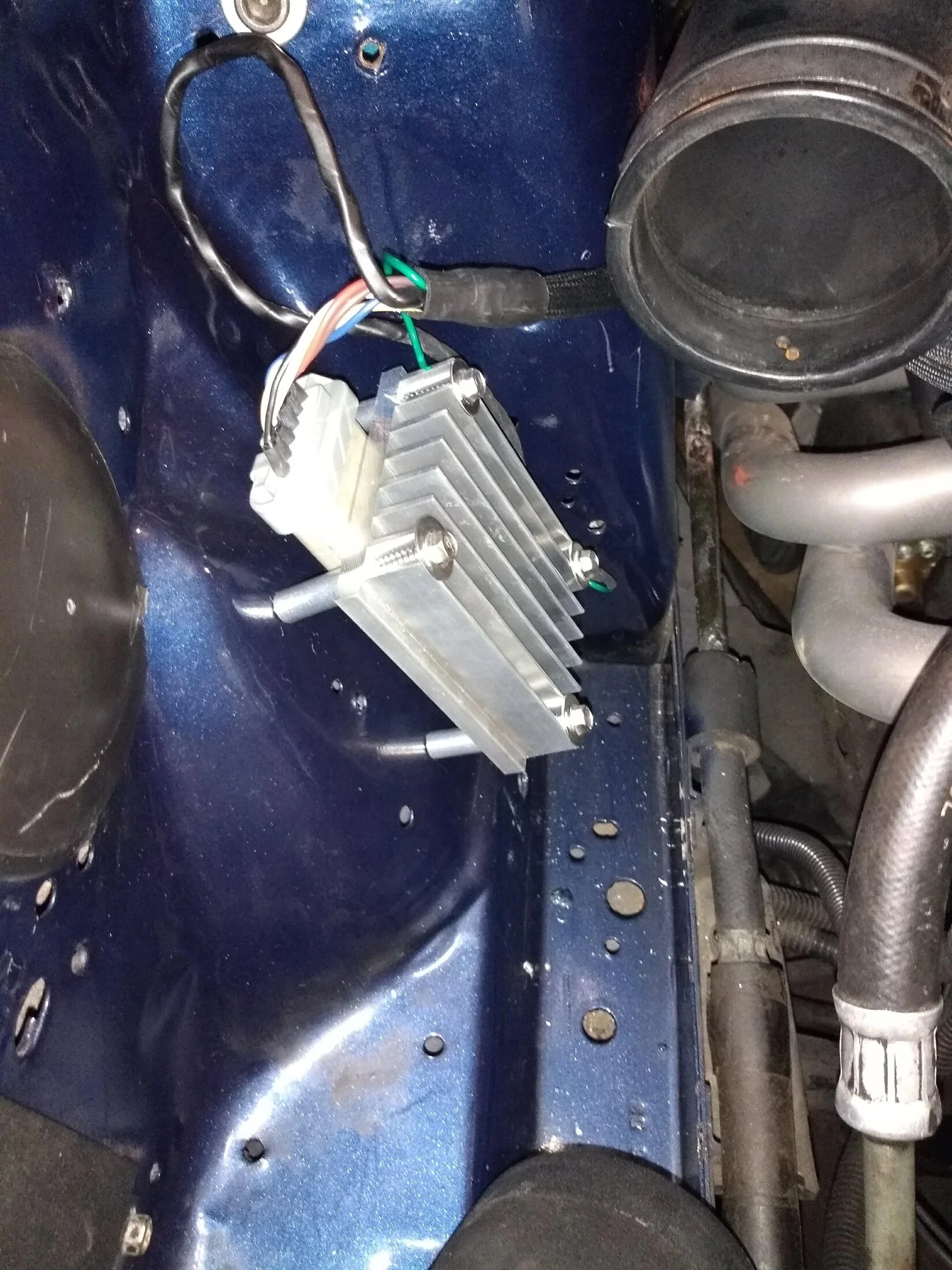

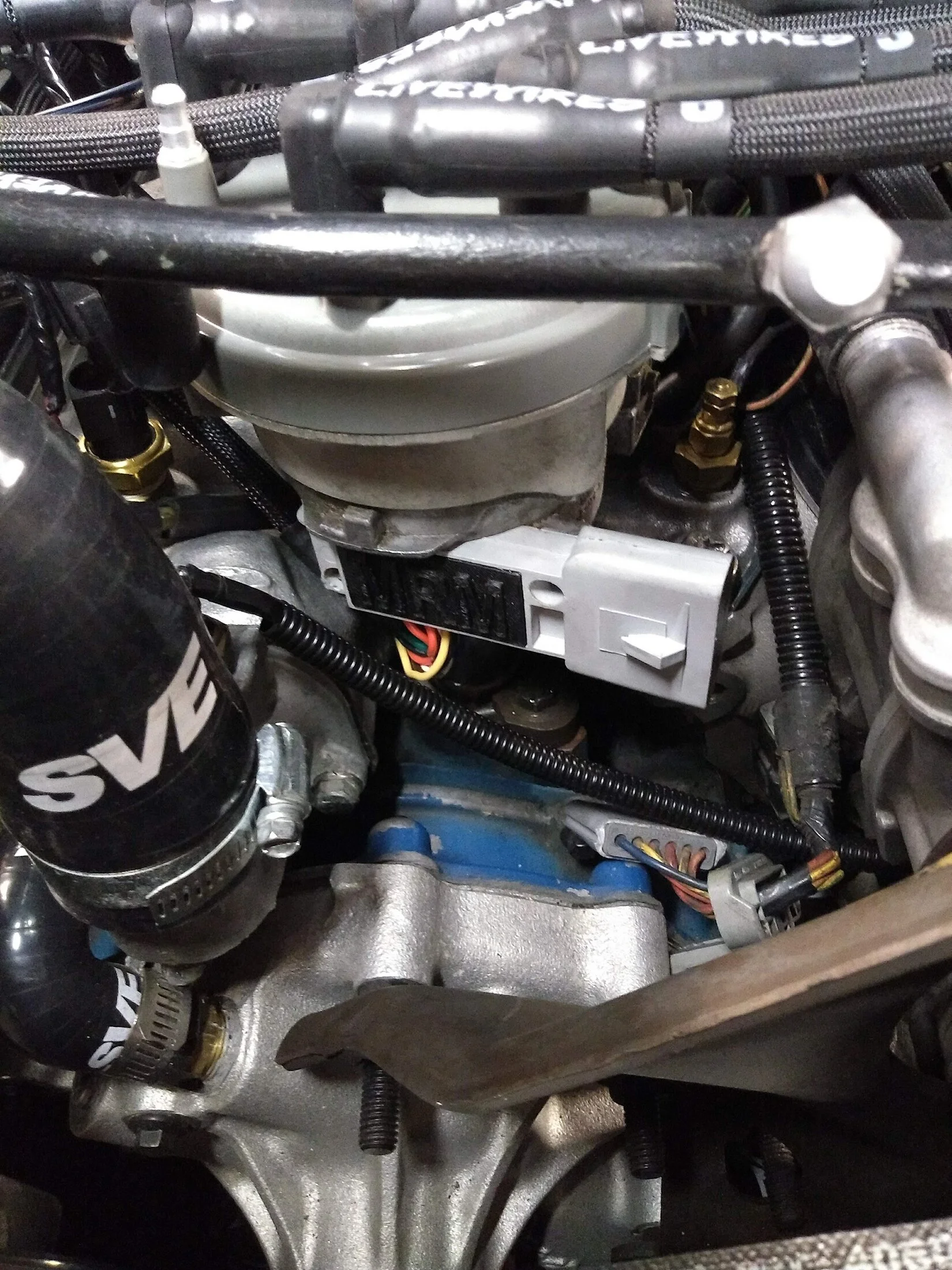

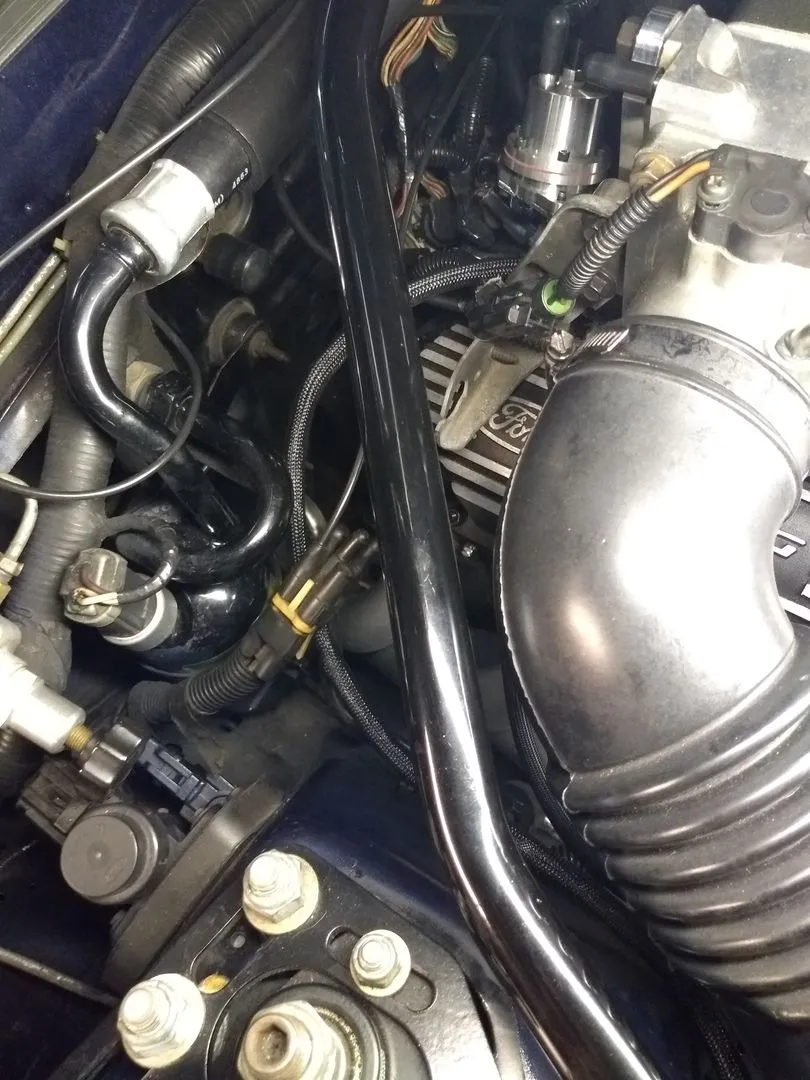

do you have any pics of it installed ?



[Mindseye007]

Looks fantastic great job. What do you think of the MRM Mk 3 TFI relocation kit? I think you can get a longer wire to run it closer to firewall or inside the car under the dash . I'm going to get one and put a fan on the heatsink from my PC. How do you like those SVE rad hoses ?



[91GTstroked]

Looks fantastic great job. What do you think of the MRM Mk 3 TFI relocation kit? I think you can get a longer wire to run it closer to firewall or inside the car under the dash . I'm going to get one and put a fan on the heatsink from my PC. How do you like those SVE rad hoses ?

I like the kit, seems to work well. The radiator hoses were installed by the previous owner. They work well, but I do prefer the stock looking ones.
