Trying to replace the rusty u nuts on my heater box that hold the blower motor in,,, One would think they are pretty common, but most suppliers do NOT have the dimensions of the clips they sell so I am not sure if they are correct or not... These clips are really small.....
They can only be 7/16 in width, 5/8 in length and need to slide over the appx 1/8" thick heater box plastic and take #8 or #10 screws??

Anyone else tried to find these??? Spent a couple of hours so far looking for them, besides driving to 3 auto parts stores.. close but NO cigar..


Last edited:

limp

wrap a little cheese around it and its a done
Oct 4, 2020
2,585
1,605
133
67
Florida
Have you browsed McMaster Carr?
Ace usually has a good selection of panel nuts or clips.
Been a struggle finding a U nut this small.. Nothing at Ace, Depot or Lowes or at the Dorman rack at NAPA......
I looked at McMaster and again, there are no dimensions for width? Four of these clips fit into a recessed area for them on the Blower motor housing so the width is critical..
Hoped that others on here had replaced these on there cars before.......
Thanks for any help......

Last edited:

limp

wrap a little cheese around it and its a done
Oct 4, 2020
2,585
1,605
133
67
Florida

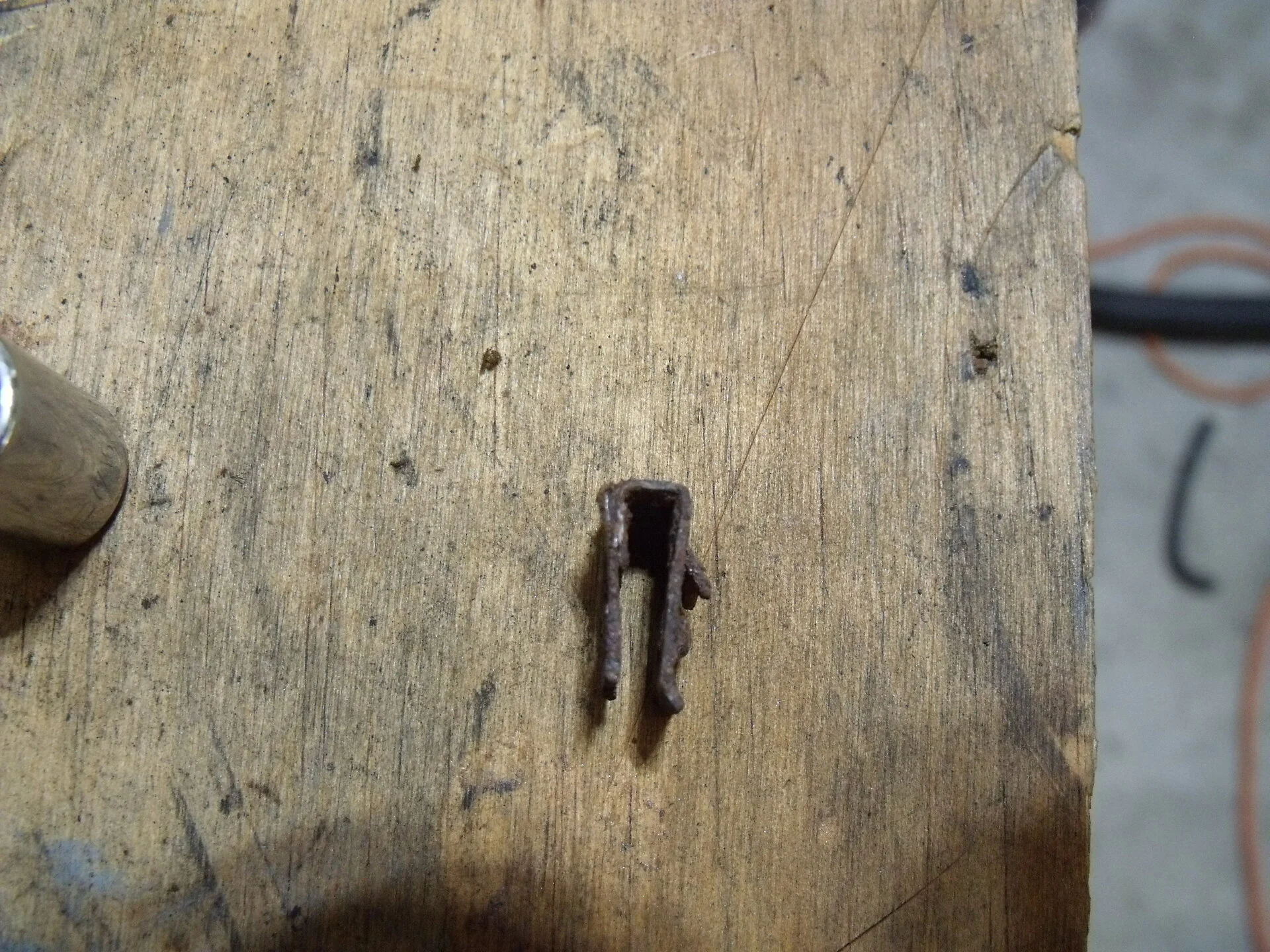

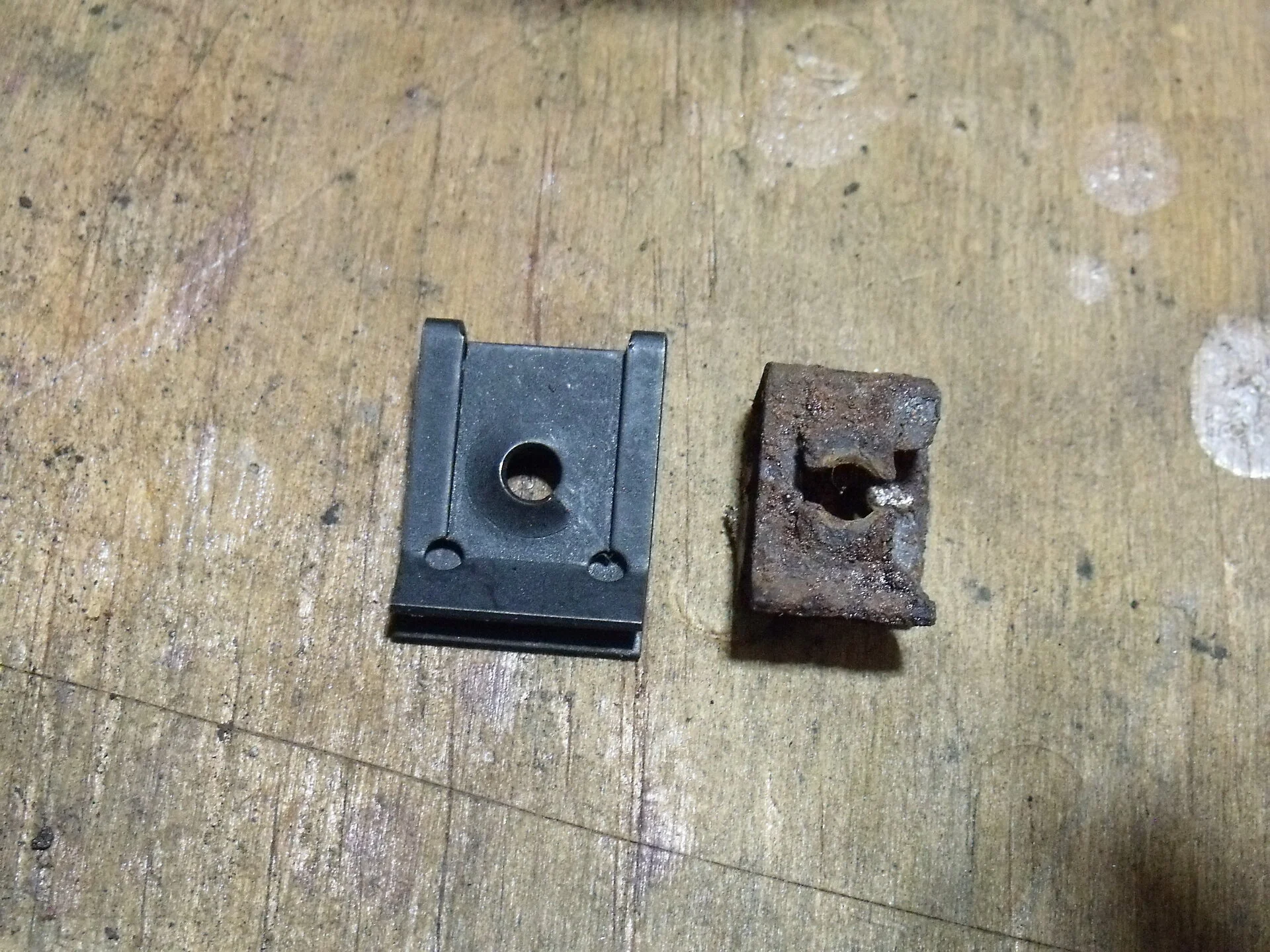

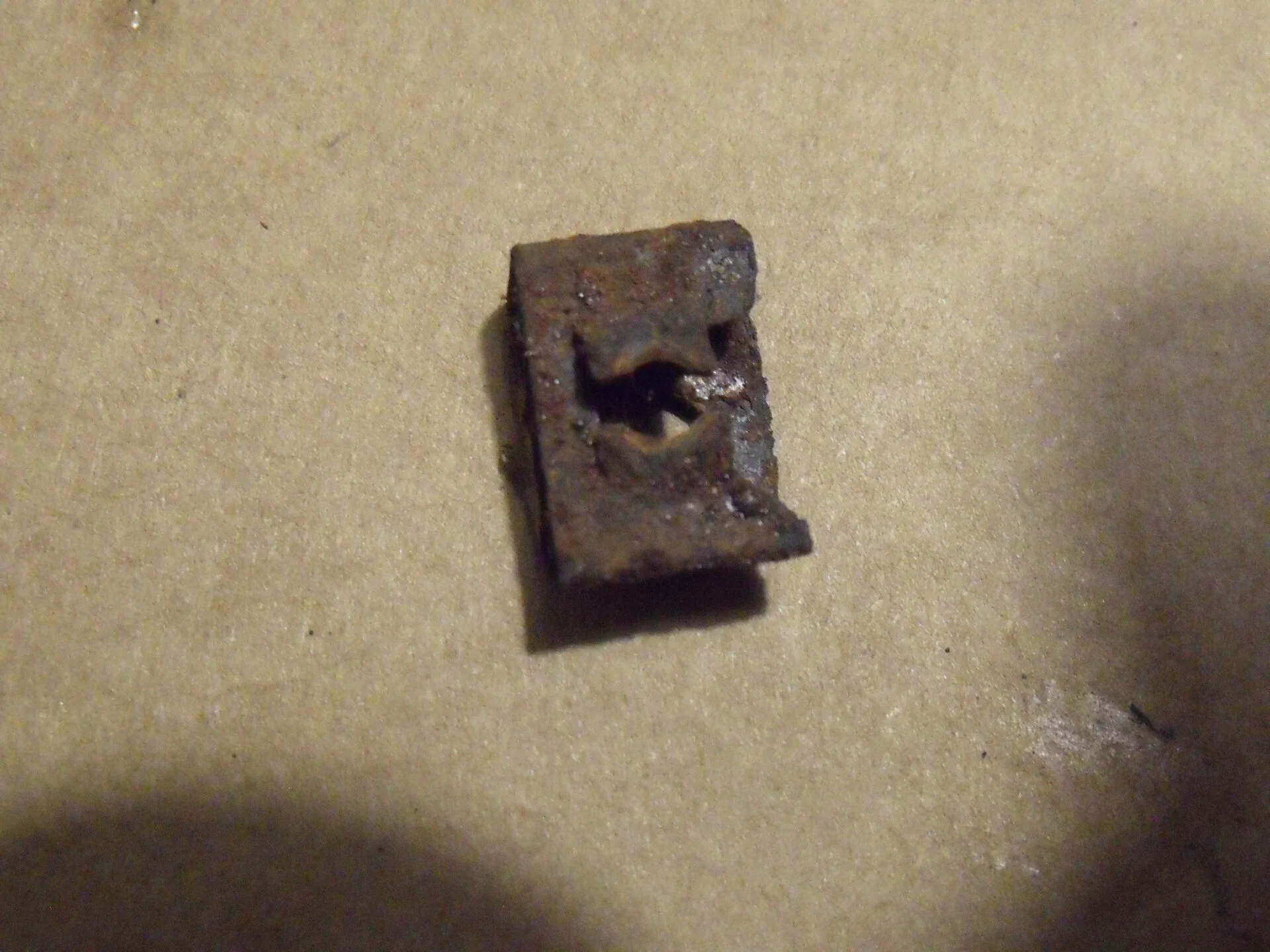

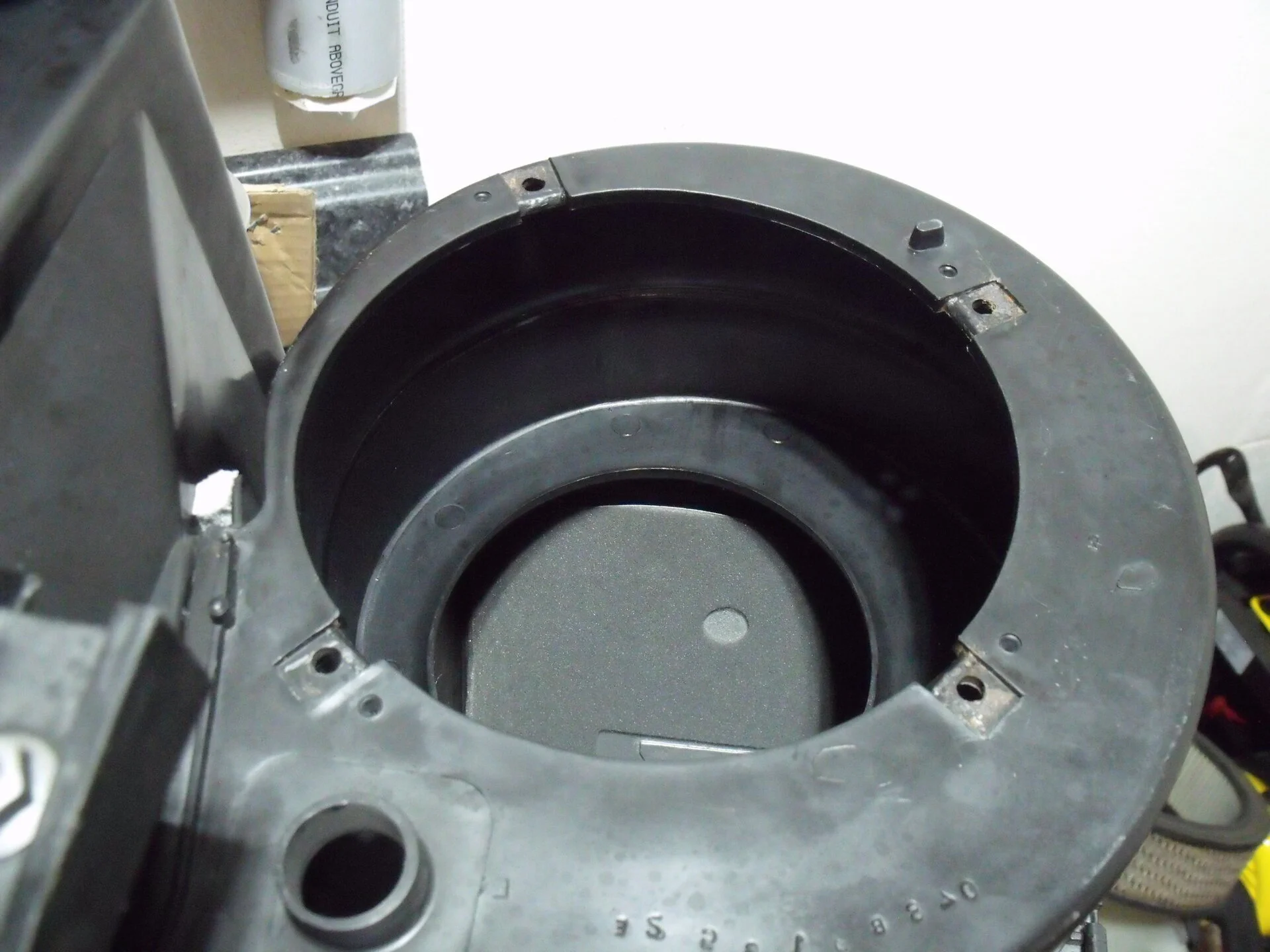

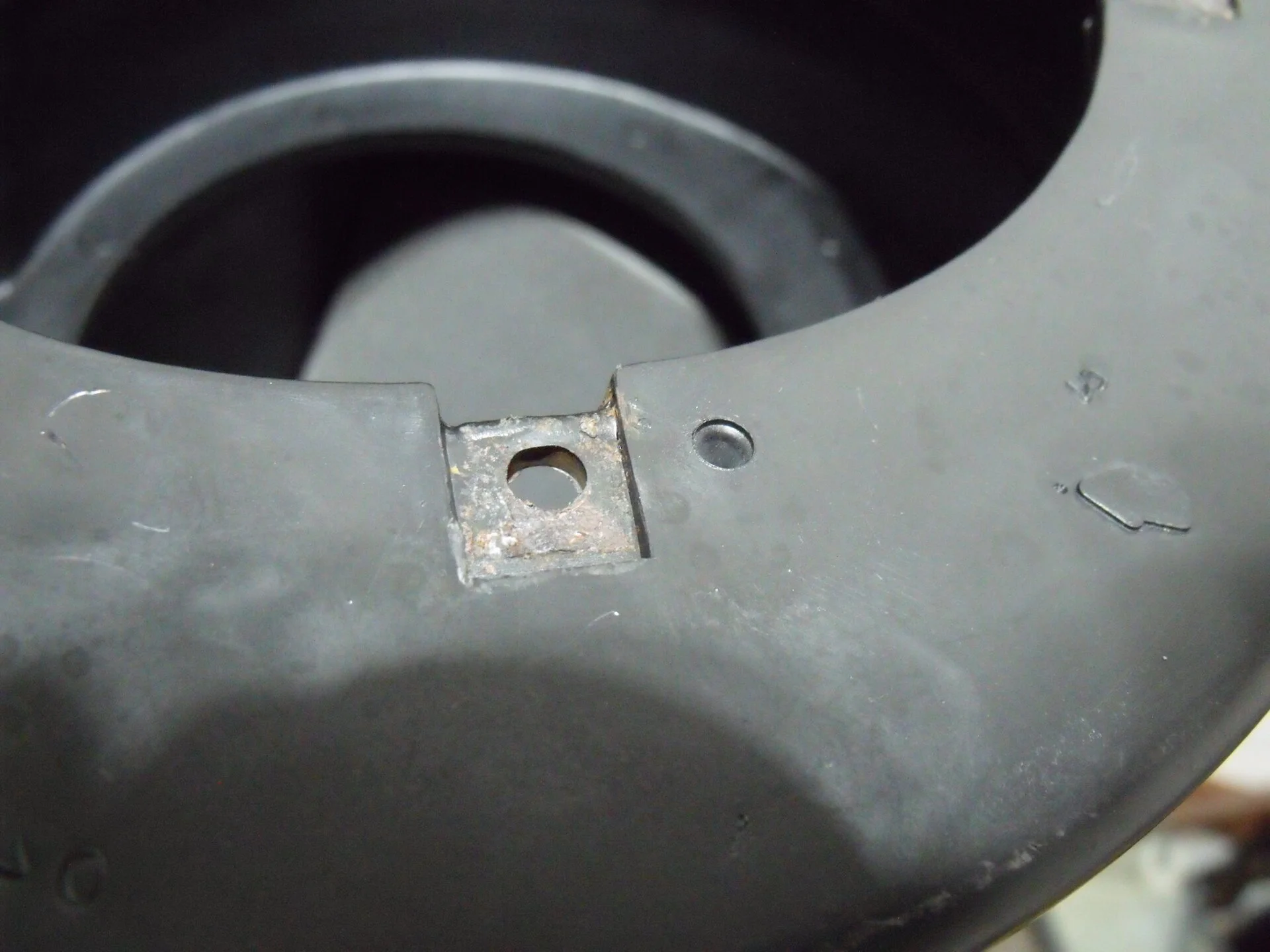

More pics . Heater box, where the u nut has to fit, and a comparison with the Au Ve Co 10066 u nut that was used on the rest of the heater box...
