Vacuum schematic for a 1976 2.3

[thinksnowsled]

Looking for some help on reconnecting my vacume lines for a 1976 2.3, does anyone have a schematic or detailed pics

thanks

Dave



[Dano78]

See if this helps you out...



[thinksnowsled]

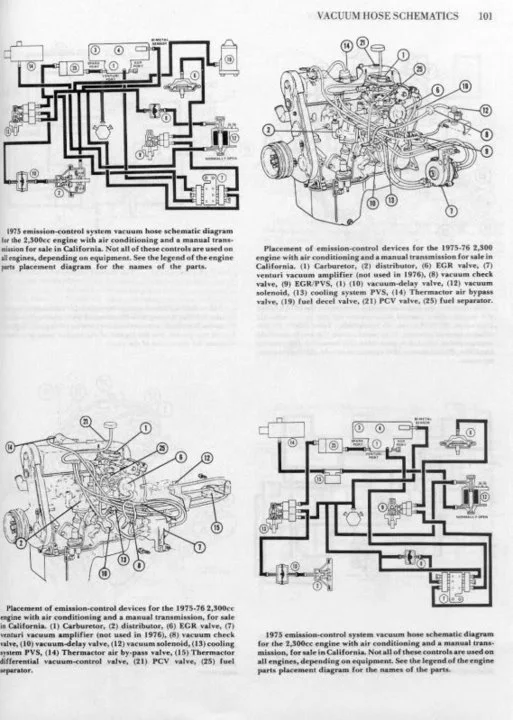

schematic

thanks, this will help alot. what book was that from? was it a chiltons?

dave



[Dano78]

Could have been from one of the smaller manuals for the II like the Haynes, Chiltons or Glenn Manuals. But I have a Mitchell Manual aswell that shows vacuum diagrams. Could have been any one of them. I scanned it quite some time ago, so I can't remember for sure.
