Fox valve cover interference with fox body covers

rockyracoon

10 Year Member
Nov 23, 2005
793
17
29
margate NJ

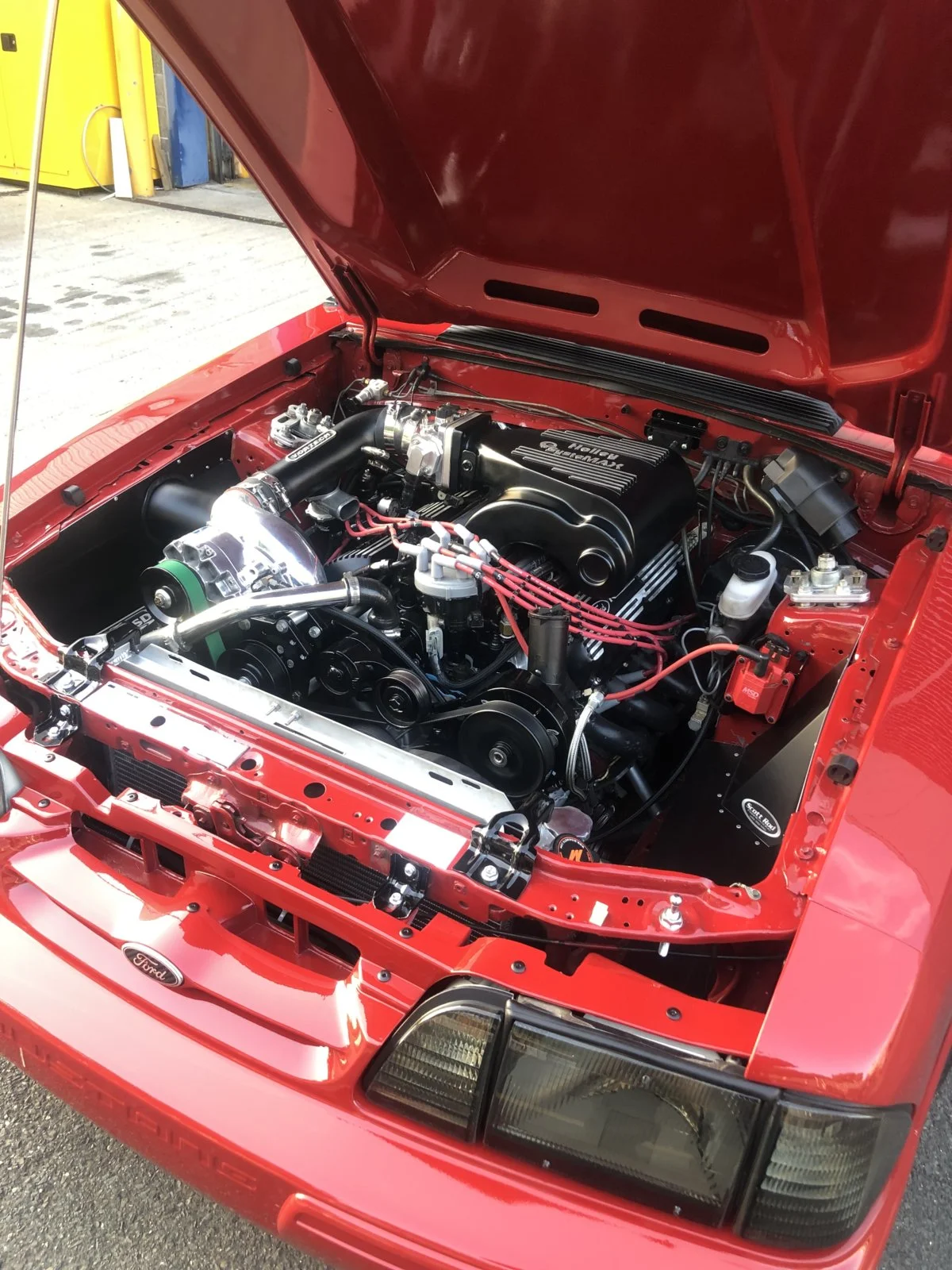

So im running fox covers in my 95 gt with aluminum heads and stud mount aftermarket rock and rollers. There appears to be some interference against the valve springs.
Looks like I will need to grind the ribs down. any comments or thoughts ?

  • Sponsors(?)


TOOLOW91

If you're the village idiot what's that make me?
15 Year Member
Nov 29, 1999
7,298
7,171
234
S.I.NY
So im running fox covers in my 95 gt with aluminum heads and stud mount aftermarket rock and rollers. There appears to be some interference against the valve springs.
Looks like I will need to grind the ribs down. any comments or thoughts ?
Stock covers ? Yes you have to clearance . I’d bet on the rocker before a valve spring touching .


revhead347

Just rub Vaseline all over
15 Year Member
Jun 14, 2004
8,446
1,237
214
40
Acworth, GA
Get the Trick Flow valve covers. They clear almost everything. I got mine for $80 used off of ebay.

Kurt


TOOLOW91

If you're the village idiot what's that make me?
15 Year Member
Nov 29, 1999
7,298
7,171
234
S.I.NY
Get the Trick Flow valve covers. They clear almost everything. I got mine for $80 used off of ebay.

Kurt
The frpp finned ones do as well i have them on my tfs heads with Harland sharp rockers and no issue



revhead347

Just rub Vaseline all over
15 Year Member
Jun 14, 2004
8,446
1,237
214
40
Acworth, GA
The frpp finned ones do as well i have them on my tfs heads with Harland sharp rockers and no issue

The OP has an SN, which is a whole different ball game. The intake sits way lower, and the throttle body curves down some which hits the right valve cover. The fox valve covers clear the intake, and will clear stud mount rockers if you cut out the baffles, but they they don't clear the alternator which sits farther back on an SN. One of the first things I did was try and put my old Fox valve covers on my SN. Total fail.

Kurt

  • Like
Reactions: TOOLOW91

Rcdgl

Active Member
Feb 19, 2018
125
37
38
68
I could not get any of my old stamped steel rocker covers to fit over the studs on my AFRS, least expensive ones so far were the blue Moroso aluminum ones. Gonna paint them old Ford Blue later on.
