Electrical Yellow Solenoid Wire !!!help

Chrisb123

New Member
Mar 6, 2016
12
0
1
42
Miami
Hello everyone from Miami FL

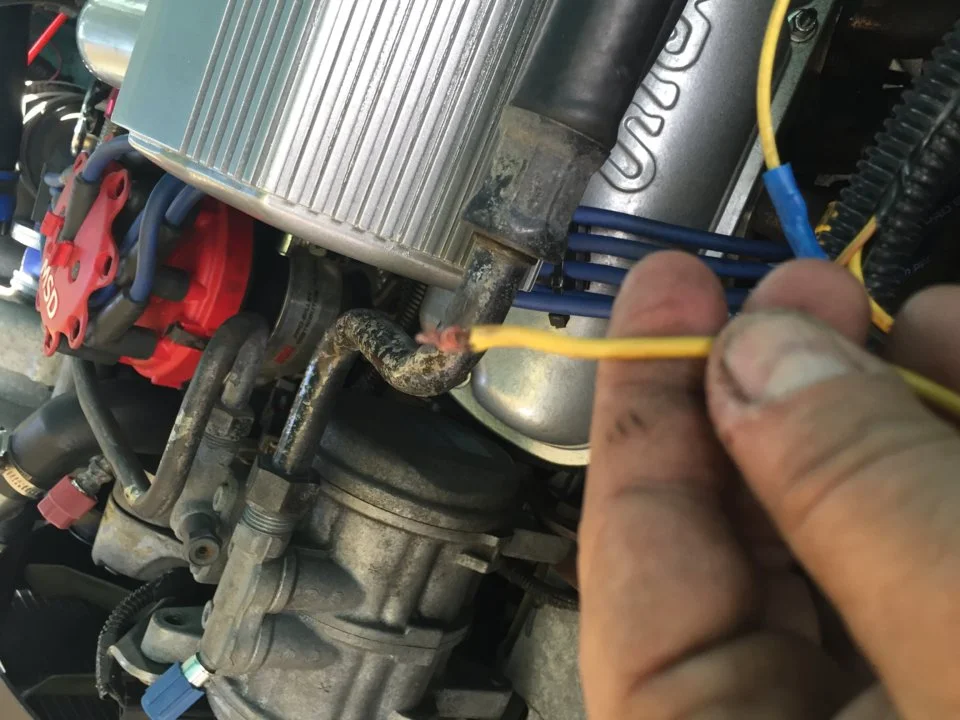

Please help my car turned off the other day and yellow wire going to solenoid from harness burned, don't know what this wire does or is supposed to do but when I tried starting again with it connected I noticed the tach jumped, also my fuel pump isn't priming Can some one please help I would really appreciate ..BTW I checked inertia and it is not tripped

Thanks


Attachments

  • Sponsors(?)


mikestang63

SN Certified Technician
Aug 27, 2012
9,865
6,657
204
In the garage
that yellow wire goes to fuseable links for your ignition switch and fuel pump. Your probably need to trace the wire and replace the blown fuseable inline links

@jrichker for starter solenoid troubleshooting please.


Chrisb123

New Member
Mar 6, 2016
12
0
1
42
Miami
that yellow wire goes to fuseable links for your ignition switch and fuel pump. Your probably need to trace the wire and replace the blown fuseable inline links

@jrichker for starter solenoid troubleshooting please.
Actually the useable yellow is in place and it's good but there is another wire which has no fuse that's the yellow I need help with


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,357
2,824
234
74
Dublin GA
lowendmac.com


Fuse links come with a current rating just like fuses. A clue as to what current they are designed for is to look at the size wire they protect.

Choose the fuse according to the wire size.


Wire size current table:


18 gauge wire = 5-8 amps
16 gauge wire = 10-12 amps
14 gauge wire = 15-17 amps
12 gauge wire = 20-25 amps
10 gauge wire = 30-40 amps
8 gauge wire = 50-60 amps.

Keep in mind that the wire size in the chart is for the circuit itself, not the size of the fuse link. The packages of fuse link repair material you can get at the auto parts stores also will have a current rating on them.

Fuse link material is available at most good auto parts stores. There may even be a fuse link already made up specifically for your car. Just be sure to solder the connection and cover it with heat shrink tubing.

Heat shrink tubing is available at Radio Shack or other electronics supply stores.

See the video below for help on soldering and heat shrinking wiring. There is a lot of useful help and hints if you don’t do automotive electrical work all the time.

View: http://youtu.be/uaYdCRjDr4A


Chrisb123

New Member
Mar 6, 2016
12
0
1
42
Miami
I'm lost with electrical if anyone out there knows a good mechanic in Miami area please give me a number or contact


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,357
2,824
234
74
Dublin GA
lowendmac.com
I'm lost with electrical if anyone out there knows a good mechanic in Miami area please give me a number or contact
You have all the information you need to fix the problem. The yellow wire provides electrical power to almost everything except the starter. Try crimping a new terminal on the wire and connecting it back to the battery side of the starter solenoid.



If that does not fix the problem, you have a bad fuse link. I have given you the drawing that shows the fuse links and what they provide power to. Follow the yellow wire that attached to the starter solenoid and you will find the fuse links. You will have to unwrap some of the wiring harness to get to them, but don't let that discourage you.I suggest that you view the video below that gives a generic description of how to replace fuse links.

View: https://www.youtube.com/watch?v=-SpsSRGfDQI

Last edited:

Chrisb123

New Member
Mar 6, 2016
12
0
1
42
Miami
The wire is actually a black wire and converts to yellow under the harness protective cover the yellow wire that goes to the solenoid is ok I tried putting the wire to the positive side of the starter solenoid and it's getting hot


Chrisb123

New Member
Mar 6, 2016
12
0
1
42
Miami
The wire is actually a black wire and converts to yellow under the harness protective cover the yellow wire that goes to the solenoid is ok I tried putting the wire to the positive side of the starter solenoid and it's getting hot
Btw thanks a lot


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,357
2,824
234
74
Dublin GA
lowendmac.com
No info about your car's model year, EFI or carb, no mods listed. Makes it hard to troubleshoot when we don't know what you have.

Therefore, no clue as to which wiring diagram you need. The wiring changed several times between 79 & 95.

That's why it is a good idea to use the sig under the user control panel (User CP) option. It allows you to post your car year & mods, which help greatly when troubleshooting things. No, it is not there for us to snoop and see any "Secrets" you have hidden away under the hood. Be a good Stangnetter and update you sig for future reference & don't keep us guessing.


Chrisb123

New Member
Mar 6, 2016
12
0
1
42
Miami
I apologize it's a 1991 5.0 LX convertible today I removed the computer changed the EEC relay fused the blue wire and it's still blowing it I'm thinking when I changed the fuel pump could I have crimped the power cables when tightening the tank at that be causing the short! Tomorrow I will loosen the tank and check those wires


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,357
2,824
234
74
Dublin GA
lowendmac.com
I apologize it's a 1991 5.0 LX convertible today I removed the computer changed the EEC relay fused the blue wire and it's still blowing it I'm thinking when I changed the fuel pump could I have crimped the power cables when tightening the tank at that be causing the short! Tomorrow I will loosen the tank and check those wires
Fuel Pump Troubleshooting for 91-93 Mustangs

Revised 6-Feb-2016 to add fuse link diagram

Ignition switch in the Run position, engine not running tests.

Clue – listen for the fuel pump to prime when you first turn the ignition switch on.
It should run for 2-5 seconds and shut off. To trick the fuel pump into running, find the ECC test connector and jump the connector in the upper RH corner to ground.







If the fuse links are OK, you will have power to the pump. Check fuel pressure – remove the cap from the Schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. A tire pressure gauge can also be used if you have one - look for 37-40 PSI. Beware of fire hazard when you do this.


No fuel pressure, possible failed items in order of their probability:
A.) Tripped inertia switch – press reset button on the inertia switch. The hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch

B.) Fuel pump Relay:
On 91 cars, it is located under the driver's seat.
On 92 and 93 cars it is located under the MAF. Be careful not to confuse it with the A/C WOT cutoff relay which is in the same area. See the diagram to help identify the fuel pump relay wiring colors.
Be sure to closely check the condition of the relay, wiring & socket for corrosion and damage.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) Blown fuse link in wiring harness.
F.) Fuel pressure regulator failed. Remove vacuum line from regulator and inspect
for fuel escaping while pump is running.

Theory of operation:
Read this section through several times. If you understand the theory of operation, this will be much easier to troubleshoot. Refer to the diagram below frequently.

Diagram of the fuel pump wiring for 91-93 cars.



The electrical circuit for the fuel pump has two paths, a control path and a power
path.

Remember that the computer does not source any power to actuators, relays or injectors, but provides the ground necessary to complete the circuit. That means one side of the circuit will always be hot, and the other side will go to ground or below 1 volt as the computer switches on that circuit.

Control Path
The control path consists of the computer, and the fuel pump relay coil. It turns the fuel pump relay on or off under computer control. The switched power (red wire) from the ECC relay goes to the relay coil and then from the relay coil to the computer (light blue\orange wire). The computer provides the ground path to complete the circuit. This ground causes the relay coil to energize and close the contacts for the power path. Keep in mind that you can have voltage to all the right places, but the computer must provide a ground. If there is no ground, the relay will not close the power contacts.

Computer power path
The computer power relay must properly function to provide power for the fuel pump relay. That means you must check the operation of the computer power relay (PCM Power Relay) before chasing any problems with the fuel pump circuit. The computer power relay is located above the computer under the passenger side kick plate cover. . It is not easy to get to, you must have small hands or pull the passenger side dash speaker out to access it.
With the Ignition switch in the Off position, check the resistance between the black/white wire and a clean bare spot on the car body metal. You should see less that 1 Ohm. More than 1 Ohm is a broken wire, or bad connection of the black/white wire and the car body metal.
Check for 12 volts at the yellow wire. Good 12 volts and the fuse link is OK. No voltage or low voltage, bad fuse link, bad wiring, or connections.
With the Ignition switch in the Run position, look for good 12 volts on the red/green wire. No voltage or low voltage, bad fuse link, bad wiring, or connections.
Good 12 volts on the red/green wire, look for good 12 volts on the red wire or any of the red fuel injector wires. No 12 volts or low voltage and the relay isn’t closing, or relay socket contacts are dirty/corroded. Water has been known to run down the radio antenna wire or leak from the windshield and get into the relay and relay contacts.

Fuel pump power path
The power path picks up from a fuse link near the starter relay. Fuse links are like fuses, except they are pieces of wire and are made right into the wiring harness. The feed wire from the fuse link (pink/black wire) goes to the fuel pump relay contacts. When the contacts close because the relay energizes, the power flows through the pink/black wire to the contacts and through the dark green\yellow wire to the inertia switch. The other side of the inertia switch with the brown\pink wire joins the pink/black wire that connects to the fuel pump. The fuel pump has a black wire that supplies the ground to complete the circuit.



Fuse links come with a current rating just like fuses. A clue as to what current they are designed for is to look at the size wire they protect.

Fuse link material is available at most good auto parts stores. There may even be a fuse link already made up specifically for your car. Just be sure to solder the connection and cover it with heat shrink tubing.

Heat shrink tubing is available at Radio Shack or other electronics supply stores.

See the video below for help on soldering and heat shrinking wiring. There is a lot of useful help and hints if you don’t do automotive electrical work all the time.

View: http://youtu.be/uaYdCRjDr4A

Power feed: Look for 12 volts at the pink/black wire (power source for fuel pump relay).
No voltage or low voltage, bad fuse link, bad wiring, or connections. Remember that on 92 or later models the fuel pump relay is located under the Mass Air meter. Watch out for the WOT A/C control relay on these cars, as it is located in the same place and can easily be mistaken for the fuel pump relay.

Relay: Turn on the key and jumper the ECC test connector as previously described. Look for 12 volts at the dark green\yellow wire (relay controlled power for the fuel pump). No voltage there means that the relay has failed, or there is a broken wire in the relay control circuit.

Inertia switch:
The location for the inertia switch is under the plastic for the driver's side taillight.
There should be a round plastic pop out cover over it, remove it to access the switch button.
With the test connection jumpered and ignition switch in The Run position as described above, check the brown/pink wire. It should have 12 volts. No 12 volts there, either the inertia switch is open or has no power to it. Check both sides of the inertia switch: there should be power on the dark green\yellow (inertia switch input) and brown/pink wire (inertia switch output). Power on the dark green\yellow wire and not on the brown/pink wire means the inertia switch is open.
Press on the red plunger to reset it to the closed position. Sometimes the inertia switch will be intermittent or will not pass full power. Be sure that there is 12 volts on both sides of the switch with the pump running and that the voltage drop measured across the switch is less than .75 volts.

Pump wiring: Anytime the ignition switch is in the Run position and the test point is jumpered to ground, there should be at least 12 volts present on the black/pink wire. With power off, check the pump ground: you should see less than 1 ohm between the black wire and chassis ground.

Make sure that the power is off the circuit before making any resistance checks.
If the circuit is powered up, your resistance measurements will be inaccurate.




Control path:
Relay: The light blue/orange wire provides a ground path for the relay power. With the test connector jumpered according to the previous instructions, there should be less than .75 volts.
Use a test lamp with one side connected to battery power and the other side to the light blue/orange wire on the fuel pump relay. The test light should glow brightly. No glow and you have a broken wire or bad connection between the test connector and the relay. To test the wiring from the computer, remove the passenger side kick panel and disconnect the computer connector. It has a 10 MM bolt that holds it in place. Remove the test jumper from the ECC test connector.
With the test lamp connected to power, jumper pin 22 to ground and the test lamp should glow.
No glow and the wiring between the computer and the fuel pump relay is bad.

Computer: If you got this far and everything else checked out good, the computer is suspect.
Remove the test jumper from the ECC test connector located under the hood. Probe computer pin 22 with a safety pin and ground it to chassis. Make sure the computer and everything else is connected. Turn the ignition switch to the Run position and observe the fuel pressure. The pump should run at full pressure.
If it doesn't, the wiring between pin 22 on the computer and the fuel pump relay is bad.
If it does run at full pressure, the computer may have failed.

Keep in mind that the computer only runs the fuel pump for about 2-3 seconds when you turn the key to the Run position. This can sometimes fool you into thinking the computer has died.
Connect one lead of the test light to power and the other lead to computer pin 22 with a safety pin.
With the ignition switch Off, jumper the computer into self test mode like you are going to dump the codes. Turn the ignition switch to the Run position. The light will flicker when the computer does the self test routine. A flickering light is a good computer. No flickering light is a bad computer. Remove the test jumper from the ECC test connector located under the hood.

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host)
for help on 88-95 wiring Mustang FAQ - Engine Information

Fuel pump runs continuously:
The fuel pump relay contacts are stuck together or the light blue/orange wire (pin 22) has shorted to ground. Remove the fuel pump relay from its socket. Then disconnect the computer and use an ohmmeter to check out the resistance between the light blue/orange wire and ground. You should see more than 10 K Ohms (10,000 ohms) or an infinite open circuit. Be sure that the test connector isn’t jumpered to ground.
If the wiring checks out good, then the computer is the likely culprit.





Prior to replacing the computer, check the computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery. It is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire. You'll find it up next to the starter solenoid where the wire goes into the wiring harness.

The picture shows the common ground point for the battery , computer, & extra 3G alternator ground wire as described above. A screwdriver points to the bolt that is the common ground point.

The battery common ground is a 10 gauge pigtail with the computer ground attached to it.
Picture courtesy timewarped1972


Chrisb123

New Member
Mar 6, 2016
12
0
1
42
Miami
Finally found the problem injectors had been installed incorrectly the upper intake manifold was crushing the injectors harness and had melted the protective cable exposing the positive and negative to the intake and that created the short, now the problems I am having are charging issues just installed a new 130 amp alternator and nothing, seems there is a short. Also when the car is in park or stationary revs fine however when I am driving the car loses all power feels like the gas pedal is disconnected and just stutters all over the place if anyone knows of any possible problems that create these symptoms please let me know

Tried disconnecting O2 sensors
Changed fuel pump
Changed tps

Also fuel Pump is extremely loud don't know if it's failing but why dosent the problem happen with the car in park????

Help help help ....


Thanks thanks thanks


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,357
2,824
234
74
Dublin GA
lowendmac.com
Fix the alternator problem first....

Check the installation against this how to tech note.
http://www.stangnet.com/mustang-forums/threads/3g-alternator-install-a-how-to.646825/#post-6673702


Alternator troubleshooting for 86-93 5.0 Mustangs:

Never, never disconnect an alternator from the battery with the engine running. The resulting voltage spike can damage the car's electronics including the alternator.



Revised 15 April 2012 to add simple check for regulator failure in Engine off ignition on, battery fully charged section, item 2.

Red color text applies to cars with a 3G alternator.

Do all of these tests in sequence. Do not skip around. The results of each test depend on the results of the previous tests for correct interpretation.

Simple first step: Remove the alternator and take it to your local auto parts store. They can bench test it for free.


Use a safety pin to pierce and probe the insulated connectors from the rear when doing tests with the connector plugged into its' mating connector.

Engine off, ignition off, battery fully charged.
1.) Look for 12 volts at the alternator output. No 12 volts and the dark green fuse link between the orange/black wires and the battery side of the starter solenoid has open circuited.
3G alternator: Look for 12 volts at the stud on the back of the alternator where the 4 gauge power feed wire is bolted.
No voltage and the fuse for the 4 gauge power feed wire is open or there are some loose connections.

2.) Look for 12 volts on the yellow/white wire that is the power feed to the regulator. No 12 volts, and the fuse link for the yellow/white wire has open circuited.

Engine off, ignition on, battery fully charged:
1.) Alternator warning light should glow. No glow, bulb has burned out or there is a break in the wiring between the regulator plug and the dash. The warning light supplies an exciter voltage that tells the regulator to turn on. There is a 500 ohm resistor in parallel with the warning light so that if the bulb burns out, the regulator still gets the exciter voltage.
Disconnect the D connector with the 3 wires (yellow/white, white/black and green/red) from the voltage regulator.
Measure the voltage on the Lt green/red wire. It should be 12 volts. No 12 volts and the wire is broken, or the 500 ohm resistor and dash indicator lamp are bad. If the 12 volts is missing, replace the warning lamp. If after replacing the warning lamp, the test fails again, the wiring between the warning lamp and the alternator is faulty. The warning lamp circuit is part of the instrument panel and contains some connectors that may cause problems.

2.) Reconnect the D plug to the alternator
Probe the green/red wire from the rear of the connector and use the battery negative post as a ground. You should see 2.4-2.6 volts. No voltage and the previous tests passed, you have a failed voltage regulator. This is an actual measurement taken from a car with a working electrical system. If you see full or almost full12 volts, the regulator has failed.

Engine on, Ignition on, battery fully charged:
Probe the green/red wire from the rear of the connector and use the battery negative post as a ground. You should see battery voltage minus .25 to 1.0 volt. If the battery measured across the battery is 15.25 volts, you should see 14.50 volts

Familiarize yourself with the following application note from Fluke: See http://assets.fluke.com/appnotes/automotive/beatbook.pdf for help for help troubleshooting voltage drops across connections and components. .


You will need to do some voltage drop testing of several of the wires.

Start looking for these things:
1.) Bad diode(s) in the alternator - one or more diodes have open circuited and are causing the voltage to drop off as load increases. Remove the alternator and bench test it to confirm or deny this as being the problem.

2.) The secondary power ground is between the back of the intake manifold and the driver's side firewall. It is often missing or loose. It supplies ground for the alternator, A/C compressor clutch and other electrical accessories such as the gauges. Do the voltage drop test as shown in the Fluke tech note link. Measure the voltage drop between the alternator frame and the battery negative post. Watch for an increase in drop as the load increases. Use the Fluke voltage drop figures as guidelines for your decisions.

3.) Bad regulator that does not increase field current as load increases. Remove the alternator and bench test it to confirm or deny this as being the problem.

4.) Bad sense wire - open circuit in sense wiring or high resistance. The yellow/white wire is the voltage sense and power for the field. There is a fuse link embedded in the wiring where it connects to the black/orange wiring that can open up and cause problems. Disconnect the battery negative cable from the battery: this will keep you from making sparks when you do the next step. Then disconnect the yellow/white wire at the alternator and the green fuse link at the starter solenoid/starter relay. Measure the resistance between the alternator end of the yellow/white wire and the green fuse link: you should see less than 1 ohm. Reconnect all the wires when you have completed this step.

5.) Bad power feed wiring from the alternator. Use caution in the next step, since you will need to do it with everything powered up and the engine running. You are going to do the Fluke voltage drop tests on the power feed wiring, fuse links and associated parts. Connect one DMM lead to the battery side of the starter solenoid/starter relay. Carefully probe the backside of the black/orange wire connector where it plugs into the alternator. With the engine off, you should see very little voltage. Start the engine and increase the load on the electrical system. Watch for an increase in drop as the load increases. Use the Fluke voltage drop figures as guidelines for your decisions.




Voltage drops should not exceed the following:
200 mV Wire or cable
300 mV Switch
100 mV Ground
0 mV to <50 mV Sensor Connections
0.0V bolt together connections

Alternator wiring circuit
Notice the green wire connects to a switched power source. The circuit contains a 500 ohm resistor in series between the switched power and the alternator. Connecting it to switched power keeps the regulator from drawing current when the engine is not running. The resistor limits the current flowing through the wire so that a fuse isn't needed if the wire shorts to ground.

Also notice the sense wire connects to the starter solenoid and it is fused. It connects to the starter solenoid so that it can "sense" the voltage drop across the output wiring from the alternator.

Replacement parts:
14 gauge fuse link for stock alternator.

Bussman BP/FL14 Fusible link
AutoZone

Dorman - Conduct-Tite 14 Gauge Fusible Link Wire Part No. 85620
Advance auto parts #85620
Pep Boys - SKU #8637594

Thread starter Similar threads Forum Replies Date
8 Yellow Wire - Starter Solenoid Fox 5.0 Mustang Tech 4
ShallowGrave Electrical Battery Drain, Yellow Solenoid Wire Fox 5.0 Mustang Tech 1
M My Dad left me a yellow 67 rust bucket :) The Welcome Wagon 1
M NEED HELP MUSTANG CRASH 2005 - 2014 S-197 Mustang -General/Talk- 4
J For Sale 2004 mustang GT Thornton, Colorado SN95 Mustangs For Sale (1994-04) 0
gearhead77 Paint and Body Headlight cleanup 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 18
J Fox My Mustang 1993 Limited Edition LX 5.0L FE (Canary Yellow) 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 4
S Problems With New 2016 Saleen Mustang Yellow Label 2015+ (S550) Mustang -General/Talk 15
M SOLD 2003 Black & Yellow Gt Convertible SN95 Mustangs For Sale (1994-04) 0
Vincent Paul Expired 2003 Mach 1 - Zinc Yellow. Low Miles. Almost Bone Stock SN95 Mustangs For Sale (1994-04) 0
sport200 2003 Chrome Yellow Mach1 1996 - 2004 SN95 Mustang -General/Talk- 0
GT-03 2016 New Yellow Jacket Interior 2015+ (S550) Mustang -General/Talk 7
B Expired 2005-2014 Mustang Koni Sport Yellow Adjustable Struts And Shocks Suspension Parts 0
8 Yellow Or Green Does It Realy Matter Fox 5.0 Mustang Tech 9
B Expired 2005-2014 Mustang Koni Sport Yellow Adjustable Struts And Shocks Suspension Parts 0
J Expired 1994 Mustang Gt Yellow SN95 Mustangs For Sale (1994-04) 5
K SOLD 2012 Mustang Gt Coupe Premium Yellow Blaze 41k S197 Mustangs For Sale (2005-14) 2
Blaise805 Yellow 95 1994 - 1995 Specific Tech 37
T Gt 500 Decal Stripes Turn Yellow? 2005 - 2014 S-197 Mustang -General/Talk- 1
M Expired Beautiful 2004 Screaming Yellow Cobra / Mint / Low Miles SN95 Mustangs For Sale (1994-04) 1
5.0Foxbodyrestorer SOLD 1989 Tropical Yellow 5.0 Notchback Mustang Rare Fox Body Mustangs For Sale (1979-93) 8
MRaburn Sema 2013 – Yellow Jacket Ford Mustang StangNet Site News 0
R Chrome Yellow 1999 Stage 2 Convertible Roush SN95 V6 Mustang Tech 1
nfdlpilot SOLD 2001 Yellow Mustang V6/ $4995 Obo SN95 Mustangs For Sale (1994-04) 0
kevinp977 Expired 06 Yellow GT Conv 4400 miles $25,000 S197 Mustangs For Sale (2005-14) 1
kevinp977 Expired 2006 GT Conv Yellow S197 Mustangs For Sale (2005-14) 0
S Expired 2004 Mach1 Screaming Yellow SN95 Mustangs For Sale (1994-04) 0
J Expired 03 Mach 1 32k Yellow $12,900 (Reduced!) SN95 Mustangs For Sale (1994-04) 0
J Expired 03 Mach 1 32k Yellow $13,900 SN95 Mustangs For Sale (1994-04) 2
Igofaster13 Yellow/white Wire On 3g Alternator - Placment ? Fox 5.0 Mustang Tech 4
M 1993 Mustang Convertible Canary Yellow 75,000 Miles Unmolested In Maryland 10000.00 Obo Fox Body Mustangs For Sale (1979-93) 5
C Tuner Fx Seats- Black/yellow Vinyl Interior Exterior Parts 1
Y 2005 Ford Mustang Gt Screaming Yellow - Only 13,000 Miles/21,000 Kms S197 Mustangs For Sale (2005-14) 0
B For Sale: New Jack Roush Black/yellow Seat Cover Set Interior Exterior Parts 0
bigbird04 Yellow car New wheels 1996 - 2004 SN95 Mustang -General/Talk- 6
C 1993 Ford Mustang LX 5.0 convertible, canary yellow, Columbus, OH 43221 Fox Body Mustangs For Sale (1979-93) 1
2000xp8 Yellow 88 with 95 nose/rear MM&FF cover car found newark nj. 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 28
Runner55 For Sale: 2001 Yellow Saleen Convertible SN95 Mustangs For Sale (1994-04) 0
S 1994 Mustang GT Convertible Yellow/Chromes SN95 Mustangs For Sale (1994-04) 0
T 2001 Zinc Yellow Cobra Vert 26k miles, F1 Procharged, Built Motor SN95 Mustangs For Sale (1994-04) 0
W 1989 purple notch yellow cage Fox Body Mustangs For Sale (1979-93) 3
S Why no "blaze yellow" accessories? 2005 - 2014 S-197 Mustang -General/Talk- 1
8 8 guage yellow wire going into firewall question Fox 5.0 Mustang Tech 1
H Yellow 99 Procharged GT for sale, central Md SN95 Mustangs For Sale (1994-04) 1
MRaburn SMS Supercars to launch white yellow and black label Mustangs StangNet Site News 0
MustangLX-5.0 Yellow powder coming out of seat. Making a mess 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 9
M Need a battery mount,tray, something for optima yellow SN95 4.6L Mustang Tech 1
SDiosy5point0 Pony Rims Yellowing Fox 5.0 Mustang Tech 4
M Any pics of yellow Stangs? 1996 - 2004 SN95 Mustang -General/Talk- 20
M 89 lx roller 1 of 46 in tropical yellow Fox Body Mustangs For Sale (1979-93) 5
Similar threads
