2000 Ford Mustang Gt 4.6

Misti · Aug 30, 2019

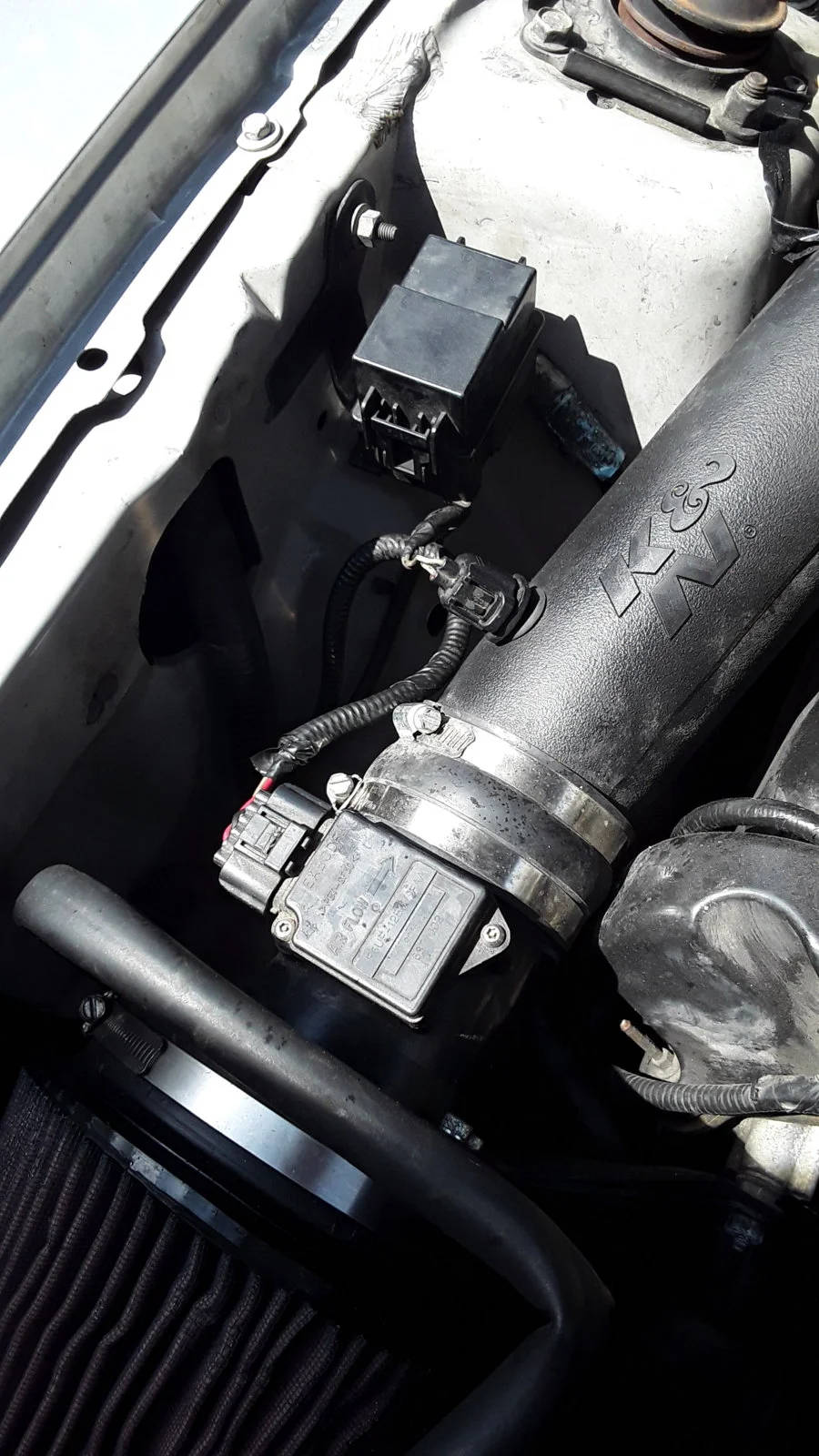

I have noticed that my Fan is Not kicking on. I decided to look into the problem and after testing with a multimeter. I have this black box in which contains a 30 v fuse. The fuse is good. The black box with the car on or off does not show it's working. I don't know what all this runs but I know it does link up to the fan! How do i correct the problem but where do I start on this issue.
I have attached 2 pictures of this box.

I would appreciate any help with this.

Thanks Misti May

wmburns · Aug 30, 2019

The box in question is the circuit breaker (CB) for the LOW speed fan. If the CB were bad, THEN only the low speed fan would not work.

IMO if you are trying to trouble shoot the cooling fan, the first test should be to run the fan directly from battery. For the GT, test to confirm that the fan works on both low speed and high speed. There should be an obvious speed difference between low and high speed fan. There are 3 wires. RD/OG is the low speed. OG/LB is the high speed. BK is black for ground.

What to do next depends upon the results of this first test.

Have you confirmed IF fuse F1.1 is good with always on power coming in and out?

1999-2004 MY fuse panel schedule:

1999 Mustang GT with 2001 motor swap, wont fire. Please help

First off thank you for taking the time to read this, I hope that you will be able to help me out in some way to get a 4 month project off the ground and back onto the streets. I'm not a master mechanic but know just a little bit, enough to do your typical maintenance, overhauls, and swaps. I...

www.allfordmustangs.com

Does the cooling fan run IF the ECT sensor is disconnected at the intake?

Misti · Sep 2, 2019

Ok, Today I am going to do the first test. That is check low and high speed to the fan! I'm a little confused on how to do this exactly but I'm gonna get it figured out!

Misti · Sep 6, 2019

So the Fan does work running directly to the battery!!

wmburns · Sep 6, 2019

wmburns said:
Does the cooling fan run IF the ECT sensor is disconnected at the intake?

Does the cooling fan run when the AC is on?

Hands down. The best and easiest way to fix this is by using an ODB2 scanner with bi-directional control. This makes it's possible to:

find out what the PCM "thinks" the value of the engine cool.ant temperature sensor (ECT).
find out what fan speed that the PCM wants.
Command the PCM to run the low speed fan
Command the PCM to run the high speed fan.

ForScan ODB2 scanner w ELM327 USB

ForScan ODB2 scanner w ELM327 USB

While working on your car have you ever wanted: to find an ODB2 operational PID value (say fuel pressure or MAF)? How about graph a PID value over time? Or compare multiple PID's over time? Access a bi-directional PCM control such as test a...

www.stangnet.com

The other options will need a test light and VOM to perform some detailed tests at the CCRM. Are you willing to perform the tests and post the results?

Or replace the CCRM on a guess since we know that the fan actually works on both speeds and fuse F1.1 is good.

Misti · Sep 7, 2019

wmburns said:
Does the cooling fan run when the AC is on?

Hands down. The best and easiest way to fix this is by using an ODB2 scanner with bi-directional control. This makes it's possible to:

find out what the PCM "thinks" the value of the engine cool.ant temperature sensor (ECT).

find out what fan speed that the PCM wants.

Command the PCM to run the low speed fan

Command the PCM to run the high speed fan.

ForScan ODB2 scanner w ELM327 USB

ForScan ODB2 scanner w ELM327 USB

While working on your car have you ever wanted: to find an ODB2 operational PID value (say fuel pressure or MAF)? How about graph a PID value over time? Or compare multiple PID's over time? Access a bi-directional PCM control such as test a...

www.stangnet.com

The other options will need a test light and VOM to perform some detailed tests at the CCRM. Are you willing to perform the tests and post the results?

Or replace the CCRM on a guess since we know that the fan actually works on both speeds and fuse F1.1 is good.

I Actually just bought the CCRM and I'm planning on replacing this tonight! I'm Hoping this corrects the problem. But if this does not work then I will perform the test needed!

Misti · Sep 8, 2019

I'm Super Excited! I changed the CCRM & That Fixed the problem! I cant believe it! And on the down side when I was putting my fender back on. I accidentally didnt put the black piece that goes in the fender / Well area in correctly So While driving.... it came down. MY Passanger tire ate and chewed it to pieces. Now I have to find another! I cant believe it!

Joe Jr. · Sep 12, 2019

The fender liner? yeah that stinks. At least its not a high dollar item. Good luck!

tsemmett · Sep 13, 2019

They're about $45 new; my driver's side one is bad and I've been looking at replacements: LMR Fender Parts
