About 2 years ago I did the r134a conversion kit from late model resto. For almost 2 years it blew ice cold with no issues. I didn't run my car for about 2 months due rain every day so it just sat in my garage. I recently went out to start it up, turned the a/c on and its now blowing hot air. I don't have a set manifold gauges at home but I visually inspected the entire system, check all fitting and lines. Nothing seems to be out of order, no visual leaks. Anyone else done this conversion kit and had this happen? Or know any common areas that leak in these systems? The entire system in brand new, been ran maybe 10 -15 times since I don't drive my car that often. Any info would be much appreciated, its hot as hell down here in south florida. Thanks!
91 Lx 5.0 r-12 to 134a issue
- Thread starter RedFox561
- Start date
-
Sponsors (?)
With the engine running, use a test light connected to the 2 wires on the A/C clutch harness to make sure you have voltage when you turn the A/C on. If the system is low on refrigerant, the clutch will not engage (safety feature, keeps you from burning up the compressor due to no oil). There is an aluminum canister on the firewall with a large hose leading to the A/C compressor. There is a pressure switch on it with a 2 wire connector: pull the connector off and jumper the wires. The compressor circuit will power up, and the test light will light if the electrical circuit is good. This test is also a good way to check the compressor & clutch if the system is low on refrigerant. You can jumper the wires and the compressor will turn if the clutch is good.
The clutch also has a relay that shuts off when you go to WOT (wide open throttle). It is located on the passenger side inner fender well. The close proximity of the relay to the headers can cause the insulation on the wiring and the relay socket to deteriorate. The relay can become non functional when this happens.
Diagram courtesy of Tmoss & Stang&2birds
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.
Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

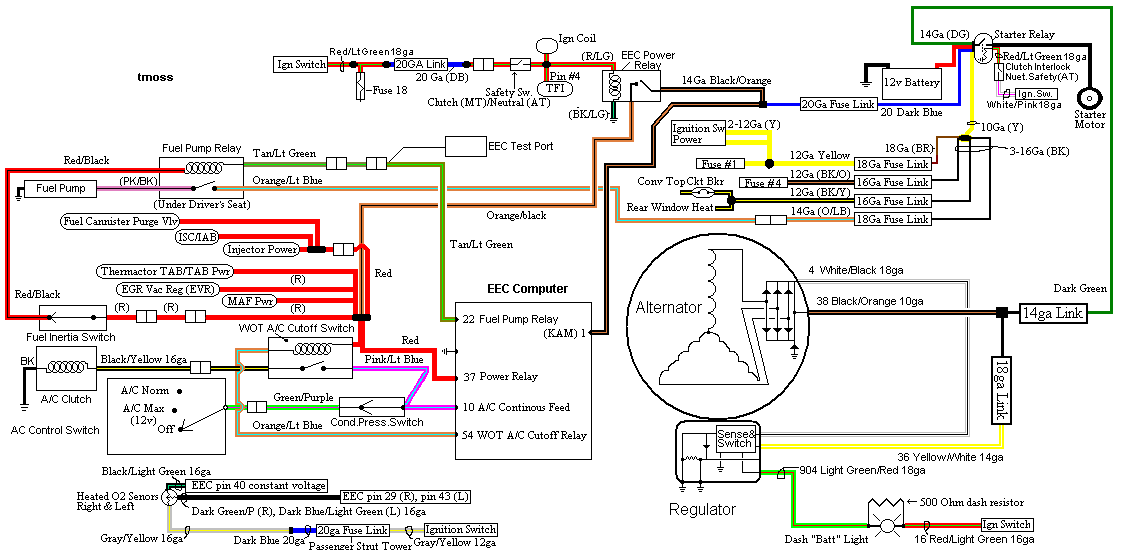

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif
The clutch also has a relay that shuts off when you go to WOT (wide open throttle). It is located on the passenger side inner fender well. The close proximity of the relay to the headers can cause the insulation on the wiring and the relay socket to deteriorate. The relay can become non functional when this happens.
Diagram courtesy of Tmoss & Stang&2birds
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.
Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif
Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif
