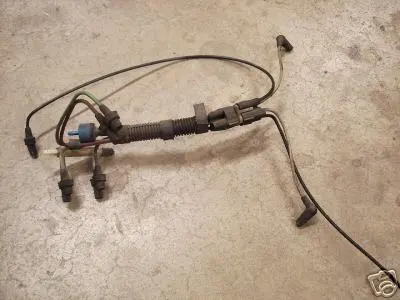

I' m looking for a diagram of where this harness connects to . Please see attachment. Local Ford dealer said Ford never offered this part and I would have to create my own. My harness has just about all hard lines broken so , I'm not sure where all the lines connect. This harness is on the pass. side by the strut tower. The picture wasn't taken by me ( currently on Ebay )
92 lx 5.0 vac. / emission lines diagram
- Thread starter fearnside5
- Start date
Heres a diagram .. not exactly what you have there though but helped me figure out what went where, about the best diagram I could find when I was looking.
**http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg link helps
**http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg link helps
The picure shows the stock plastic vacuum lines that came on production 5.0 Mustangs from 86-93.
The stock hard plastic vacuum lines have been gone for years on most of the 5.0 Mustangs. Your best bet is to study the vacuum lines and the diagram link that was posted. Some 1/8 rubber vacuum tubing is all that is needed to replace all the lines except the big one in front that goes to the carbon canister solenoid.
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.
Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif
Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif
Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif
Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg
HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif
TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif
Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif
The stock hard plastic vacuum lines have been gone for years on most of the 5.0 Mustangs. Your best bet is to study the vacuum lines and the diagram link that was posted. Some 1/8 rubber vacuum tubing is all that is needed to replace all the lines except the big one in front that goes to the carbon canister solenoid.
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.
Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif
Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif
Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif
Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg
HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif
TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif
Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif
