95 Gt Some Time High Idle, Lost Power And Check Engine Light

Killa

Active Member
Jul 9, 2007
1,006
56
49
my 95 mustang gt some time high idle, I did before and I replace IAC and it fix it, but now it did again, my english is bad, let me try to explaint

When cold it ran fine and some time jerking and check engine light on
it high idle some time when it hot out side, but when I put in gear idle drop back down to normal
some time car drive really strong and smooth, some time i feel like it have no power.
and when ever the car is jerking while driving, I saw check engine light on
first when I crank the car when hot, and high idle the check engine light flash 3-4 time then stop flash
some time hard to start ? and some time need second crank to start, and some time after it start rmp drop and want to die.

I take to friend shop and he cant get the code to come up. he cant scan the code.

think im concern is, either bad maf sensor ?
and is coolant temperture sensor have anything to do with it ? i heard is control air/fuel mix also ?

  • Sponsors (?)


Most shops have no idea of how to get codes out of an OBDI computer. Follow the steps in the tech note below and you can do it. If that doesn't work, you either have computer or wiring problems. Don't worry, there is a tech note for diagnosing that problem as well.

Once all the code problems are cleared, then work on the idle problems. For the idle problems, see the "Surging Idle Checklist” for help with all your idle/stall problems. You can guess at the problem and throw parts at it, or you can use the checklist to help you find the problem quickly and inexpensively. The checklist is right here in the Stangnet 5.0 Tech forum and you don’t have navigate to some other unknown web site. It‘s free and doesn’t cost anything: at last count there were more than 103,000 visits and still climbing

The quick and easy way to dump the codes is in there too, and all you need to do it is a paper clip! The first two posts contain all the fixes & updates. At last count there were 24 possible causes and fixes for surging idle/stall problems. I continue to update it as more people post fixes or ask questions.


Dump the codes: Codes may be present even if the Check Engine Light (CEL) isn't on.

Dumping the computer diagnostic codes on 86-95 Mustangs

Revised 26-July-2011. Added need to make sure the clutch is pressed when dumping codes.

Codes may be present even if the check engine light hasn’t come on, so be sure to check for them.

Here's the way to dump the computer codes with only a jumper wire or paper clip and the check engine light, or test light or voltmeter. I’ve used it for years, and it works great. You watch the flashing test lamp or Check Engine Light and count the flashes.

Post the codes you get and I will post 86-93 model 5.0 Mustang specific code definitions and fixes. I do not have a complete listing for 94-95 model 5.0 Mustangs at this time.

Be sure to turn off the A/C, and put the transmission in neutral when dumping the codes. On a manual transmission car, be sure to press the clutch to the floor.
Fail to do this and you will generate a code 67 and not be able to dump the Engine Running codes.





If your car is an 86-88 stang, you'll have to use the test lamp or voltmeter method. There is no functional check engine light on the 86-88's except possibly the Cali Mass Air cars.

computer-self-test-connector-with-test-lamp-01-65-gif.55020

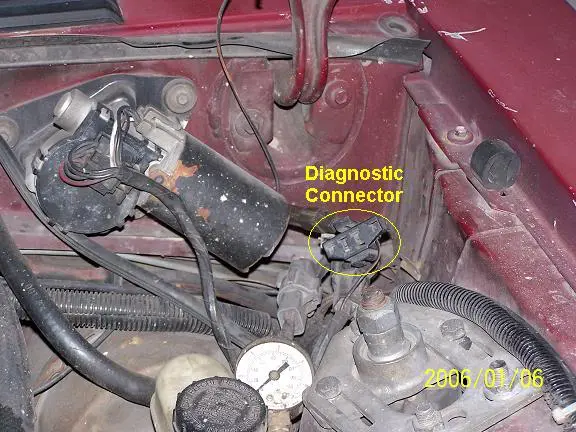

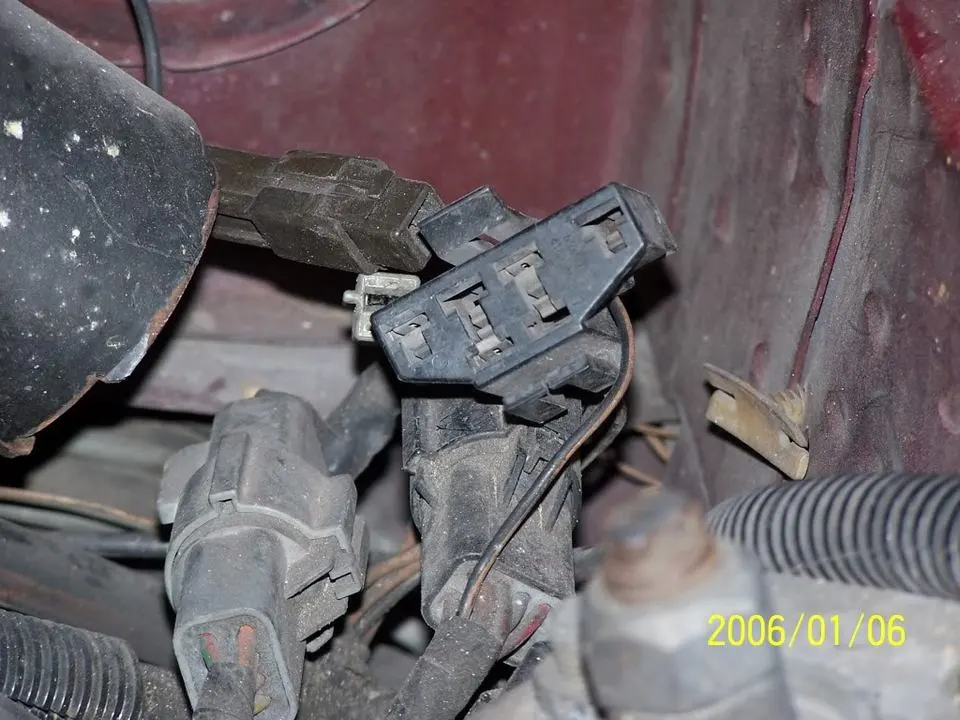

The STI has a gray connector shell and a white/red wire. It comes from the same bundle of wires as the self test connector.

89 through 95 cars have a working Check Engine light. Watch it instead of using a test lamp.

computer-self-test-connector-with-check-engine-light-01-65-gif.55021


The STI has a gray connector shell and a white/red wire. It comes from the same bundle of wires as the self test connector.


WARNING!!! There is a single dark brown connector with a black/orange wire. It is the 12 volt power to the under the hood light. Do not jumper it to the computer test connector. If you do, you will damage the computer.

What to expect:
You should get a code 11 (two single flashes in succession). This says that the computer's internal workings are OK, and that the wiring to put the computer into diagnostic mode is good. No code 11 and you have some wiring problems. This is crucial: the same wire that provides the ground to dump the codes provides signal ground for the TPS, EGR, ACT and Map/Baro sensors. If it fails, you will have poor performance, economy and driveablity problems

Some codes have different answers if the engine is running from the answers that it has when the engine isn't running. It helps a lot to know if you had the engine running when you ran the test.

Dumping the Engine Running codes: The procedure is the same, you start the engine with the test jumper in place. Be sure the A/C is off, and clutch (if present) is pressed to the floor, and the transmission is in neutral. You'll get an 11, then a 4 and the engine will speed up to do the EGR test. After the engine speed decreases back to idle, it will dump the engine running codes.

Trouble codes are either 2 digit or 3 digit, there are no cars that use both 2 digit codes and 3 digit codes.

Alternate methods:
For those who are intimidated by all the wires & connections, see Actron® for what a typical hand scanner looks like. Normal retail price is about $30 or so at AutoZone or Wal-Mart.

Or for a nicer scanner see Equus - Digital Ford Code Reader (3145) – It has a 3 digit LCD display so that you don’t have to count flashes or beeps.. Cost is $30.

Can you list some " weird " thing that do to the car when that go bad ?
Quit chasing rabbits and do the diagnostic work I listed for you You'll spend less time and money than throwing parts at an unknown problem. Find out what you need to fix, then make sure the part is the broken item. Then and only then get out your wallet and buy the part or parts.
