Yes, Cadillac ATS brembos. They are dirt cheap...even new

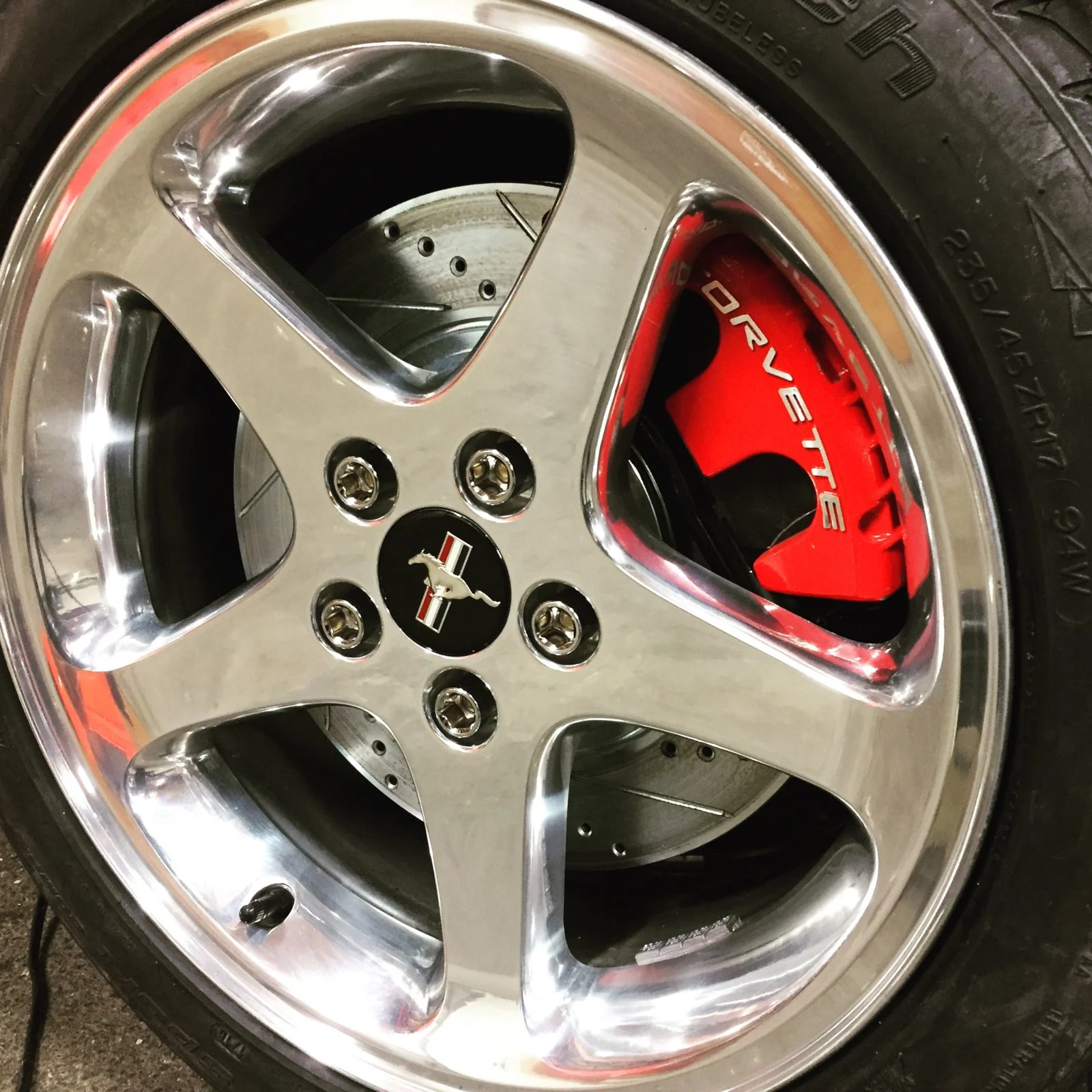

I've been searching for a used pair. Missed a couple that sold on eBay for $100/pair. I'm running corvette calipers now but wouldn't mind the Brembos
My understanding is the Spindle needs to be redrilled as GM uses a 14mm bolt while the spindle is drilled for Fords 12mm bolts. Also the bolt spacing is 1mm or so narrower.
Eventually I'll get to it. I'll repaint the calipers in a more traditional brembo livery
I've been searching for a used pair. Missed a couple that sold on eBay for $100/pair. I'm running corvette calipers now but wouldn't mind the Brembos
My understanding is the Spindle needs to be redrilled as GM uses a 14mm bolt while the spindle is drilled for Fords 12mm bolts. Also the bolt spacing is 1mm or so narrower.
Eventually I'll get to it. I'll repaint the calipers in a more traditional brembo livery
Last edited:
So basically drilling out for the difference in bolt size it will open up the spacing so they bolt up?Yes, Cadillac ATS brembos. They are dirt cheap...even new
I've been searching for a used pair. Missed a couple that sold on eBay for $100/pair. I'm running corvette calipers now but wouldn't mind the Brembos
My understanding is the Spindle needs to be redrilled as GM uses a 14mm bolt while the spindle is drilled for Fords 12mm bolts. Also the bolt spacing is 1mm or so narrower.
Eventually I'll get to it. I'll repaint the calipers in a more traditional brembo livery
James V
5 Year Member

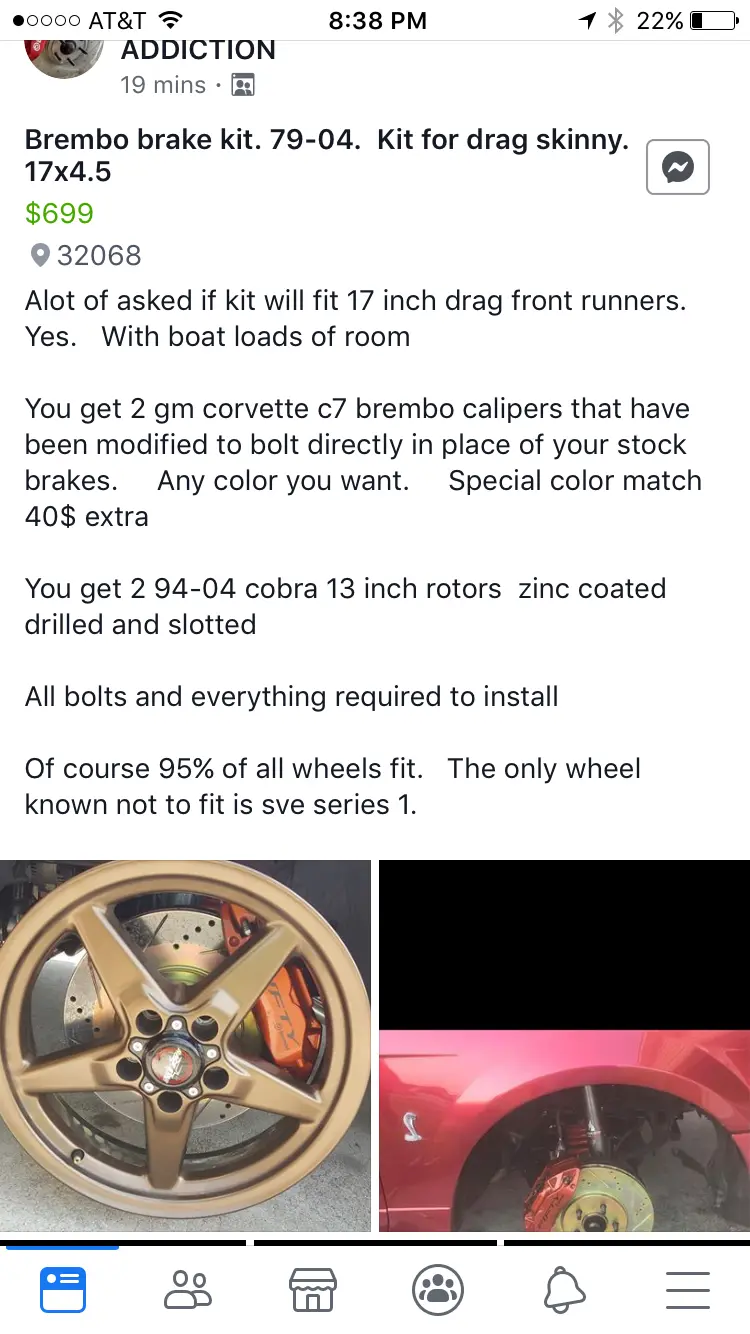

$700 plus shipping but yes. I’m actually more concerned about home much it of a direct install they are. What if I want to go back to “stock” calipers. Are spindles that screwed up
Not screwed up, but pretty much a one way deal. No going back.
Edit: unless he's welded and drilled the Caliper for Sn95 spindles. Link to post? I haven't exactly done this yet myself so only speaking to what I know from this experience

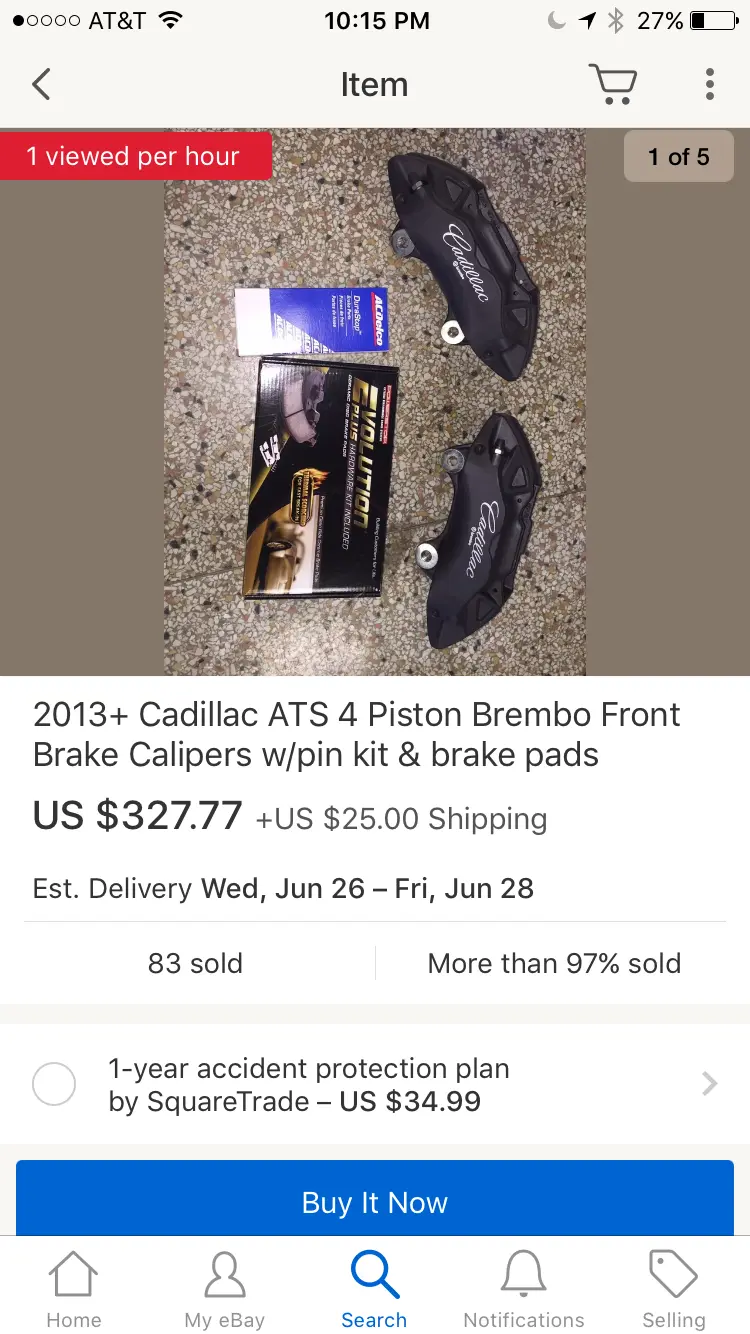

I need to get my hands on a set. I keep missing awesome deals. Those brembos are all over eBay dirt cheap
Last edited:
Found the post.
Looks like he's welding the mounting flange and then redrilling for sn95 spindle mounting.
These are also the same ATS casting.
Looks like he's welding the mounting flange and then redrilling for sn95 spindle mounting.
These are also the same ATS casting.
Not same guy. But same setup. Minus the “corvette “caliper. The post I saw didn’t say what they were from. Just said gm calipersFound the post.
Looks like he's welding the mounting flange and then redrilling for sn95 spindle mounting.
These are also the same ATS casting.

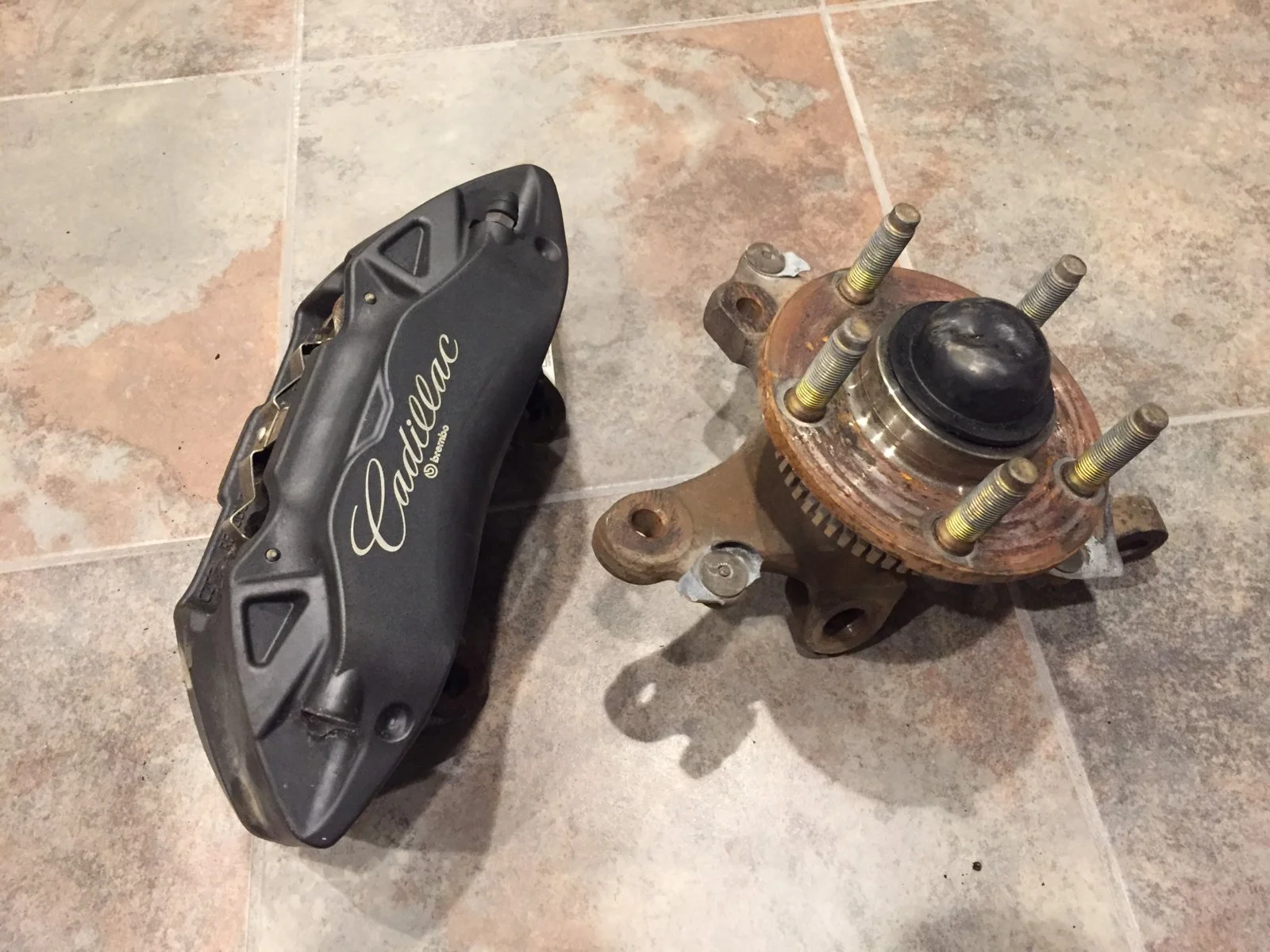

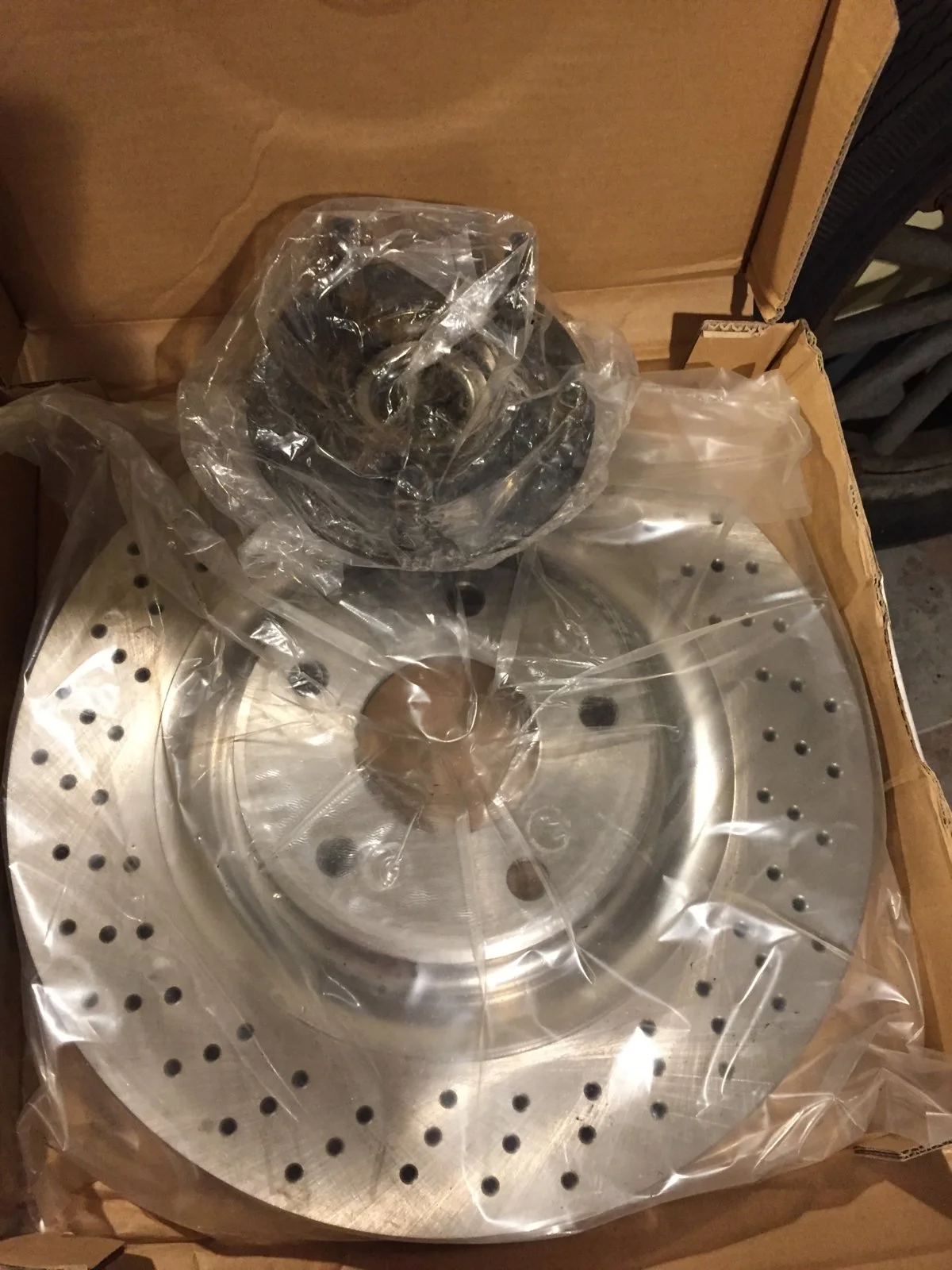

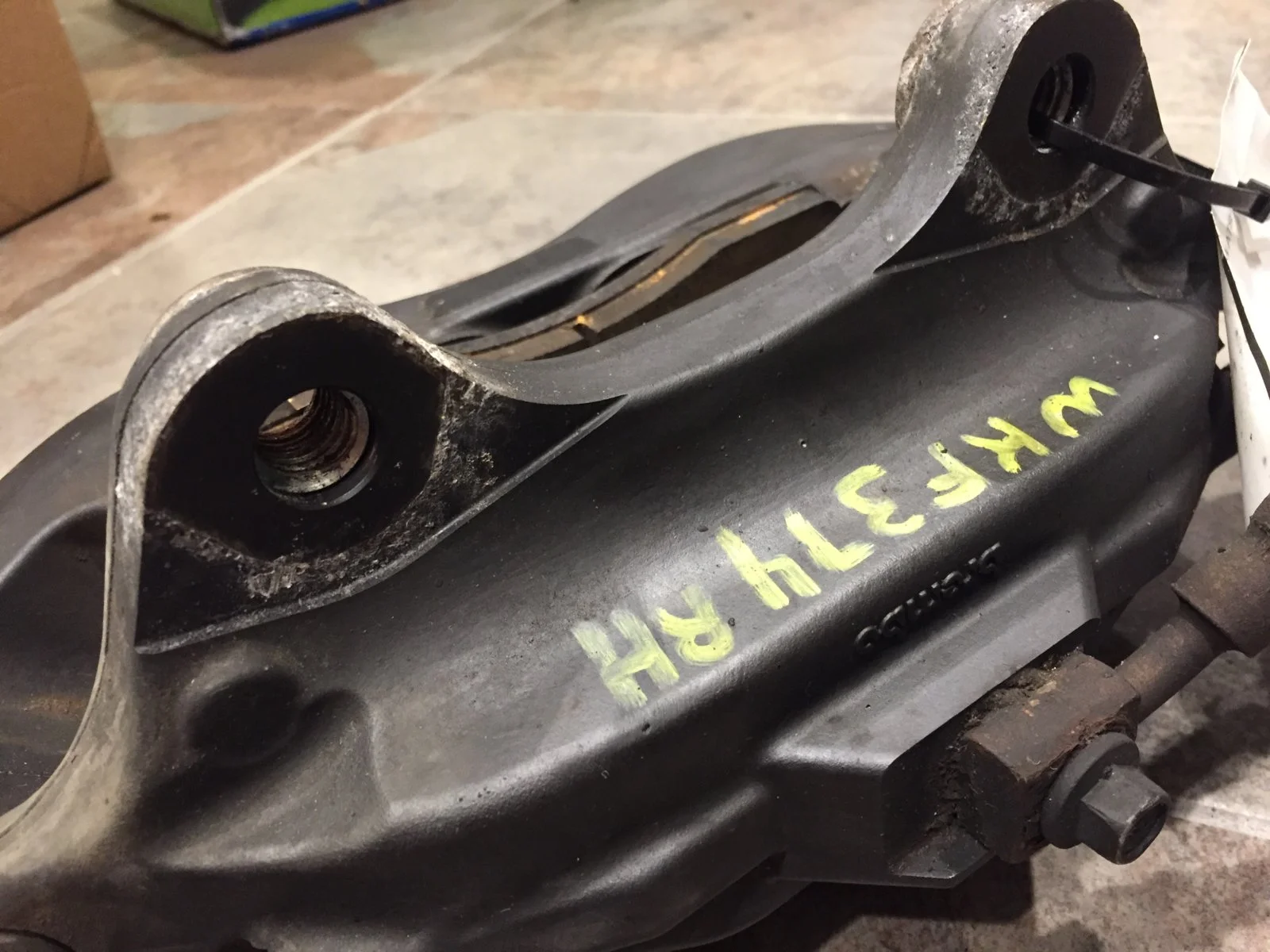

Ok, dug into this and got some parts.
Not a bolt on swap, as claimed incorrectly. The road racing forums are giving flak on this mod.
To get them to fit Cobra 13.1 rotors, you need to open up the spindle mounting holes to 14mm and slot them about 0.5mm towards each other. You also need to mill off about 0.075" off the mounting face of the mount ears.
Then you need to remove about 8mm of the pad material because the rotor diameter needs to be about 13.4" vs the smaller cobra rotors.
So...some work needs to be done.
I think there is a better way. The calipers have steel inserts so they will mount a variety of spindles. My thought it to machine up a new insert with a m12 threaded hole offset 0.5mm to match up to the SN95 spindle spacing
You can see in the bolt hole, that if you go to a smaller m12 bolt that th sn95 use, you do have room to offset them inward, and perhaps upward as well to sit the Caliper lower and cover the cobra rotor better
I also think there's a better rotor to use too. I refuse to slot my spindle or shave brake pads. Needs to be bolt on or nothing at all.
I bought that Caliper for $50, so I'm definitely curious about doing this swap "correctly"
Not a bolt on swap, as claimed incorrectly. The road racing forums are giving flak on this mod.
To get them to fit Cobra 13.1 rotors, you need to open up the spindle mounting holes to 14mm and slot them about 0.5mm towards each other. You also need to mill off about 0.075" off the mounting face of the mount ears.
Then you need to remove about 8mm of the pad material because the rotor diameter needs to be about 13.4" vs the smaller cobra rotors.
So...some work needs to be done.
I think there is a better way. The calipers have steel inserts so they will mount a variety of spindles. My thought it to machine up a new insert with a m12 threaded hole offset 0.5mm to match up to the SN95 spindle spacing
You can see in the bolt hole, that if you go to a smaller m12 bolt that th sn95 use, you do have room to offset them inward, and perhaps upward as well to sit the Caliper lower and cover the cobra rotor better
I also think there's a better rotor to use too. I refuse to slot my spindle or shave brake pads. Needs to be bolt on or nothing at all.
I bought that Caliper for $50, so I'm definitely curious about doing this swap "correctly"
I got a set of them also and wanting to do the mod. Little hesitant on drilling out the spindles to be honest. Curious to see what you come up withOk, dug into this and got some parts.
Not a bolt on swap, as claimed incorrectly. The road racing forums are giving flak on this mod.
To get them to fit Cobra 13.1 rotors, you need to open up the spindle mounting holes to 14mm and slot them about 0.5mm towards each other. You also need to mill off about 0.075" off the mounting face of the mount ears.
Then you need to remove about 8mm of the pad material because the rotor diameter needs to be about 13.4" vs the smaller cobra rotors.
So...some work needs to be done.
I think there is a better way. The calipers have steel inserts so they will mount a variety of spindles. My thought it to machine up a new insert with a m12 threaded hole offset 0.5mm to match up to the SN95 spindle spacing
You can see in the bolt hole, that if you go to a smaller m12 bolt that th sn95 use, you do have room to offset them inward, and perhaps upward as well to sit the Caliper lower and cover the cobra rotor better
I also think there's a better rotor to use too. I refuse to slot my spindle or shave brake pads. Needs to be bolt on or nothing at all.
I bought that Caliper for $50, so I'm definitely curious about doing this swap "correctly"
So I played around a bit on a bench to see if there was a better way to make this fit. Unfortunately, I think what I've found is causing me to lose interest in this swap.
The ATS and base c7 better that also uses this casting uses a 12.6" rotor. As a result, the Caliper is design with that radius in mind.

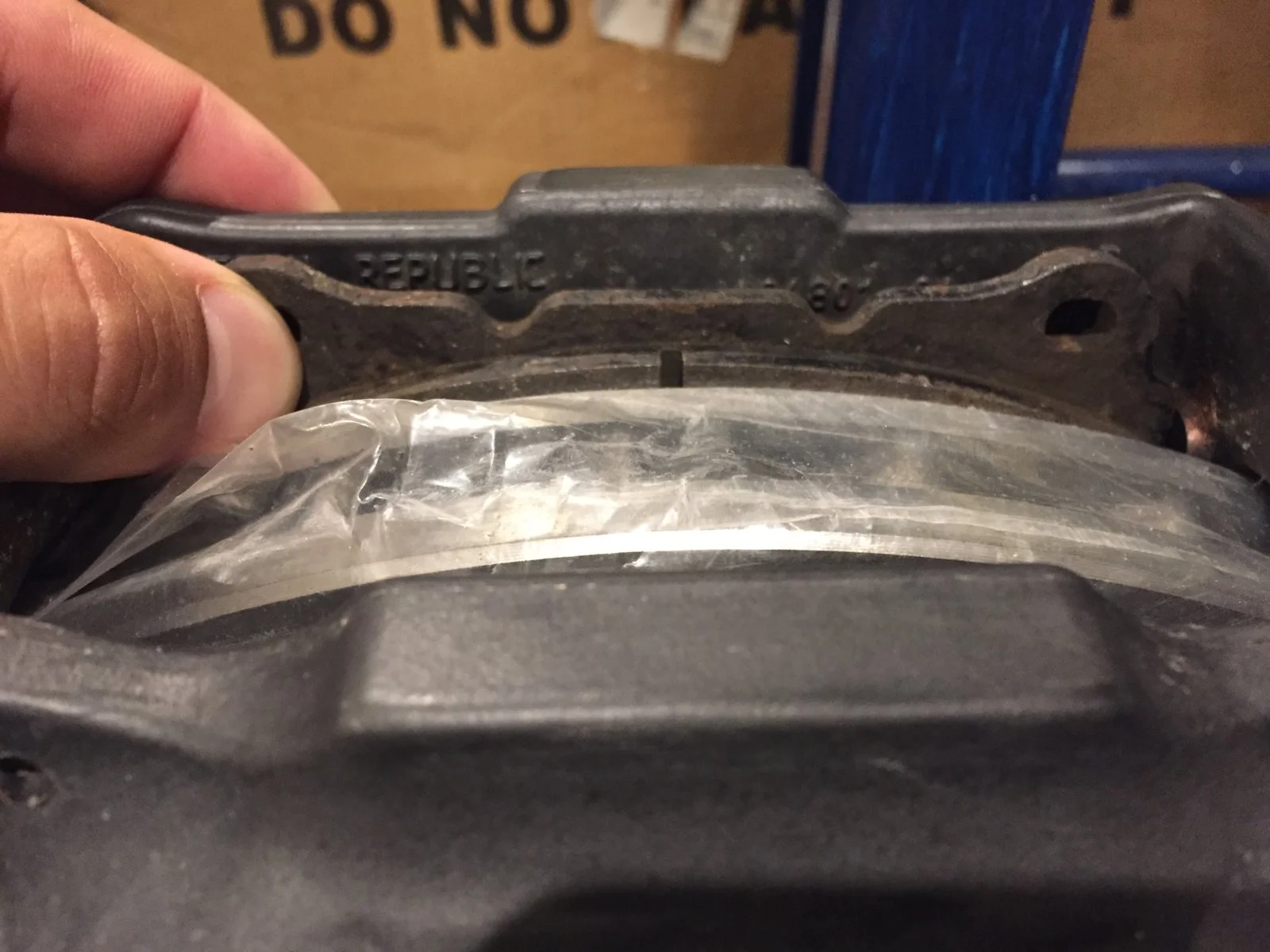

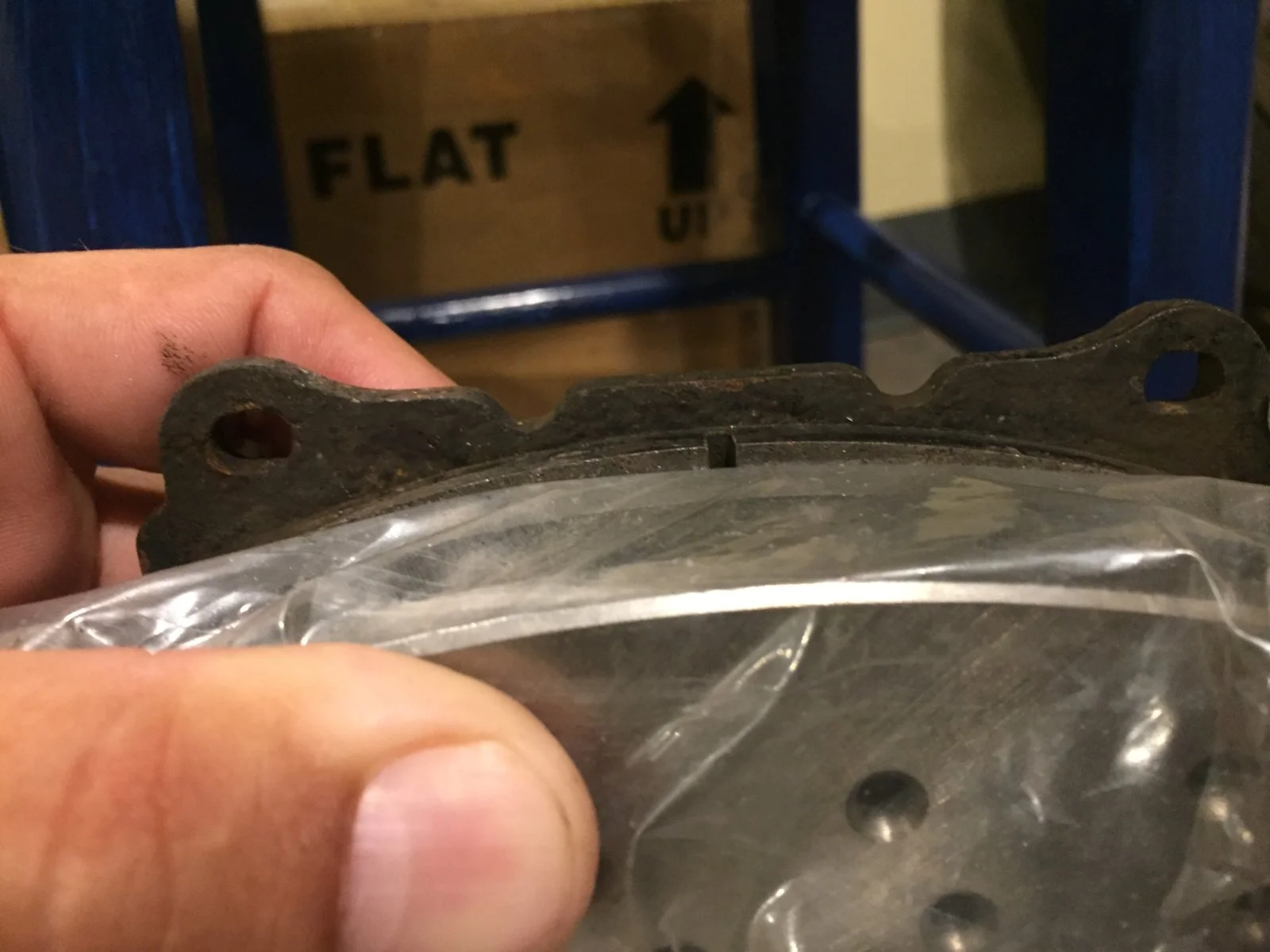

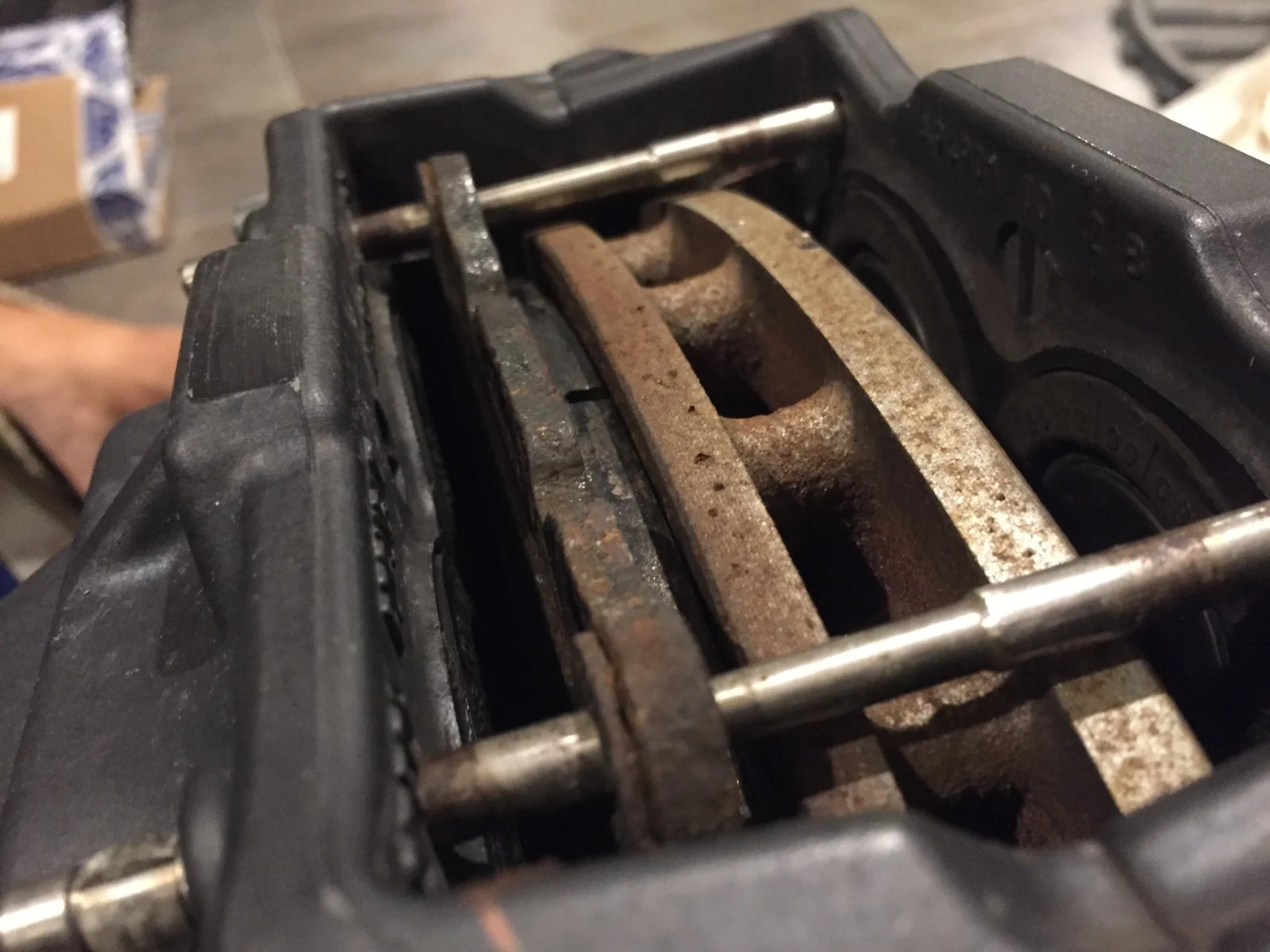

You can see what I mean here with the ATS pad on the 13.4 rotor.
The Cobra 13.1 and vette C6 j55 13.4 rotor have a larger radius. So the Caliper hits the front and rear on the rotor as you try and lower the Caliper into the rotor before the pad area fully covers the rotor face.
Here's with the 13.4 rotor
With the cobra 13.1 rotor, you do have room but it requires moving the Caliper down about 8mm or so. That requires major surgery on the spindle.
Since I'm a sucker for making things fit correctly, I'm going to abandon this as I don't see how to make a Caliper made for a 12.6" rotor accept a 13.1 rotor and have full pad contact without overhang.
I am not modifying the spindle, nor shaving pads.
I now have a $50 paperweight
The ATS and base c7 better that also uses this casting uses a 12.6" rotor. As a result, the Caliper is design with that radius in mind.
You can see what I mean here with the ATS pad on the 13.4 rotor.
The Cobra 13.1 and vette C6 j55 13.4 rotor have a larger radius. So the Caliper hits the front and rear on the rotor as you try and lower the Caliper into the rotor before the pad area fully covers the rotor face.
Here's with the 13.4 rotor
With the cobra 13.1 rotor, you do have room but it requires moving the Caliper down about 8mm or so. That requires major surgery on the spindle.
Since I'm a sucker for making things fit correctly, I'm going to abandon this as I don't see how to make a Caliper made for a 12.6" rotor accept a 13.1 rotor and have full pad contact without overhang.
I am not modifying the spindle, nor shaving pads.
I now have a $50 paperweight
Gonna still poke around a bit on this one. Not giving up yet, just less enthusiastic about it.
I actually bought the other caliper from the recycler for $50/shipped as well. So i'm into this for $100. The 12.6" rotor diameter is a hurdle, but I'm not giving up yet.
Last edited:
- Jul 7, 2005
- 1,563
- 1,197
- 164
Playing around a little bit more.

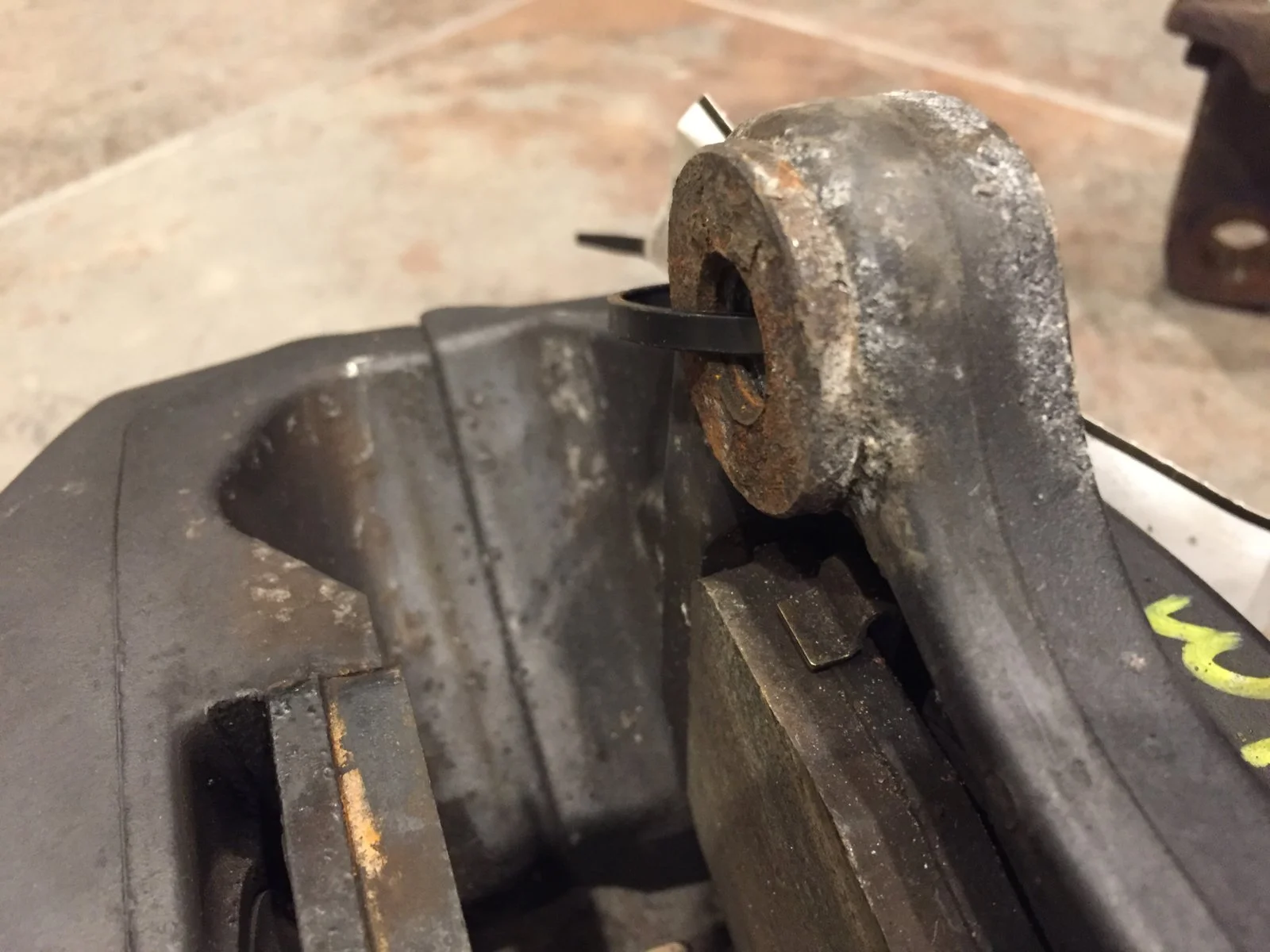

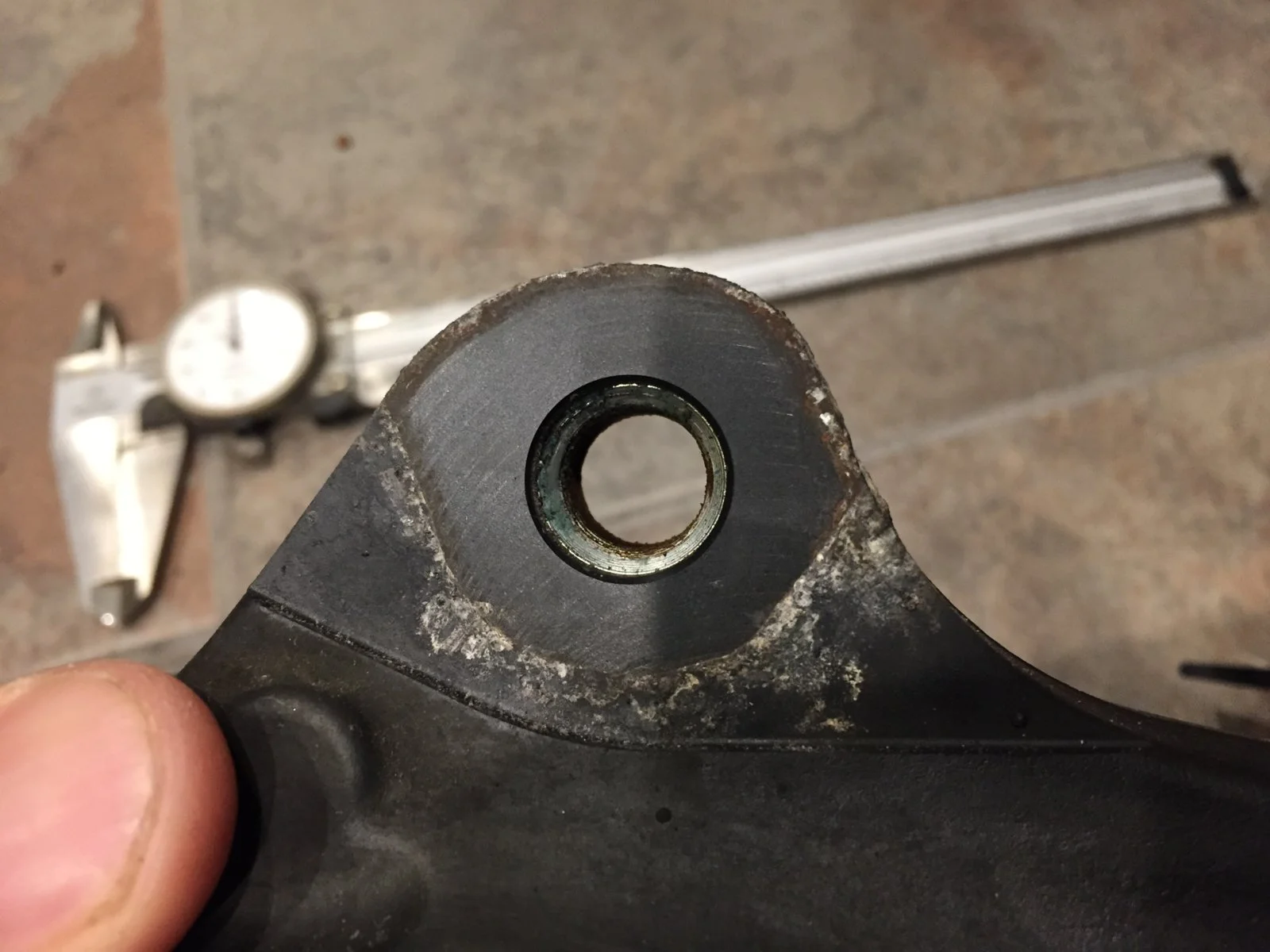

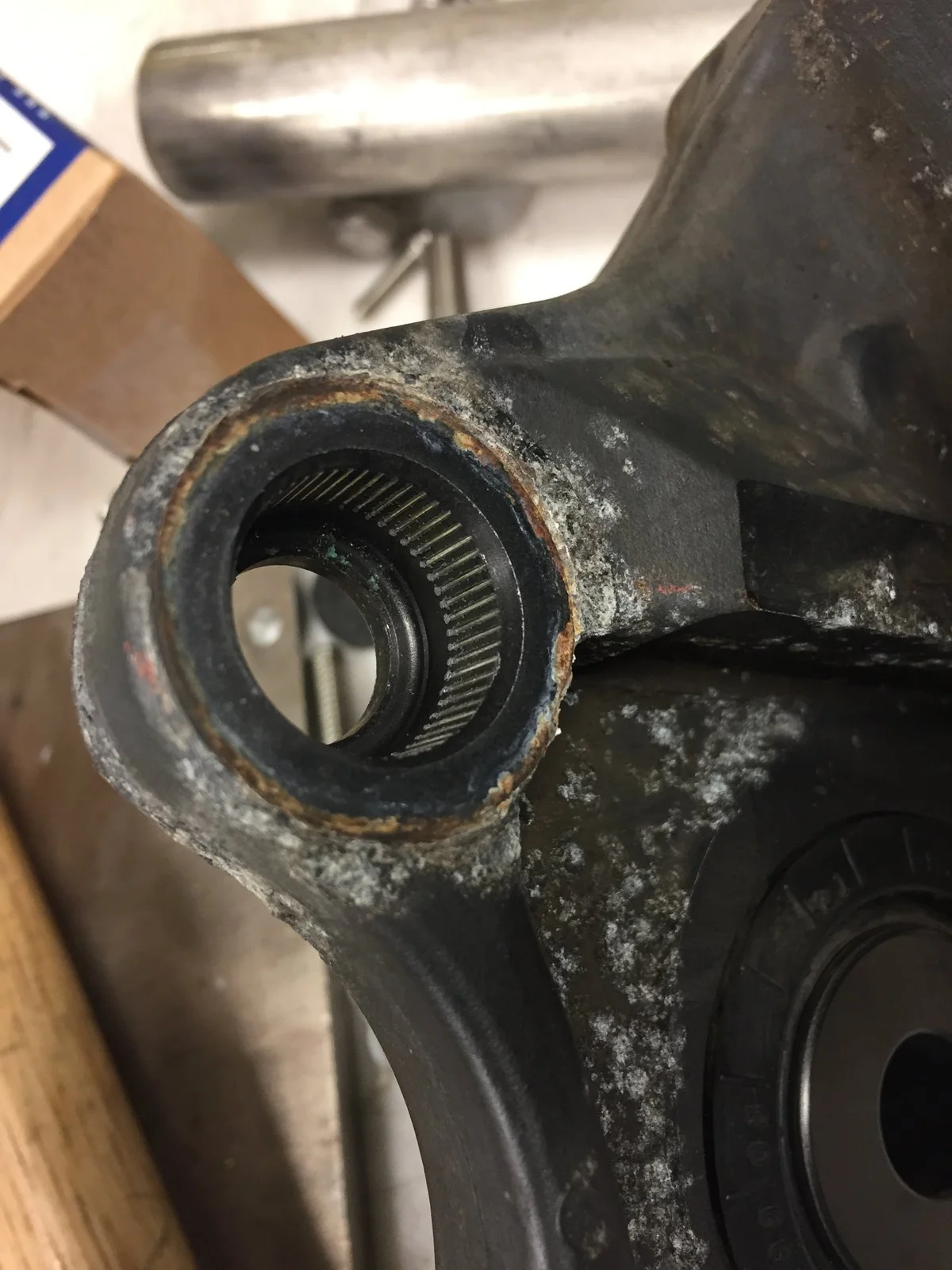

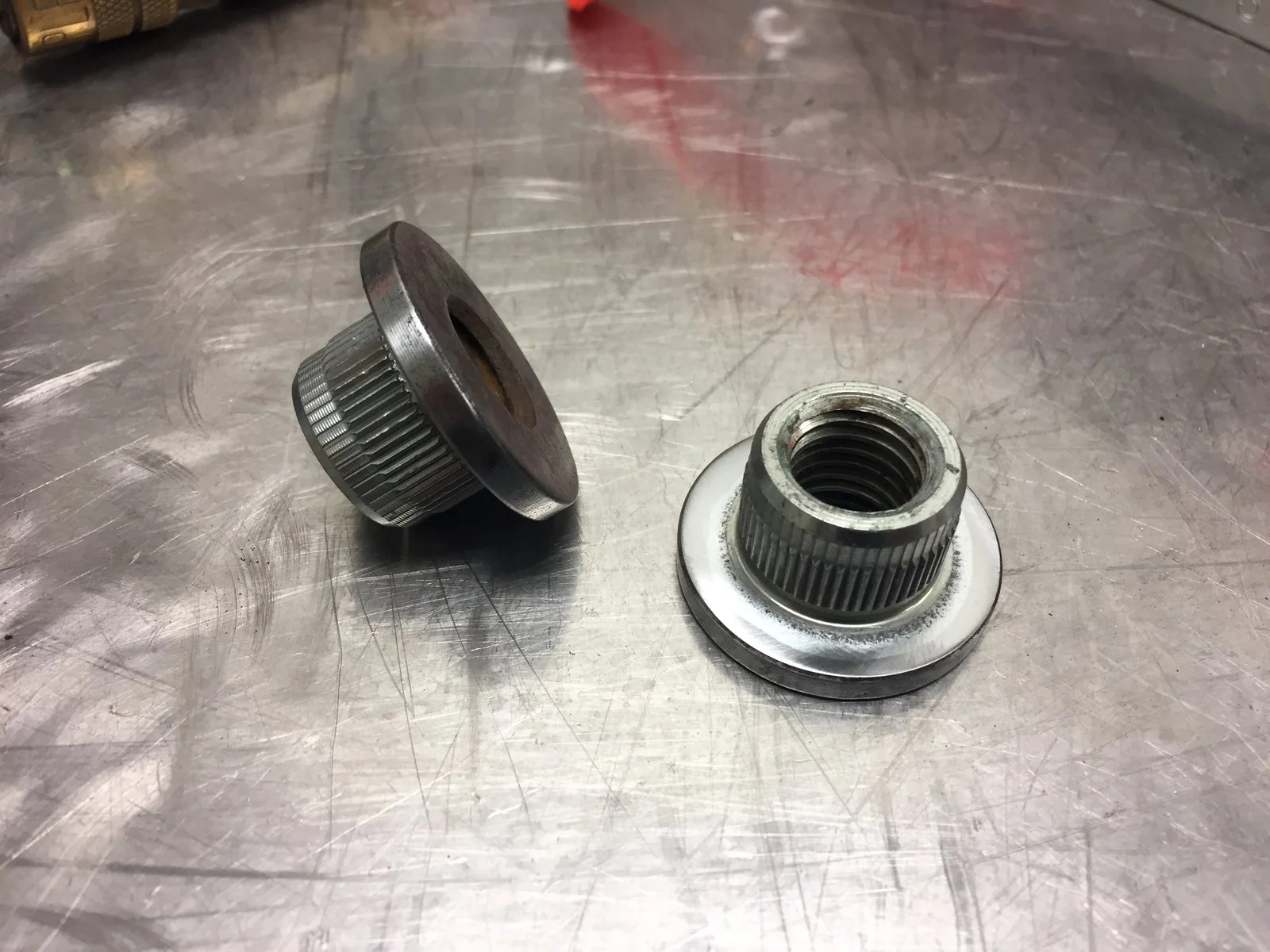

Popped the steel inserts out. Very easy to do. You can see the caliper has a mating cup that the insert is pressed into.
Popped the steel inserts out. Very easy to do. You can see the caliper has a mating cup that the insert is pressed into.
- Jul 7, 2005
- 1,563
- 1,197
- 164
Starting to play around with this is CAD now that I'm getting dimensions.

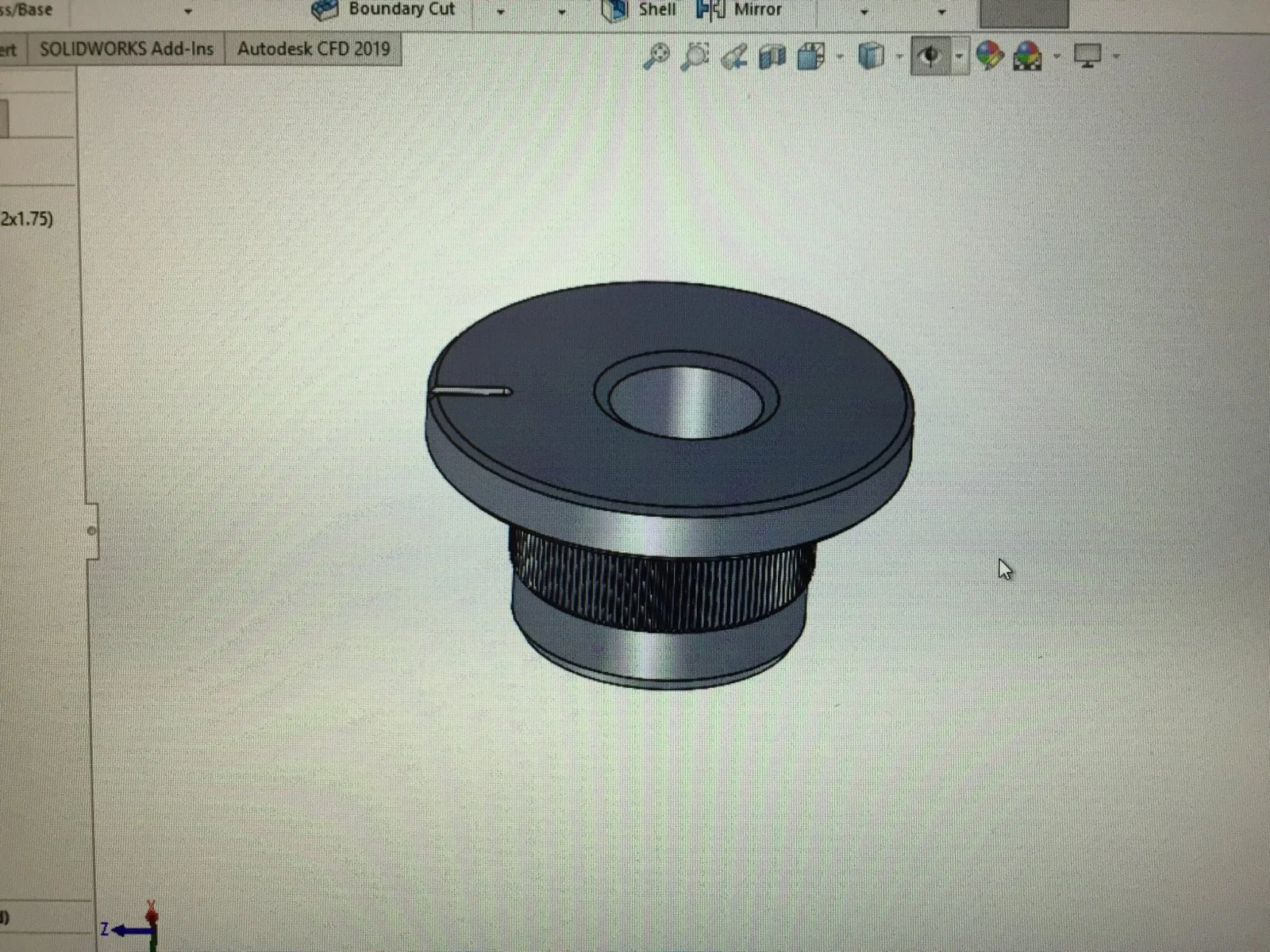

Insert with M12 threaded hold offset 1mm.
Insert with M12 threaded hold offset 1mm.
I need to make and reinstall an insert. The caliper alone doesn't have the proper support.
It's off 2mm. 128mm spacing vs the SN95's 130mm. My plan is to machine up a insert with a 1mm offset. Since i'm going from M14 bolts to M12 bolts, I have the room.
I need to model a few more things up in CAD (caliper flange, SN95 flange) and play with the orientation a bit to make sure this idea will work
