B BeardIsRed Member Sep 28, 2022 8 1 13 Russellville, Arkansas Sep 28, 2022 #1 Sep 28, 2022 #1 Can anyone please show me a pic of what a properly installed clutch fork and throwing bearing look like without the clutch cable seated in the fork.
Can anyone please show me a pic of what a properly installed clutch fork and throwing bearing look like without the clutch cable seated in the fork.

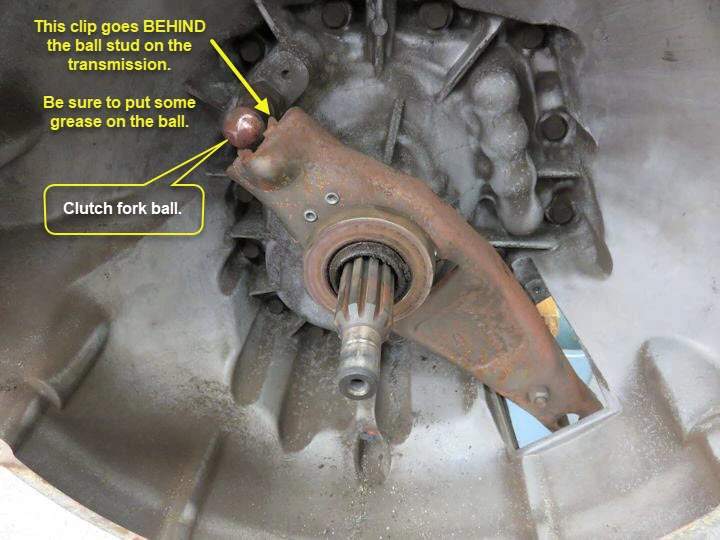

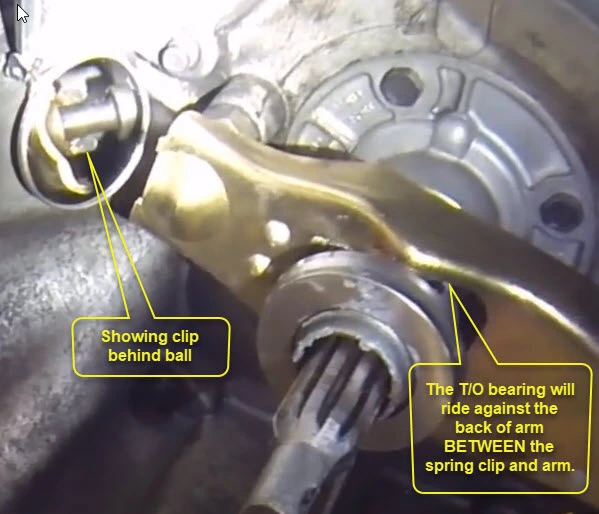

weendoggy 5 Year Member Jan 14, 2019 153 46 38 Aptos, CA Sep 29, 2022 #2 Sep 29, 2022 #2 This is basically how the Ford's are installed. Sometimes easier to put the TO on the arm and then assemble it to the trans, then slide the arm back at an angle if possible to then clip the ball spring. Be patient. Reactions: 1 user
This is basically how the Ford's are installed. Sometimes easier to put the TO on the arm and then assemble it to the trans, then slide the arm back at an angle if possible to then clip the ball spring. Be patient.
