hello and HELP!!! vacuum hoses

[keylokes]

hello everybody...

i got an 80 mustang. 2.3l four 4 speen manual transmission 2 bbl. motorcraft 5200/6500 carburetor..

and i need help... does anyone have the same carburetor.?? i need to know where all the hoses go to. i looked at the vacuum diagrhm under the hood.. but i dont really get much of it.. so if any has one.. would it be possible to post some pics of the vacuum hoses rouiting.???

i need to get it running to take to the shop then get it smoged. so if any could help.. that would be nice.. or help me figure out what is what.

i will copy the vacuum duagrahm under the hood and paste later..

well, just in advance thanks..



[4stanger]

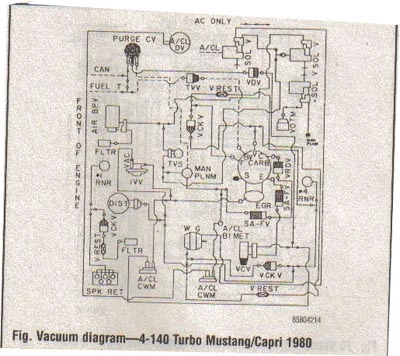

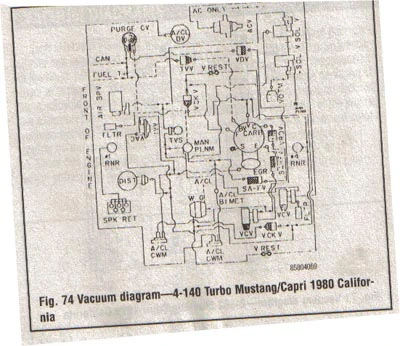

I tried to attach some pictures I've never done it here before. If they help great I tried to send the ones that should work. If you need them bigger pm me and we'll work something out
vince



[keylokes]

well.. thank you very much... ima get to work on it right now!



[4stanger]

Did you get it fixed?



[rd]

Try the Autozone site, it should have vac diagrams for this.
