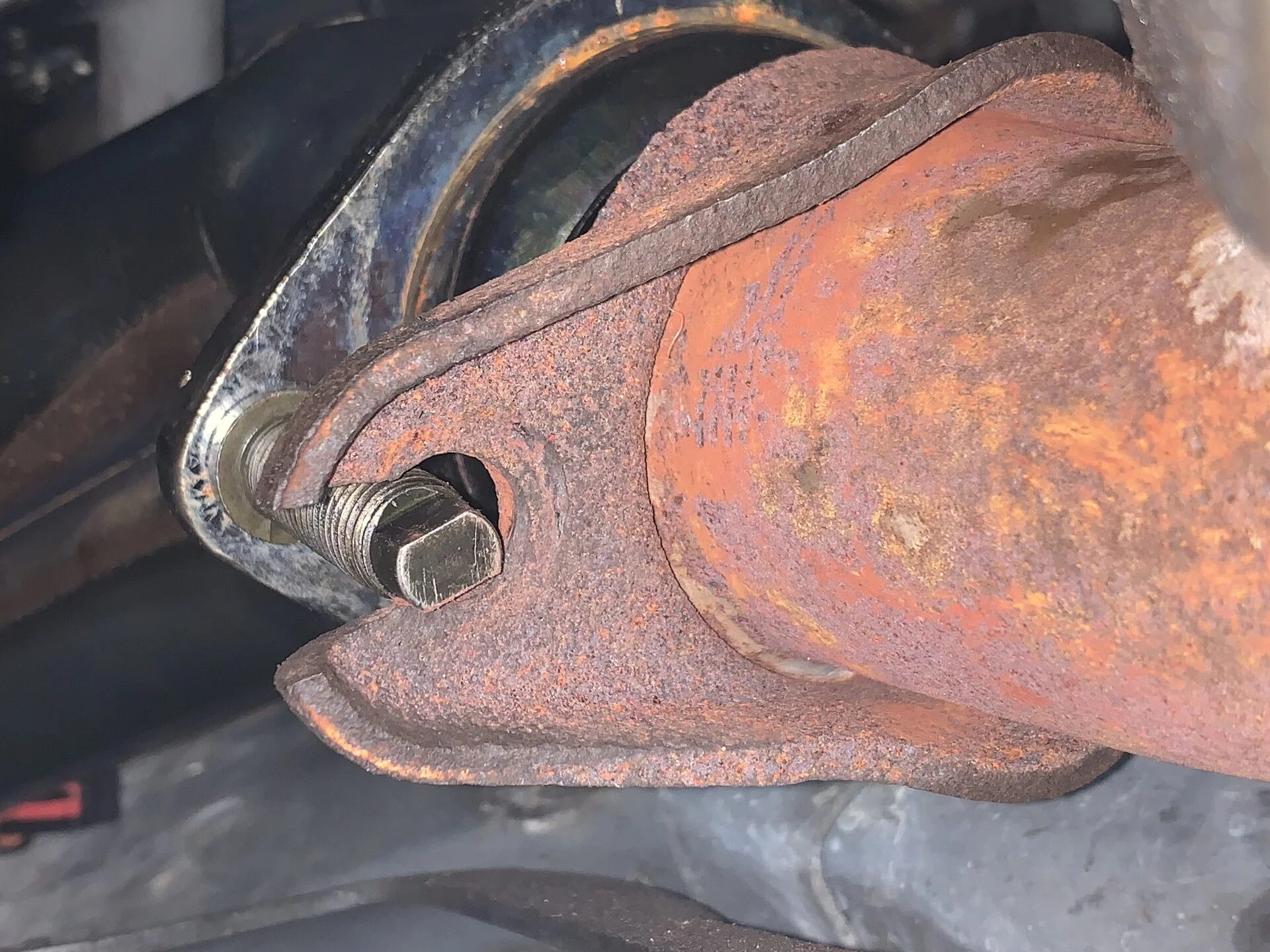

I am trying to mount my x pipe onto my new headers and the passenger side lower stud is giving me trouble. I just can’t get it in the hole and when I do it is just the tip where there are no threads. here’s a pic of what I am talking about:

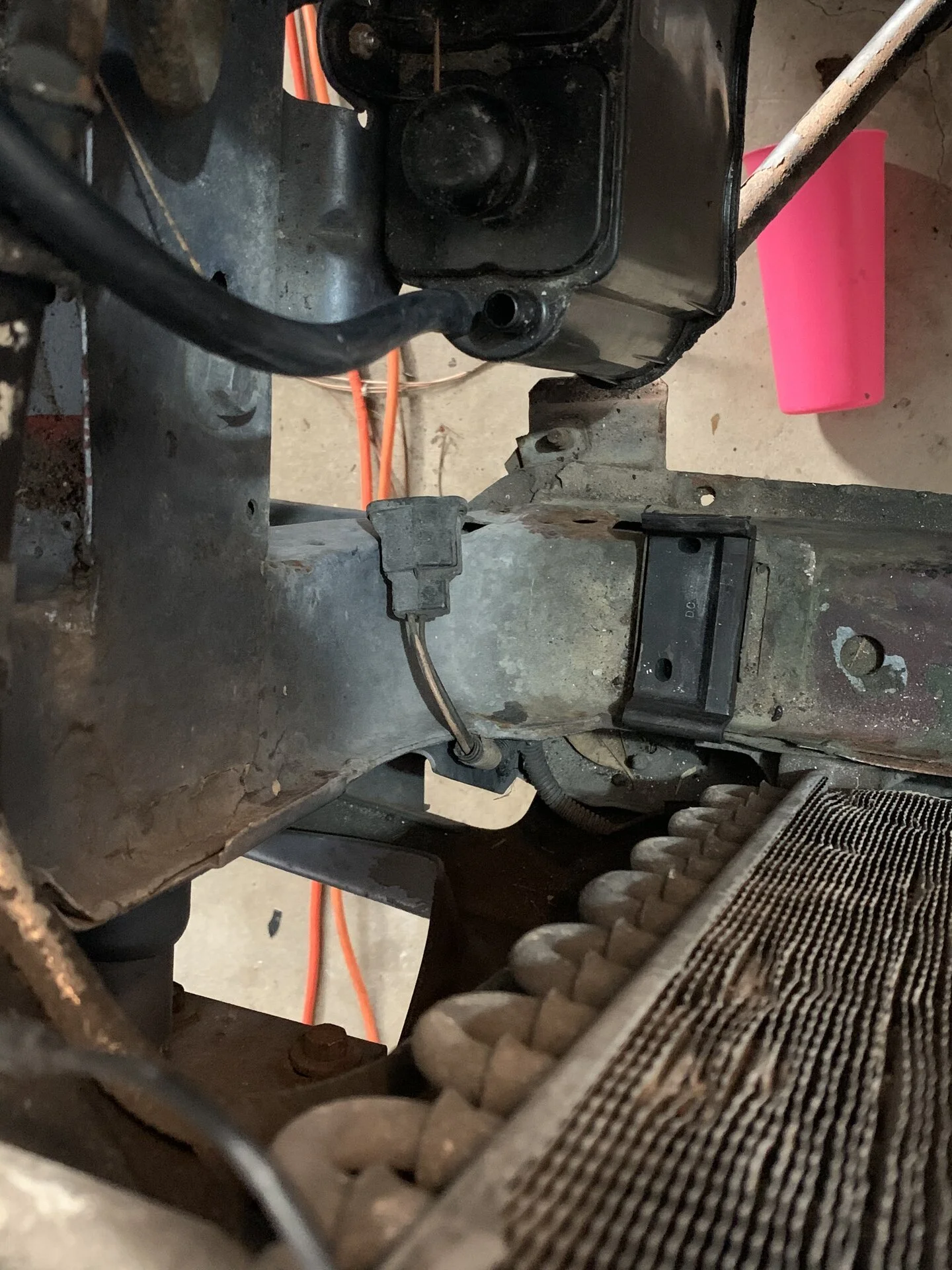

Also what is this supposed to connect to?

  • Sponsors(?)


John Dirks Jr

there is enough sticking out to grab on to
5 Year Member
Jun 28, 2013
2,908
1,249
174
57
Maryland
You might have to loosen up the header bolts to allow some slop to get all fasteners started. Then cinch up the header bolts after that and follow up with the flange bolts. Also, make sure the flange on the other side is also not tightened up until after all fasteners are started.

The box in the other picture is the evap canister. Look up a hose routing diagram to see where things would go.


KRUISR

5 Year Member
Apr 16, 2015
1,036
414
103
51
In pic 1 it looks like the ball socket of the exhaust pipe is not aligned. I assume the other bolt on the pictured header was started. If so, try shaking the pipe and pushing it onto the header ball to get the ball socket to seat down on the exhaust header better. Also assuming the other side of the h-pipe is connected (and tightened)?

I have never had to loosen a header-to-head bolt to fit h-pipe, I would be worried the exhaust gasket would get out of place.


7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
5,805
2,076
194
Kearney, NE
The header and the flare on the h pipe are going to leak a lot unless they are better lined up. You are lucky the stud is not longer. JD Jr. has what should be the right answer.
If that does not work, the Intermediate pipe will need adjusted for the right header flange spacing.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
21,118
7,363
203
polk county florida
I agree with the above suggestions, I will add to make sure the other header to H pipe is loose, then you can take a jack, piece of wood between the pipe and jack, apply pressure to the pipe as you pull the H pipe ball socket in place, start the nuts, tighten evenly.

  • Like
Reactions: 1 user

opihinalu

Member
Feb 10, 2021
119
7
18
19
Florida
You might have to loosen up the header bolts to allow some slop to get all fasteners started. Then cinch up the header bolts after that and follow up with the flange bolts. Also, make sure the flange on the other side is also not tightened up until after all fasteners are started.

The box in the other picture is the evap canister. Look up a hose routing diagram to see where things would go.
I would prefer not to have to loosen the headers because I don’t want to mess up the gasket. I will unbolt the other side and see if that helps. Also sorry I wasn’t clear I wasn’t talking about the EVAP canister but the electrical connector in the bottom left.


opihinalu

Member
Feb 10, 2021
119
7
18
19
Florida
The header and the flare on the h pipe are going to leak a lot unless they are better lined up. You are lucky the stud is not longer. JD Jr. has what should be the right answer.
If that does not work, the Intermediate pipe will need adjusted for the right header flange spacing.
But if I tighten those nuts down it won’t leak correct? The ball socket will be lined up as long as the bolts are in the right spot correct? I will try loosening the x pipe on the other side and sliding it into place. Thanks.


7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
5,805
2,076
194
Kearney, NE
But if I tighten those nuts down it won’t leak correct? The ball socket will be lined up as long as the bolts are in the right spot correct? I will try loosening the x pipe on the other side and sliding it into place. Thanks.
The nuts only hold it in place once things are lined up. Not fully tightening exhaust parts into it all fits together right is an important trick.
The studs are not there to bend parts into alignment by your superior will and mental telepathy. Although that would be a cool X-Men power to have. It should go better as JD says.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
21,118
7,363
203
polk county florida
The LX models have the fog light wiring in place I believe, I will look at my car when I go back out there later, the radiator is out right now so I should be able to see down there.


opihinalu

Member
Feb 10, 2021
119
7
18
19
Florida
The nuts only hold it in place once things are lined up. Not fully tightening exhaust parts into it all fits together right is an important trick.
The studs are not there to bend parts into alignment by your superior will and mental telepathy. Although that would be a cool X-Men power to have. It should go better as JD says.
Okay I see. So what is the final goal? Is it okay if the rubber is still visible or is it supposed to be completely covered by the flange? Sorry if these are nooby questions I have never done anything like this before.


opihinalu

Member
Feb 10, 2021
119
7
18
19
Florida
The LX models have the fog light wiring in place I believe, I will look at my car when I go back out there later, the radiator is out right now so I should be able to see down there.
Oh that makes sense that it would be for the fog lights because my car doesn’t have fog lights. Thanks.


7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
5,805
2,076
194
Kearney, NE
Isn’t there rubber on the ball socket?
No. Even if it was a gasket type exhaust joint, rubber would not be a temperature effective material in that location.
(So, don’t put rubber on your ball sockets or nuts.)

  • Haha
  • Agree
Reactions: 1 users

opihinalu

Member
Feb 10, 2021
119
7
18
19
Florida
No. Even if it was a gasket type exhaust joint, rubber would not be a temperature effective material in that location.
(So, don’t put rubber on your ball sockets or nuts.)
Yeah I realize that now I was looking at it in bad light and for some reason when I felt it it felt like rubber… but I see now it is metal.


2000xp8

SN Certified Technician
Aug 8, 2003
7,253
1,266
194
NJ
Is the x pipe one piece, or multiple?
One thing i've learned the hard way over the years is that you don't weld exhaust pipes and mid pipes should always be comprised of more than 1 piece (which is why i prefer the bassani 3 piece).
This may be the first time you are having this issue, but it won't be the last.


KRUISR

5 Year Member
Apr 16, 2015
1,036
414
103
51
Is the x pipe one piece, or multiple?
I agree. I have a MAC ProChamber that is a 2 piece set up. I install and hang the passenger side (keeping it a bit loose) and then install and connect the driver side. Work side to side and tighten everything up.


opihinalu

Member
Feb 10, 2021
119
7
18
19
Florida
Is the x pipe one piece, or multiple?
One thing i've learned the hard way over the years is that you don't weld exhaust pipes and mid pipes should always be comprised of more than 1 piece (which is why i prefer the bassani 3 piece).
This may be the first time you are having this issue, but it won't be the last.
I agree. I have a MAC ProChamber that is a 2 piece set up. I install and hang the passenger side (keeping it a bit loose) and then install and connect the driver side. Work side to side and tighten everything up.
I didn’t even know there was anything besides a 1 piece. Yeah my x-pipe is a 1 piece. That’s a problem isn’t it… i still is possible to get it on though correct?


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
21,118
7,363
203
polk county florida
Yeah you can get it on, just leave both sides loose and tighten up a little at a time swapping sides often.
Do you have the hangers under the trans mount?
