Megasquirt Digital Dash

stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,406
968
154
Has anyone used the LED lights for blinker and high beams?
Yes, you can wire in LED lights into the factory harness. You will wires the (-) to ground and the (+) to the indicator light on the factory harness since its a 12V+ when active.

  • Like
Reactions: DemonGT
  • Sponsors(?)


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,406
968
154
Very curious about this dash myself, they look really good! Is there a kit for the SN95+ cars? I think 94-2004 use same cluster size/design, just different wiring? Any option for the other "idiot lights" these cars have from the factory? ABS, Airbags, etc?

How is glare when sun is out etc?
Yes, you are correct that the 94-04 use the same cluster housing, so they are all the same dash wise. Most wire in LED Lights to the factory harness in the (-) to ground and the (+) to the indicator light as its 12V+ when active.

The screen has a matte anti-glare finish along with fitting in the factory location on the bezel for additional factory look/protection.

  • Like
Reactions: DemonGT

DemonGT

Founding Member
May 24, 2002
642
6
29
Sparta,WI
Visit site
Yes, you can wire in LED lights into the factory harness. You will wires the (-) to ground and the (+) to the indicator light on the factory harness since its a 12V+ when active.
Have you installed led lights in yours or have pics of anyone elses? I am wondering where some have put the led lights. How do the led lights
mount that you offer on your site?


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,406
968
154
Have you installed led lights in yours or have pics of anyone elses? I am wondering where some have put the led lights. How do the led lights
mount that you offer on your site?
The LED Light come pre-installed in the bezel with just a mounting holder. You can have them placed anywhere on the bezel desired, but most put them in the normal top L/R sides of the screen.

  • Like
Reactions: DemonGT

DemonGT

Founding Member
May 24, 2002
642
6
29
Sparta,WI
Visit site

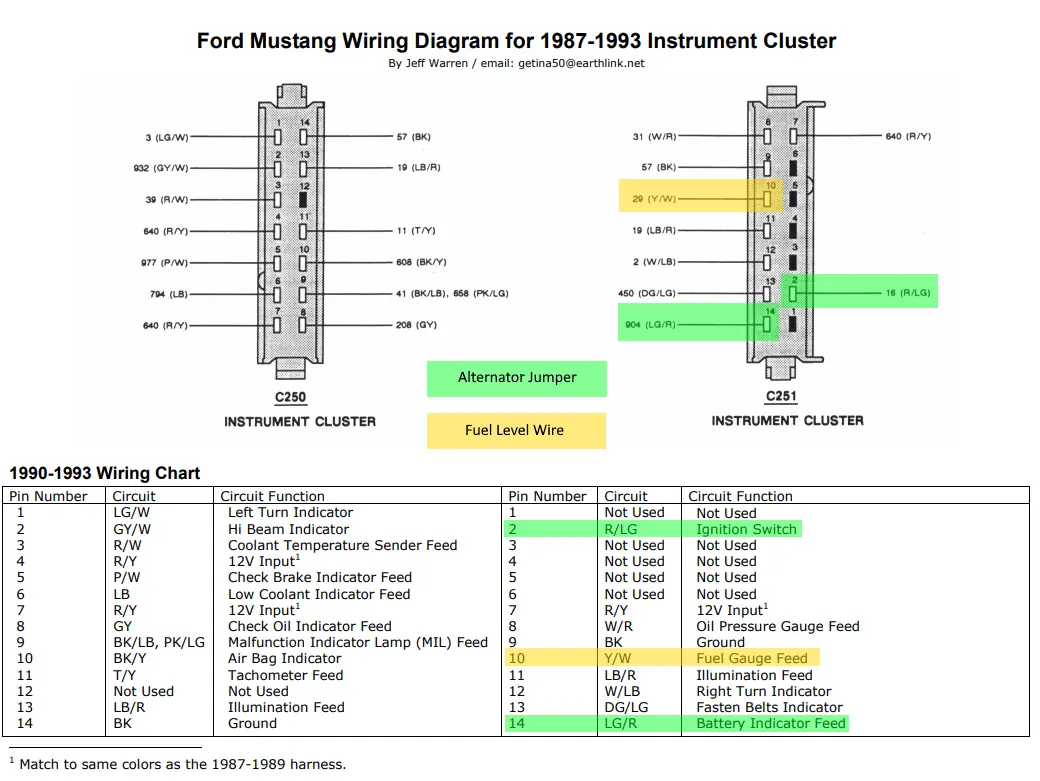

I was looking at a wiring diagram for the factory wire harnesses and it looks pretty straight forward
to tap into ground and blinker/high beam positives. My question is there is 12v input wiring can those wires from the
factory harnesses be used to power the digital dash?


stanglx2002

CT Material here
Mod Dude
Jul 7, 2005
1,406
968
154
I was looking at a wiring diagram for the factory wire harnesses and it looks pretty straight forward
to tap into ground and blinker/high beam positives. My question is there is 12v input wiring can those wires from the
factory harnesses be used to power the digital dash?
You can tap into the red/green wire of the factory harness for the 12V ignition source and ground to the dash's metal frame. But, you will need to tap into another source for 12V battery constant though, since there isnt a source in the factory harness.

  • Like
Reactions: DemonGT
