Ok. Painted up the fuse bracket. Got some junk in the clearcoat, but decided to send it anyway.

I should consider making a few of these and tossing them on eBay. See if there’s a market for folks who put 90-93 dashes in the 87-89 cars like I did....


  • Sponsors(?)


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,483
11,547
224
Massachusetts

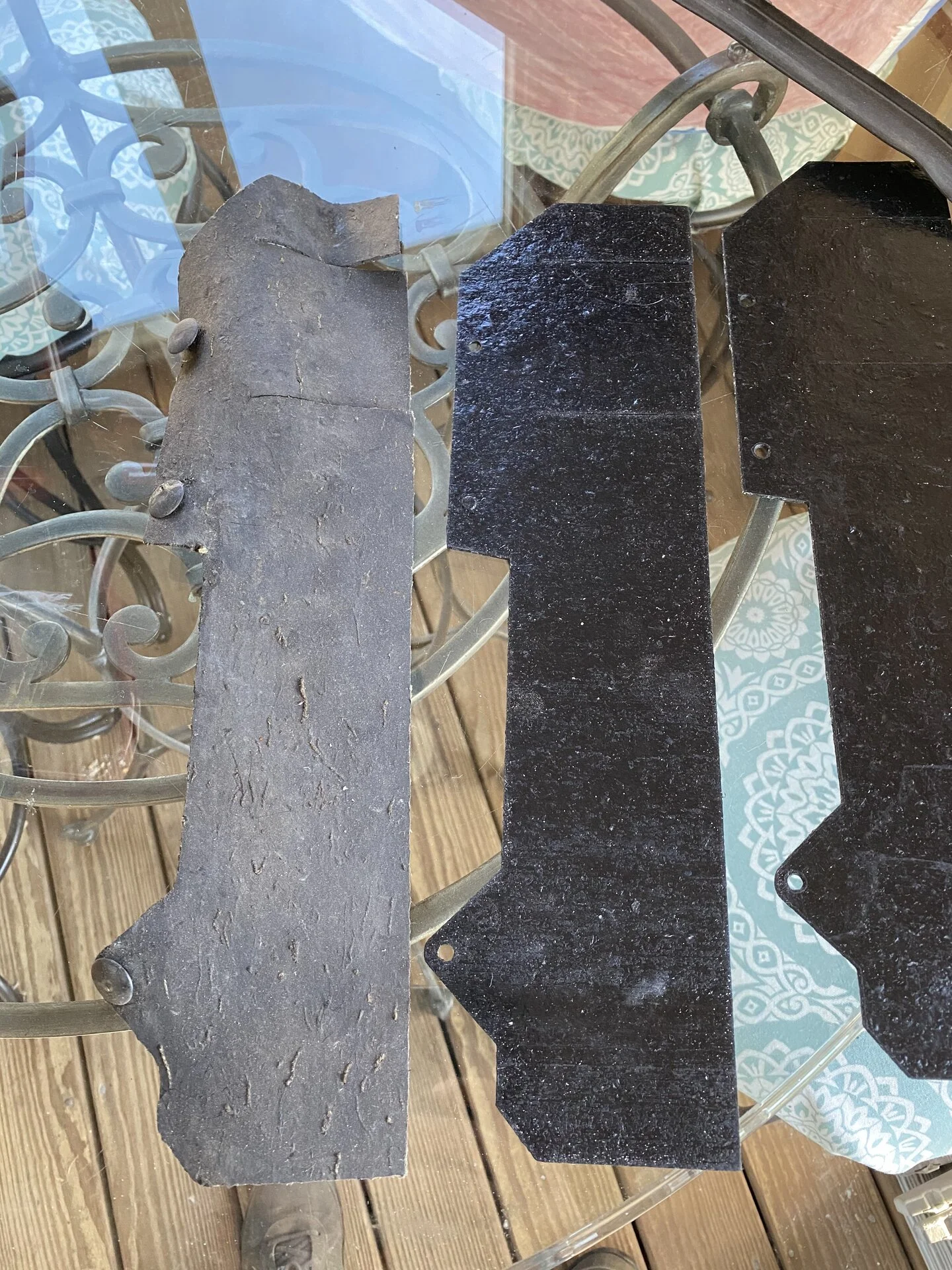

OCD. I would have truck bedliner sprayed the originals.


One was ripped and tattered. I really only had one to put back in. I could have just bought some rubber and cut the pattern out using the one I had as a template. If I had the luxury of time, I would have. But right now time is something i don't have a lot of. It's house project season.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,483
11,547
224
Massachusetts
Ok. Probably the only person to ever detail this, but why not.

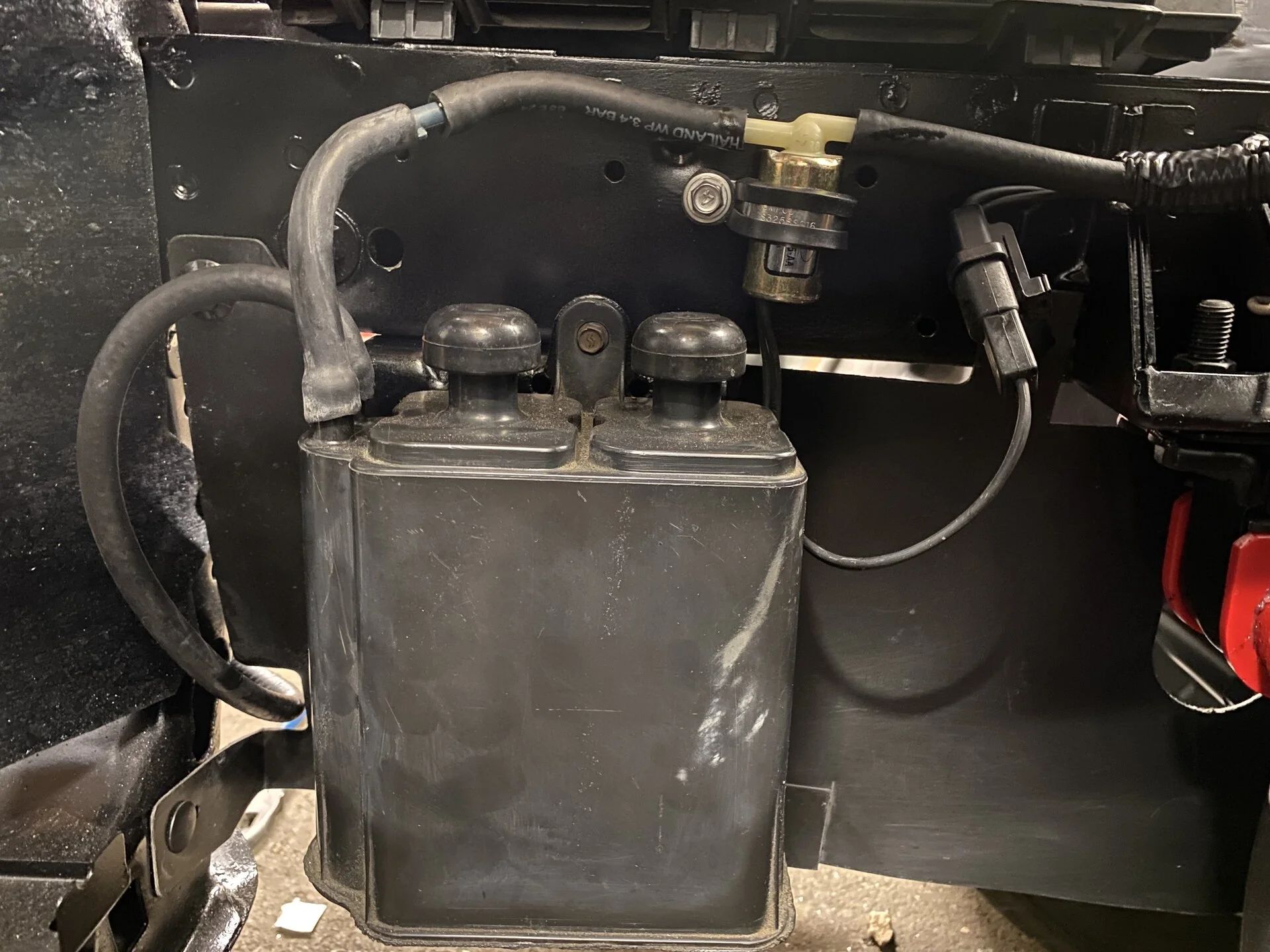

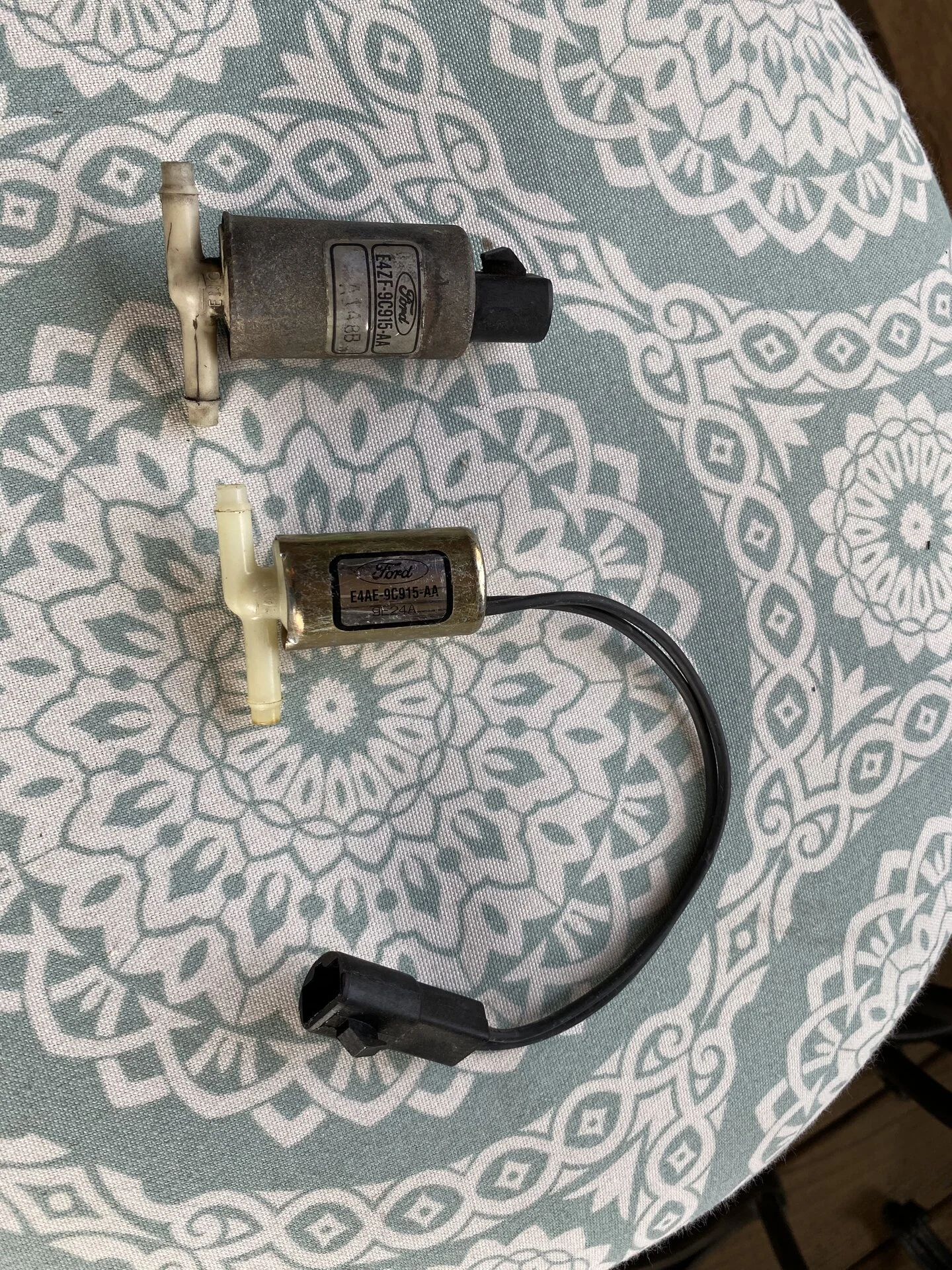

so I hop on eBay to find a nicer looking purge solenoid. I find an ‘84 truck solenoid that’s NOS and dirt cheap (gee I wonder why) it’s the same other than being a pigtail and smaller.

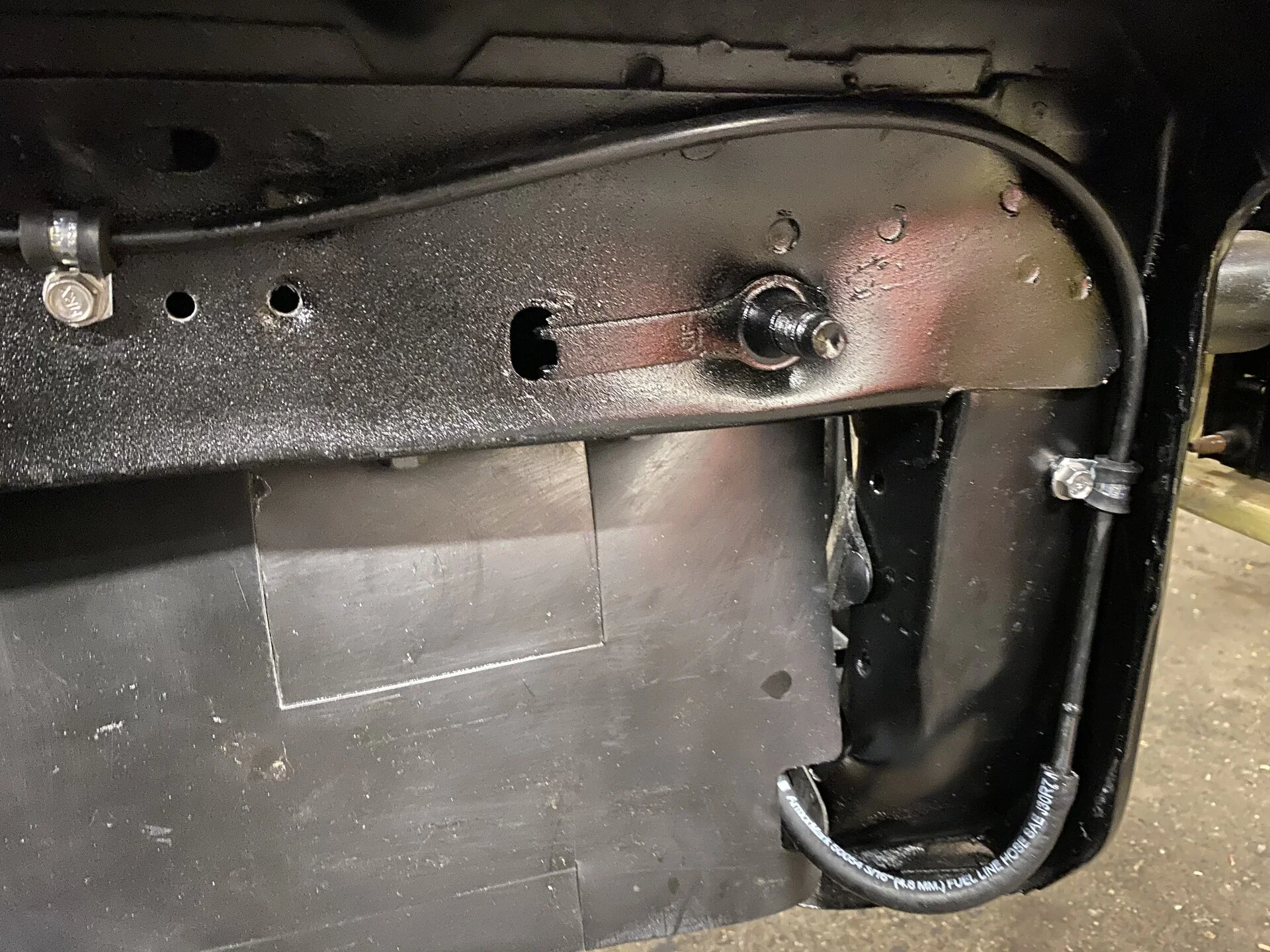

So I mounted it up the traditional way. I physically mounted the solenoid to the frame rail and ran the line from the tank around the outside of the rail
EA28C029-C4DB-47DD-9CB8-72B1CCC14FE8.jpeg 5EB7ADA2-B220-4F86-ADCE-85DF93C29513.jpeg

BUT as I was cleaning up, I had an idea to take advantage of the smaller size. I’m going to mount it behind the airbox and out of sight. I think it will be much cleaner. Unfortunately I didn’t feel like picking up a tool again tonight, so maybe I’ll try it tomorrow.

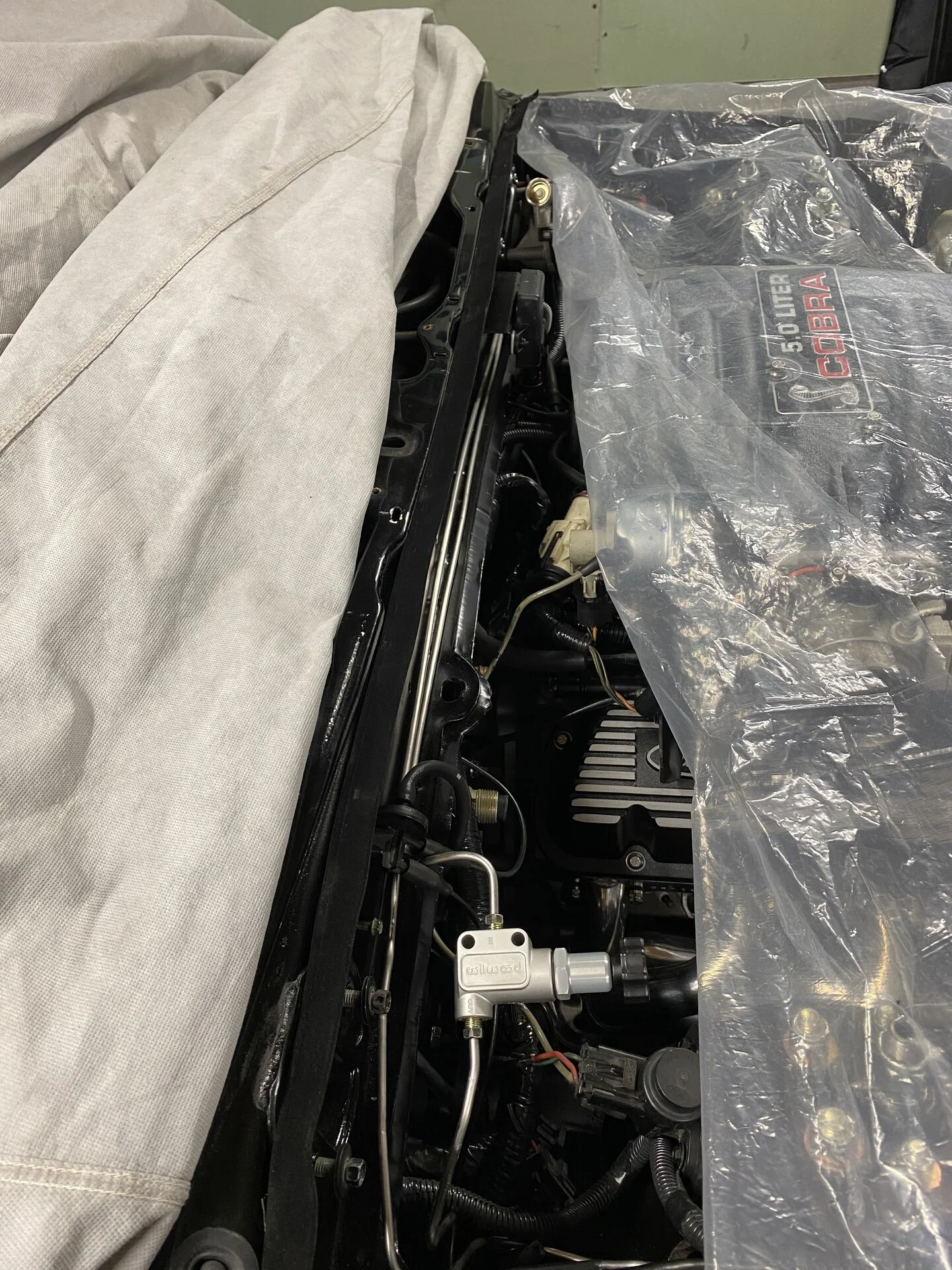

But, this completes all of the vac lines. I’m happy at how that came together. Now to focus on the wiring. Then I can at least put a battery in and power up the car. I need to clean up my fan wiring as well

I’ve also been making YouTube vids. :shrug: I’m no Brew2L though

Last edited:
  • Like
Reactions: RaggedGT

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,483
11,547
224
Massachusetts

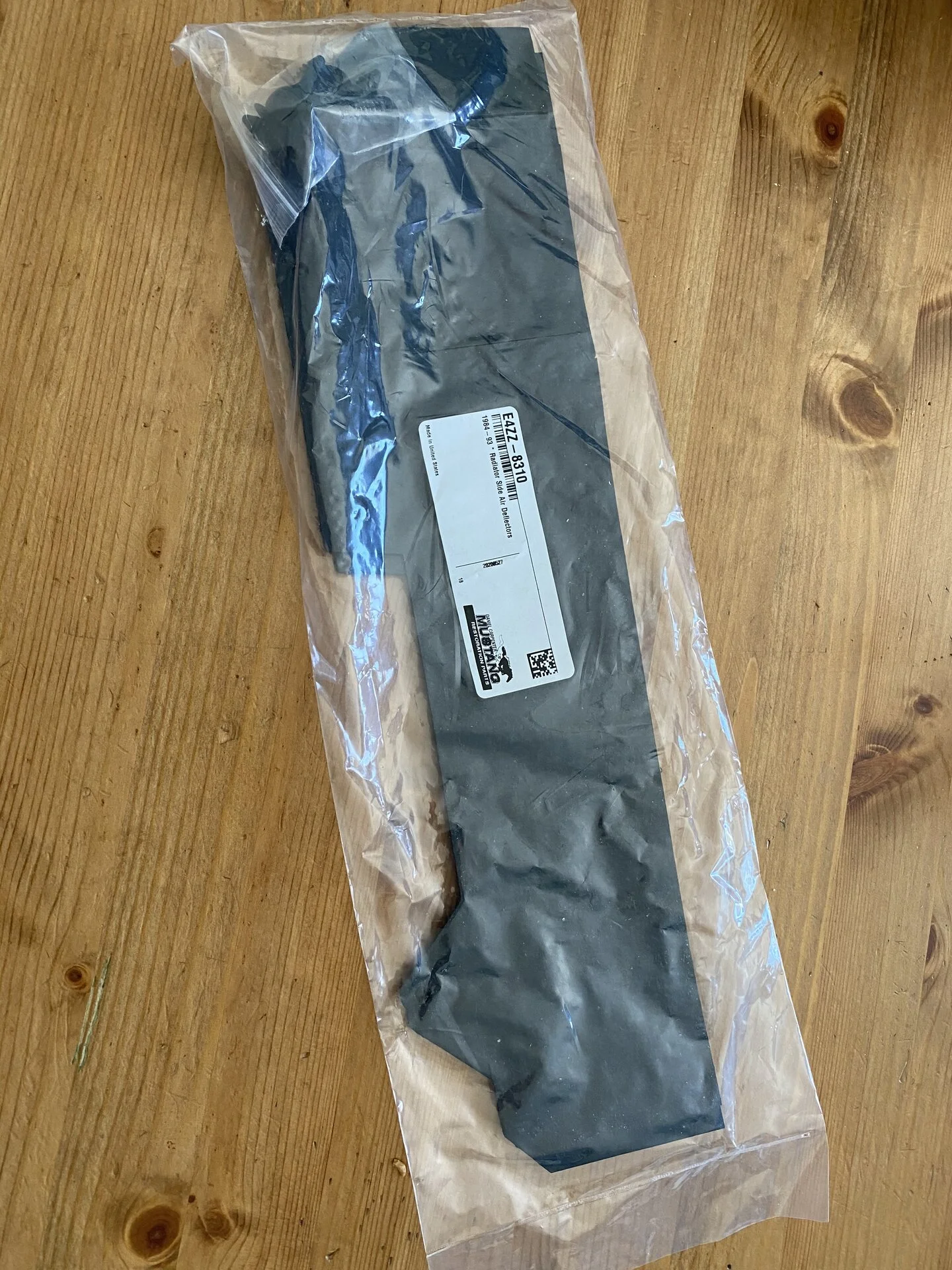

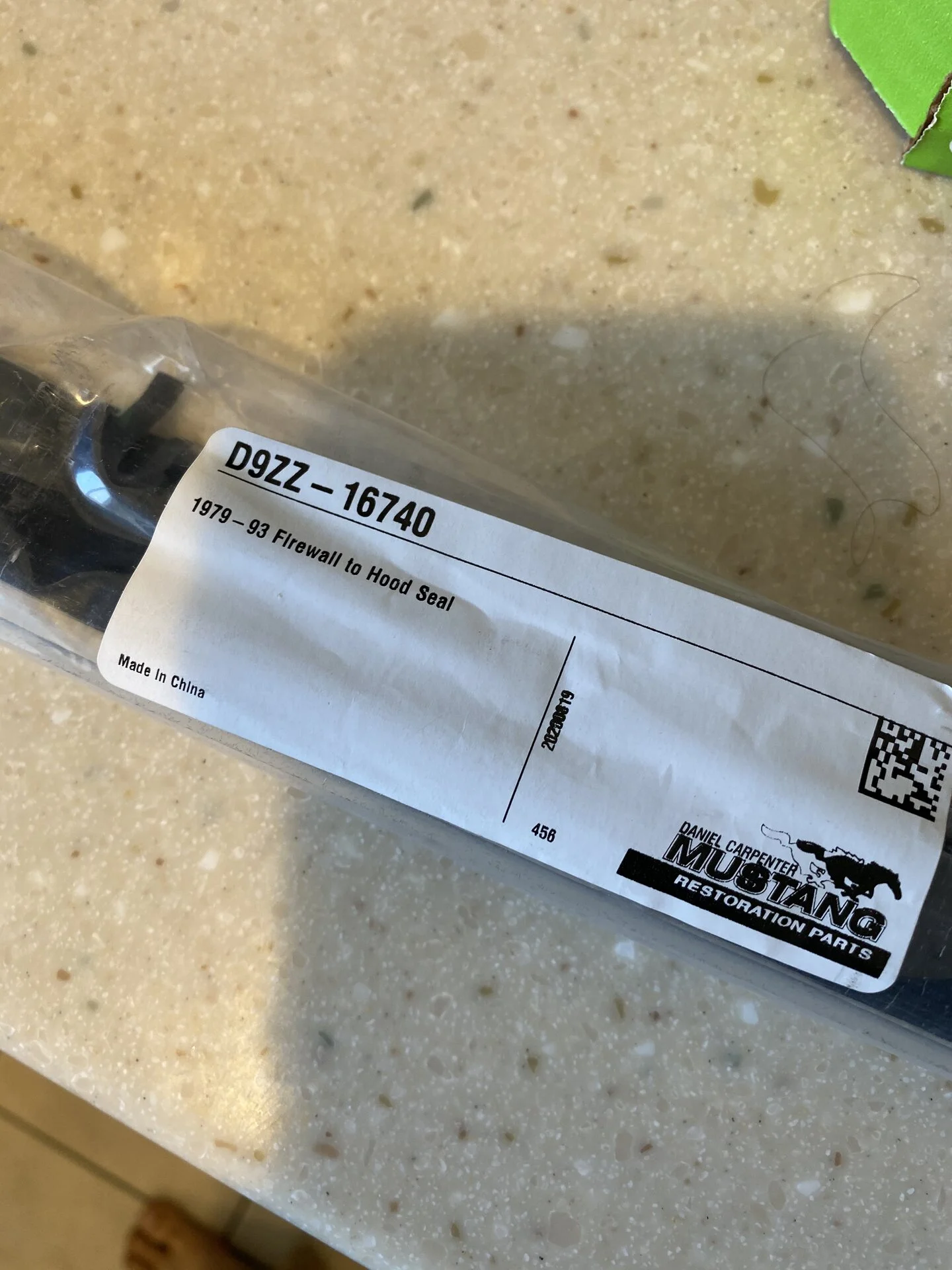

Some more odds and ends. New firewall seal. My original was FUBAR.



I’ll install and give my impressions later. Still trying to find some time to finish the wiring in this car. I need a solid day left alone to plan it through and make it happen. That never happens.

  • Like
Reactions: RaggedGT

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,483
11,547
224
Massachusetts
I guess it’s acceptable.

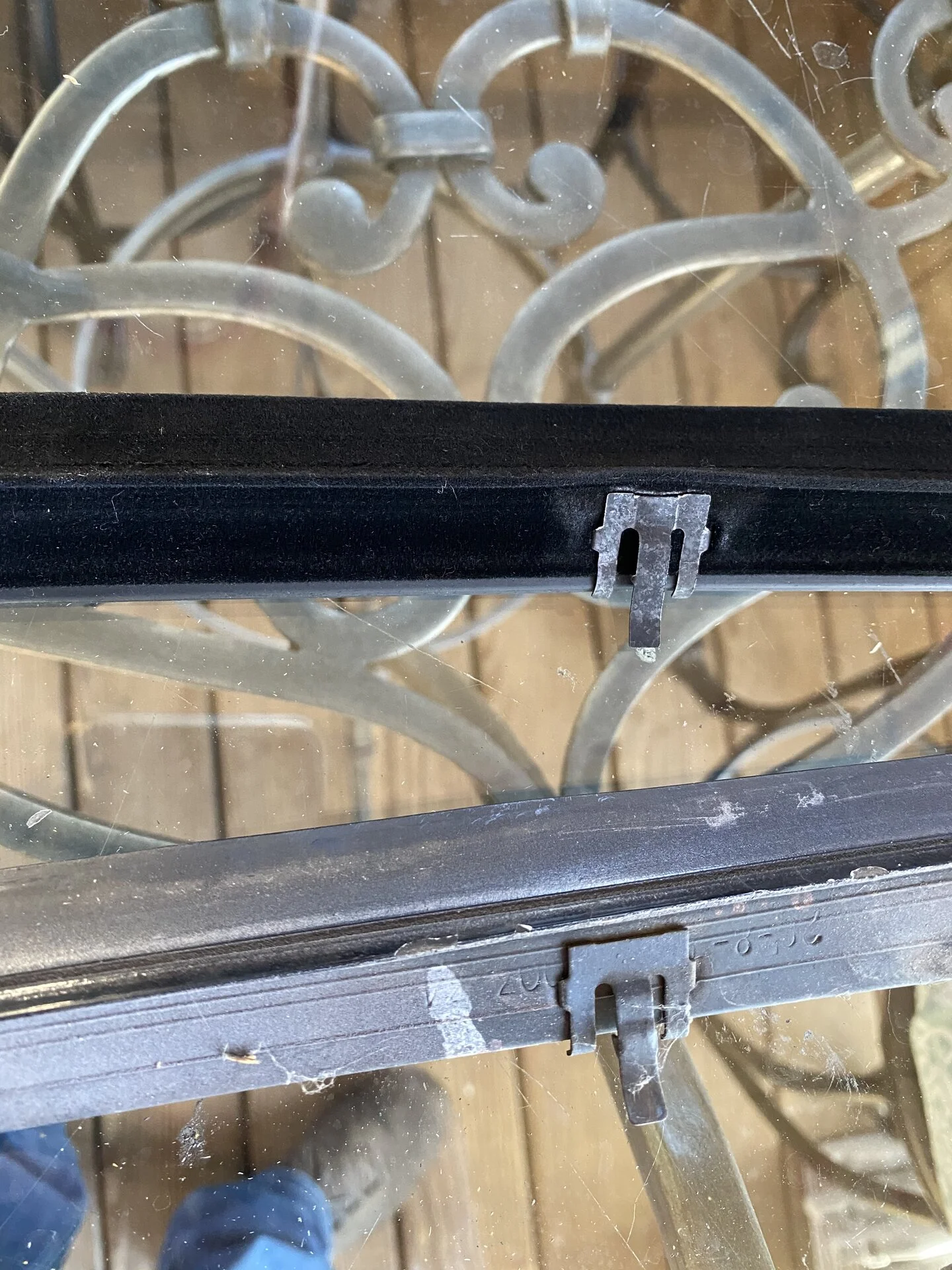

Material is more felt-like. During the install, one clip fell off, so I had to reinstall it back on. Other than that, straightforward.

  • Like
Reactions: 90sickfox

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
5,863
4,976
203
43
I hear those seals were bad with clips coming off. Makes me not want to buy it and I need one.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,483
11,547
224
Massachusetts
Yeah. Wasn’t thrilled with that. Felt like they should be more secure.

before tossing my original, I cut off the clips and saved them. Hopefully I won’t need them


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,483
11,547
224
Massachusetts

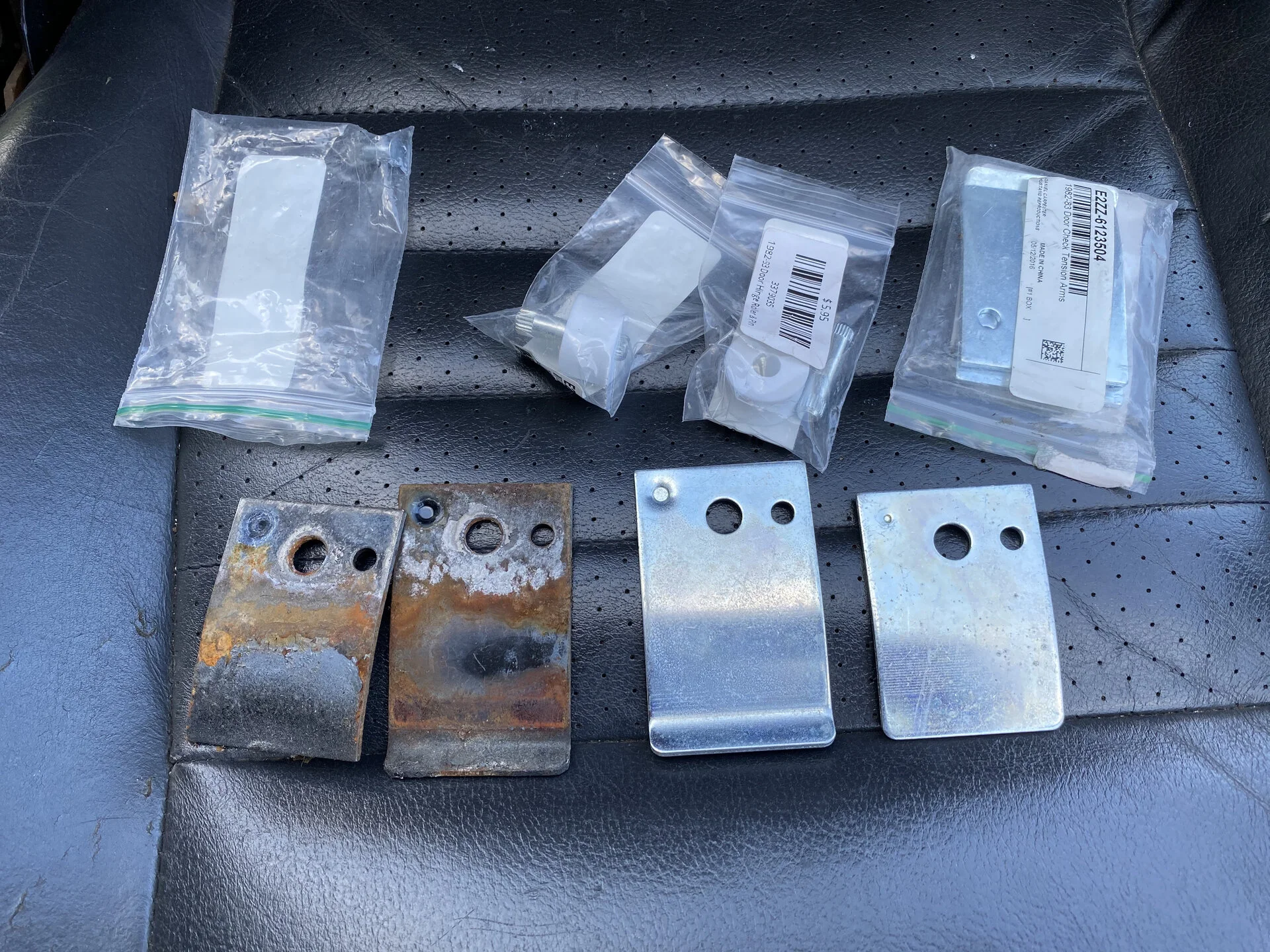

Decided to tackle the hinge roller and the tension spring. The one on my drivers door broke off years ago. Wanted to paint up the jambs since nice weather has returned as well.

getting the tension springs out with no fenders is easy. With a fender in place, no way I’d get it out with my grinder. Maybe a dremel?

the rollers are a different story. I can’t see how to get them in without removing the hinge pin and disassembling the hinge. The bottom hinges are in pristine shape, so I don’t want to cut out a good hinge. Need to stop and think about this for a minute



Reddevil91

10 Year Member
Mar 3, 2010
1,476
652
163
Got bored. Made a few vids.


1988 Mustang Engine Bay Restoration Overview
View: https://youtu.be/aCIyvlQwxRg



Recaro LS Seat Restored
View: https://youtu.be/VFo--cClgNg



Mustang hydroboost install on 302
View: https://youtu.be/QZS32MU1Nhs
Omg man those look great!! Between these and @2000xp8 im already super pumped about restoring mine. I’ll probably send mine off to where 2000xp8 sent his. I have one latch that is being a little lazy and those pieces you fab’d where they latch look great. The only thing I’m bummed about is he said they no longer emboss, or embroider the recaro, and instead use the button plates which I’ve seen on eBay. So you used the planted and 2000 went with wedge. Is there a difference between the two? I like those base or slider plastic coverings. The base I took off the LS-B seat had those.


Reddevil91

10 Year Member
Mar 3, 2010
1,476
652
163
Also what’s the plans with all those head rests especially the netted!! It’s crazy how it’s two completely different looks


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,483
11,547
224
Massachusetts
I dont know what the differences are between planted and wedge bases. I know you can get wedge bases with sliders, but was always curious about how the height difference were. Only way to really know is to do a side-by-side. Mine use the Recaro sliders

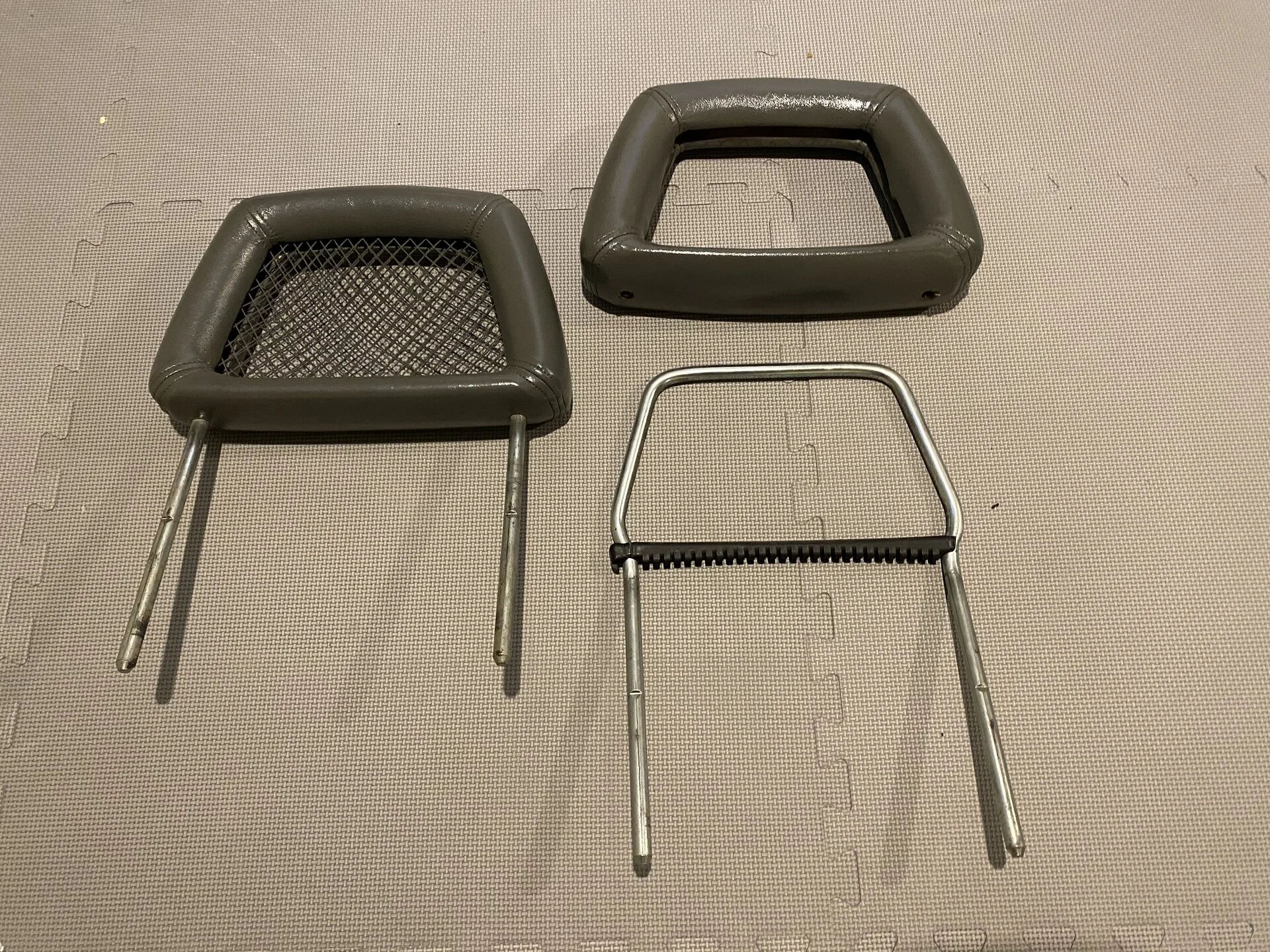

The headrests will get recovered at some point. I had a guy lined up but never pulled the trigger. I was too busy with the car so it’s on my agenda to do. Btw, here’s how they break down and why those smaller Recaro headrests couldn’t be modified to work. You can see the frame is u-shaped with a plastic “net holder”



Reddevil91

10 Year Member
Mar 3, 2010
1,476
652
163
I dont know what the differences are between planted and wedge bases. I know you can get wedge bases with sliders, but was always curious about how the height difference were. Only way to really know is to do a side-by-side. Mine use the Recaro sliders

The headrests will get recovered at some point. I had a guy lined up but never pulled the trigger. I was too busy with the car so it’s on my agenda to do. Btw, here’s how they break down and why those smaller Recaro headrests couldn’t be modified to work. You can see the frame is u-shaped with a plastic “net holder”

Ok now it makes sense why it wouldn’t work as I had planned in my head. dang these really harder to find than I thought. I even found a pair on eBay but the width of the bars is still to short. You have 3!! That’s a lucky strike you had on those.
