Need pics of Vac tree and components

[Mafia Mustang]

First of all, thanks! You guys always help me when I run into a problem.
Can anyone send me a pic a picture of the back of there engine on the passenger side so I can see there vacuum tree and where it goes Im kinda lost with all the smog stuff and vacuums.



[Roland69]

mine
View attachment 418327

some other pics from a 94 3.0 with a 5.0 swap....if they help any
View attachment 418329

View attachment 418331



[TENGRAM]

from left to right, the ports on the vac tree go to:
intake vacuum source, unused, i forget (sorry, i think either egr solenoid or the check valve leading to the interior), cruise control servo, brake booster


ohhhh! sorry i didn't read the whole post. let me see if i can find a pic of the stuff you're looking for.



[TENGRAM]

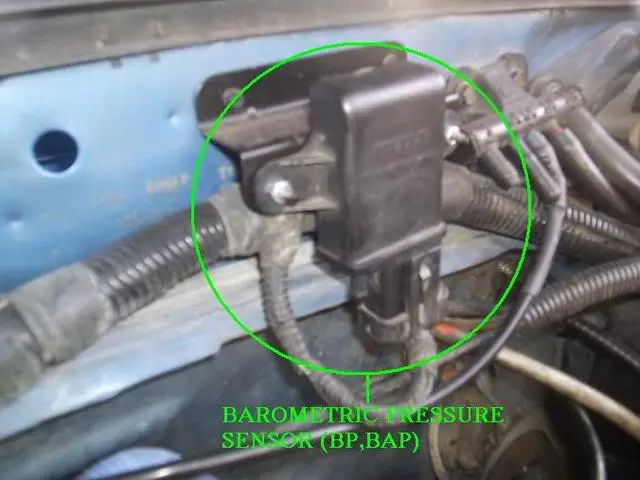

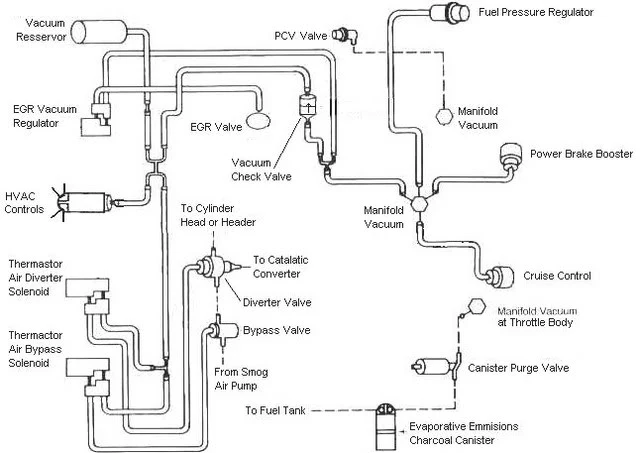

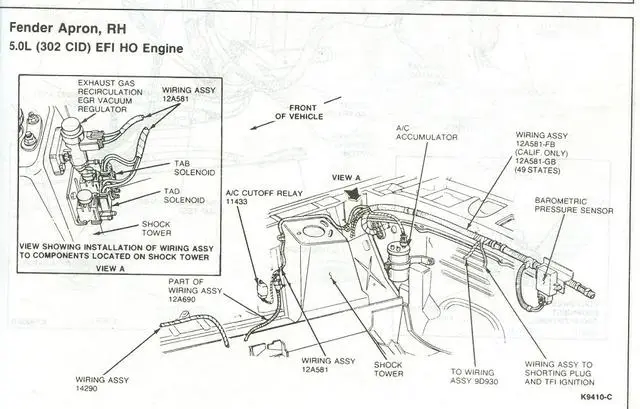

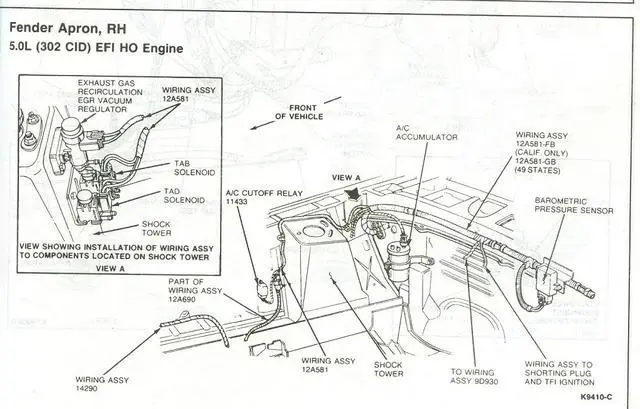

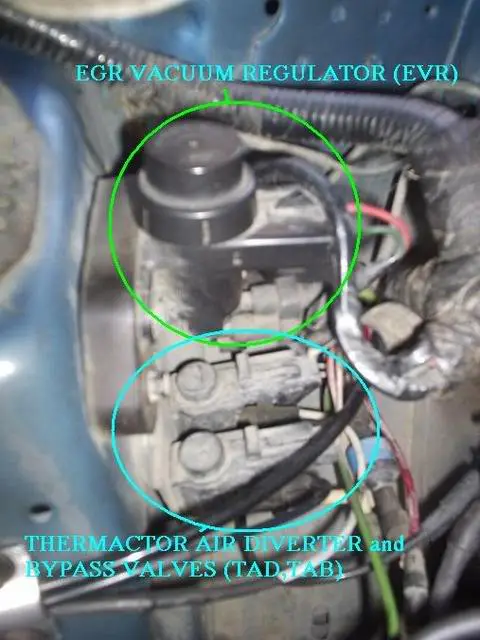

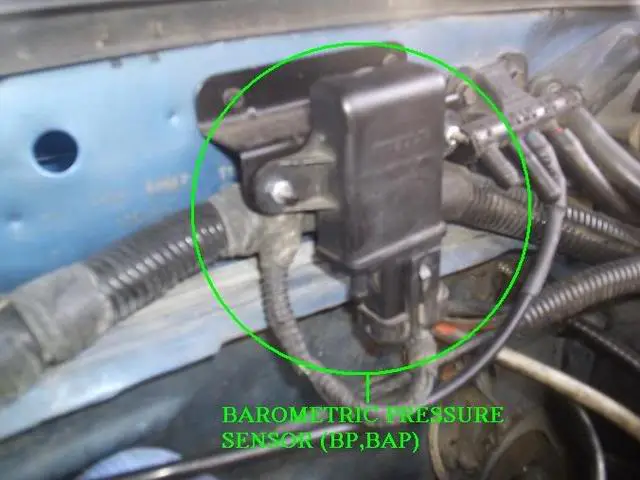

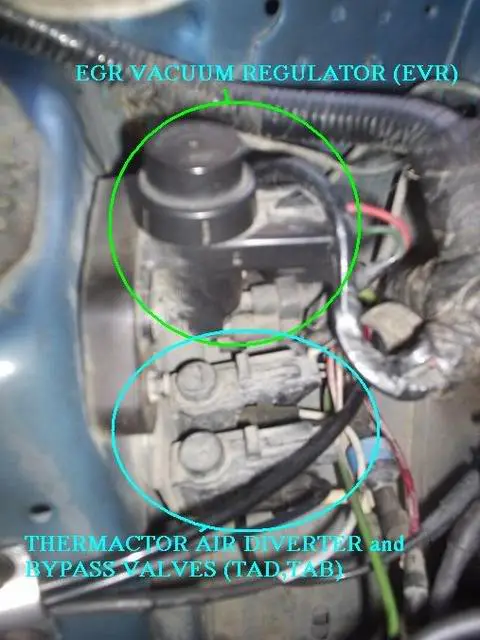

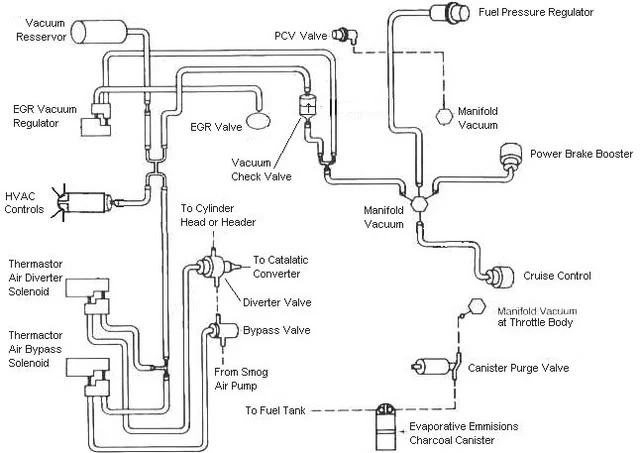

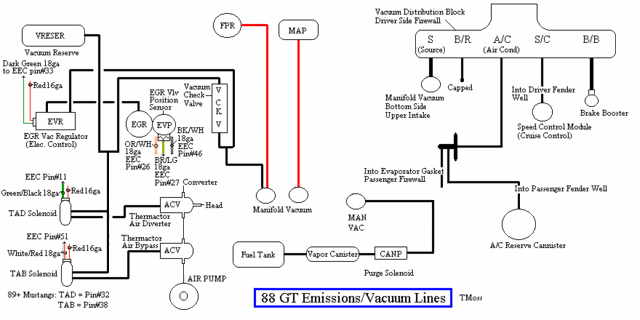

some diagrams, from TMoss
