Fox TFI module - 93 5.0 with AOD
- Thread starter Crigano
- Start date
-
Sponsors (?)
So, I’ve replaced the tfi module. One from Napa (echlin) and the other was Motorcraft. The motorcraft one kept the car running 10 seconds before it crapped out. The echlin kept the car running 5 minutes then crapped out.
I’ve changed the coil to the dg-470 during this process but don’t think that’s the issue as I put the original coil back in during these starting issues and saw no difference.
Where do I go from here? Is there something else I should change? The PIP as mentioned before?
Thanks!!
I’ve changed the coil to the dg-470 during this process but don’t think that’s the issue as I put the original coil back in during these starting issues and saw no difference.
Where do I go from here? Is there something else I should change? The PIP as mentioned before?
Thanks!!
rednotch
Founding Member
This why I said replace all three at the same time but to also check the wiring and to get all 3 smp from O'Reilly's if ones local, most people can not test a pip since the don't have a scope to watch the wave form signal, most shops don't even have one these days and will do exactly what you just did. They end up doing the easy tfi and coil and chasing an issue buying a cheap china loaded distributor and then giving up. Warranty the tfi's, buy an lx222 and pay a shop to rebuild the distributor if you don't have a press and puller set or the old Hexton 415 tool. The distributor needs to be disassembled to replace the ignition pick up, the gear needs to be pressed on and off to get to the pip, the wiring needs to be checked before you finish the repair and start it, wiggle test while checking continuity, visual inspect etc, 30 plus year old wiring you can't just trust it as being ok, many will rub threw and short in the section that runs under the intake and other parts of the harness. If your killing 2 TfI's in 5mins something is not happy, they should be identical parts under the cover plate.
Gotcha. Instead of rebuilding, is it easier just to replace the distributor with a new one? If so, what distributor should I get and from where? Not sure if the cost is the same to ‘rebuild’ once labor and parts are included.
I am fighting a no start no spark issue as well. I replaced the entire distributor with a Duralast unit with full warranty instead of pressing off the old distributor wheel and replacing the PIP. Figured a brand new unit would be better. I do have PIP signal now
I saw an MSD distributor that looked reasonable priced.
Street Fire 5594 Distributor, Street Fire, Ford 5.0L Mustang, '86-'93 with Module
All of the Street Fire components are spec'd by MSD engineers and designed to provide performance for the price. The quality of each part is backed up with a one year warranty! Supplied with Steel Gear.
www.holley.com
I'm just thinking it might be easier to get a new distributor with the TFI module installed already, rather than trying to find something that will work with something 30 years old. I did jiggle the wires with the old module installed and the car ran the same, no issues.
MSD units are junk. The stock Motorcraft are about the best ones out there. If it were me I would buy a brand new Cardone unit and then swap the PIP out with a Standard Igniton LX222 and one of your warrantied TFI modules and go on about your life. Its going to be over $125 but it will be right and not let you down.
rednotch
Founding Member
easier yes, worth it probbaly not, the new distributors are bottom of the barrel China $10 parts marked up to $80-$300 retail depending on who brands it I don't care if its AutoZone or the msd Street fire one (their billet one isn't that good either), its the same rich porter casting and cheap bearing design. They come with cheap electronics, a bearing that likes to seize up, roll pins that are pretty much pot metal and the gear isn't even a press fit. I have one that I use just as a spare Fd17, I wouldn't trust it if it gets driven hard and I replaced the pot metal roll pins. Oem is bushed, no bearing and press fit, way better part....
The oem remans are hit or miss if they replaced the pip or not, a loaded cardone reman i bought came with cheap trans pro tfi, and no name pip same stuff the China ones come with, I used it as a core to rebuild. I would rather rebuild an oem one with known parts. They are not hard at all to do, drive the roll pins out, then just need a way to press the gear on and off, pull the shaft, clean it up, unscrew the pip and replace, reinstall the shaft, press the gear back on, drive in the old roll pins or replace with coiled spring pins.. A cheap puller kit will work and heating the gear in boiling water and sticking the shaft in the freezer to slide it back if you lack a press, wear gloves or find an old Thexton 415 tool.. Theres one on fleabay at $25
rednotch
Founding Member
That is a 10 dollar Chinese part.....Same part, no sticker different ecthing on the same exact casting, same cap same rotor...... https://www.ebay.com/itm/3343264715...d=link&campid=5335821607&toolid=20001&mkevt=1I saw an MSD distributor that looked reasonable priced.
Street Fire 5594 Distributor, Street Fire, Ford 5.0L Mustang, '86-'93 with Module
All of the Street Fire components are spec'd by MSD engineers and designed to provide performance for the price. The quality of each part is backed up with a one year warranty! Supplied with Steel Gear.
I'm just thinking it might be easier to get a new distributor with the TFI module installed already, rather than trying to find something that will work with something 30 years old. I did jiggle the wires with the old module installed and the car ran the same, no issues.
This is what investment firms have turned the performance industry into..
rednotch
Founding Member
You have a miss fire with the current tfi but it still works, and you killed two motorcrafts in under 6 mins, one just branded by napa what's the current tfi your trying to replace? Can you take a picture of it? It runs but miss fires right.
I'm guessing the current tfi just has the stamped internal leads that can handle the draw from the issue. Where the motorcraft won't by design and acted like a fuse.
I'm guessing the current tfi just has the stamped internal leads that can handle the draw from the issue. Where the motorcraft won't by design and acted like a fuse.

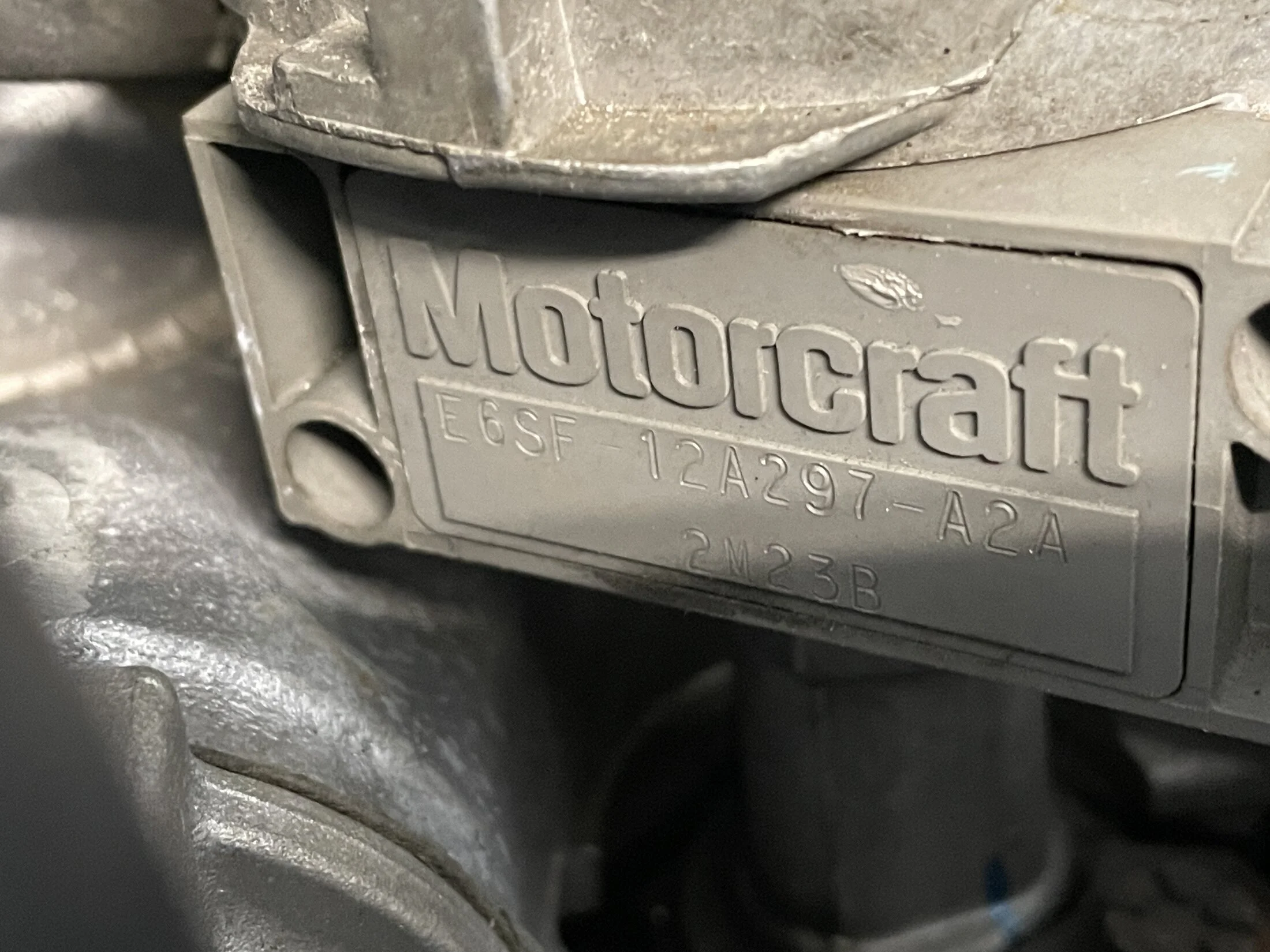

This is the one I have now. I'm searching all over the place for this part number and keep getting the "newer" replacement part number. I called ford and they said they could get this one for $178 but, i doubt it's this exact one.
Yes, this one works but the misfire occurs are 3500-4K RPM.
Attachments
rednotch
Founding Member
Only place your finding those is Nos, the leads inside the older motorcraft can handle more draw then the new ones if you look at the guts thread, betting they melted on the new ones. Just Finding one won't fix it.
Thanks. Also going to check out some salvage yards. Maybe someone has one that has very low mileage
Last edited:
I went through this locating a spare for my Coupe in the salvage yards and made a list of all the cars that had the distributor body that would work. This list is only meant for locating the body not the electronics. I grabbed a Ford TFI and PIP and then just set it all aside rather than assembling one. I have not done this in a few years so going off memory (tried a search and came up with nothing) but if you find a complete Mustang distributor you can test it by unplugging the TFI from the distributor in your car and plug it back in to the used one, put the car in neutral or park, turn the ignition on, go back out under the hood and spin the distributor gear and you should hear the injectors fire. Someone correct me if I am wrong or missing step here. I did this years ago chasing an ignition issue which turned out to be the PIP.
Anyhow here is the distributor body list (corrections or additions are welcomed):
Ford
Country Squire Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Country Squire LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
LTD Country Squire LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
LTD Country Squire with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
LTD Crown Victoria Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
LTD Crown Victoria LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1991
LTD Crown Victoria S with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
LTD Crown Victoria with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Mustang GT with 5.0L 302ci GAS MFI vin E - 2 valve OHV 1987-1993
Mustang GT with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986
Mustang LX with .0L 302ci GAS MFI vin E - 2 valve OHV 1987-1993
Mustang LX with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986
Mustang SVT Cobra R with 5.0L 302ci GAS MFI vin D - 2 valve OHV 1993
Mustang SVT Cobra with 5.0L 302ci GAS MFI vin D - 2 valve OHV 1993
Thunderbird Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Thunderbird ELAN with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Thunderbird LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Thunderbird Sport with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Lincoln
Continental Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Continental Givenchy with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Mark VII Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Mark VII Bill Blass with 5.0L 302ci GAS MFI vin E - 2 valve OHV 1988-1992
Mark VII Bill Blass with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Mark VII LSC with 5.0L 302ci GAS MFI vin E - 2 valve OHV 1988-1992
Mark VII LSC with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986-1987
Town Car Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1990
Town Car Cartier with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1990
Town Car Cypress with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1990
Town Car Executive with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1990
Town Car Signature SE with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1989
Town Car Signature with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1990
Town Car Touring Edition with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1990
Mercury
Capri 5.0 with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986
Colony Park GS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Colony Park LS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Cougar Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Cougar LS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Cougar XR-7 with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1988
Grand Marquis Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Grand Marquis Colony Park with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Grand Marquis GS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Grand Marquis LS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1991
Anyhow here is the distributor body list (corrections or additions are welcomed):
Ford
Country Squire Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Country Squire LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
LTD Country Squire LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
LTD Country Squire with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
LTD Crown Victoria Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
LTD Crown Victoria LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1991
LTD Crown Victoria S with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
LTD Crown Victoria with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Mustang GT with 5.0L 302ci GAS MFI vin E - 2 valve OHV 1987-1993
Mustang GT with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986
Mustang LX with .0L 302ci GAS MFI vin E - 2 valve OHV 1987-1993
Mustang LX with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986
Mustang SVT Cobra R with 5.0L 302ci GAS MFI vin D - 2 valve OHV 1993
Mustang SVT Cobra with 5.0L 302ci GAS MFI vin D - 2 valve OHV 1993
Thunderbird Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Thunderbird ELAN with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Thunderbird LX with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Thunderbird Sport with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Lincoln
Continental Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Continental Givenchy with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Mark VII Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Mark VII Bill Blass with 5.0L 302ci GAS MFI vin E - 2 valve OHV 1988-1992
Mark VII Bill Blass with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1987
Mark VII LSC with 5.0L 302ci GAS MFI vin E - 2 valve OHV 1988-1992
Mark VII LSC with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986-1987
Town Car Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1990
Town Car Cartier with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1990
Town Car Cypress with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1990
Town Car Executive with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1990
Town Car Signature SE with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1989
Town Car Signature with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1990
Town Car Touring Edition with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1990
Mercury
Capri 5.0 with 5.0L 302ci GAS MFI vin M - 2 valve OHV 1986
Colony Park GS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Colony Park LS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Cougar Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Cougar LS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1988
Cougar XR-7 with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1988
Grand Marquis Base with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Grand Marquis Colony Park with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986
Grand Marquis GS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1987-1991
Grand Marquis LS with 5.0L 302ci GAS MFI vin F - 2 valve OHV 1986-1991
