Whats a good power source nearby the passenger side kick panel?

BlueOvalStangGT

Active Member

Oct 27, 2003

2,849

0

46

Tampa Florida....USF!!!

May 16, 2006

#1

• May 16, 2006

• #1

Right now, I have my wideband, fuel pressure/boost gauges, radar detector, white face guages and probably more all wired to a fuse in my fusebox. Its pretty ghetto, the power wire is jammed up in there but it works. I bought a fuse block from Advance, and now I want to do it right. Where should I get the power from under there? It needs to be an source thats turns on when ignition is on.



BlueOvalStangGT

Active Member

Oct 27, 2003

2,849

0

46

Tampa Florida....USF!!!

May 18, 2006

#2

• May 18, 2006

• #2

TTT



BlackVert

15 Year Member

Oct 3, 2003

5,589

9

98

Bethesda, MD

May 18, 2006

#3

• May 18, 2006

• #3

how about tapping into the cigarette lighter under the radio and running the wire behind the glove compartment? or the light for the glove compartment?



BlueOvalStangGT

Active Member

Oct 27, 2003

2,849

0

46

Tampa Florida....USF!!!

May 18, 2006

#4

• May 18, 2006

• #4

Because thats always on, and would drain my battery.



BlackVert

15 Year Member

Oct 3, 2003

5,589

9

98

Bethesda, MD

May 18, 2006

#5

• May 18, 2006

• #5

BlueOvalStangGT said:

Because thats always on, and would drain my battery.

Click to expand...

i did not know that the lighter and glove compartment wires were always hot. that's good info to know.



BlueOvalStangGT

Active Member

Oct 27, 2003

2,849

0

46

Tampa Florida....USF!!!

May 18, 2006

#6

• May 18, 2006

• #6

Yeah, I learned the hard way. My wideband used to be wired to that and I had to pull my shifter bezel out and unplug it everytime i parked the car.



mootang

New Member

Dec 5, 2004

907

0

0

texas

May 19, 2006

#7

• May 19, 2006

• #7

what about the ignition wire.



BlackVert

15 Year Member

Oct 3, 2003

5,589

9

98

Bethesda, MD

May 19, 2006

#8

• May 19, 2006

• #8

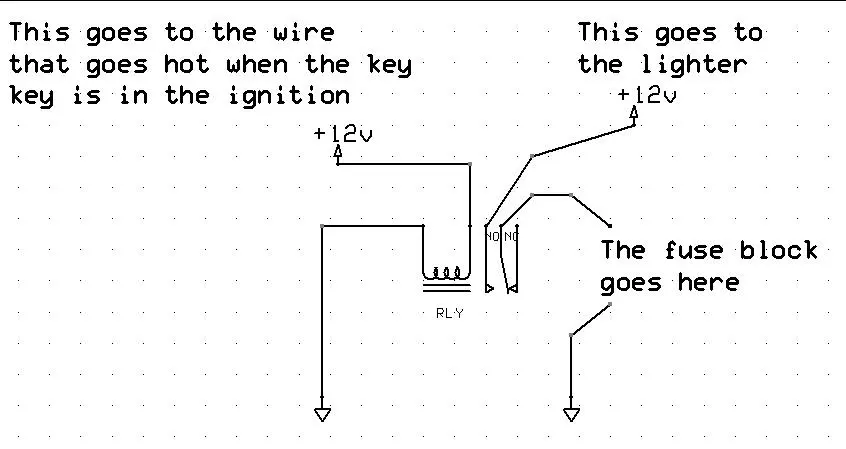

so use a relay with it. hook the new fuse block to the "normally closed" circuit (using the lighter) and T off the power supply for the radio for the coil.



BlackVert

15 Year Member

Oct 3, 2003

5,589

9

98

Bethesda, MD

May 19, 2006

#9

• May 19, 2006

• #9

like this ...



Attachments

• fuse_block.webp

  20.3 KB · Views: 141

91LX_5L

Founding Member

May 13, 2002

1,943

0

36

British Columbia

May 19, 2006

#10

• May 19, 2006

• #10

Pull out your heating/ac controls, take out the screws then splice into the back of one of the 12v ignition powered wires that go to them. Simple and clean.



BlackVert

15 Year Member

Oct 3, 2003

5,589

9

98

Bethesda, MD

May 19, 2006

#11

• May 19, 2006

• #11

91LX_5L said:

Pull out your heating/ac controls, take out the screws then splice into the back of one of the 12v ignition powered wires that go to them. Simple and clean.

Click to expand...

that works too but is it fused, and if so, what is the amperage of the fuse and will it blow if you have it all going at the same time?



91LX_5L

Founding Member

May 13, 2002

1,943

0

36

British Columbia

May 19, 2006

#12

• May 19, 2006

• #12

humm my tach is wired in there and I havent had a problem. but ya what he wants is gonna be a pretty big draw, never thought of that.
