Like the title says. With no VSS and EGR would the engine still run properly? Would the ECU compensate for that or would it even effect the operation? '93 5.0/AOD.
Kinda vague.....I know!
Kinda vague.....I know!
Engine Would a disconnected VSS and EGR effect engine function?
- Thread starter evintho
- Start date
-
Sponsors (?)
Yes VSS is definite must for the anti stall strategy. It’s also used for cruise control.
The EGR is not a huge deal but will throw the tune slightly off under certain conditions. You can turn it off in a tune.
The EGR is not a huge deal but will throw the tune slightly off under certain conditions. You can turn it off in a tune.
Thanks guys! If it makes any difference, I'll have an EGR block off plate on the TB.
Also, on the VSS according to my wiring diagram #679 is the feed from the ECU to the speed amplifier (which I assume is the cruise control) and #676 is the return line. There will be no speed amplifier on my project. Any way around this?
Also, on the VSS according to my wiring diagram #679 is the feed from the ECU to the speed amplifier (which I assume is the cruise control) and #676 is the return line. There will be no speed amplifier on my project. Any way around this?
What are you trying to do?
the VSS is a VR type sensor with just two wires. You just need those two wires connected to the right pins on the ECU.
the VSS is a VR type sensor with just two wires. You just need those two wires connected to the right pins on the ECU.
The wires are connected to the proper pins on the ECU. I just need to know what to do with the other ends of the wires being as I'll have no speed amplifier.
Can I just connect the feed and return wires together?
Can I just connect the feed and return wires together?

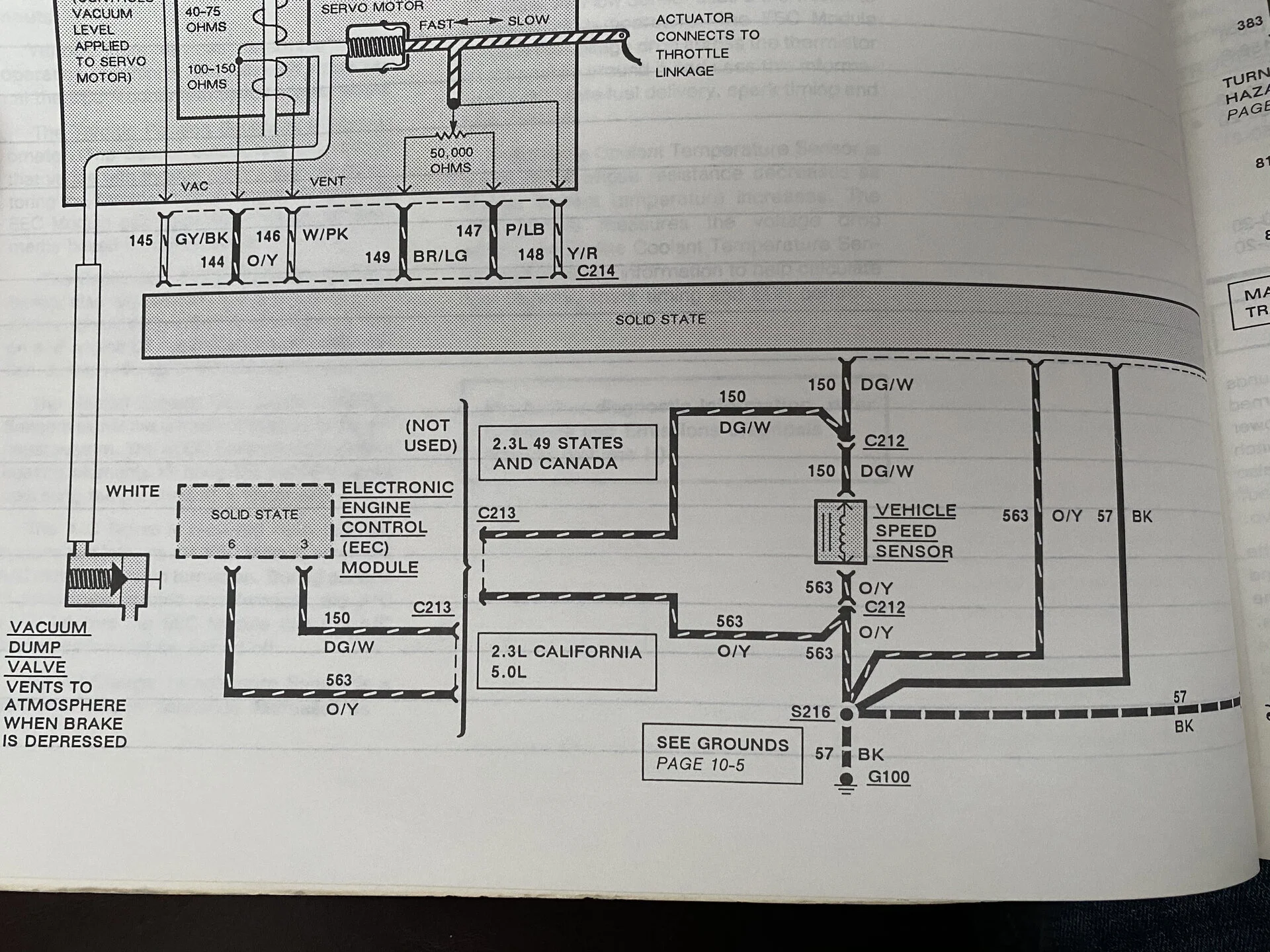

The ECU and speed control amplifier are wired separately
no need to do a thing. If you want to verify you can check continuity from VSS wires to pin 3 and 6 on the ECU
no need to do a thing. If you want to verify you can check continuity from VSS wires to pin 3 and 6 on the ECU
The following are diagrams courtesy of Tmoss & Stang&2birds
Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
5.0 wiring diagram for Fuel Injectors, Sensors, and Actuators
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring; http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.[/b]
TFI module wiring for 94-95 Mustang GT
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-IgnitionControlModule.gif
Complete computer, actuator & sensor wiring diagram for 94-95 Mustangs
Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs
5.0 wiring diagram for Fuel Injectors, Sensors, and Actuators
Main body EFI wiring harness
Ignition switch wiring
O2 sensor wiring harness
Vacuum diagram 89-93 Mustangs
HVAC vacuum diagram
TFI module differences & pin out
Fuse box layout
Mustang 5.0 Lights and Radio schematic, by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxLights-Radio_diag.gif
87-92 power window wiring
93 power window wiring
T5 Cutaway showing T5 internal parts
Visual comparison of the Ford Fuel Injectors, picture by TMoss:
Convertible top motor wiring http://www.veryuseful.com/mustang/tech/engine/images/mustang88VertTopMotorCkt.gif
Engine mounted fuel injector harness
Location of the TPS, IAB, and the 10-pin connectors on a 5.0, picture by TMoss:
Starter circuit
Alternator diagram for 94-95 Mustangs.
