Seriously, new avatar. :chin


  • Haha
  • Hell Yeah!
Reactions: 1 users
  • Sponsors(?)


95steedamustang

Easy to use in another rear end
SN Certified Technician
Apr 22, 2009
1,763
2,958
154
East TN

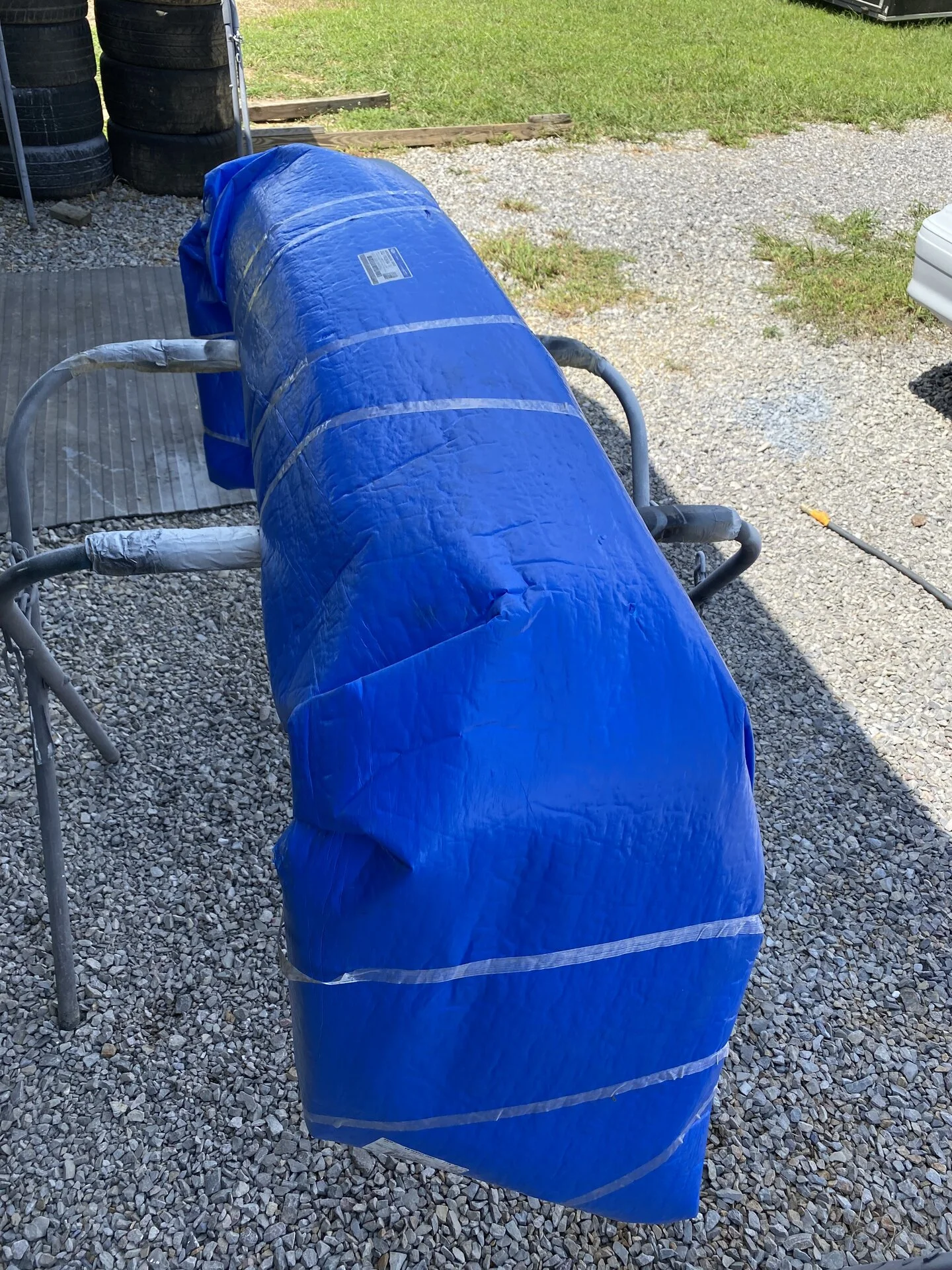

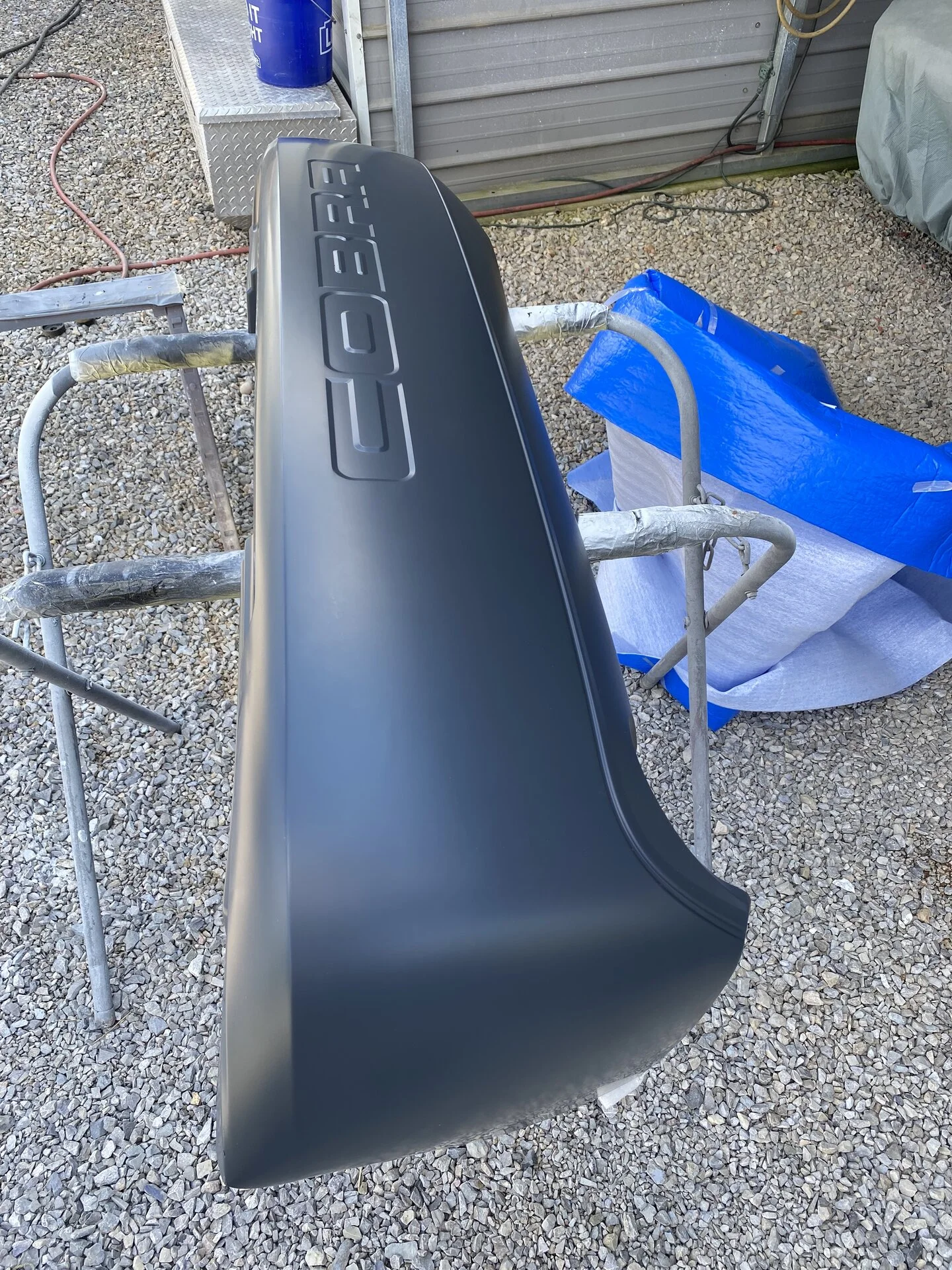

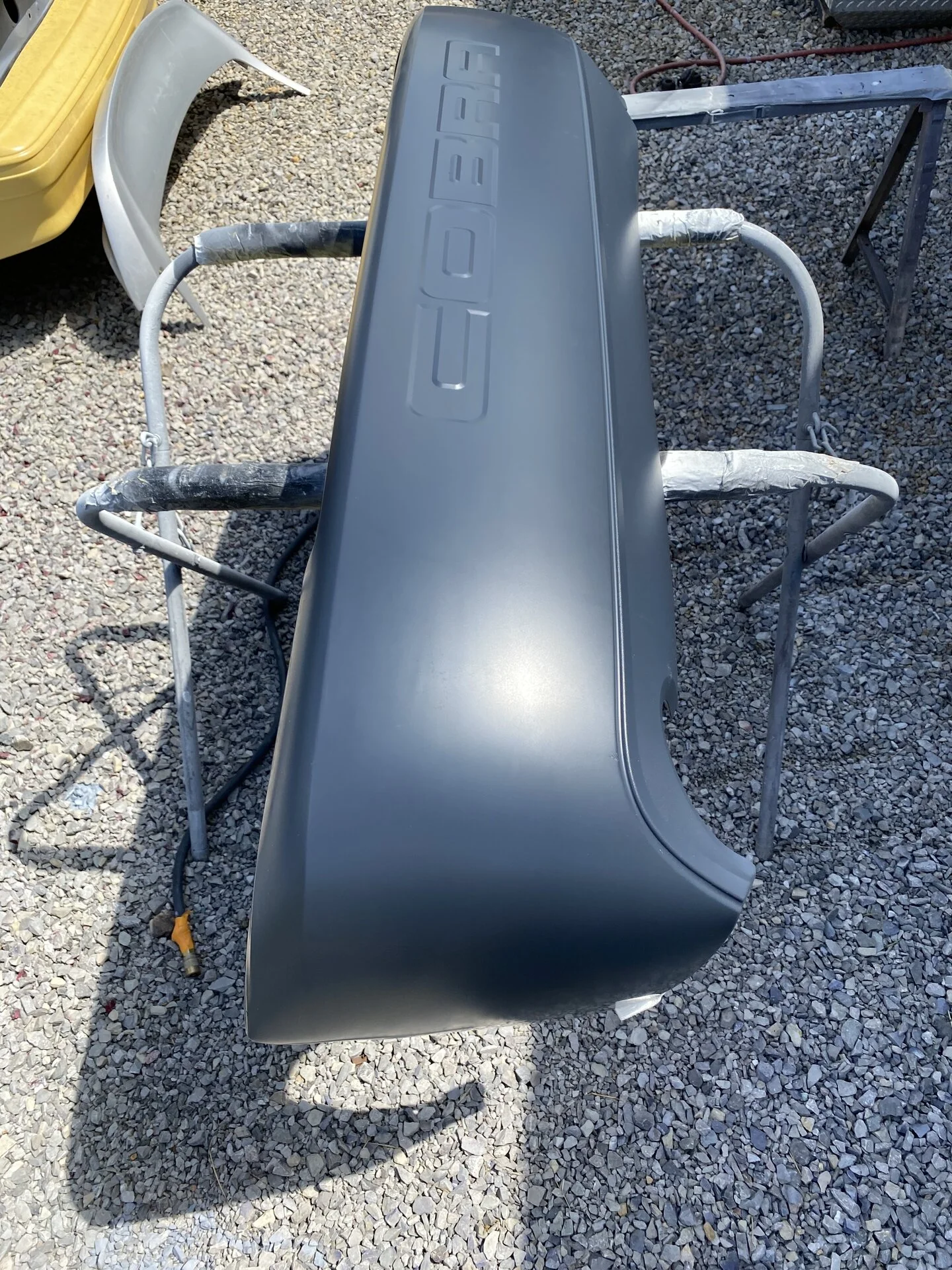

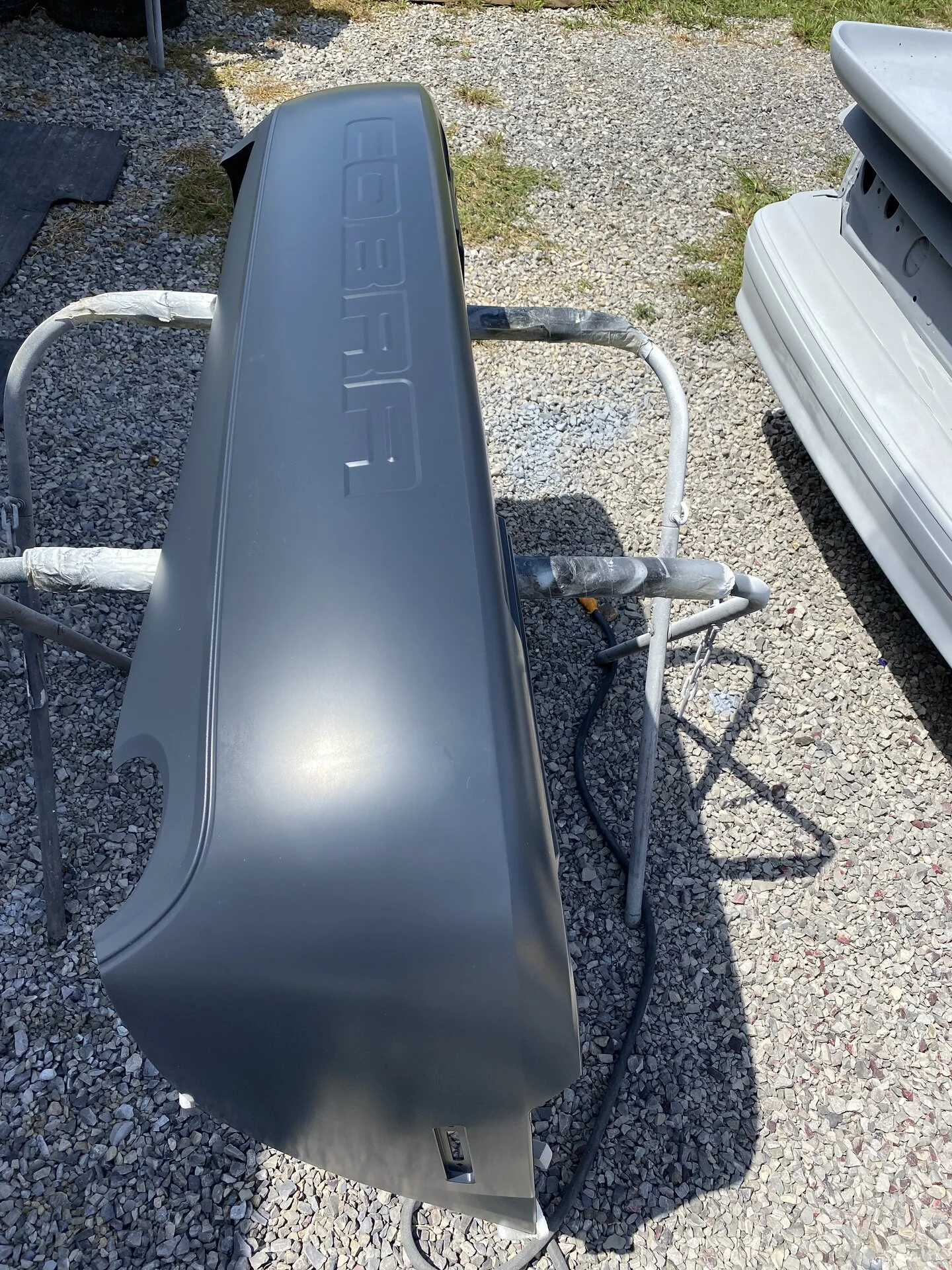

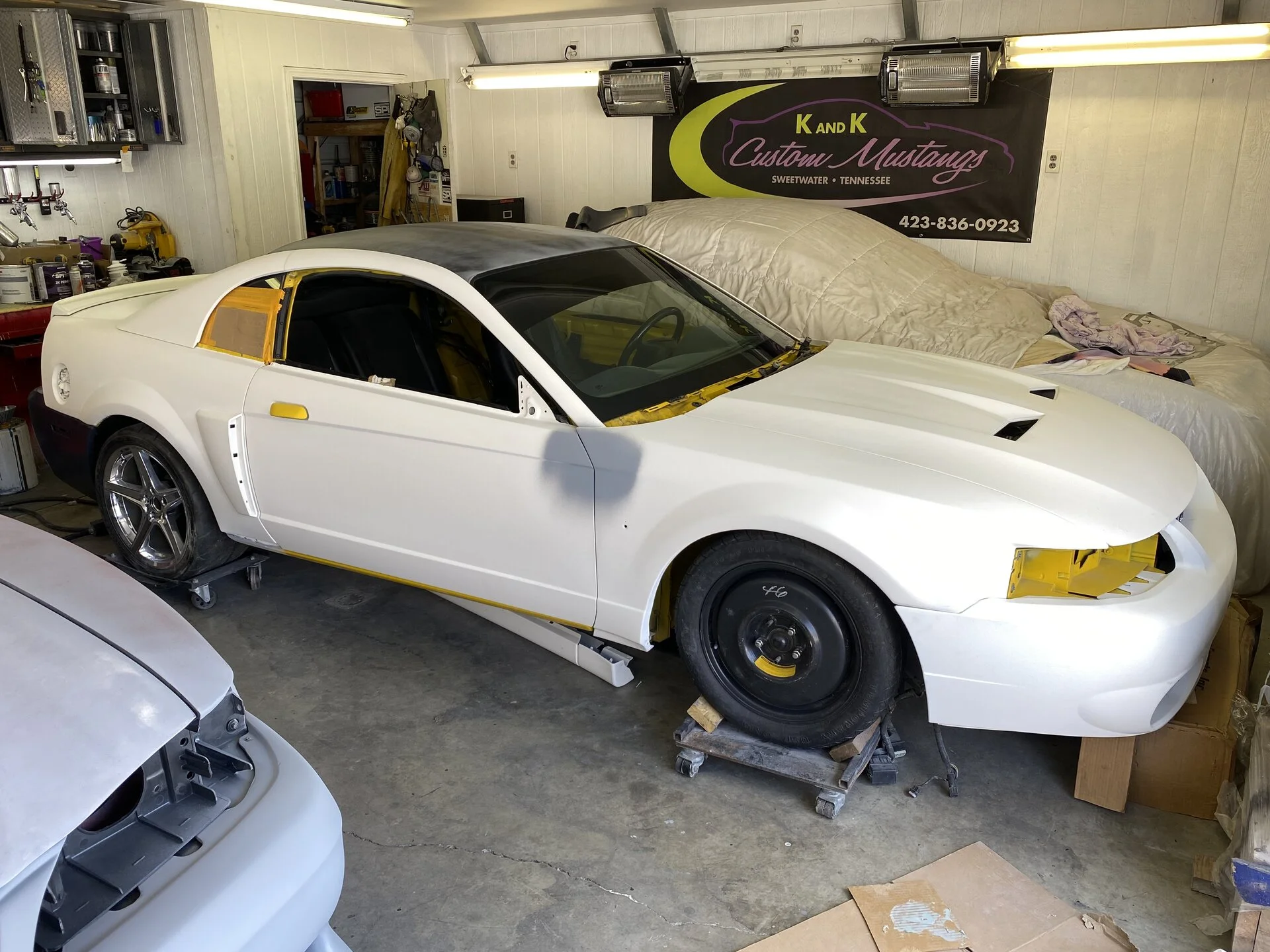

Big shoutout to @SorsCode and his bot for finding this all important piece as soon as it was available again. Now the body is complete and up to my standards. The original bumper
Got a little warp from heat of the fire so better to start with new Ford OEM

  • Like
Reactions: 4 users

95steedamustang

Easy to use in another rear end
SN Certified Technician
Apr 22, 2009
1,763
2,958
154
East TN

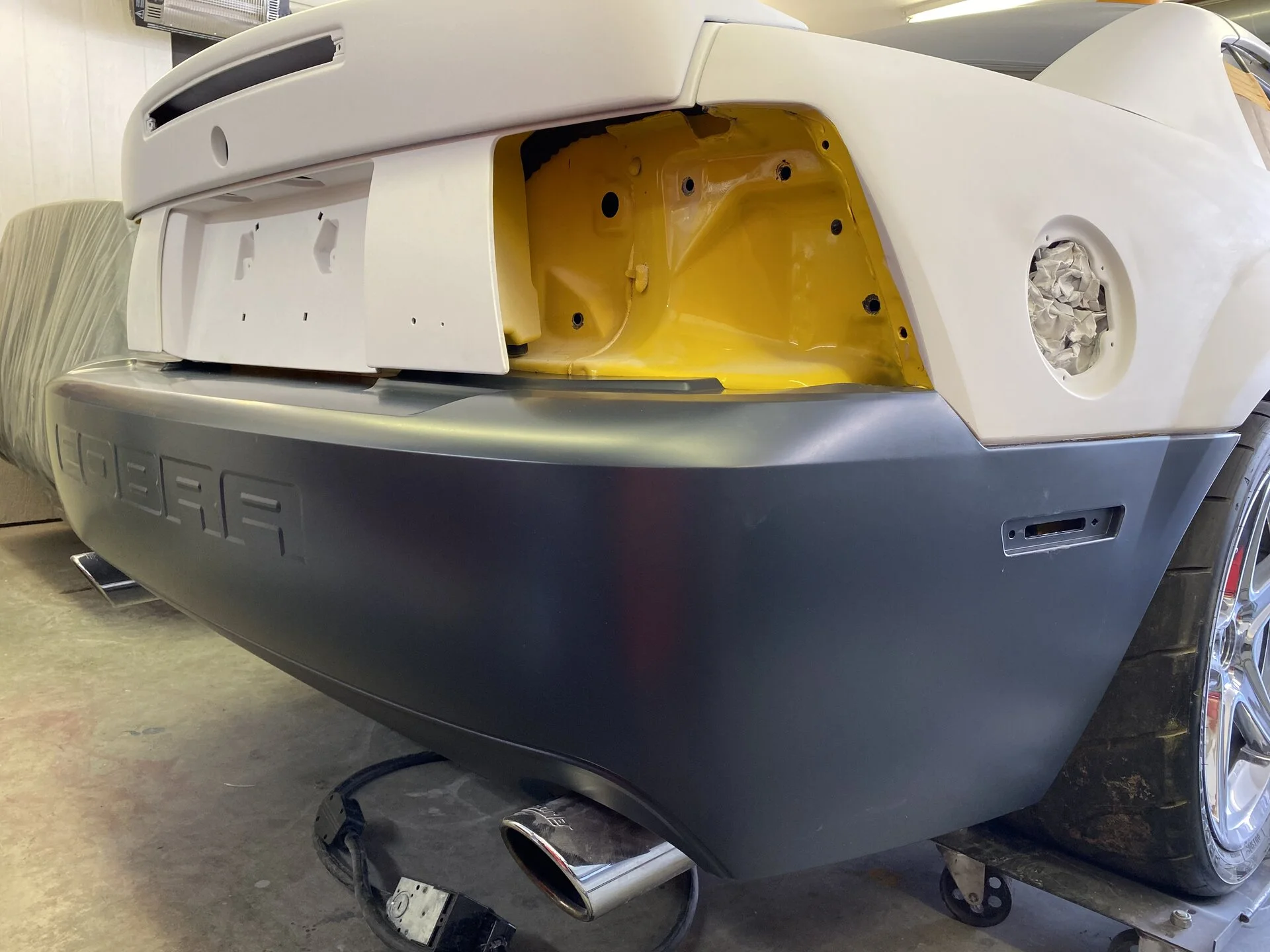

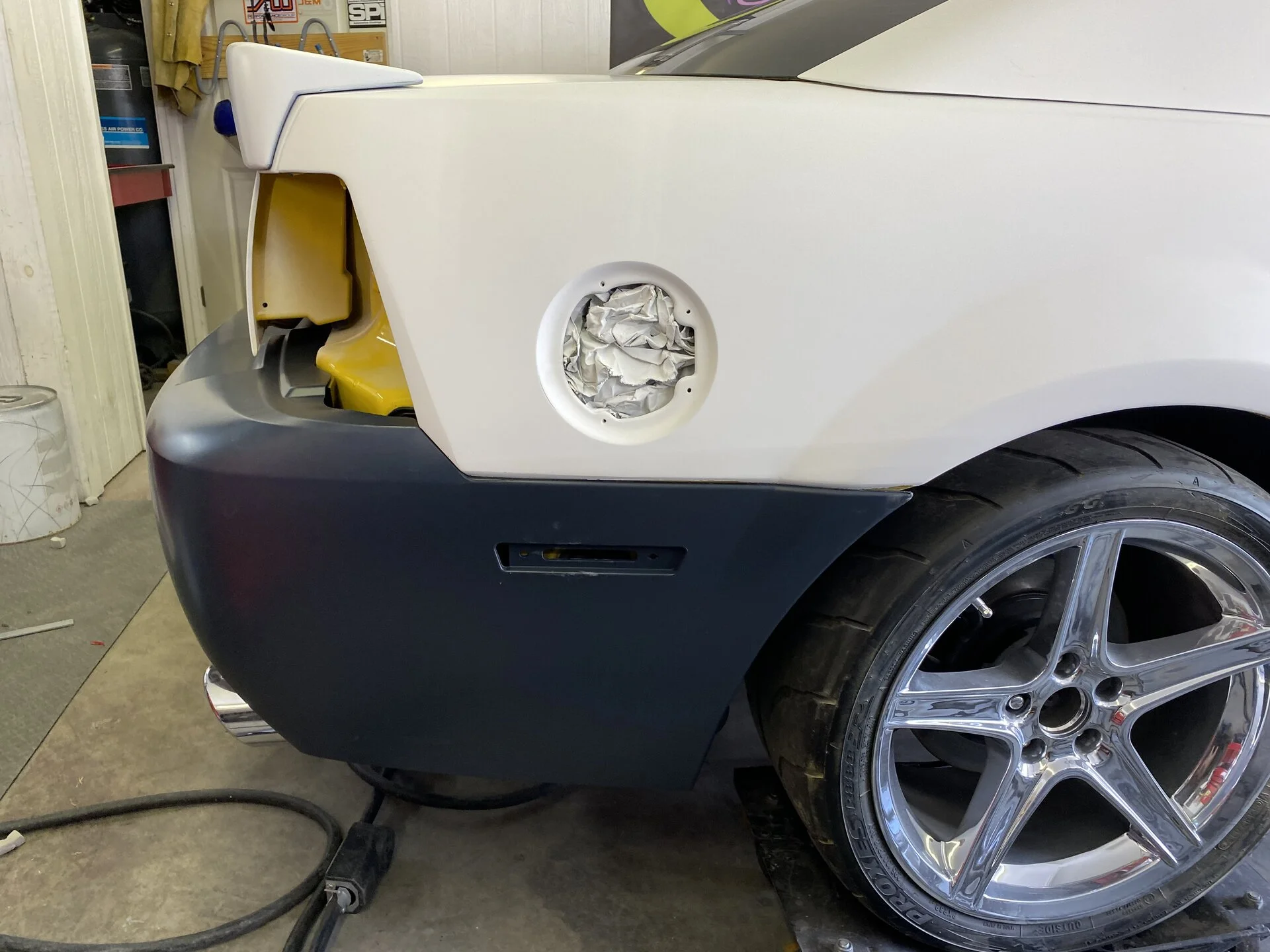

That rear bumper needs some primer on it.

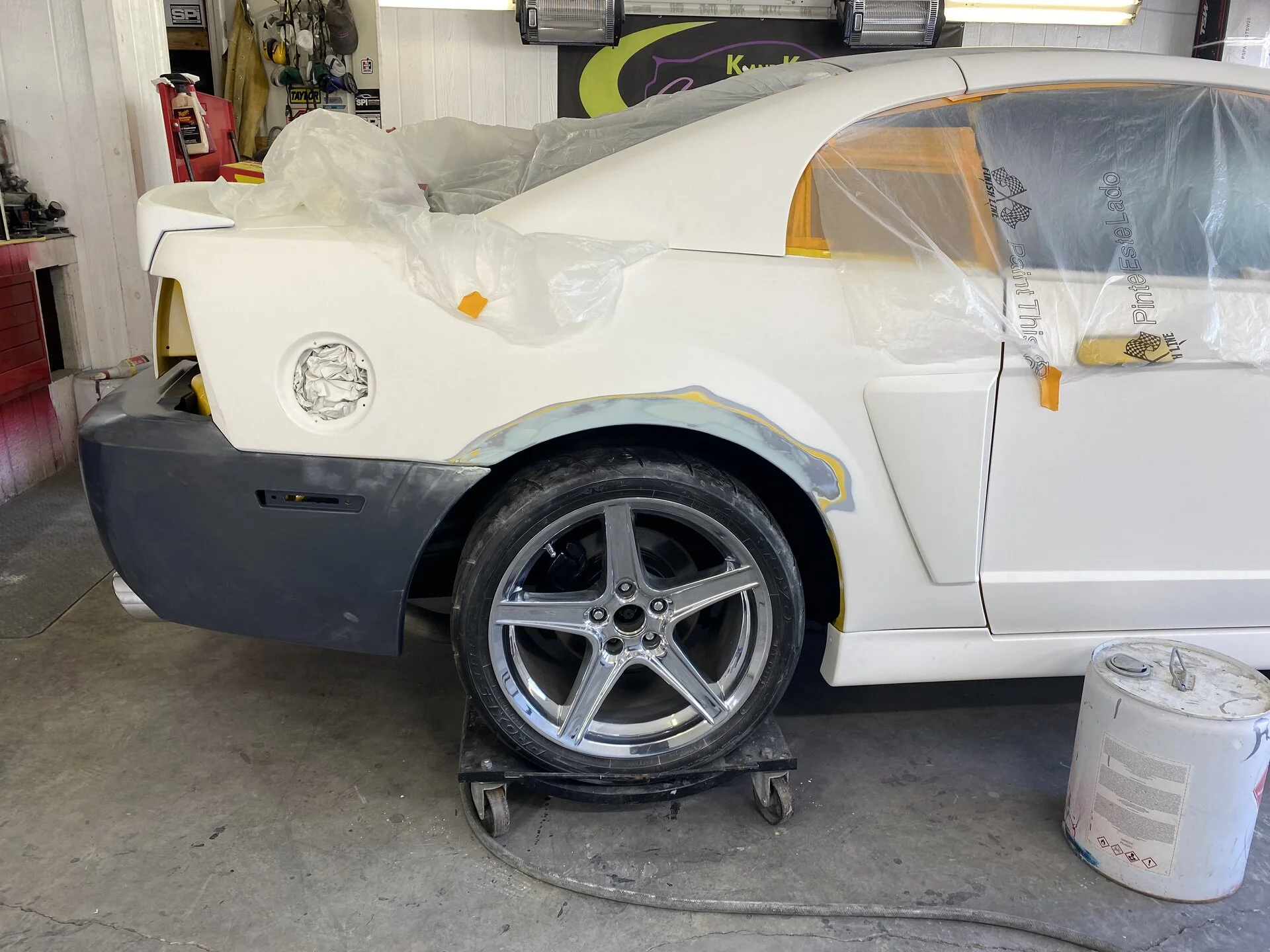

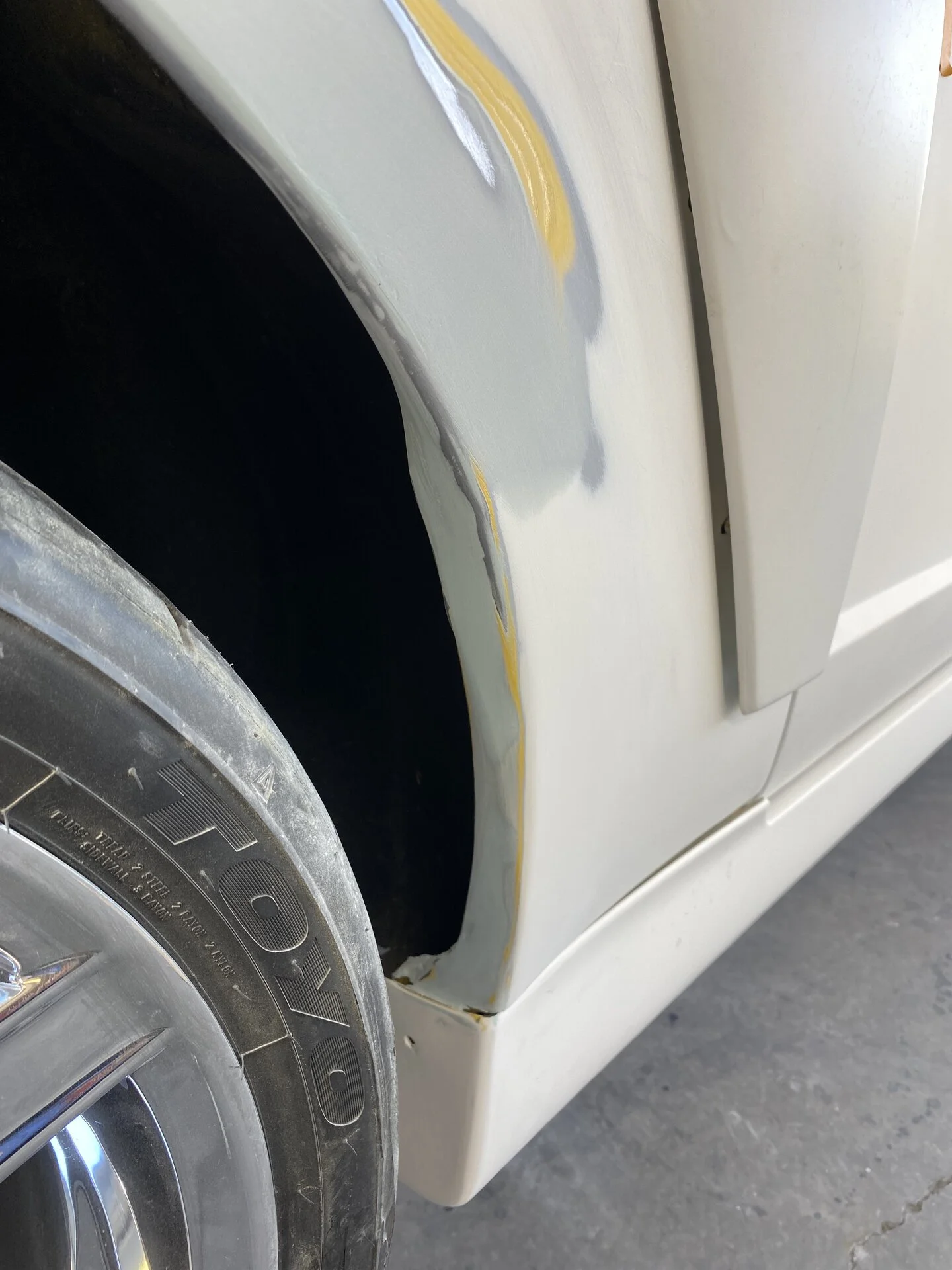

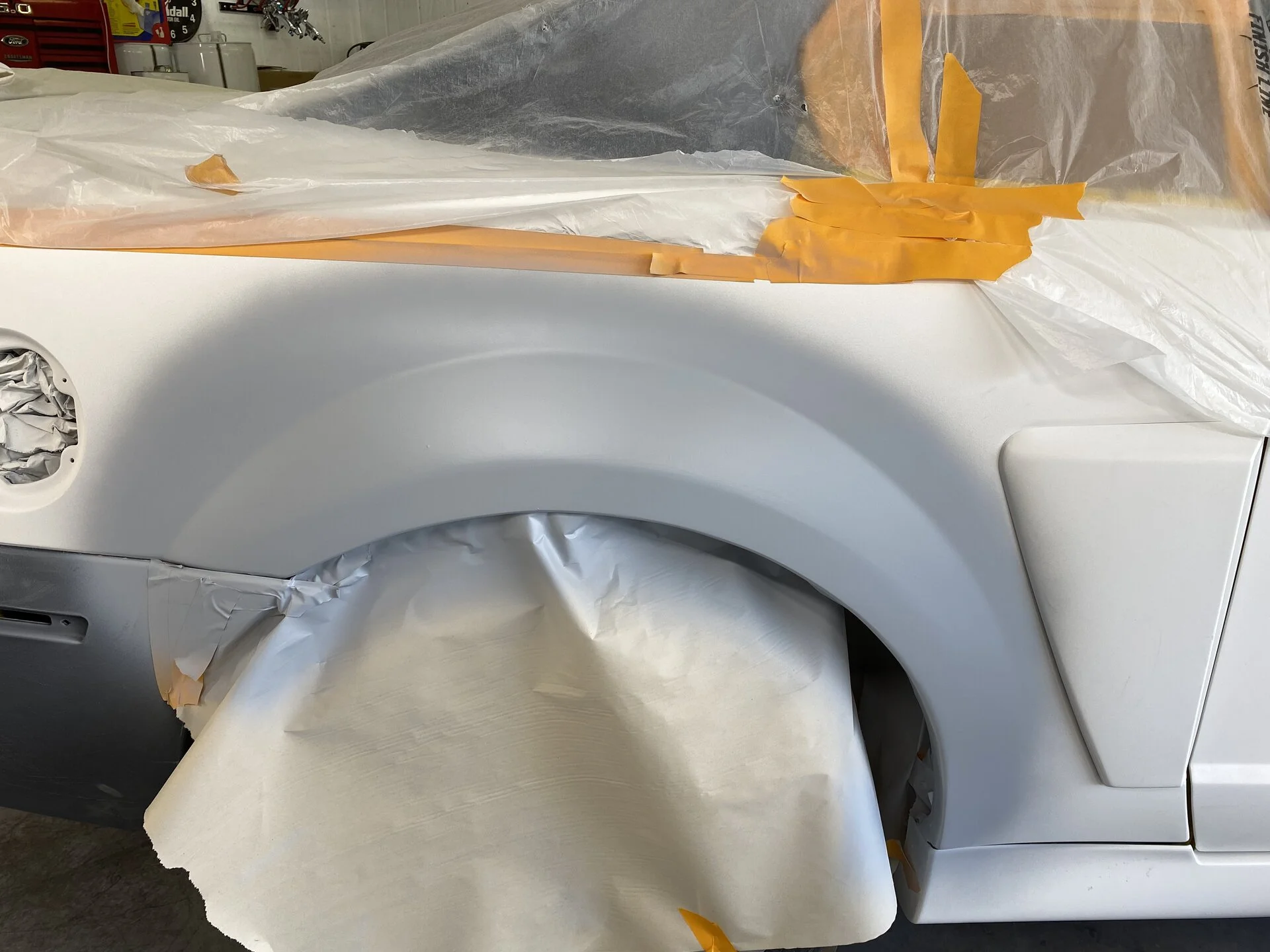

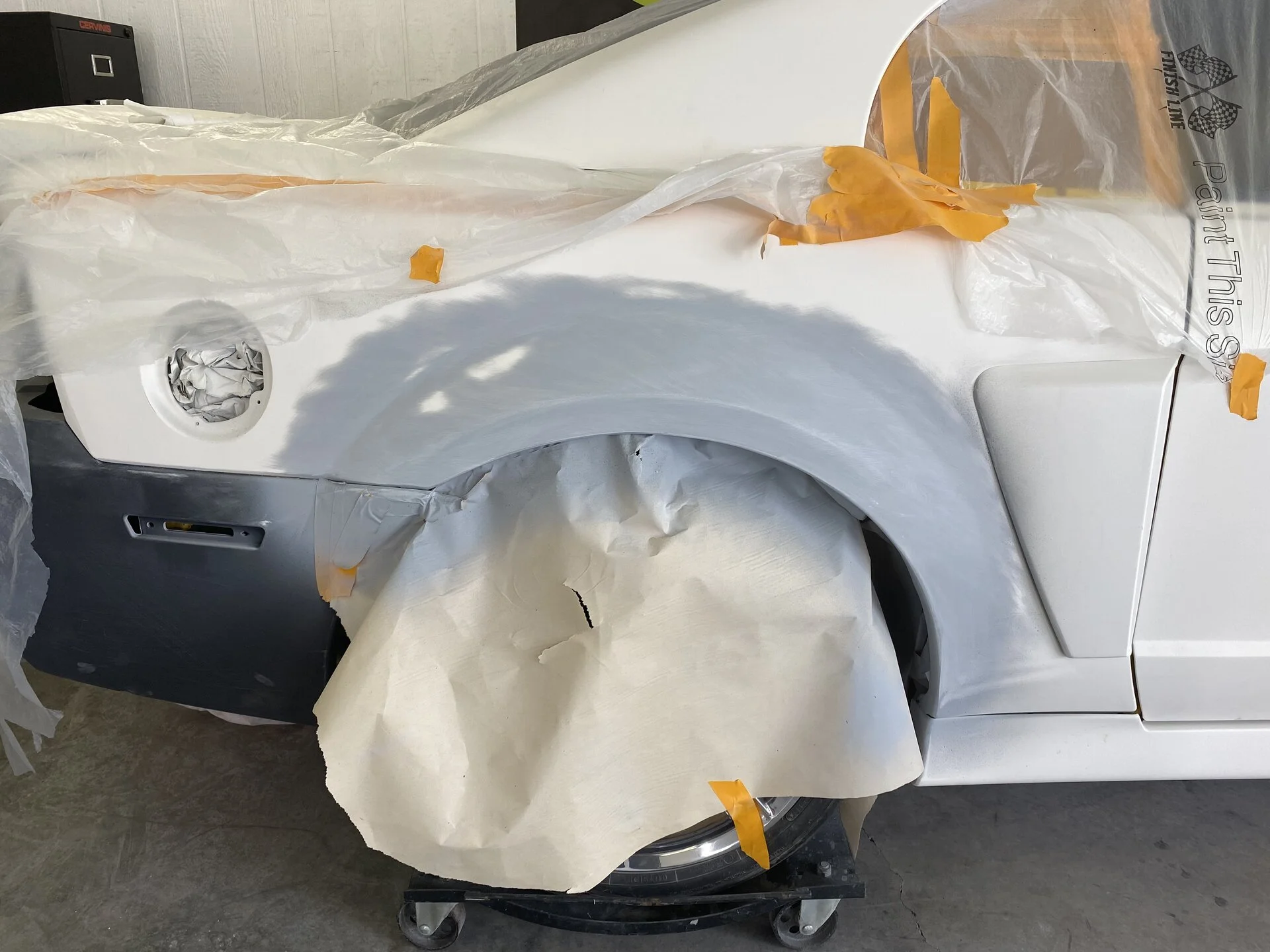

You know we got to get it fitting first. But before I do that…the flares I have to fit the bumper to need reworked.

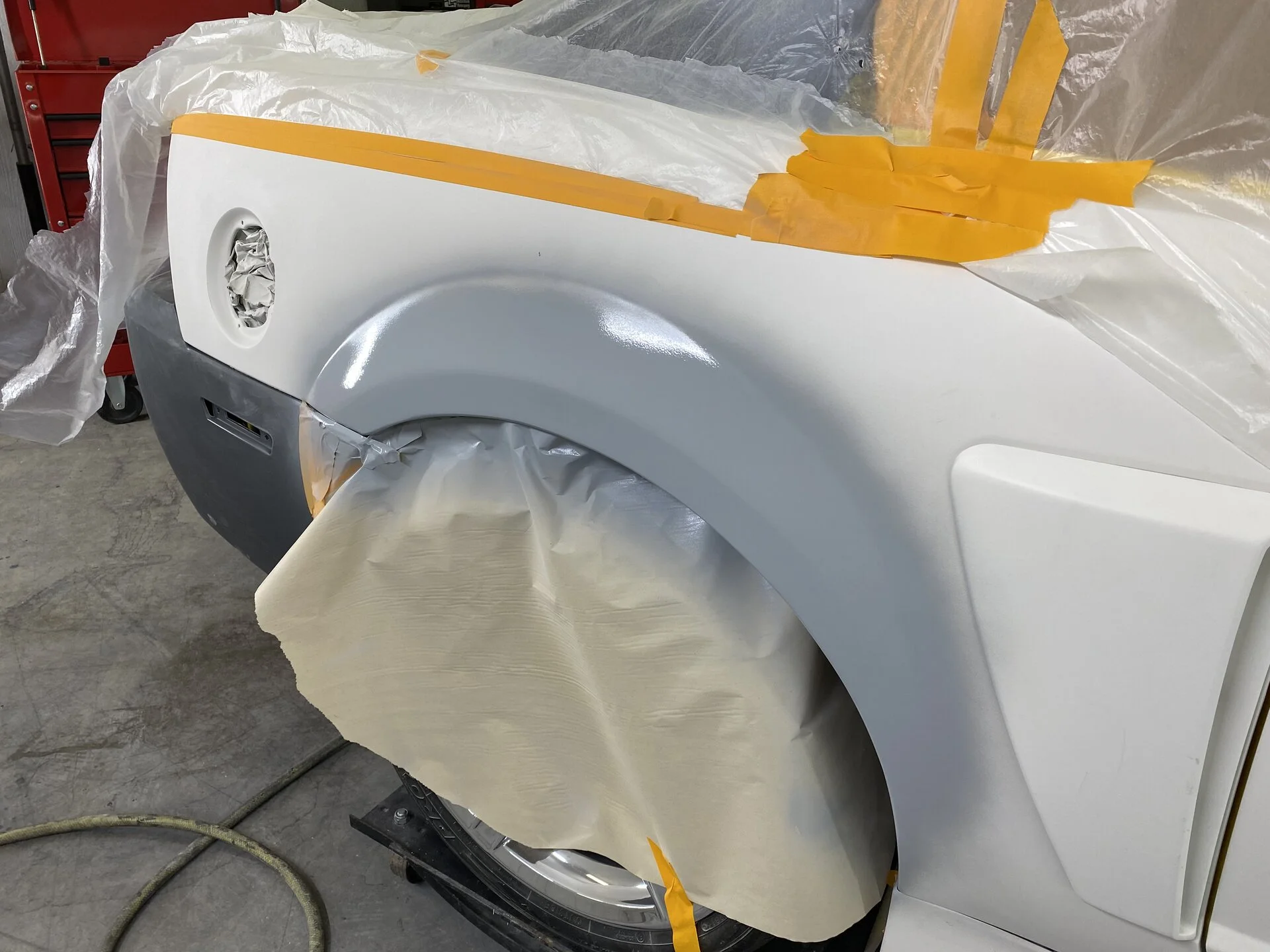

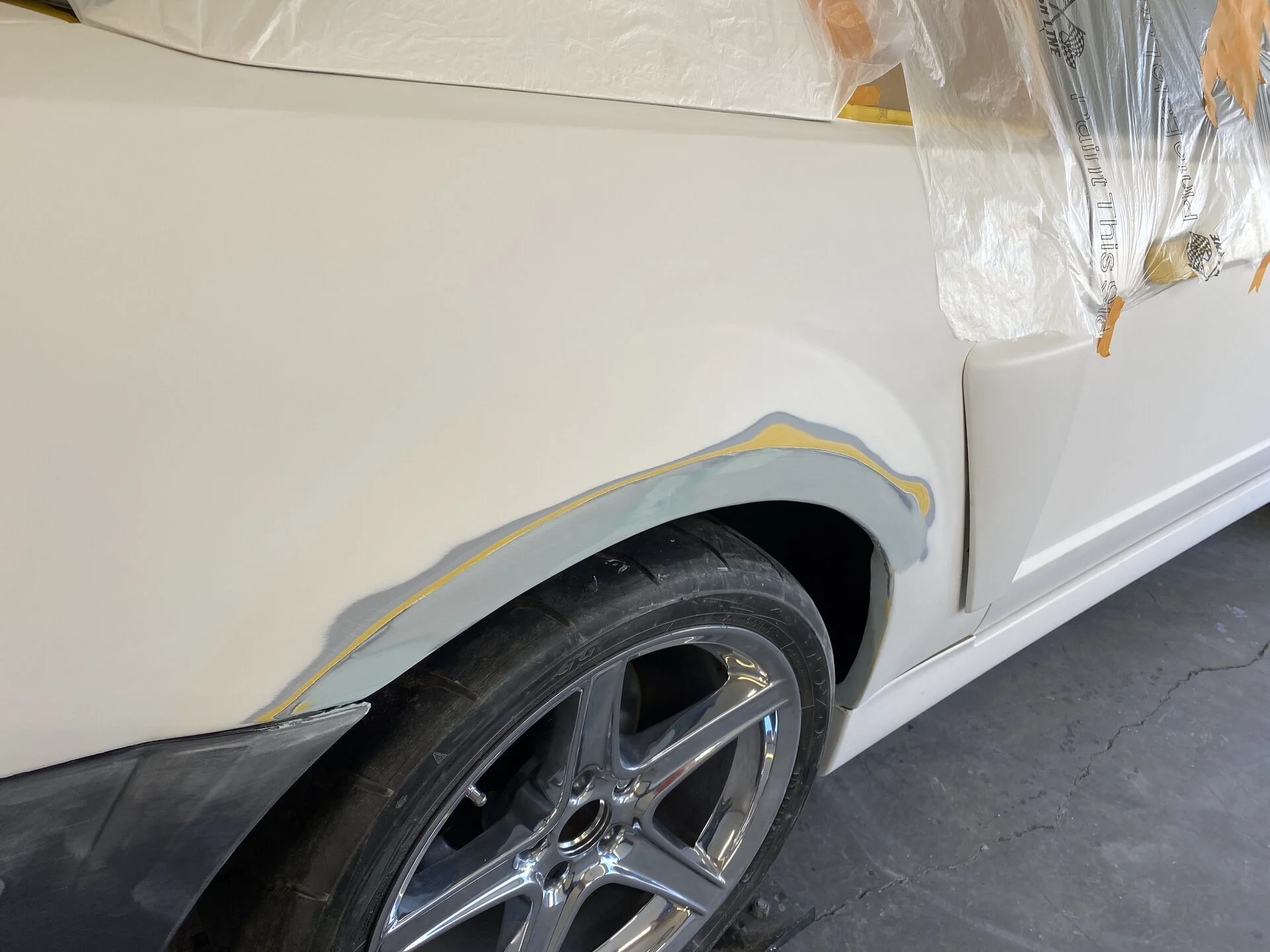

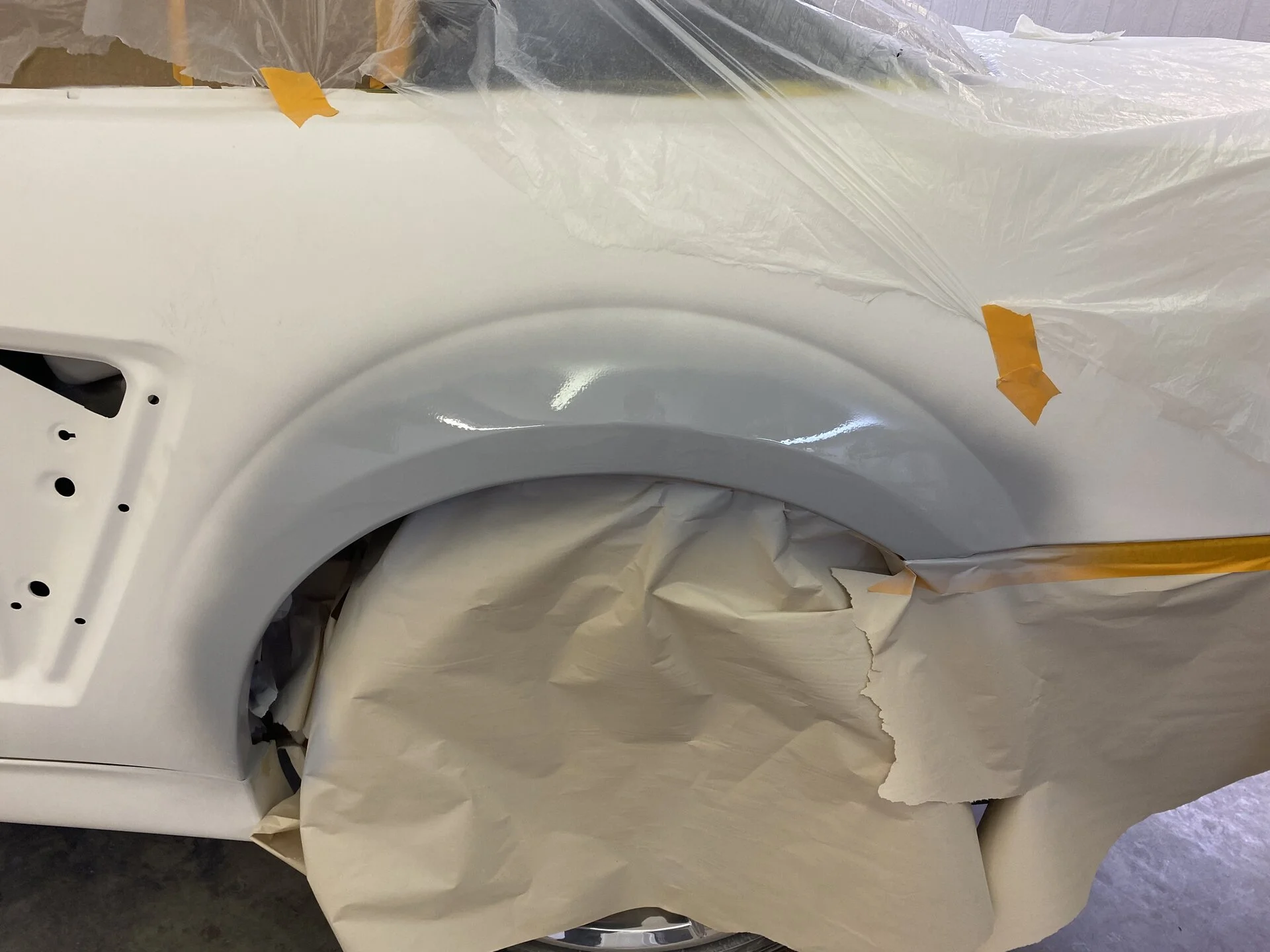

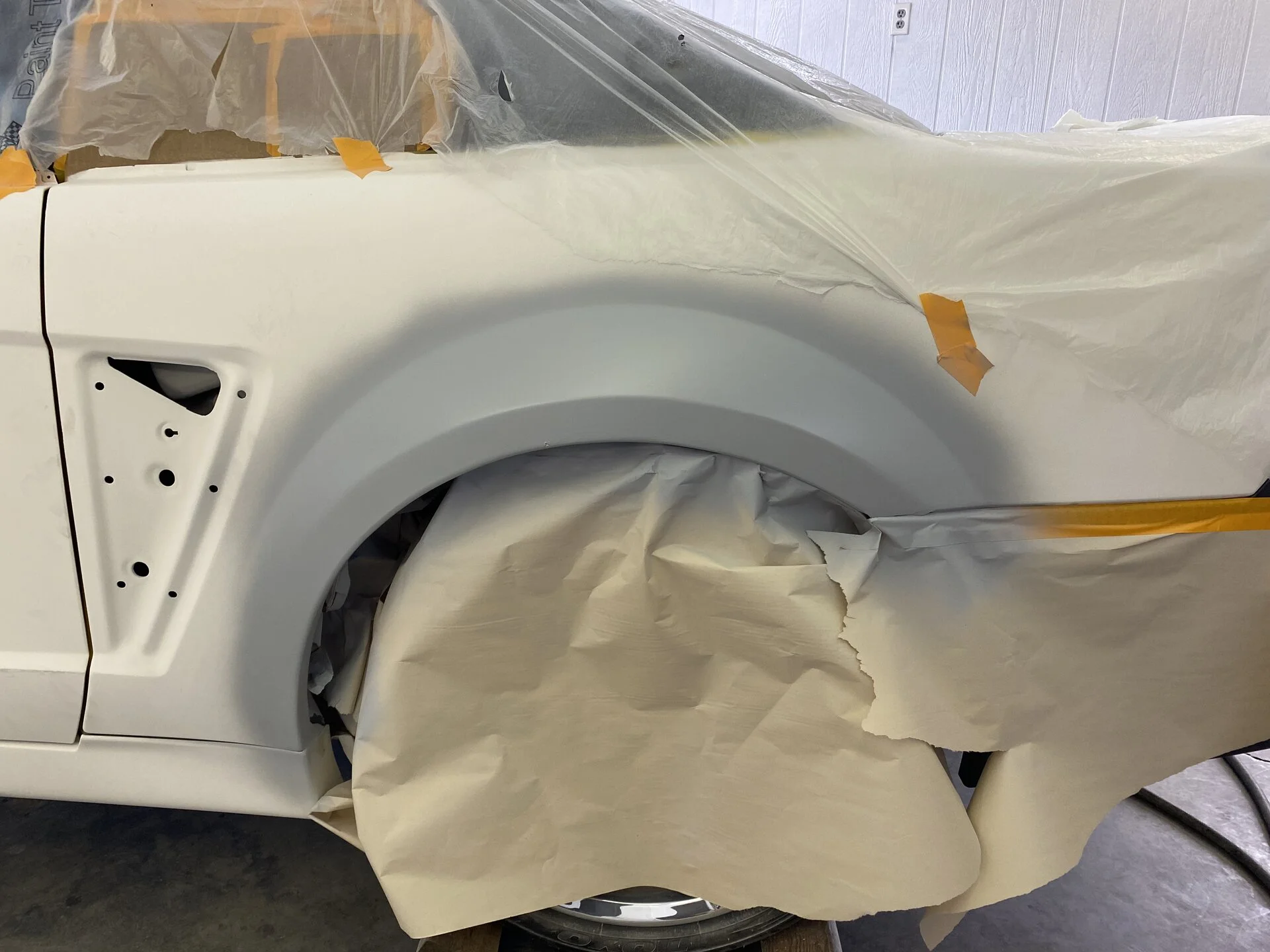

My plan is to run the BBS RKs that I put on when I got it. But Im going to widen them from 18x10 to 18 x 11.5 and run a 335 tire. So one of the ways I fit them is stretch the rear flares out a 1/2 inch. Fender lips rolled all the way in so they touch the inside of the quarter. Then smooth them out on the inside.

Last edited:
  • Like
Reactions: 1 user

95steedamustang

Easy to use in another rear end
SN Certified Technician
Apr 22, 2009
1,763
2,958
154
East TN

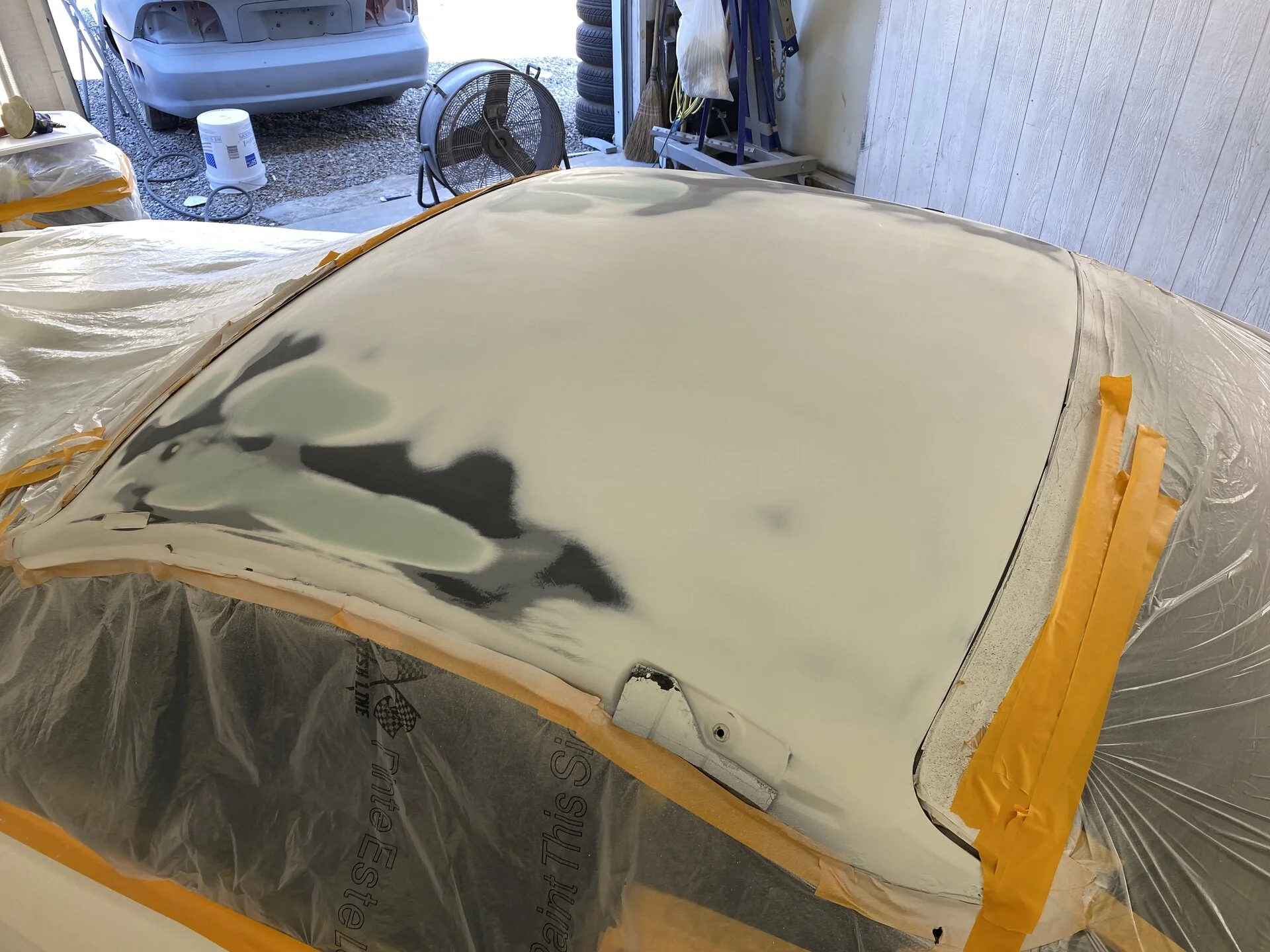

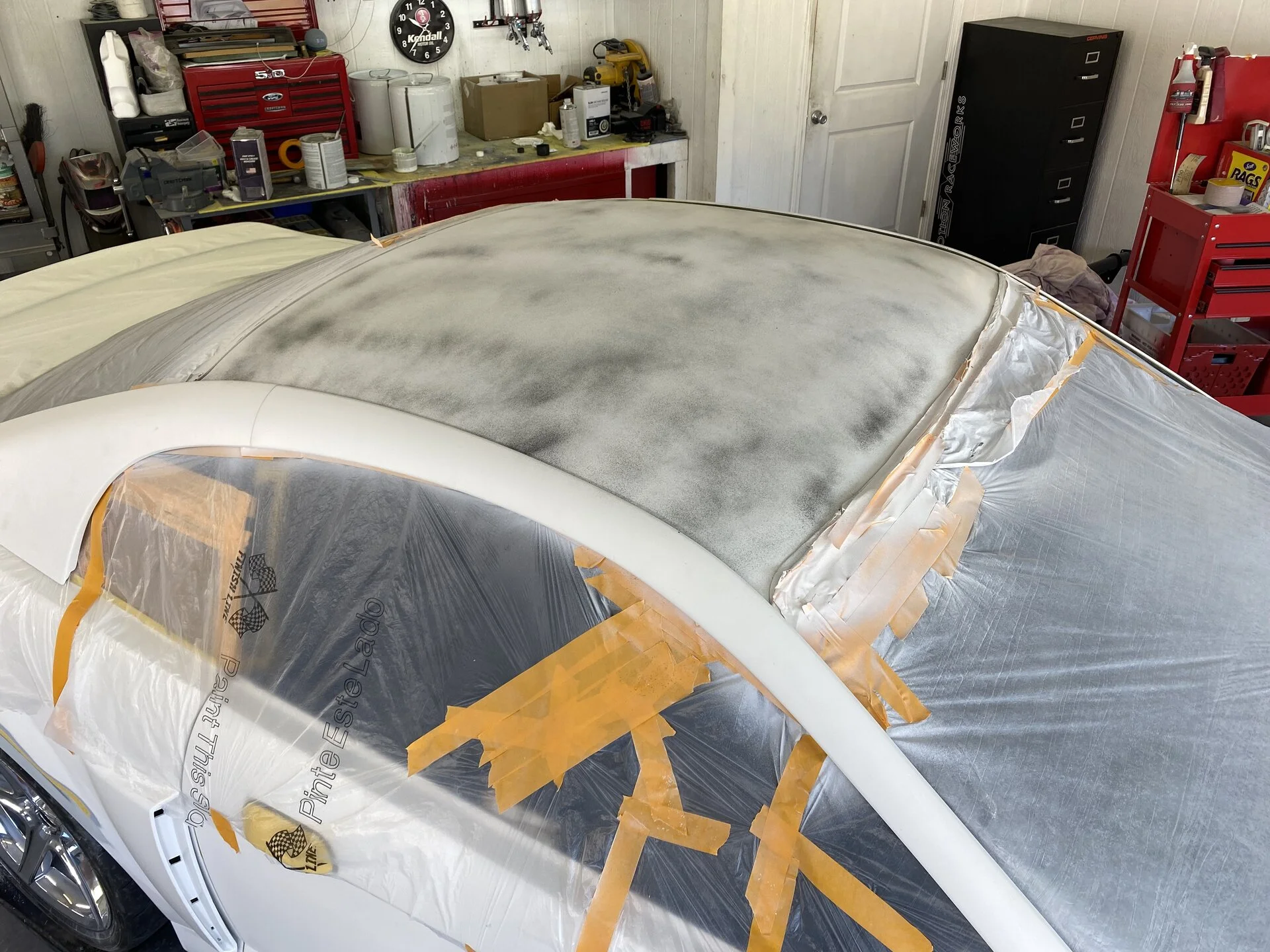

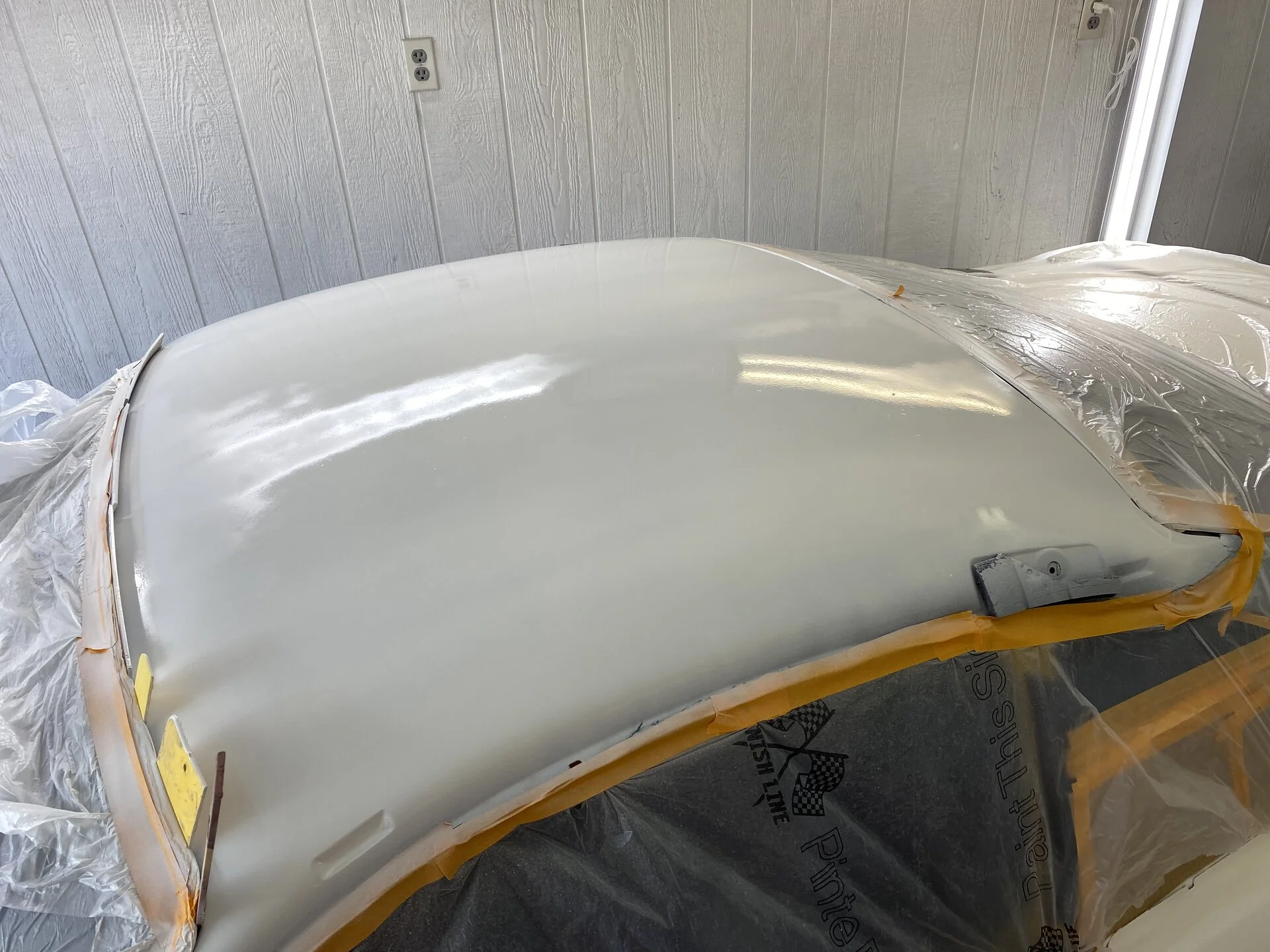

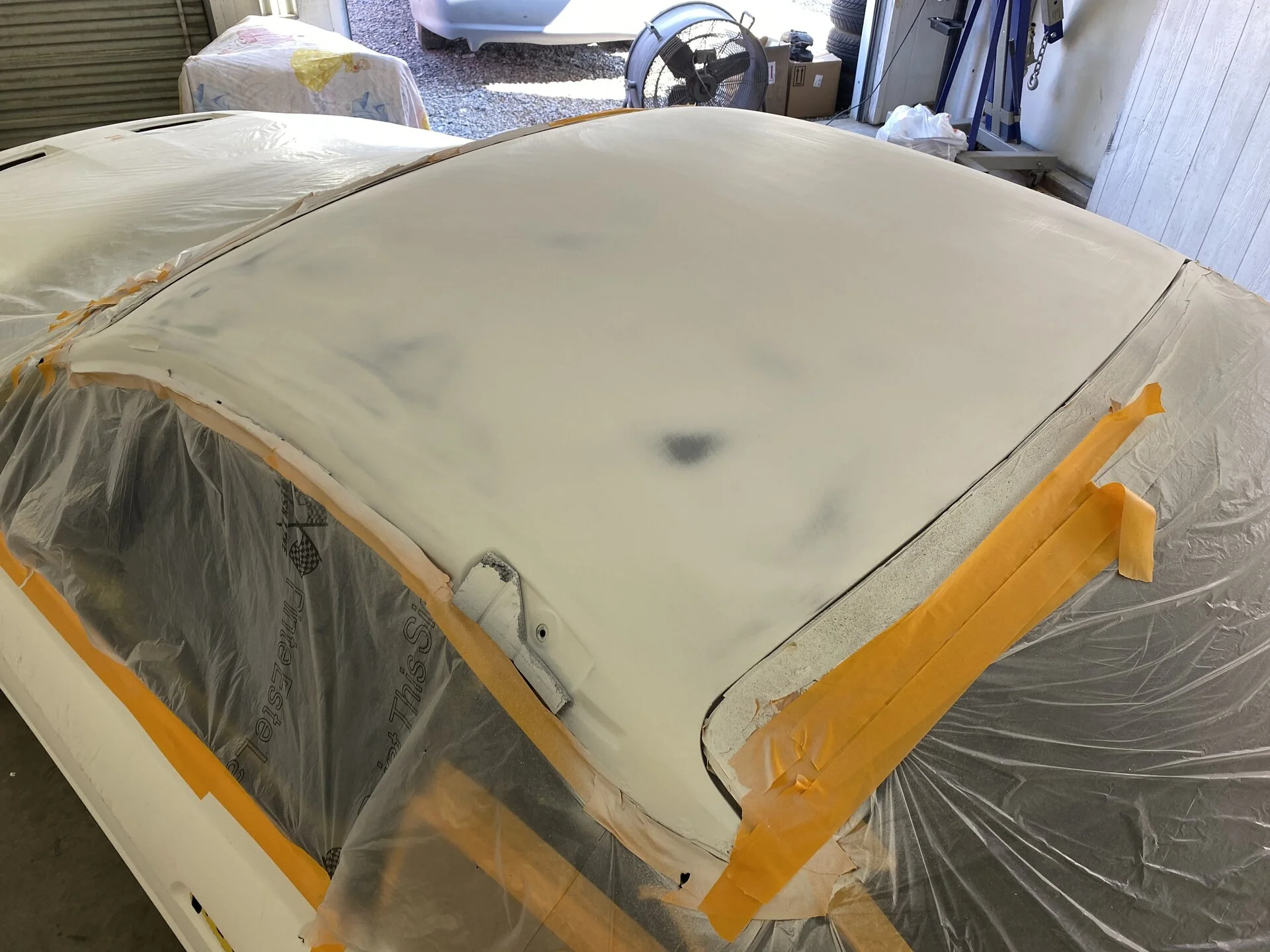

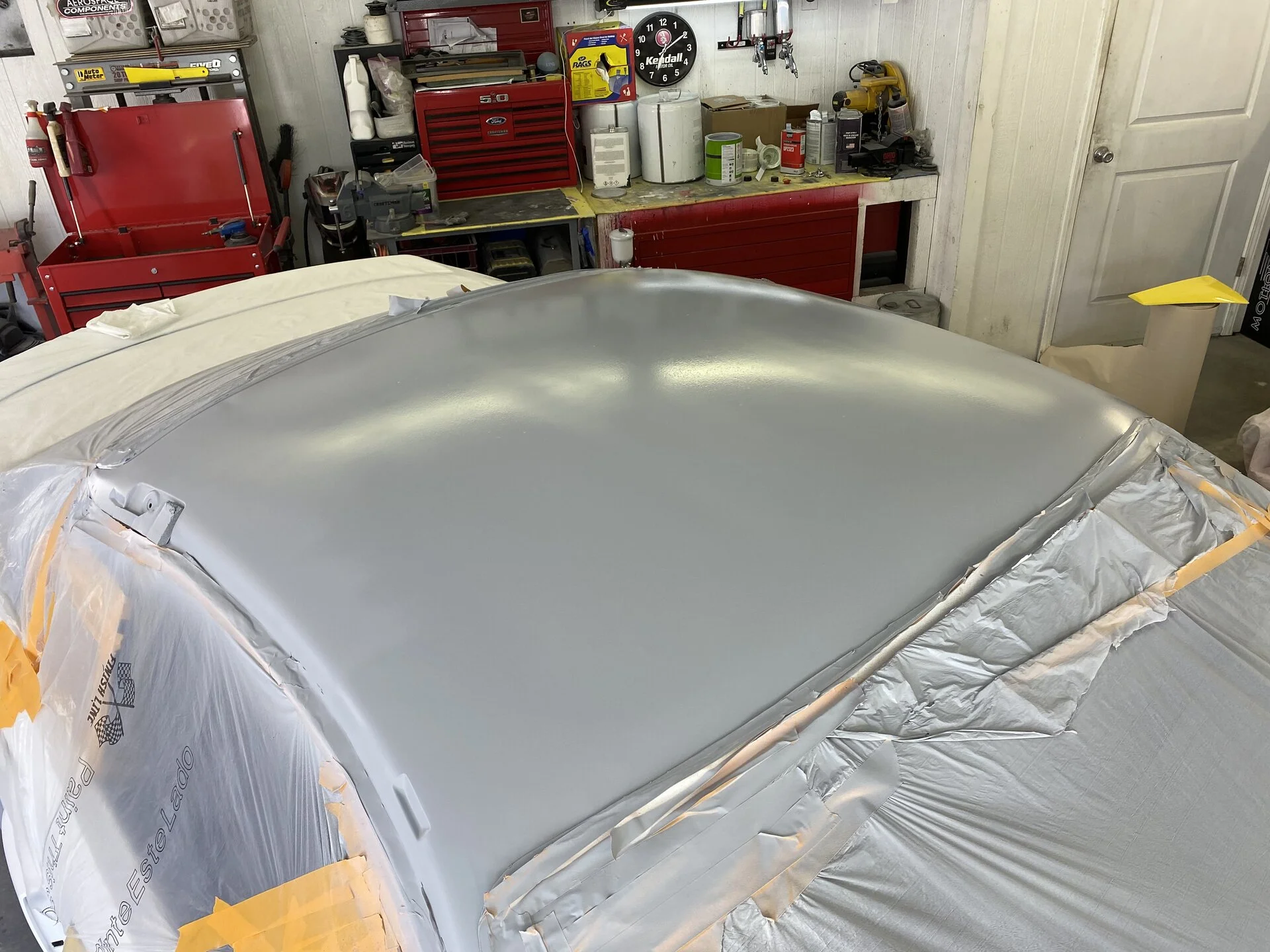

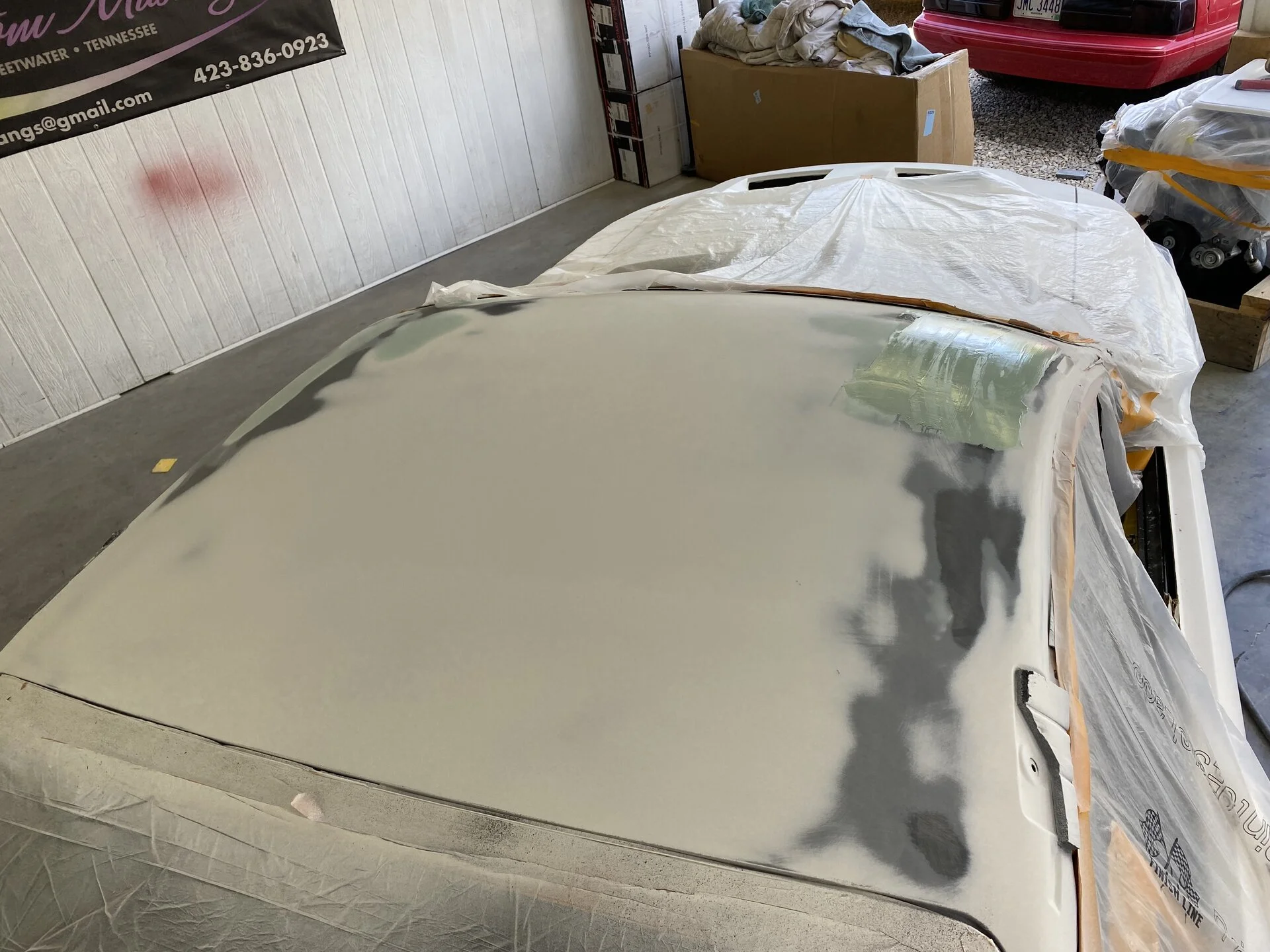

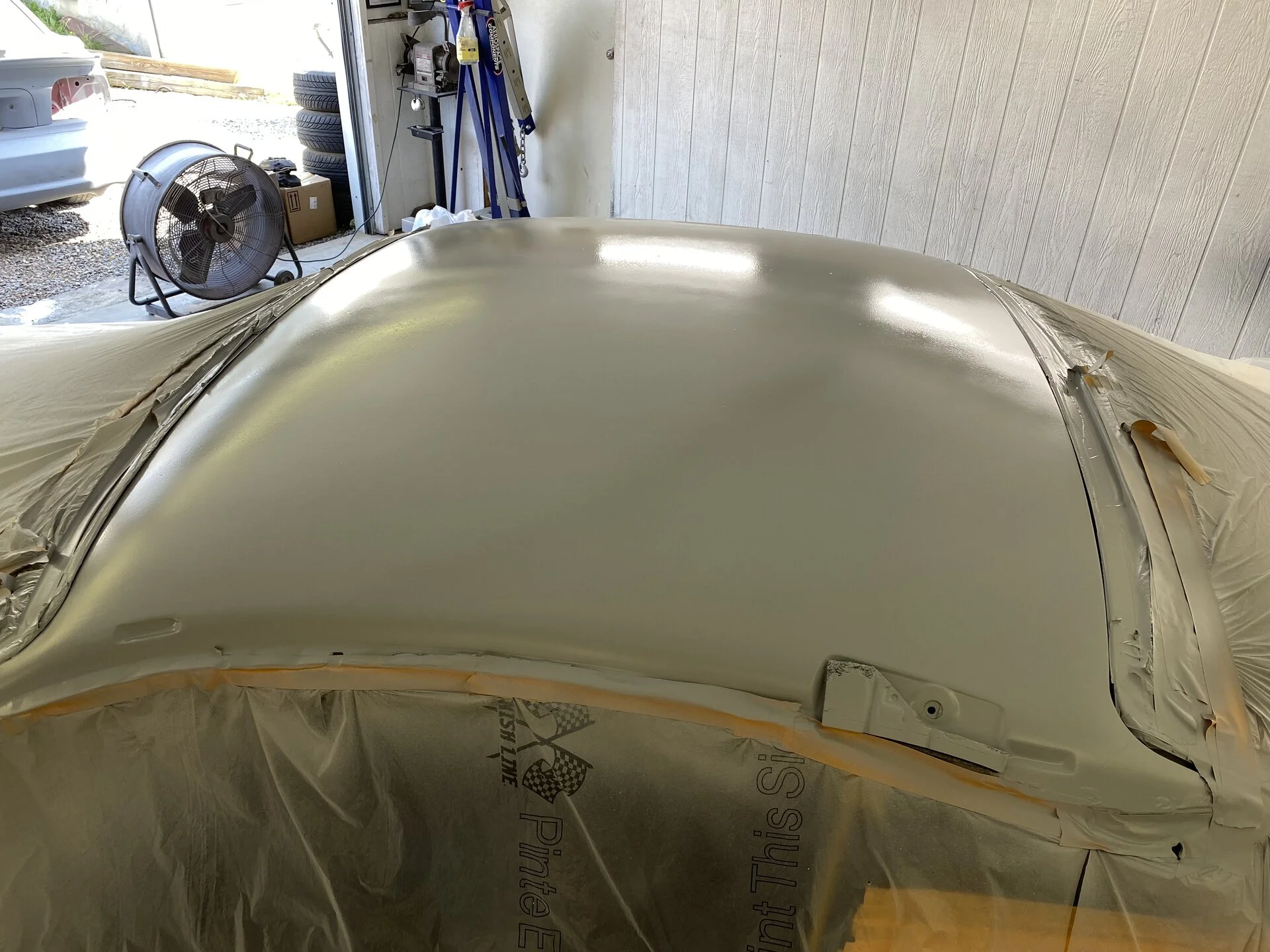

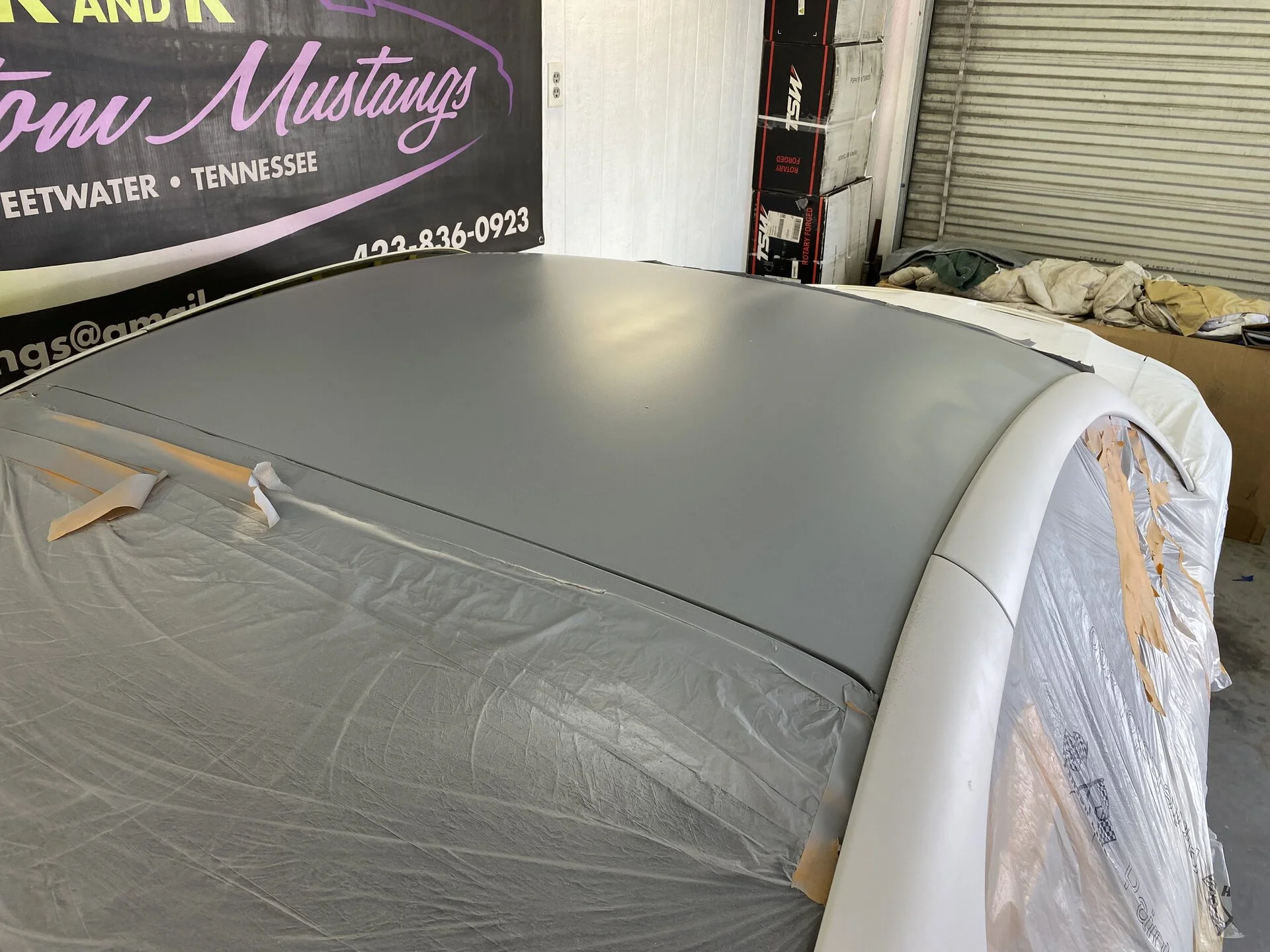

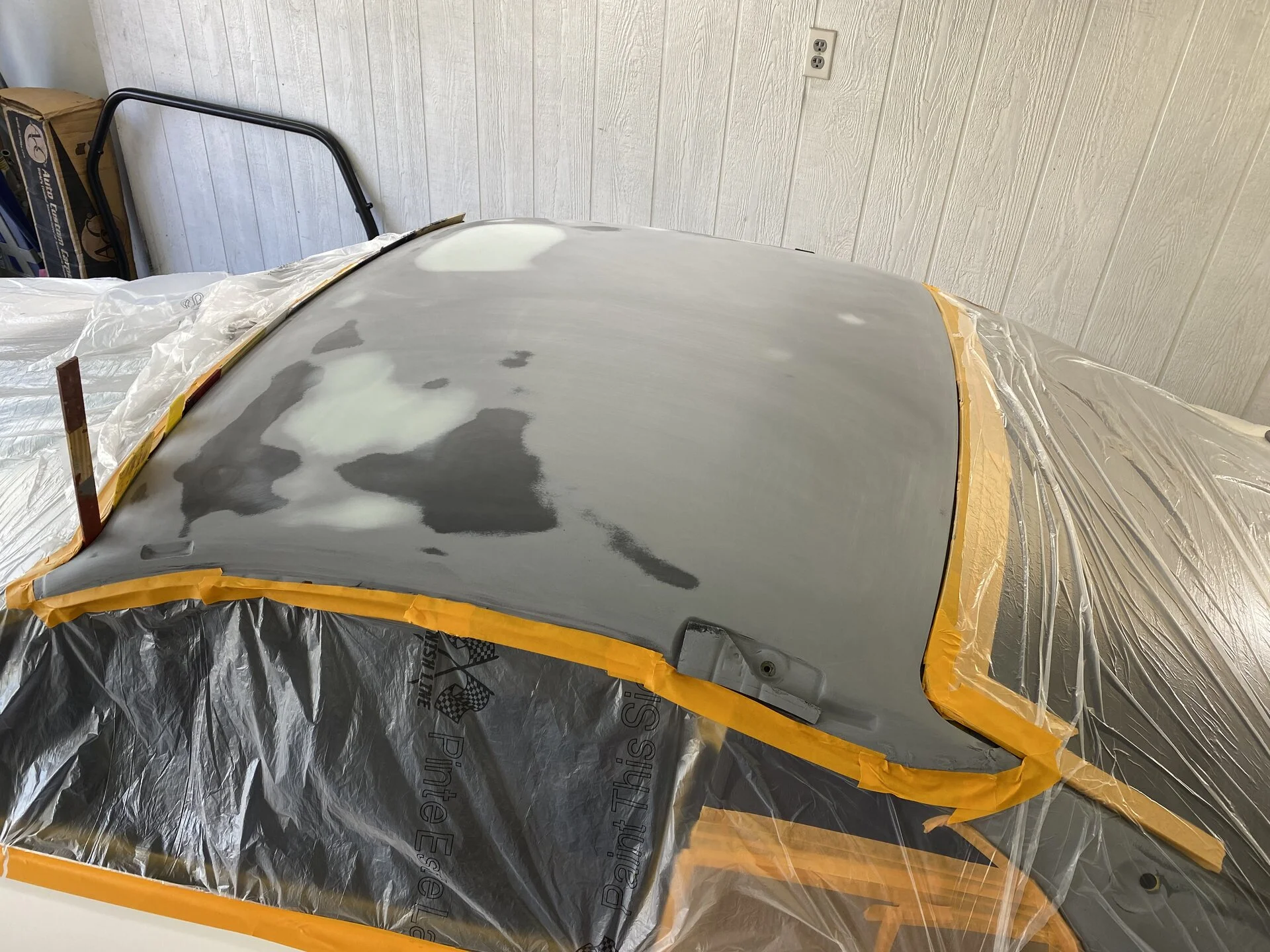

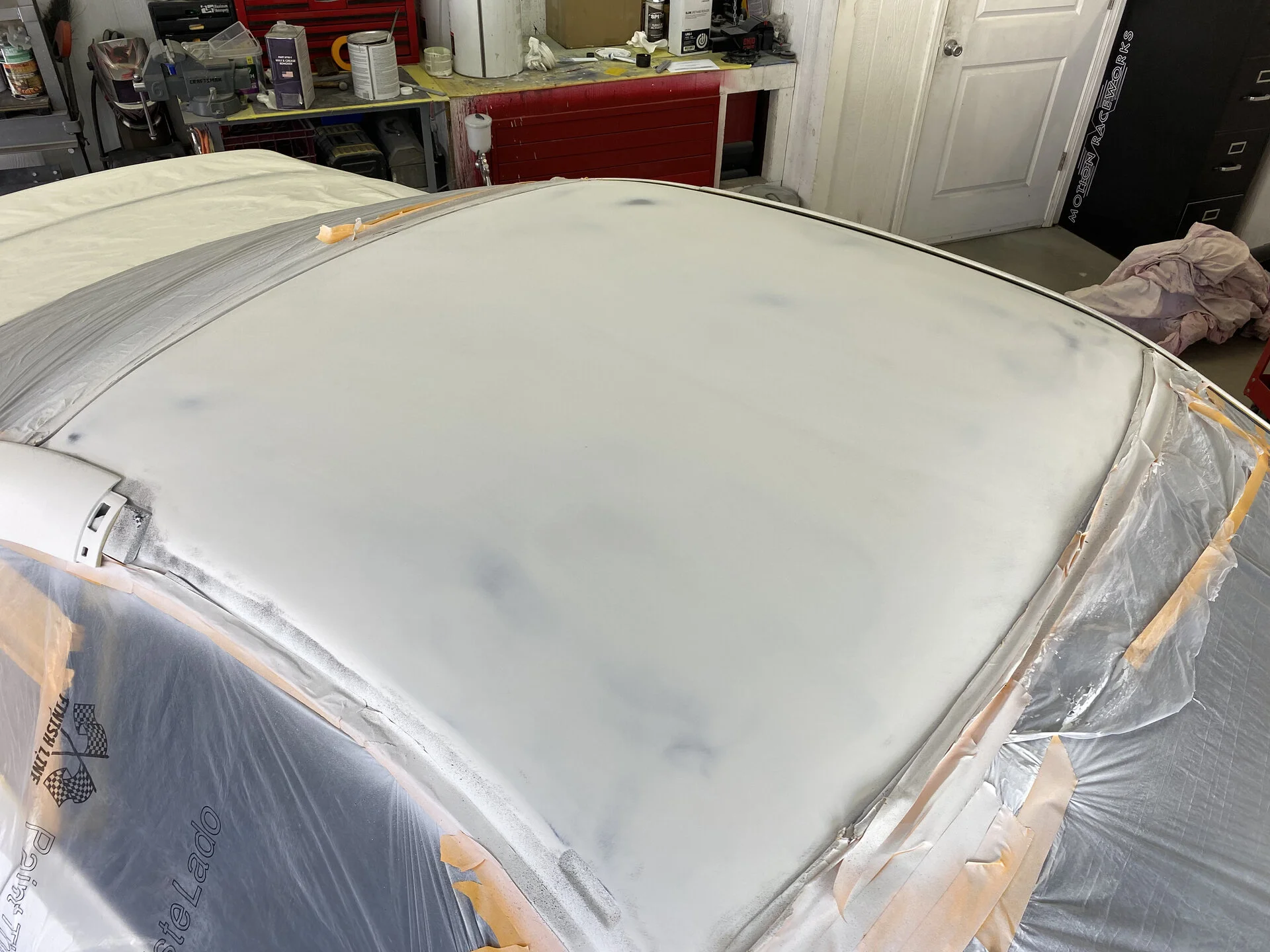

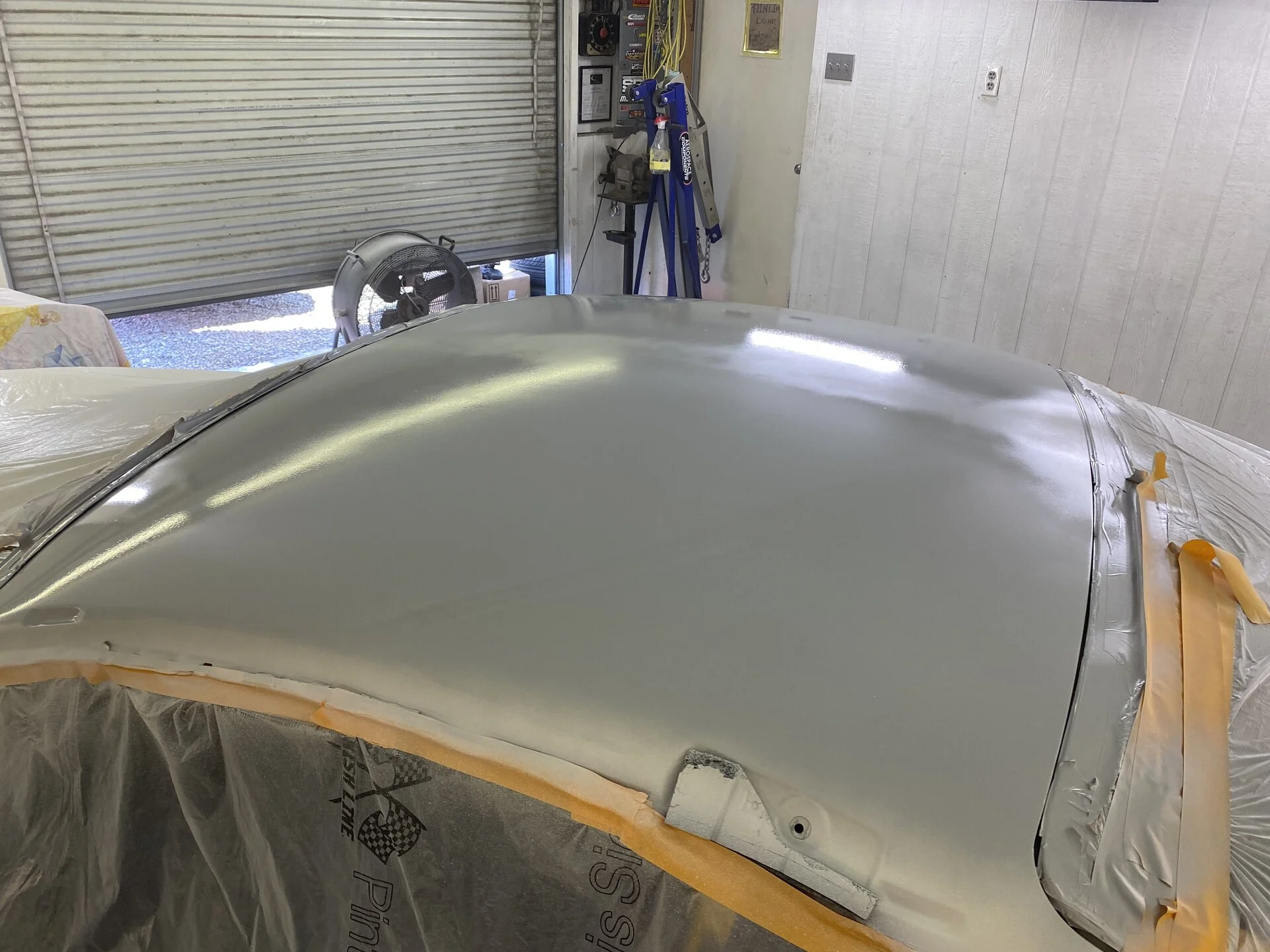

Always hated how the roofs on these cars roll but then flatten in the middle so I’m working this one into a actual round bubble roof.

  • Like
Reactions: 1 users
