65' Mustang II Front End Conversion (Helix Brand)

[Sicavis]

I recently bought a Helix Mustang II front end for my 65' Fastback. The cross member came as a universal fit. Does anyone have a solid set of blueprints for the crossmember and top hat spring support with dimensions? To my understanding the crossmember should be a set dimension and the variables would be the spring rate and drop or non-drop spindles. Please excuse me if I have made any wrong assumptions as I am trying to figure this out as I go. Any advise or guidance would be greatly appreciated. I will post pictures on my progress. Thanks!



[restomoded66]

I recently bought a Helix Mustang II front end for my 65' Fastback. The cross member came as a universal fit. Does anyone have a solid set of blueprints for the crossmember and top hat spring support with dimensions? To my understanding the crossmember should be a set dimension and the variables would be the spring rate and drop or non-drop spindles. Please excuse me if I have made any wrong assumptions as I am trying to figure this out as I go. Any advise or guidance would be greatly appreciated. I will post pictures on my progress. Thanks!

Hi! Here the instuction I used to install my universal cross member in my 66.

http://www.welderseries.com/instructions/mIIcrossmembers/WS14340N.pdf


If I was to do it again I would use one from fulltiltstreetrods, realy good price and ready to installed.

http://www.fulltiltstreetrods.com/hub_to_hub.htm
http://www.fulltiltstreetrods.com/'64-'70 Mustang Crossmember Installation Instructions.pdf



[Sicavis]

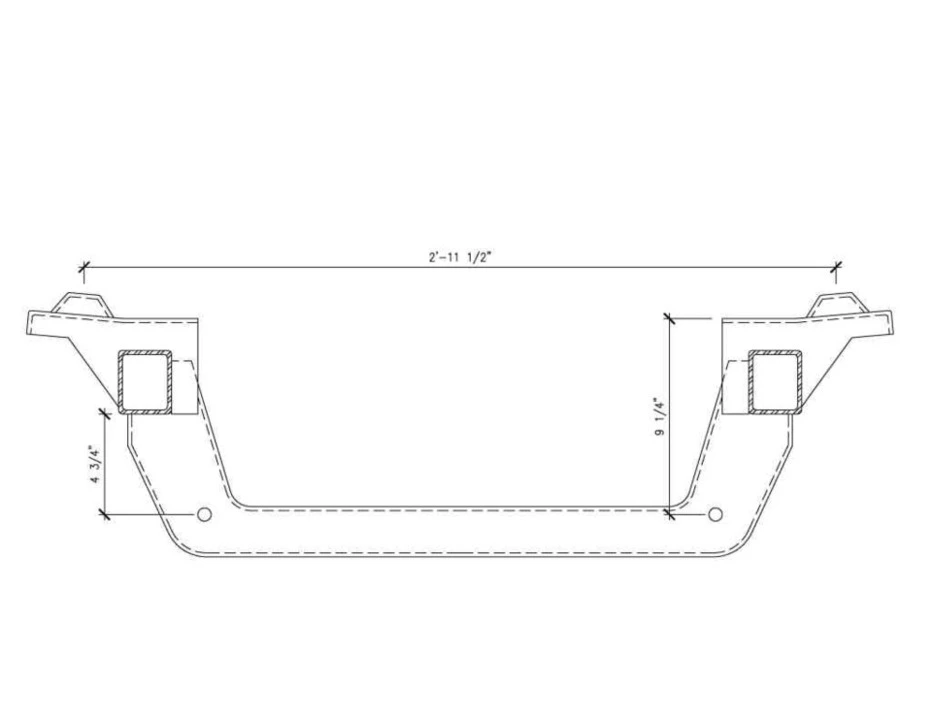

Ok. I think I have all the dimensions I need to get my Mustang II front end installed. I drew it up on CAD to make it easier to see. Is there anyone that can confirm these dimensions? The view I am showing is the front elevation.



[ShayUSAF]

Did these measurements work for you? I'm about to install a helix IFS in my 65.



[hipo_p51]

Why do people cut up their 65/6 Fastbacks? Why OH Why!!
