Progress Thread 93 Cobra basket case project, new spectra tank prepped

  • Sponsors (?)


BlakeusMaximus

Still got to try a little lube on my speedo head
5 Year Member
Jul 12, 2017
2,320
1,345
173
Thats a similar set that we use here at the body shop when we cant find the key to remove tires for suspension work, or simple wheel and tire replacements. Its amazing to me how many people drive around with locking lugs and have no idea where their wheel lock key is. "Its in the car." Nope, it isnt.

  • Like
Reactions: 1 user

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,564
5,642
203
I've had more luck beating a 12 point socket on a wheel lock than using a kit. On one's with the ring on the outside I drill a hole in the middle and use a screw extractor.


TIGGER

Founding Member
Mar 6, 2000
760
184
84
Portland, OR
As long as it is a factory lock you can buy replacements directly from mcgard. All you have to do is email their customer service with a good clear picture of the lug nut and they should be able to match it up. The one from my saleen went missing a few years back. It was in the console and then it was not. I emailed their customer service and got my replacements shortly after. I bought 2 just in case one goes missing again.

  • Like
Reactions: 1 user

93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa
As long as it is a factory lock you can buy replacements directly from mcgard. All you have to do is email their customer service with a good clear picture of the lug nut and they should be able to match it up. The one from my saleen went missing a few years back. It was in the console and then it was not. I emailed their customer service and got my replacements shortly after. I bought 2 just in case one goes missing again.

Thank you I’m going to look into that today becaid really like to keep the original ones if possible.


93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa

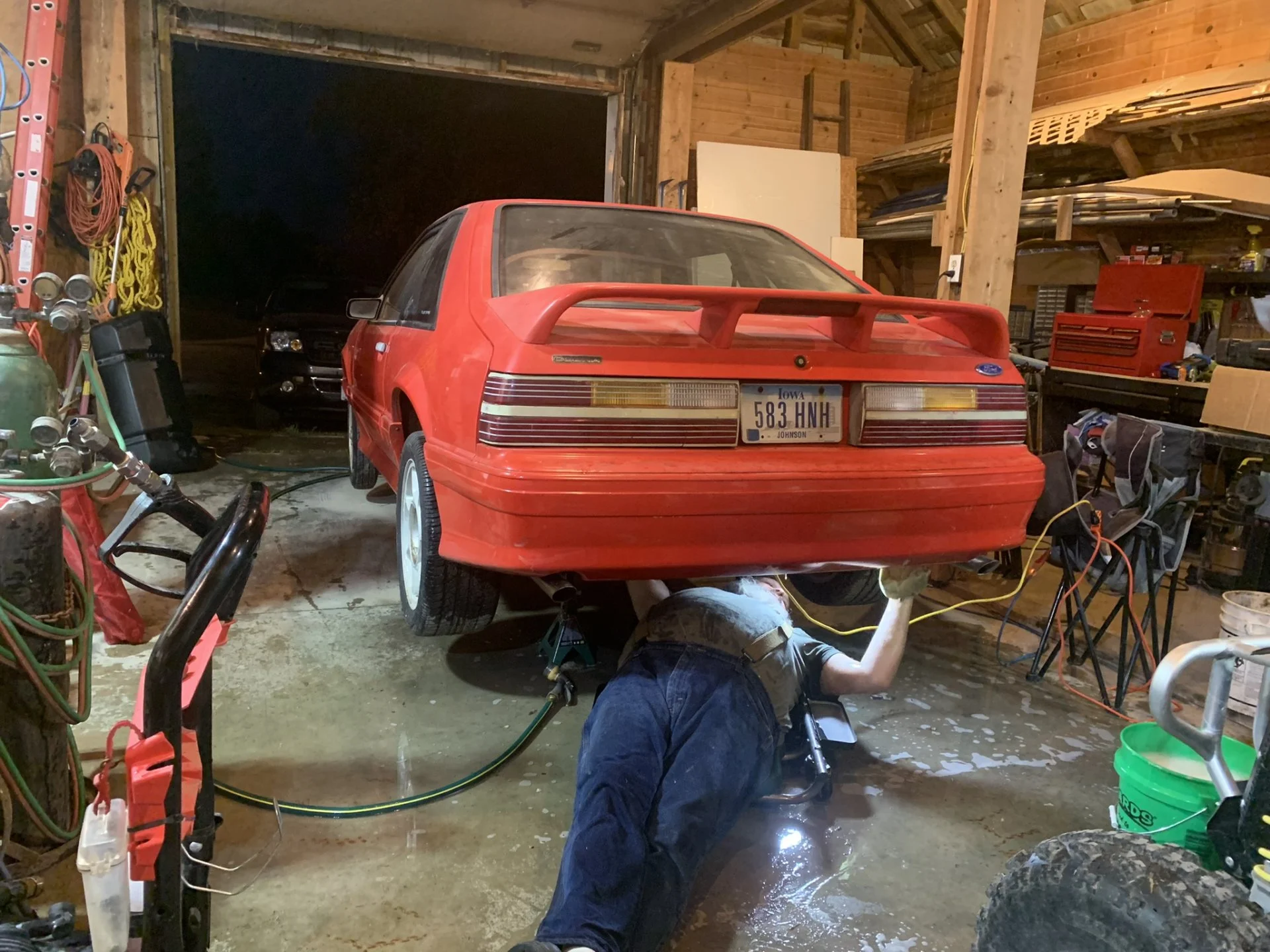

This morning we got the car on jack stands and dropped the gas tank. We also found a broken sway bar link so that has been added to the list. It came out pretty easily, spilled a little gas but some kitty litter took care of that. The gas left in the tank was NASTY and bright orange, lol. As expected the tank and everything is rusted and I’ll be ordering a new tank kit that I’ll post about later.


The under side of the car looks pretty good but I’m going to spray off the under side of it.

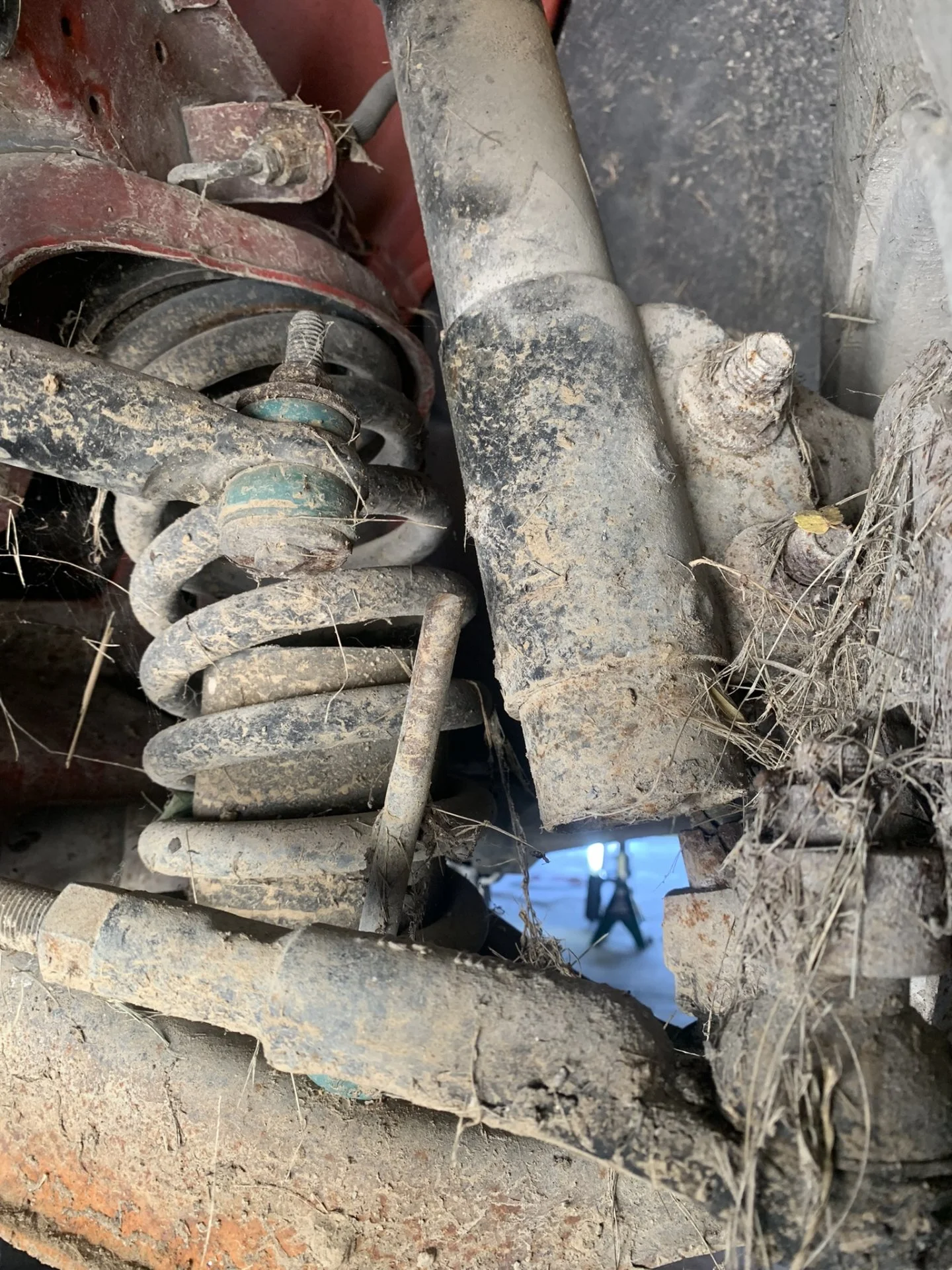

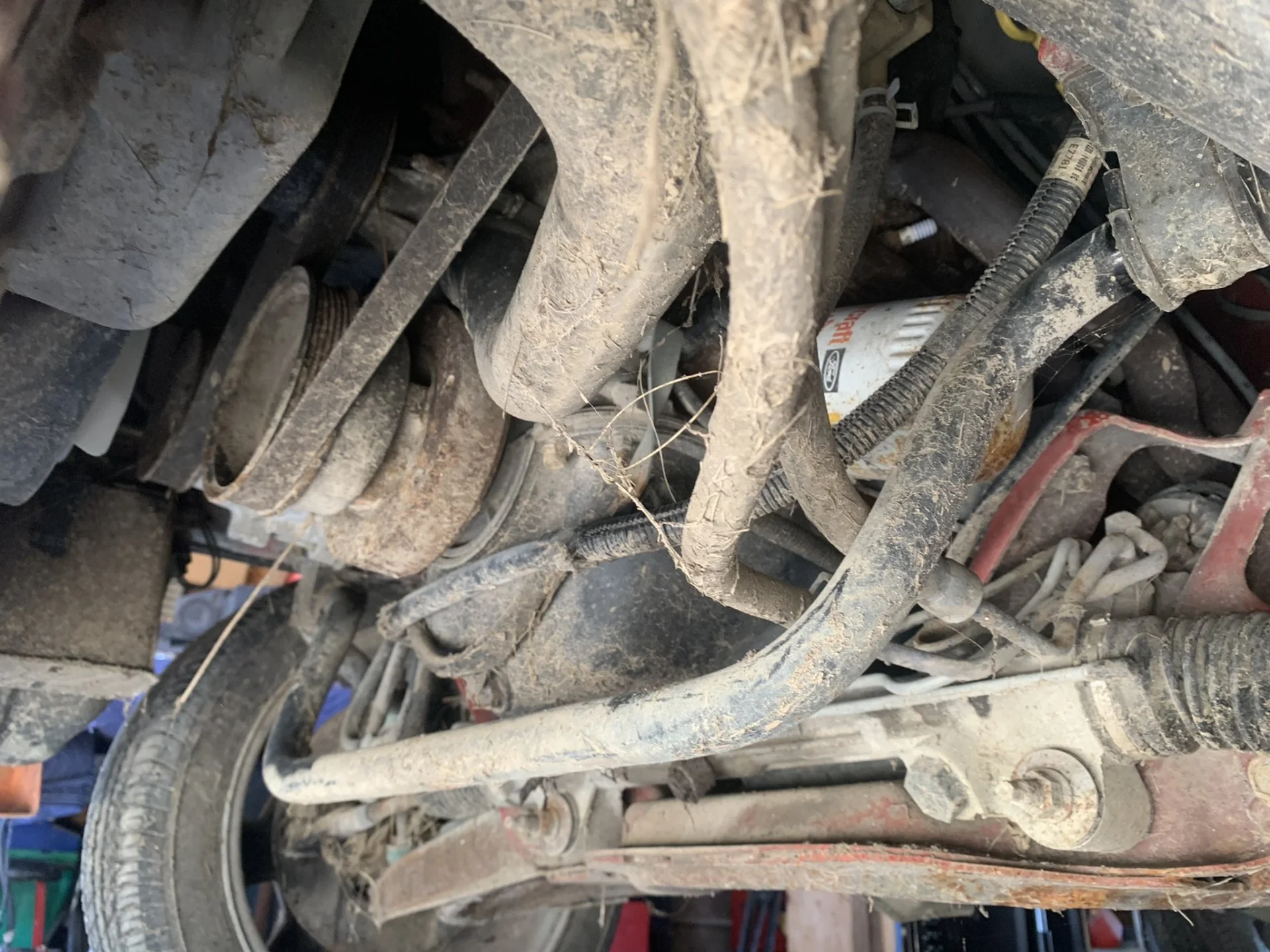

Here’s the broken sway bar link

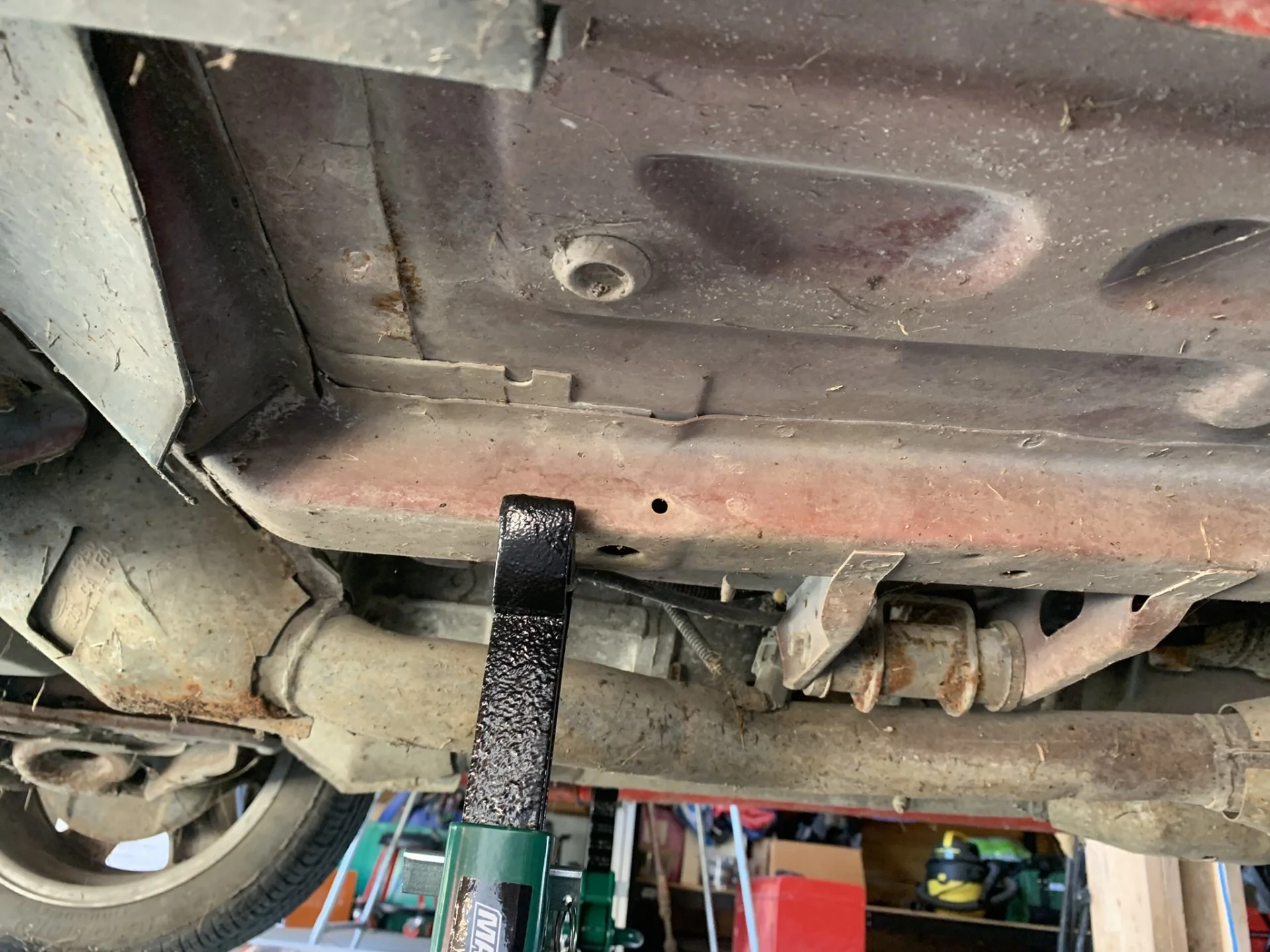

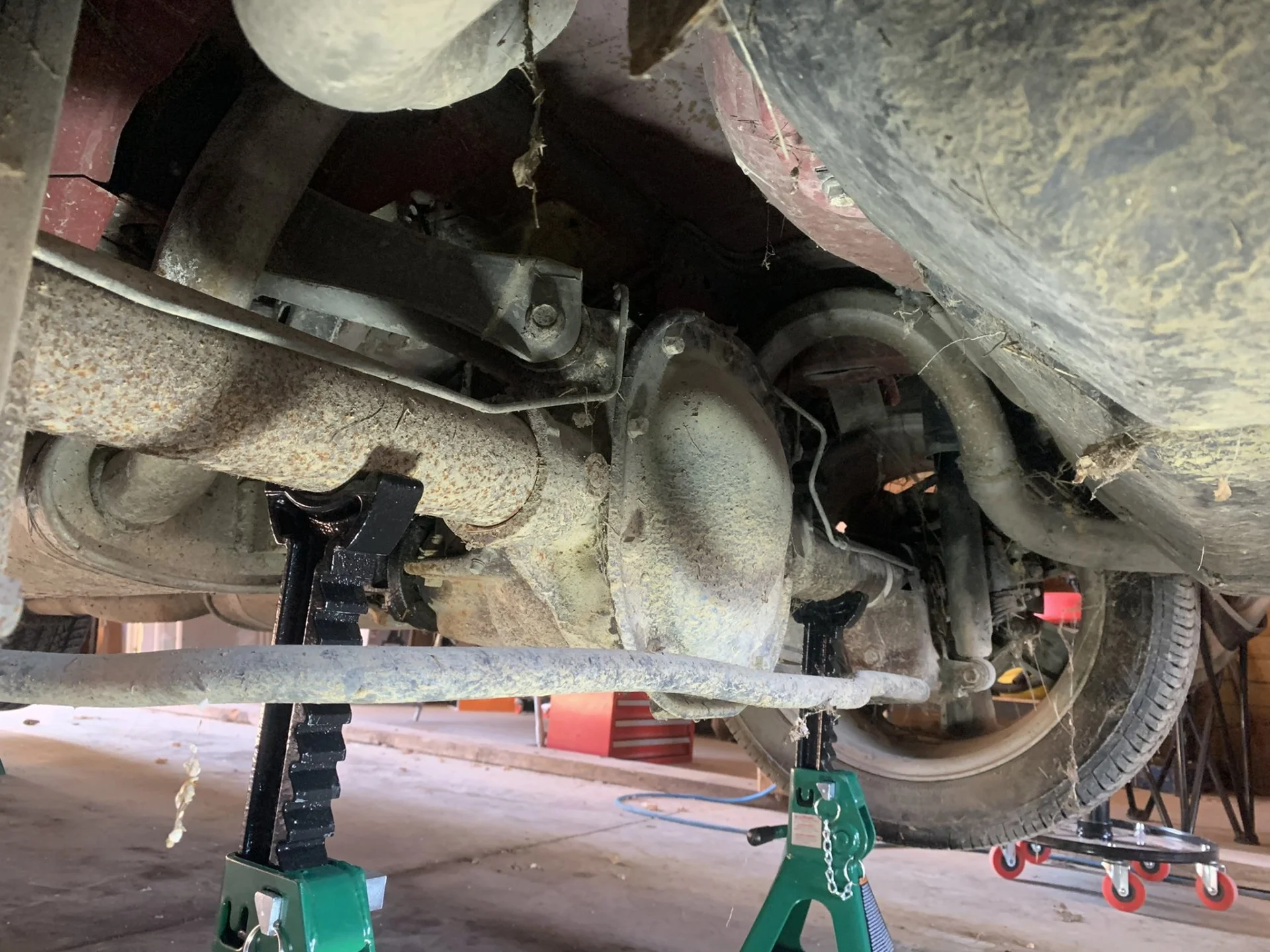

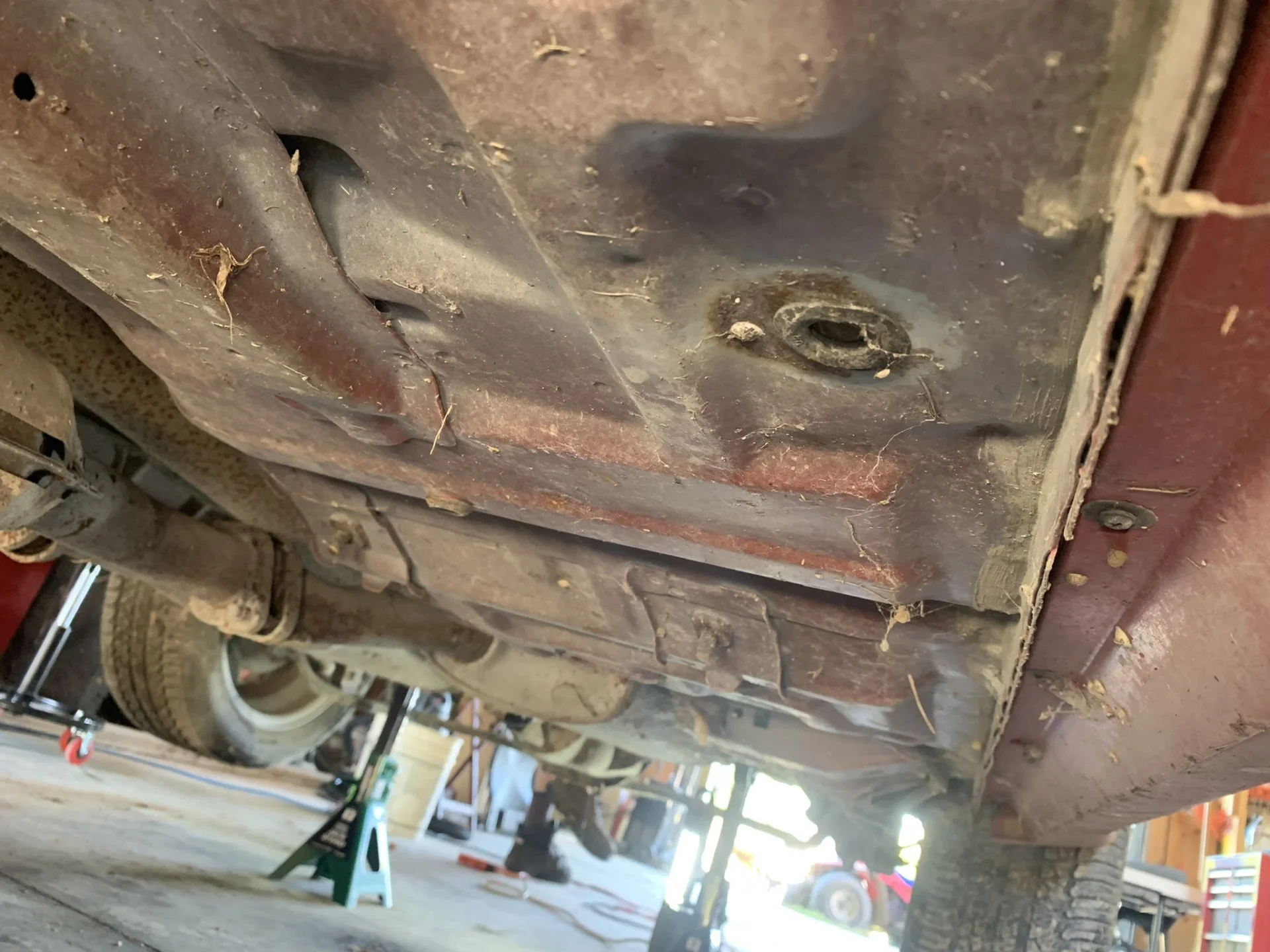

A look underneath the car

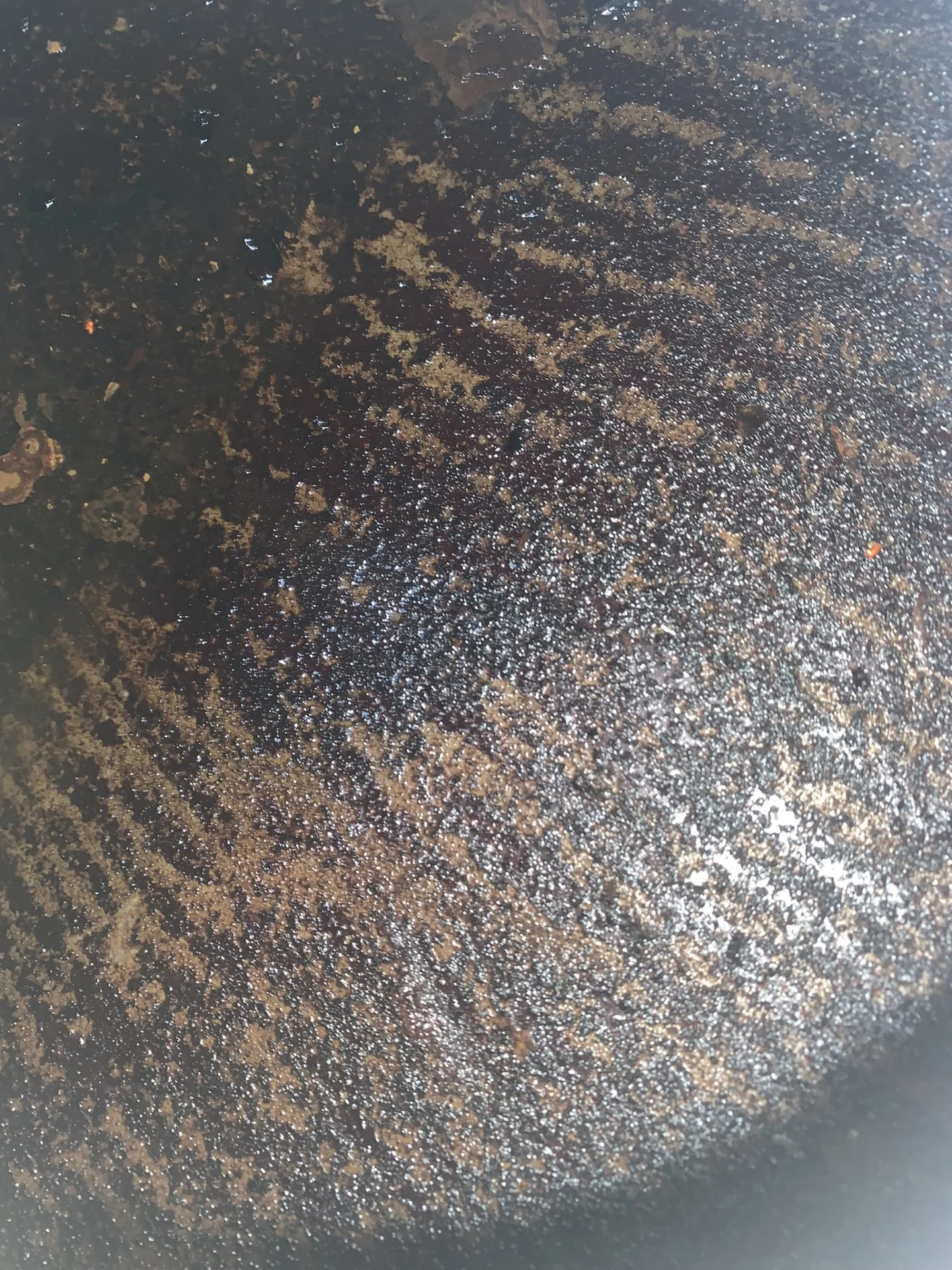

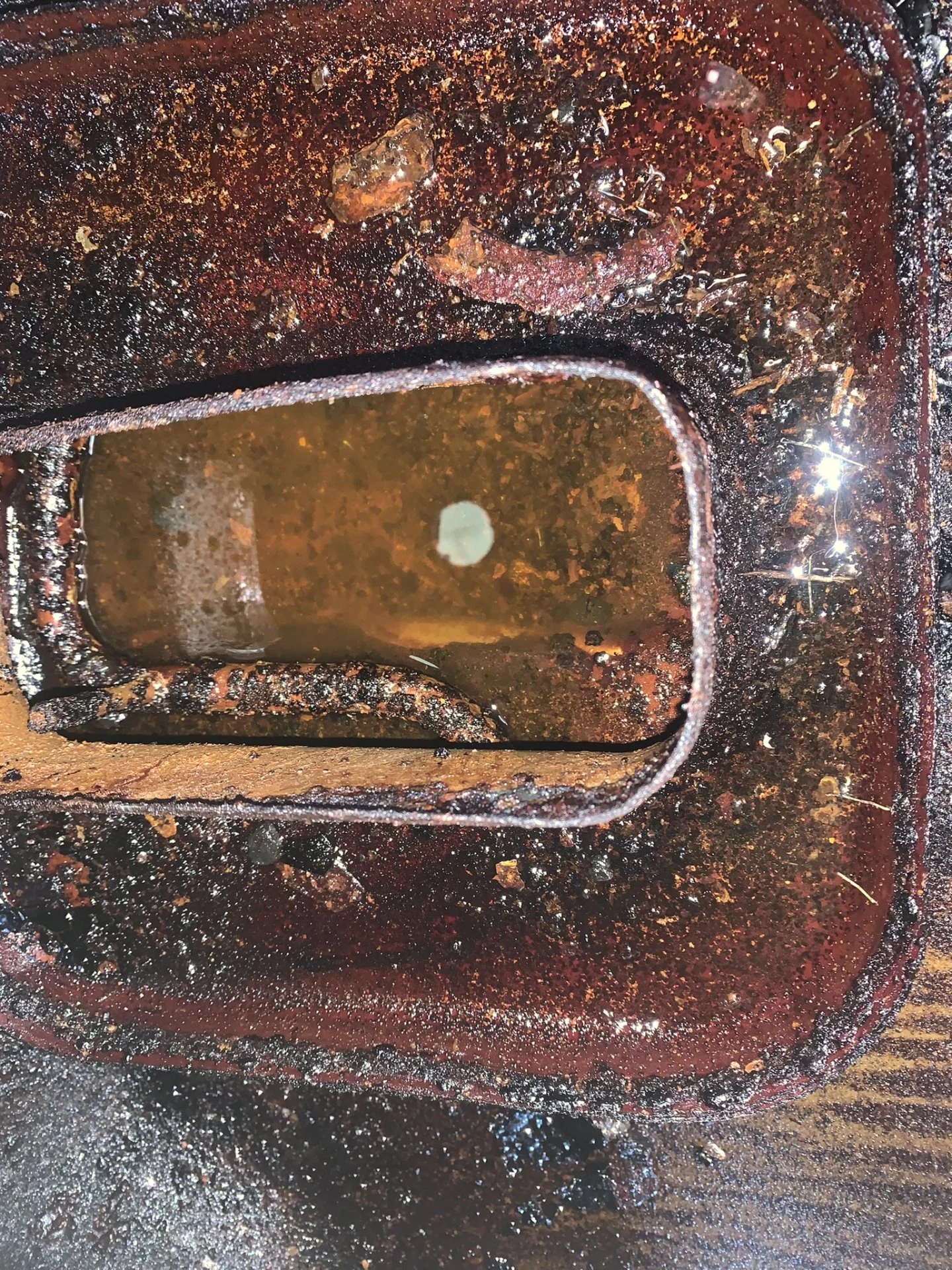

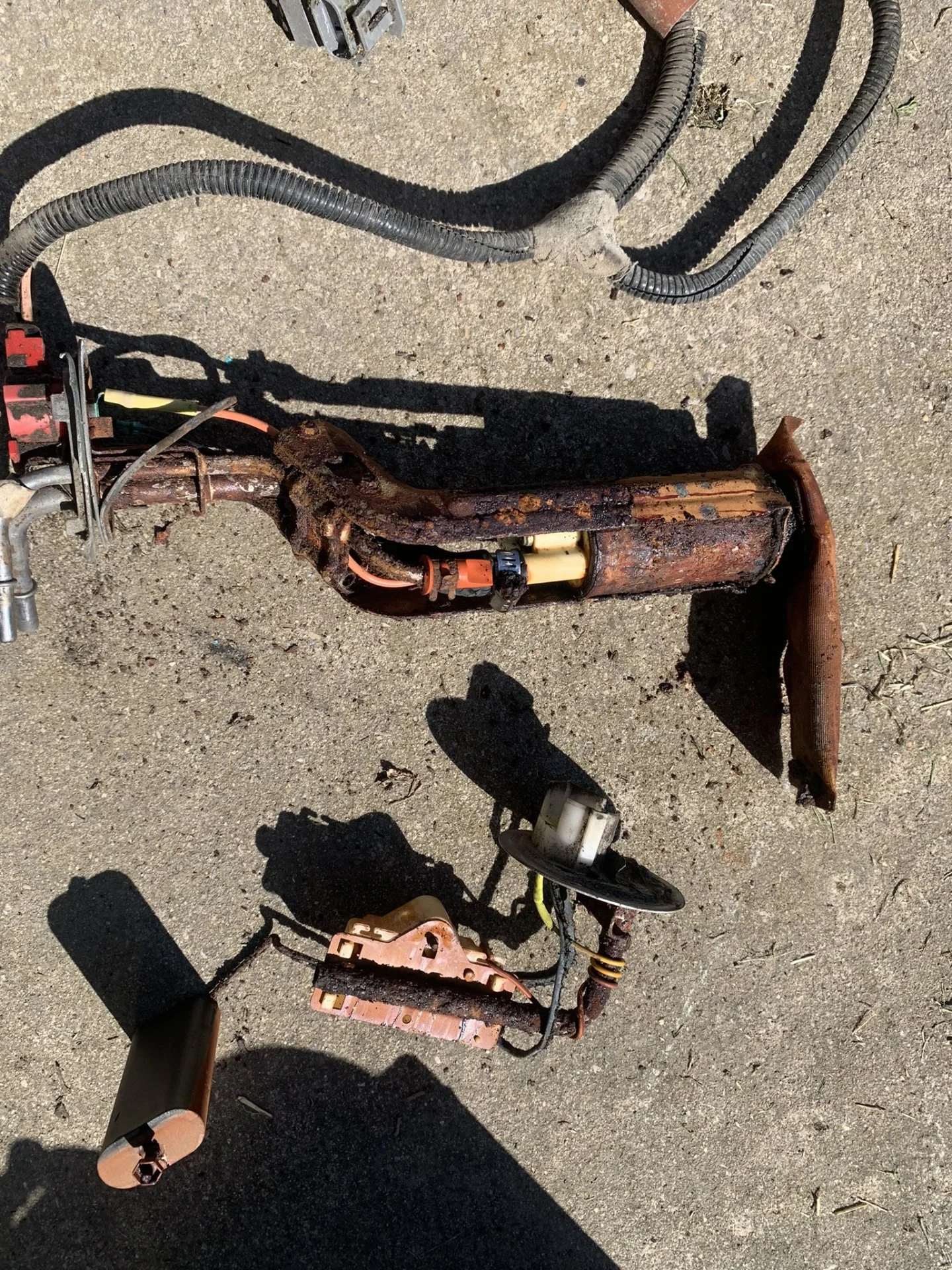

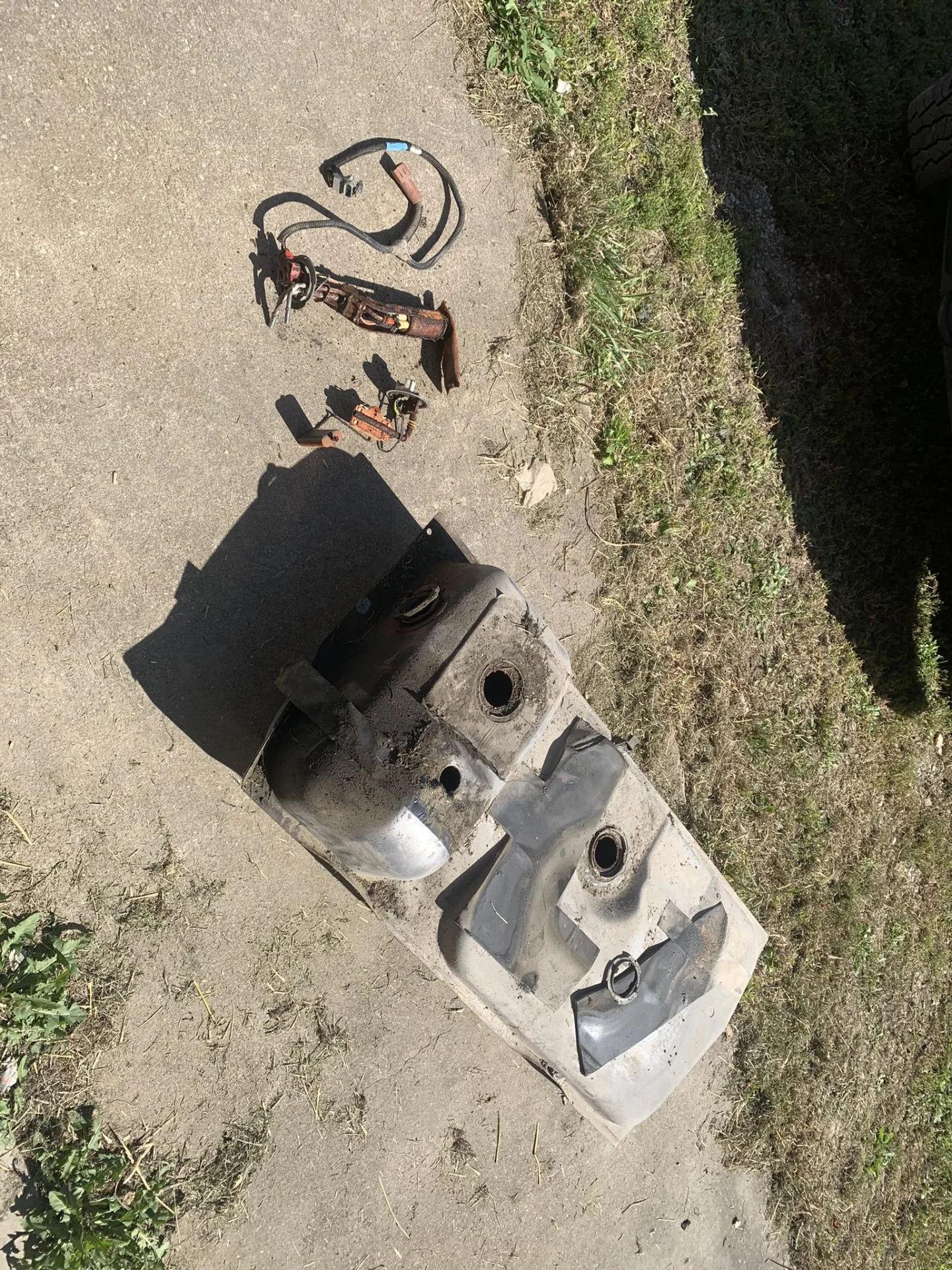

Here’s a look at and in the gas tank.





More to come....

  • Surprised
  • Like
Reactions: 1 users

93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa
CJ Pony Parts seems to have a good deal on a gas tank kit looks like it has everything except a new vapor valve and the foam that goes on the top of the tank.


I think I’ll get a new vapor valve just because and I’m trying to think of any other things I need to take advantage of the 6% first order discount.

Someone mentioned o rings for the fuel injectors so I’ll put that on the list along with some other odds and ends I think of.


rednotch

Founding Member
Aug 14, 2000
518
214
73
south jersey
You can get the same parts for less then $300 if you shop around, I spent around $180 the last time i I replaced a tank on one but used a cheap kemso pump...

walboro is about $60 more give or take... You can get a new tank for less then $ 100 with taxes and shipping these days, sending unit for 30 ish, filler neck gasket $10.... Amazon has most of the Dorman line marked down pretty cheap right now

  • Like
Reactions: 2 users

93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa
I may not have the lug nut key but I do have the envelope it came in. In that envelope was the paper with all the numbers I needed. I called them up this morning and they are sending me a new key!
One problem solved!

  • Like
Reactions: 2 users

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,740
15,519
224
Massachusetts
You can get the same parts for less then $300 if you shop around, I spent around $180 the last time i I replaced a tank on one but used a cheap kemso pump...

walboro is about $60 more give or take... You can get a new tank for less then $ 100 with taxes and shipping these days, sending unit for 30 ish, filler neck gasket $10.... Amazon has most of the Dorman line marked down pretty cheap right now


Agree.

Spectra Premium tank
Walbro pump
Ford Fuel filler grommet
Spectra hanger

A 255 pump is kinda large for a stock-style fuel system. Do you need that much flow? A 155lph is plenty adequate for most N/A builds.

There are draw backs to running too big of a pump. The return leg/regulator need to be able to pass enough fuel to not impose a restriction that could lead to inconsistencies in the fuel delivery. For example. when running at idle, your return line may be too small for a 255 causing a slight pressure buildup. You adjust the pressure using the Adjustable FPR to allow for more flow through it, but what you are really doing is adjusting flow based on the downstream restriction combined with the FPR setting. At WOT, your engine is now consuming more fuel that previous, so that restriction is gone and your FP will decrease slightly from your set point.

Because of this I tend to recommend sizing the fuel pump based on your needs to give better consistency in pressure. Every combo will be different however.

Stock or bolt on 93 Cobra? 110LPH or 155 is more than enough.

  • Useful
  • Like
Reactions: 1 users

93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa

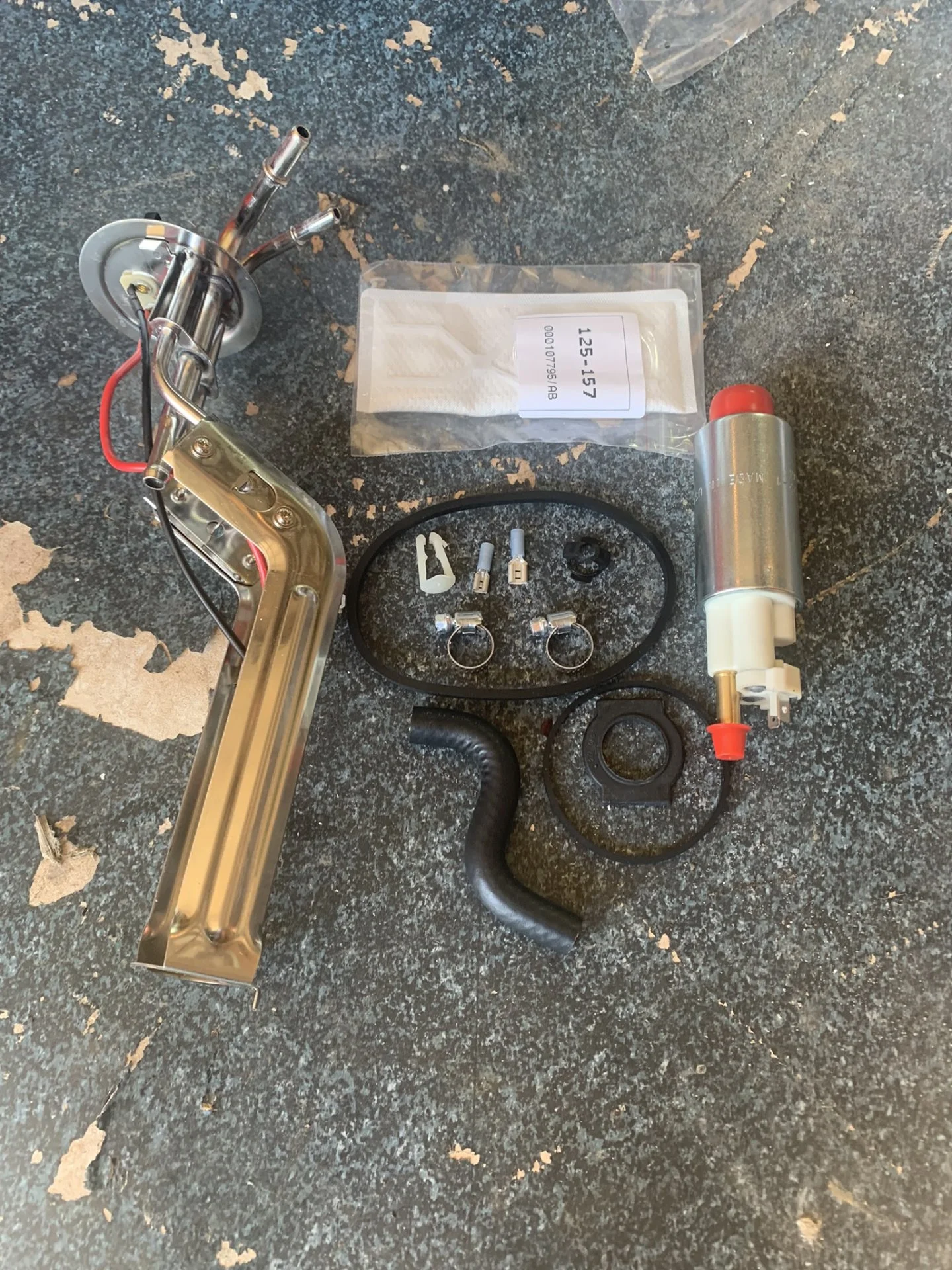

Thanks for the advice, I got a 155 lph pump and all the rest ordered. Hopefully everything gets here by the weekend.

While the gas tank was out I took a bucket of soapy water, a sponge and a hose to clean the tank shield and the area where the tank is. I got wet and messy but it’ll be nice when putting it back together.


Last edited:
  • Like
Reactions: 3 users

93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa

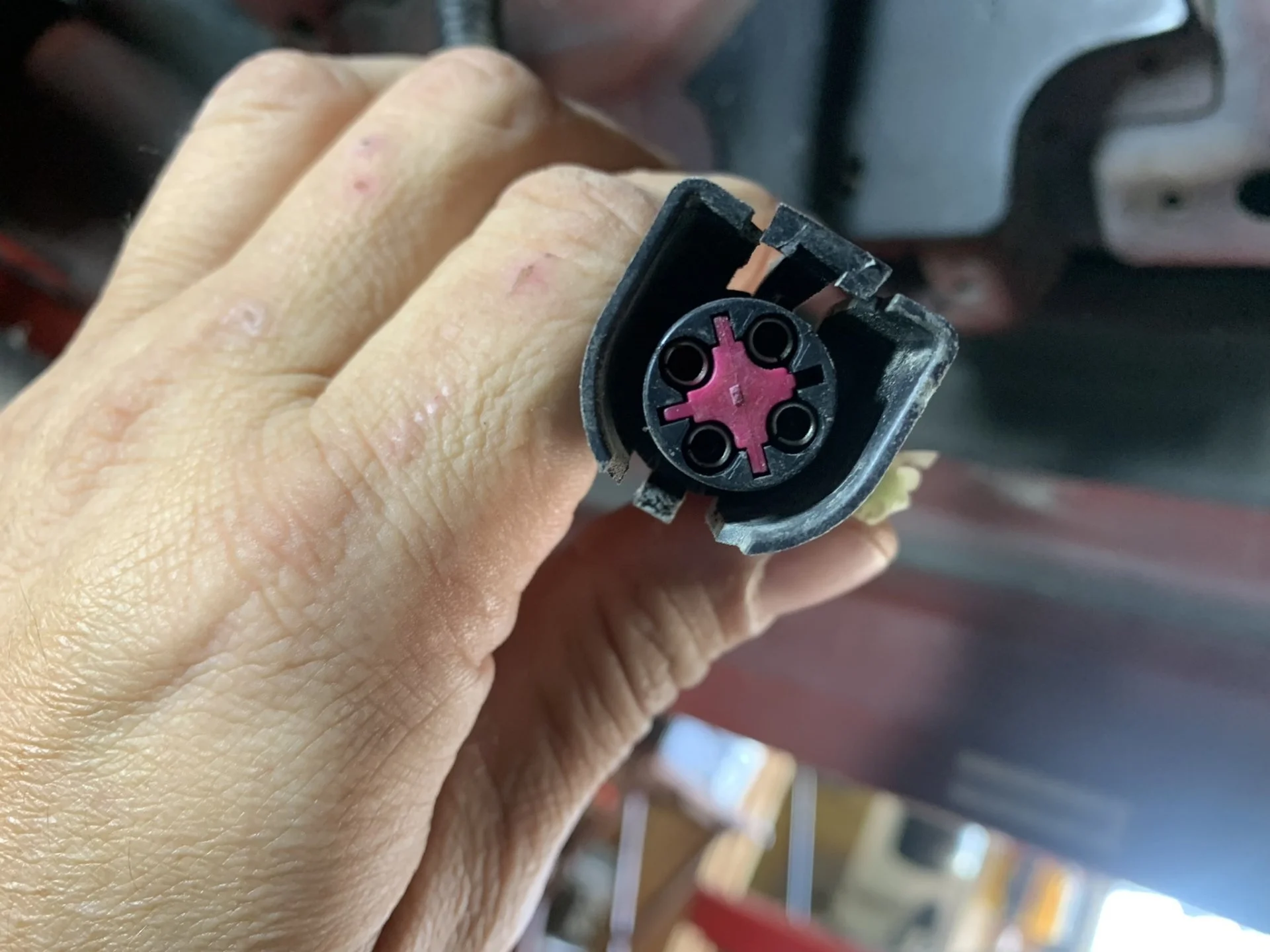

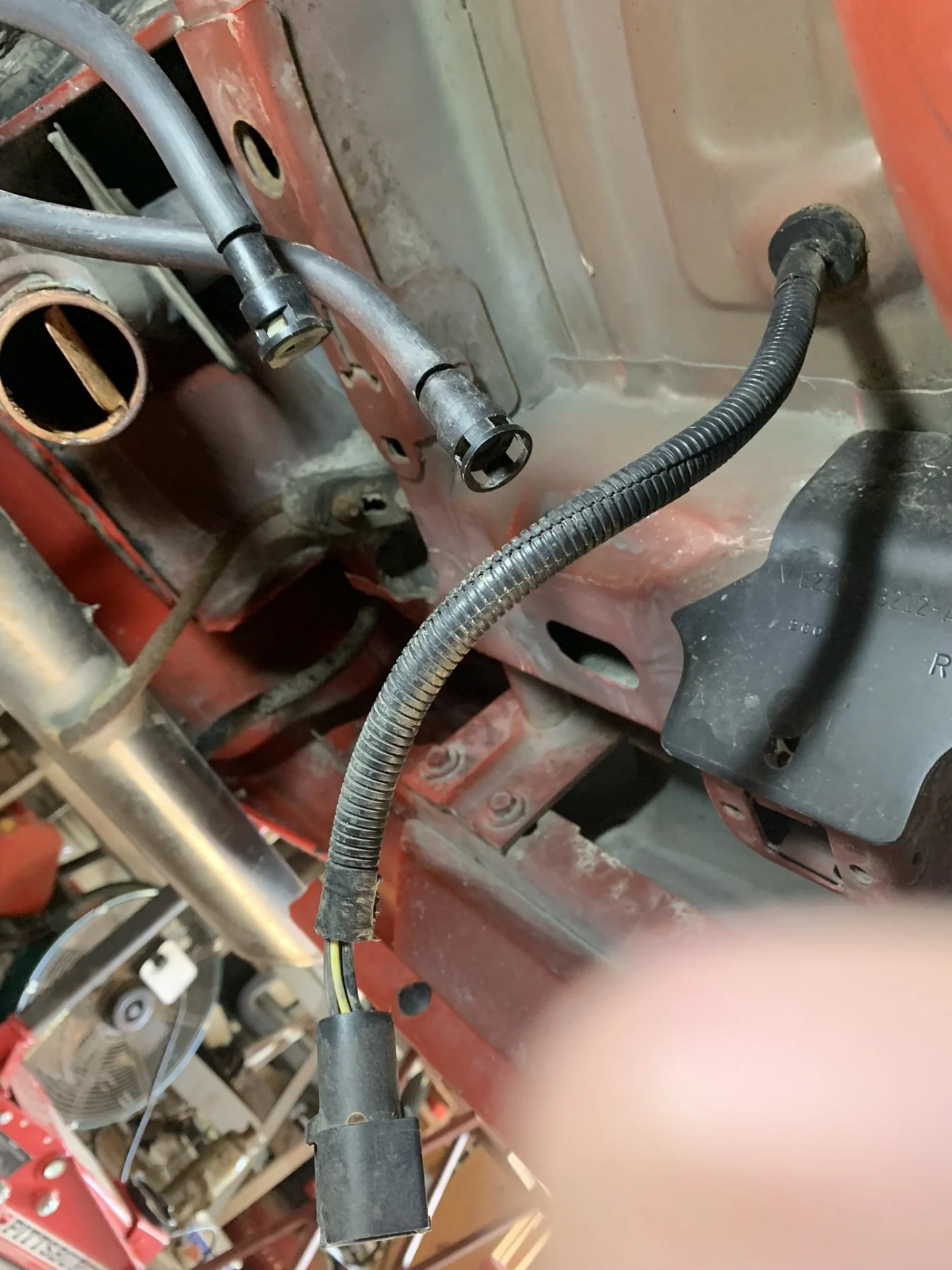

Looking things over tonight I realized we must have broke one of the clips on the plug that comes from inside the car. Looks like it comes from the crash switch/reset inside the car goes through the floor and connects to the fuel tank harness. I don’t real want to use the old zip tie solution and was wondering I can get a pigtail for that and replace the plug.



93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa
Also I’m wondering about the insulation tape on the top of the tank. I was thinking about just using some stuff we use at work it’s probably 3/16” or so. Or do I need something a little,thicker. I’m assuming it purpose is so there’s no metal to metal contact with the car and the tank


93FoMoCo

Active Member
Aug 9, 2020
41
34
28
Iowa

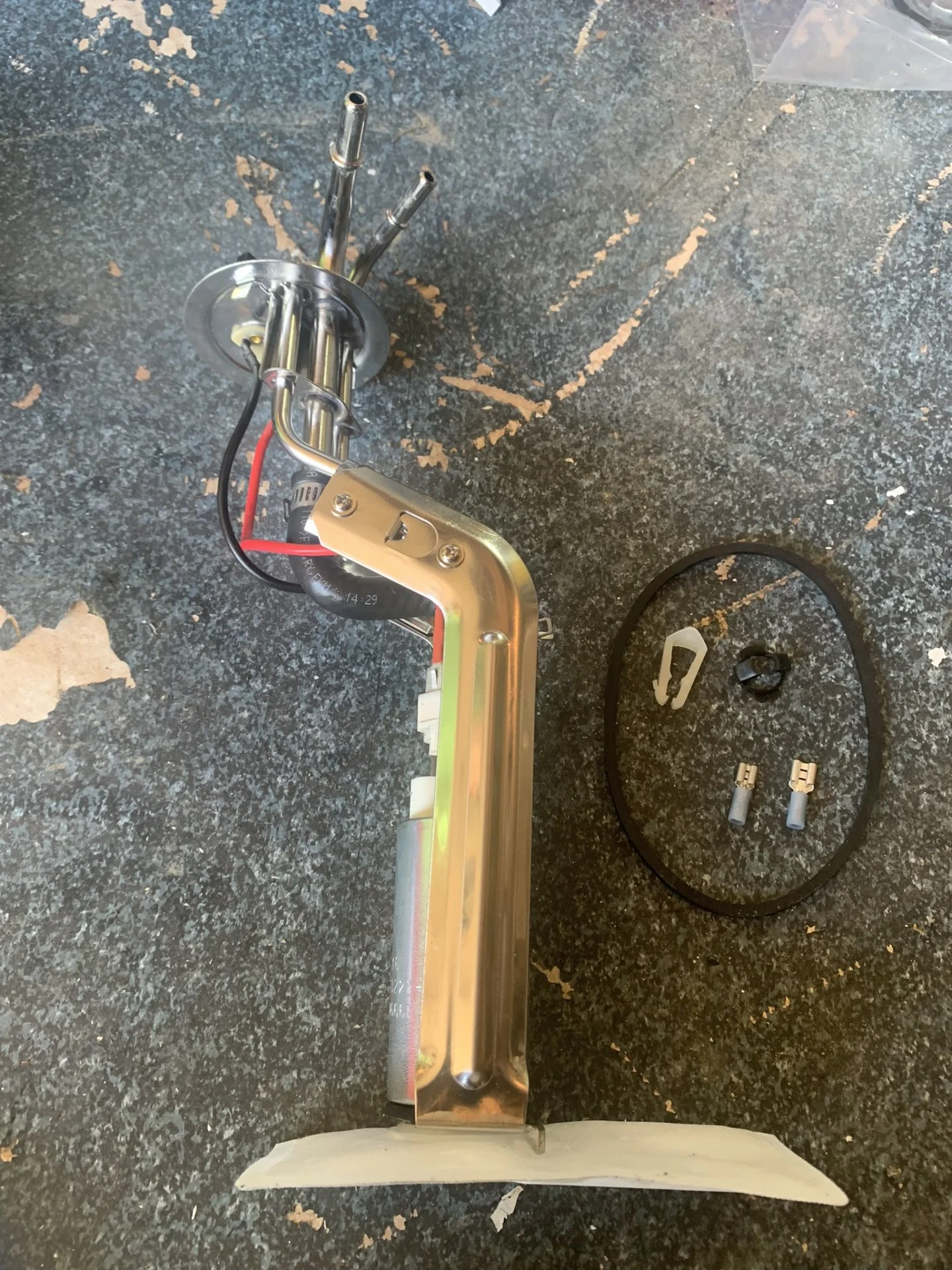

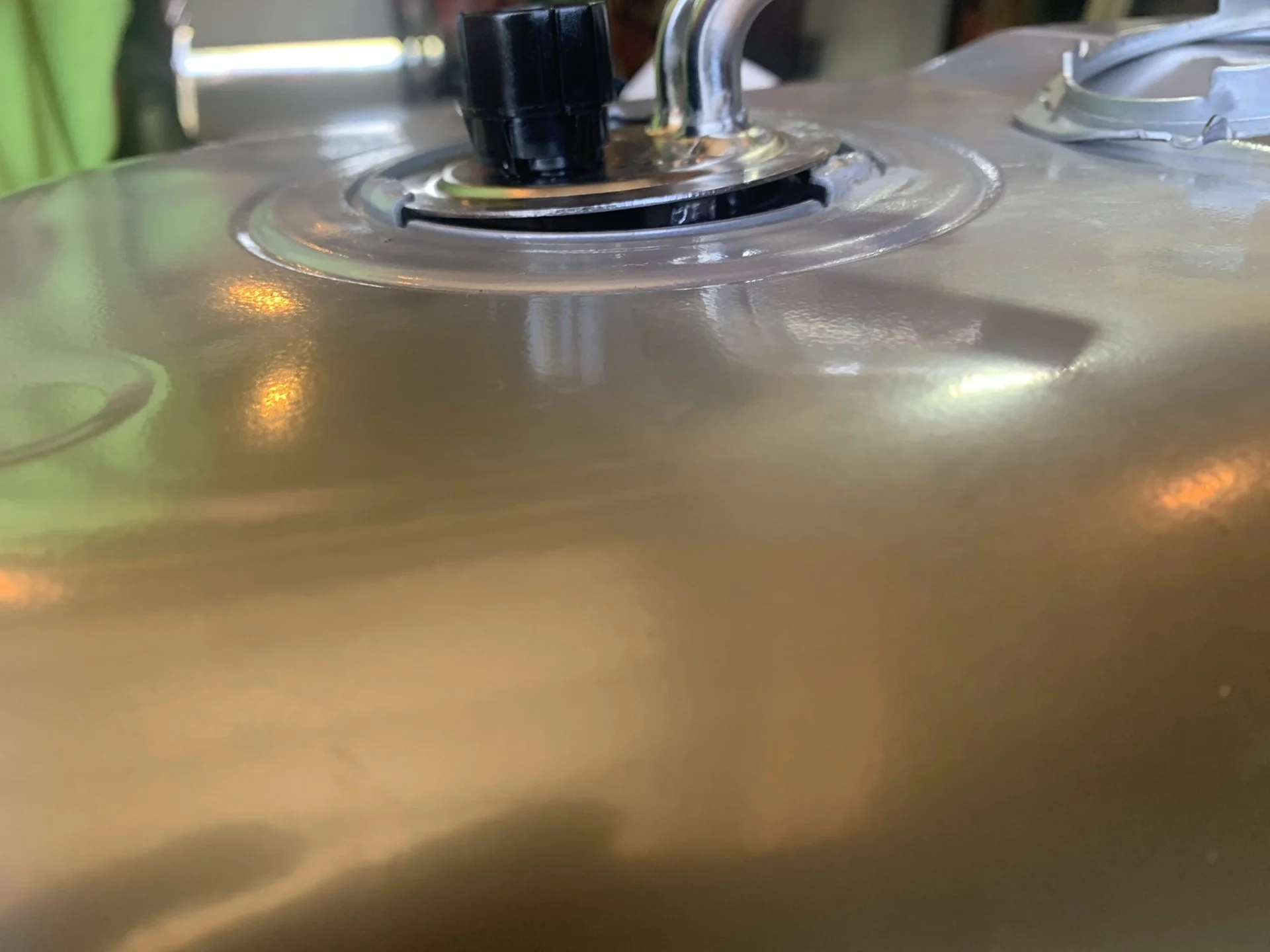

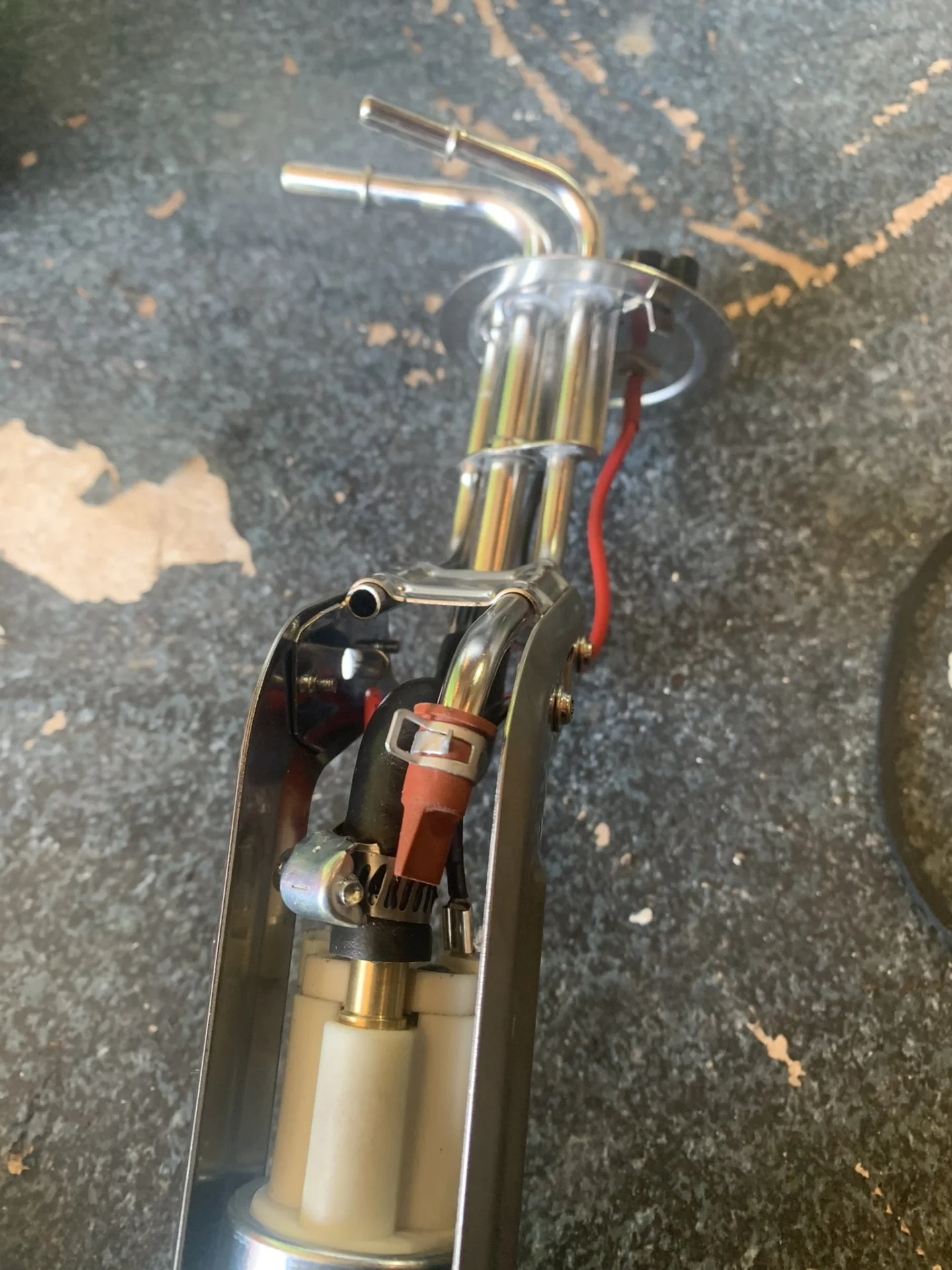

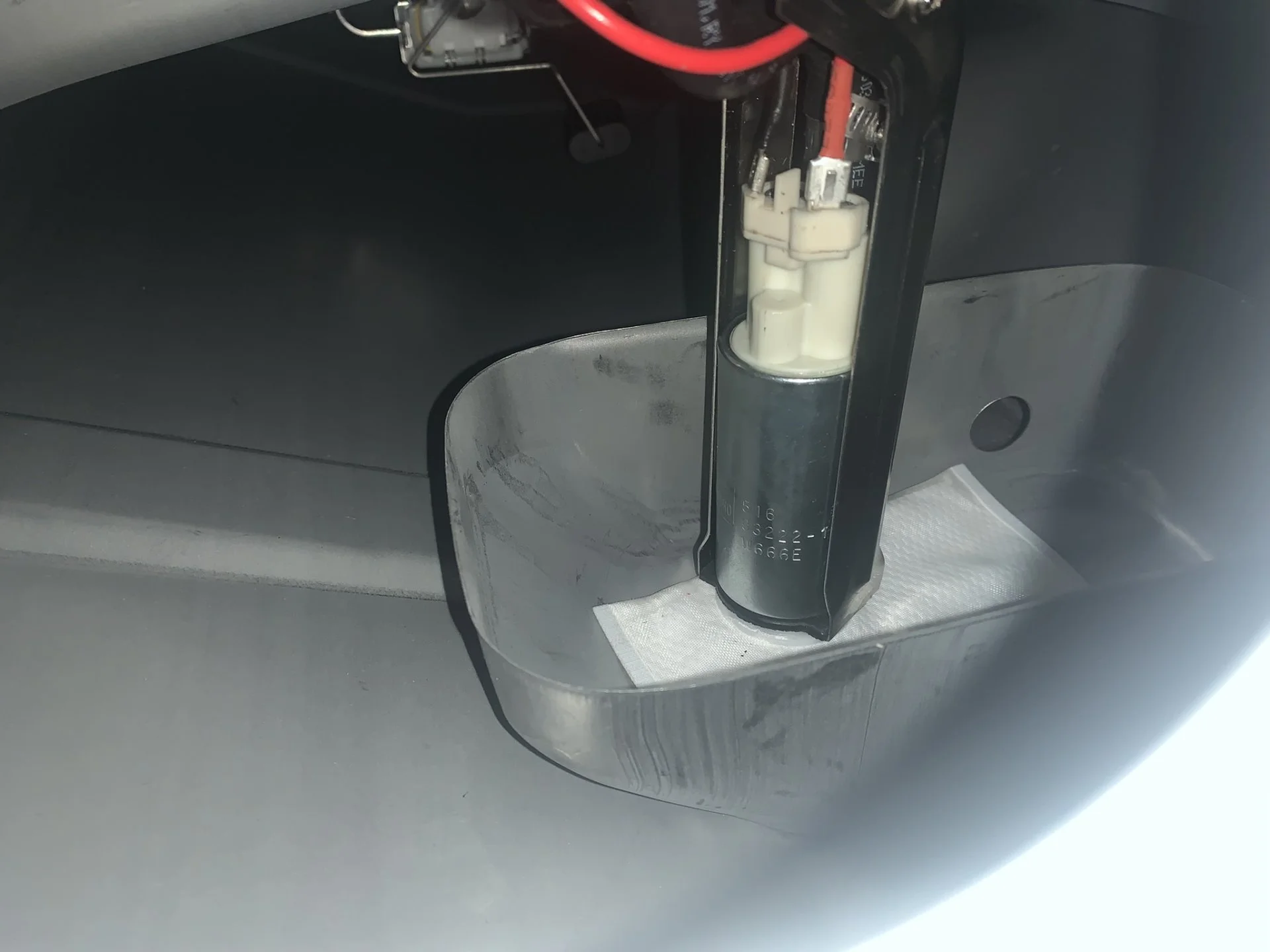

So I ran into a problem. If I test fit the fuel pump hanger without the fuel pump in it, it seats on the fuel tank. When I have the pump installed with the sock on and oriented the correct way it won’t seat. It seems like the whole assembly is to long. Any idea on what I’m doing wrong?



Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,740
15,519
224
Massachusetts
Where is the hanger hanging up? Is the botton of the tank dented up a bit? You can use a sturdy peice of wood to knock that part of the tank down a tad. I've also seen the baffle spot welded slightly off which causes some interference


AeroCoupe

Founding Member
Oct 28, 2001
549
236
73
Jenks, OK
Hanger may just be off a little. If massaging the bottom of the tank downward doesn't fix the issue then I would remove the four screws holding the lower section of the pump bracket to the upper section of the pump bracket, remove the tabs that are bent inwards, drill four new holes on the lower section that are high enough to get the hanger to seat in the tank, reassemble, and call it a day.

Last edited:
